Vibe3DScene: Vibe Creating Your Own 3D Scene With Words Anywhere

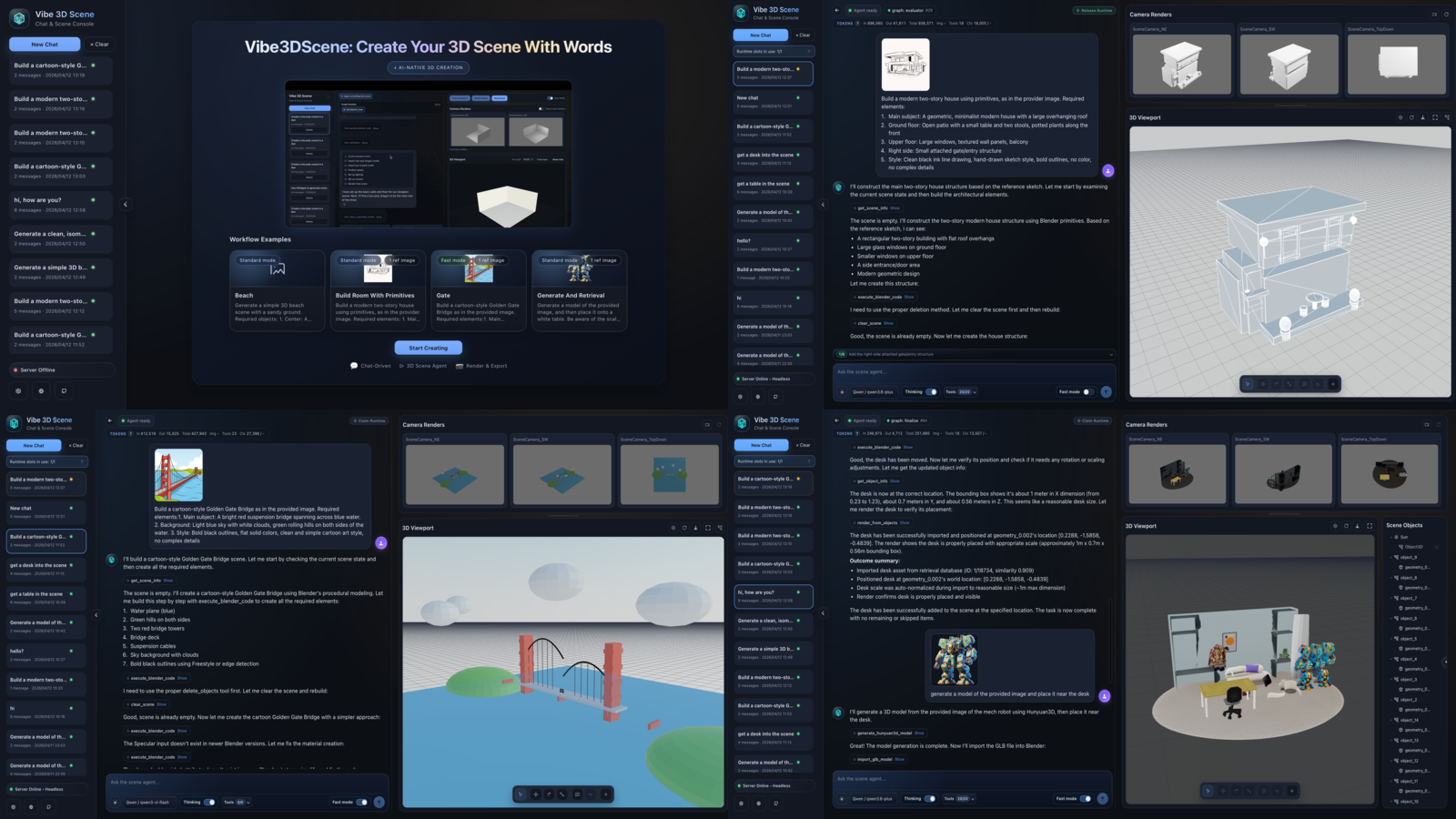

Teaser

1. Overview
2. Quickstart
3. Repository Structure
4. Documentation Map
5. Acknowledgements
License
Contributing

1. Overview

Video Demo

Demo

Introduction

Vibe3DScene is a Blender-connected 3D scene agent built around a modular LangGraph runtime, MCP tools, and web/API/CLI interfaces.

From the workflow perspective, the project now uses a router-driven agentic runtime that can choose between direct_mode and plan_mode, manage todos explicitly, run in fast_mode when full verification is unnecessary, and optionally switch into an experimental dual-agent topology.
From the systems perspective, the backend can run Blender in headless mode behind an API or pair with a local Blender client. Redis-backed ownership, checkpointing, and persisted session state support single-worker and multi-worker deployments.
From the tooling perspective, the MCP layer unifies scene control, rendering, retrieval, reconstruction, and 3D generation tools, while external tool servers are decoupled into the sibling 3DAgentTools stack.

High-Level Runtime

flowchart LR
    U[Web UI / CLI / Blender client] --> API[FastAPI]
    API --> ROUTER[Request router and LangGraph runtime]
    ROUTER --> MCP[MCP tools]
    MCP --> BLENDER[Blender addon socket or headless session]
    MCP --> TOOLS[External tool services]
    BLENDER --> OUT[Scene / Render / Assets]
    TOOLS --> OUT

For the exact runtime graph and deployment topologies, see:

2. Quickstart

2.1 Prerequisites

Python 3.11+
Blender 3.6+
Node.js 18+ for the frontend
Redis for recommended persistence and multi-worker coordination
Docker if you want to run external tool services in containers

2.2 Install

git clone --recurse-submodules https://github.com/3DSceneAgent/Vibe3DScene
cd Vibe3DScene

python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt

cp .env.example .env
# fill in provider keys and runtime configuration

If you also want the optional external tool stack:

git clone --recurse-submodules https://github.com/3DSceneAgent/3DAgentTools ../3DAgentTools

2.3 Common Run Modes

Goal	Command
Run API in headless mode	`./scripts/run_headless.sh`
Run API for a local Blender client	`./scripts/run_local_client.sh`
Run API manually	`python main.py --mode api --port 8000`
Run CLI	`python main.py --mode cli`
Run frontend dev server	`cd web && npm install && npm run dev`
Run tests	`pytest`

After the backend starts, open the web app and point it at http://localhost:8000.

If you want single-agent verify to add internal geometry penetration checks on top of the existing VLM visual check, enable:

SCENE_AGENT_ENABLE_PENETRATION_VERIFY=true
optional tuning via SCENE_AGENT_PENETRATION_THRESHOLD_M (default 0.02), SCENE_AGENT_PENETRATION_MAX_CANDIDATE_PAIRS, and SCENE_AGENT_PENETRATION_MAX_REPORTED_PAIRS

2.4 Setup References

Installation, runtime modes, single-worker and multi-worker startup: Startup and Deployment Guide
Tool servers and external services: Tool Servers
MCP server, tool categories, and gating: MCP Server and Tools
Environment variables and provider configuration: Configuration Reference
Major project version updates: CHANGELOG
Near-term priorities and known issues: Roadmap
Design discussion versus blender-mcp + cc: How This Differs from blender-mcp + cc

3. Repository Structure

scene_agent/     Core runtime: graph, sessions, memory, providers, API/CLI
mcp_server/      MCP server runtime, tool gating, and tool registry
web/             React + TypeScript frontend (Vite)
addon/           Blender addon code and packaging for headless runtime support
tests/           Unit, integration, contract, and manual test suites
scripts/         Local helpers, smoke tests, validation, and cleanup tools
../3DAgentTools/ Optional sibling checkout for external tool services

4. Documentation Map

Runtime Workflow
- Exact runtime graph, state flow, direct_mode vs plan_mode, single-agent vs dual-agent, evaluator behavior, image routing, and persistence touchpoints.
System Architecture
- High-level layers, single-worker vs multi-worker deployment, owner-proxy behavior, Redis coordination, and persisted sessions.
Startup and Deployment Guide
- Local setup, macOS/Linux prerequisites, single-worker and multi-worker startup flows, and Docker entry points.
MCP Server and Tools
- MCP server role, tool categories, runtime gating, mode constraints, and optional external services.
Tool Servers
- External 3DAgentTools stack, expected services, startup options, and host/port coordination.
Configuration Reference
- Provider, API, session, persistence, tool, and frontend-related environment variables.
Roadmap
- Near-term workflow improvements, product expansion directions, local-client priorities, and currently known UI/runtime issues.
How This Differs from blender-mcp + claude code
- Design differences in agent orchestration, headless execution, multimodal tooling, and web-side editing support.
CHANGELOG
- Date-based summary of major updates.
