The Vault

The Vault is a local-first memory operating system for AI-assisted work. It gives coding agents and human operators a durable project memory layer: decisions, handoffs, implementation summaries, task results, project relationships, and recallable context survive across sessions instead of being lost in chat history.

It ships as a TypeScript workspace with a shared core engine, command-line interface, MCP server, and Electron desktop console. Windows releases also bundle their own vault-memory MCP runtime, so installed users can connect Codex, Claude Desktop, or Claude Code without keeping the source repo on disk.

The Vault also includes an optional Graphify extension. When enabled for a project, Vault manages the Graphify runtime and artifacts, embeds Graphify's generated project graph in the desktop app, and exposes graph-aware MCP tools so agents can ask structural questions before reading large parts of a repository.

The Vault also includes an optional Vault Collab extension: a live, provider-neutral multi-agent collaboration layer with sessions, roles, handoff inboxes, and append-only discussions over its own separate local SQLite store (the memory engine only reads it). Agents coordinate by pulling their own inbox via a receive work-loop, and new agents are launched only with explicit permission (a user-approved copy-command), never silently spawned. It is surfaced in the desktop "Vault Collab" operator cockpit.

The 60-Second Version

• AI agents forget between sessions, even when the project has a long history.
• The Vault stores project memory outside the model, on your machine.
• Agents ask the Vault MCP server for relevant context instead of reading the whole memory store.
• Graphify can add a local project graph so agents can narrow file reads through graph queries, paths, neighbors, and impact checks.
• Work can continue later from Codex, Claude Desktop, Claude Code, or another MCP client.
• Vault does not launch local Codex or Claude terminal agents; those clients stay external and connect through MCP.
• You stay in control because memory is local, inspectable, and important cleanup changes are reviewable.

How It Feels To Use

Without The Vault	With The Vault
Start a new AI session.	Start a new AI session.
Re-explain the project state.	The agent recalls the current project state.
Rediscover decisions and old bug causes.	The agent sees recent decisions, files touched, and next steps.
Repeat handoff work manually.	The agent saves a new handoff for the next session.

The result is not magic memory. It is a practical continuity layer: the important project facts are saved, ranked, reviewed, and reused when they are relevant.

Visual Overview

System Topology

Codex / Claude / Agent
        |
        v
Vault MCP Server
        |
        v
Vault Core
        |
        +--> Memory Store
        +--> Task Executor
        +--> Desktop Console

Cross-Agent Continuity

Codex implements change
        |
        v
Vault saves files touched, intent, decisions, next steps
        |
        v
Claude recalls context later
        |
        v
Claude reviews, debugs, or continues the work

Recall Funnel

Stored memories
        |
        v
Candidate search
        |
        v
Ranking and pruning
        |
        v
Recall pack
        |
        v
Injected into agent context

Project Hygiene

Naming drift / duplicate projects
        |
        v
Vault detects related records
        |
        v
Proposal generated
        |
        v
Human review
        |
        v
Canonical project memory

Why It Exists

AI coding sessions are productive but forgetful. The next agent often has to rediscover architecture decisions, bug causes, deployment notes, naming decisions, and unfinished work. The Vault turns that context into structured local memory that can be saved, ranked, recalled, curated, and reused by multiple clients.

The goal is not to replace a repo, issue tracker, or documentation site. The Vault fills the space between them: high-signal operational memory for ongoing work.

Who This Is For

• Developers using Codex, Claude Code, Claude Desktop, or other MCP-aware tools.
• People juggling multiple projects where decisions and handoffs get scattered.
• AI-assisted workflows that need continuity across sessions and agents.
• Local-first users who do not want memory locked inside one chat product.
• Small teams that want durable implementation context without adopting a heavy knowledge system.

Real-World Scenarios

Resume a project after days or weeks

Ask an agent to recall the project before it starts work. The Vault can surface the current phase, latest decisions, open issues, files touched, and saved next steps so the session starts from the real project state.

Switch between Codex and Claude

One agent can implement a change and save the handoff. Later, another client can recall the same project context through MCP and continue from the saved intent, decisions, and file references.

Debug with historical context

Before debugging, an agent can recall recent changes, related bug notes, prior fixes, and implementation files. That reduces time spent rediscovering what changed and why.

Keep project identity clean

Long-running AI work can create naming drift: old project names, duplicate records, or inconsistent casing. The Vault tracks canonical project decisions, detects related records, and supports reviewable merge workflows.

Use Vault while juggling multiple projects

Inactive projects stay warm. When you return, their decisions, handoffs, and next steps are still available without keeping every detail in your head or in a single chat thread.

Use Cases

• Continue feature work across Codex, Claude, and desktop sessions without re-explaining the project.
• Save implementation handoffs with exact files touched, decisions made, and next steps.
• Record canonical project decisions such as naming, architecture, release strategy, and integration rules.
• Recall relevant prior context before debugging or changing a feature.
• Maintain project identity when names drift or duplicate project records appear.
• Keep local task results, summaries, and delegated research attached to the right project.
• Inspect and curate memory through a desktop dashboard instead of raw files.
• Connect MCP clients to one shared local memory source.

What Makes It Different

The Vault is not:

• a chat history archive
• a generic notes app
• a replacement for GitHub issues or documentation
• memory locked inside one model provider
• a dump of every saved note into every prompt
• a local Codex or Claude terminal launcher

The Vault is:

• an external project memory layer
• local-first by default
• MCP-accessible from multiple clients
• ranked and pruned recall for agent context
• cross-agent continuity for AI-assisted work
• project lifecycle hygiene for naming drift, duplicates, and cleanup

Trust And Control

• Storage is local-first: memory files and SQLite state live on your machine.
• MCP clients receive recall packs, not the entire memory store.
• Destructive cleanup uses lifecycle states and review before final deletion.
• Client setup backs up existing config files before changing them.
• The desktop setup flow edits only the Vault-specific MCP entry and leaves other client config intact.
• The desktop UI lets you inspect saved memory, file placement, activity logs, project proposals, and pending-delete flows.

Core Concepts

Concept	Meaning
Project memory	Structured records tied to a project: decisions, sessions, plans, handoffs, artifacts, references, and summaries.
Recall packs	Ranked, compact sets of relevant memories returned for a task or session.
MCP clients	Tools such as Codex, Claude Desktop, and Claude Code that connect to Vault through the vault-memory MCP server.
Agent skills	Client-facing guide files that teach agents when to recall, when to save, and how to structure memory.
Graphify extension	Optional Vault-managed graph runtime that builds project graph artifacts, serves graph.html, and powers graph-aware recall.
Task executor	A Vault runtime that can process queued tasks, store results, and expose task status through MCP and desktop surfaces.
Project hygiene	Naming, relationship, duplicate, and canonical-decision workflows that keep project memory organized.
Lifecycle states	Reversible memory states such as active, stale, archived, and pending_delete before final deletion.

Feature Overview

Area	What The Vault Provides
Structured memory	Saves typed records with project, subject, summary, tags, keywords, priority, status, related files, and next steps.
Smart recall	Returns ranked memory packs using project match, keywords, tags, memory type, explicit memory UID matches, recency, promoted decisions, and related context.
Graphify extension	Optional project graph integration that detects or installs Graphify, stores artifacts under Vault-managed paths, embeds real graph.html, and keeps the rest of Vault working when Graphify is missing or failed.
Graph-aware recall	Combines Vault memory recall with Graphify context when a fresh or usable graph exists, while logging graph use, fallback reasons, and token-savings telemetry locally.
Vault Collab extension	Optional live collaboration layer: provider-neutral sessions with roles, handoff inboxes, append-only discussions, lease-based ghost cleanup, and permission-gated agent launch — surfaced in a desktop operator cockpit (Needs You / Agents / Work / Conversation). Uses a separate local SQLite store and pull-based (receive) delivery.
Desktop console	Electron app with overview, memory browser, recall, loops, Graphify project graph, analytics, Vault task runtime, settings, and client setup.
MCP integration	vault-memory MCP server for external agents and clients, including memory tools, task tools, and Vault-owned Graphify graph tools.
One-click client setup	Desktop Settings -> Client setup can connect Codex, Claude Desktop, and Claude Code to the bundled runtime.
CLI access	Command-line entry point over the same core APIs.
Project hygiene	Project descriptions, project listing, naming drift handling, duplicate project merging, and relationship tracking.
Lifecycle controls	Reversible memory states such as active, stale, archived, and pending_delete before deletion.
Task records	Queued task metadata, model routing, executor status, task results, retries, and saved summaries.
Project momentum	Per-project week-over-week activity delta (↑/↓/inactive) shown on the Overview to make stagnating projects visible.
Open loops panel	Aggregated unfinished work — items with non-empty next_steps plus stale debugging routines — bucketed by derived priority (high/medium/low) with snooze support via snoozed_until.
Close-the-loop on recall	vault_recall_context returns an open_loops field so agents surface unfinished work back to the user. The dedicated vault_resolve_loop MCP tool atomically closes a loop with an outcome (fixed/wont_fix/obsolete/duplicate).
Local privacy	SQLite database and memory files stay on the user's machine unless the user explicitly pushes or exports them.

Interfaces

The Vault is built around one shared core package and several thin interfaces:

• Desktop app: the primary operator UI for installed users.
• MCP server: exposes memory tools to Codex, Claude Desktop, Claude Code, and other MCP clients.
• CLI: useful for quick local checks and scripts.
• TypeScript core: reusable services for saving, recalling, ranking, project maintenance, tasks, and settings.

Screens And Workflows

The desktop app currently includes:

• Overview: local memory status, activity, recall, open loops, relationship graph, and project radar in one cockpit.
• Recall: inspect recall activity, candidate pruning, prompt packing efficiency, and compact recall logs.
• Memory Bank: browse and inspect saved memory items.

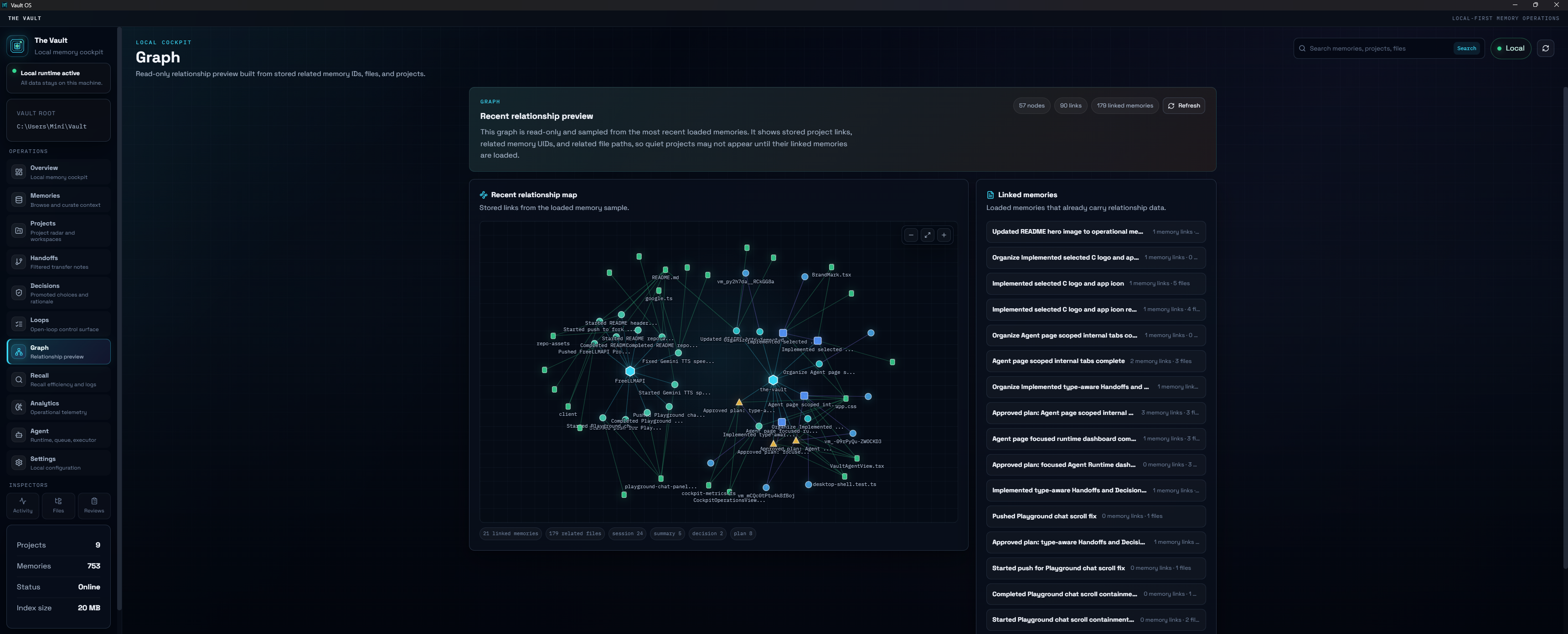

• Graph: choose a project source folder, build or rebuild Graphify artifacts, inspect graph freshness, open reports, and view the real Graphify graph.
• Agent Runtime: inspect Vault's built-in task runtime, delegated task queue, and executor events. External Codex and Claude clients stay connected through MCP.
• Agent Review: review project proposals and pending-delete flows.
• Vault Collab: operator cockpit for the optional collaboration extension — a "Needs You" action strip, agents grouped by role, a handoff/work board, and a shared conversation/event stream. Approve permission-gated agent launches (copy-command) here.
• Activity: inspect operational logs.
• Vault Files: browse saved memory files on disk.
• Settings: configure runtime behavior, lifecycle policy, Graphify extension detection/install, prompt guides, model routing, and client setup.
• Client setup: connect/disconnect Codex, Claude Desktop, Claude Code, install agent guide references, and troubleshoot MCP.

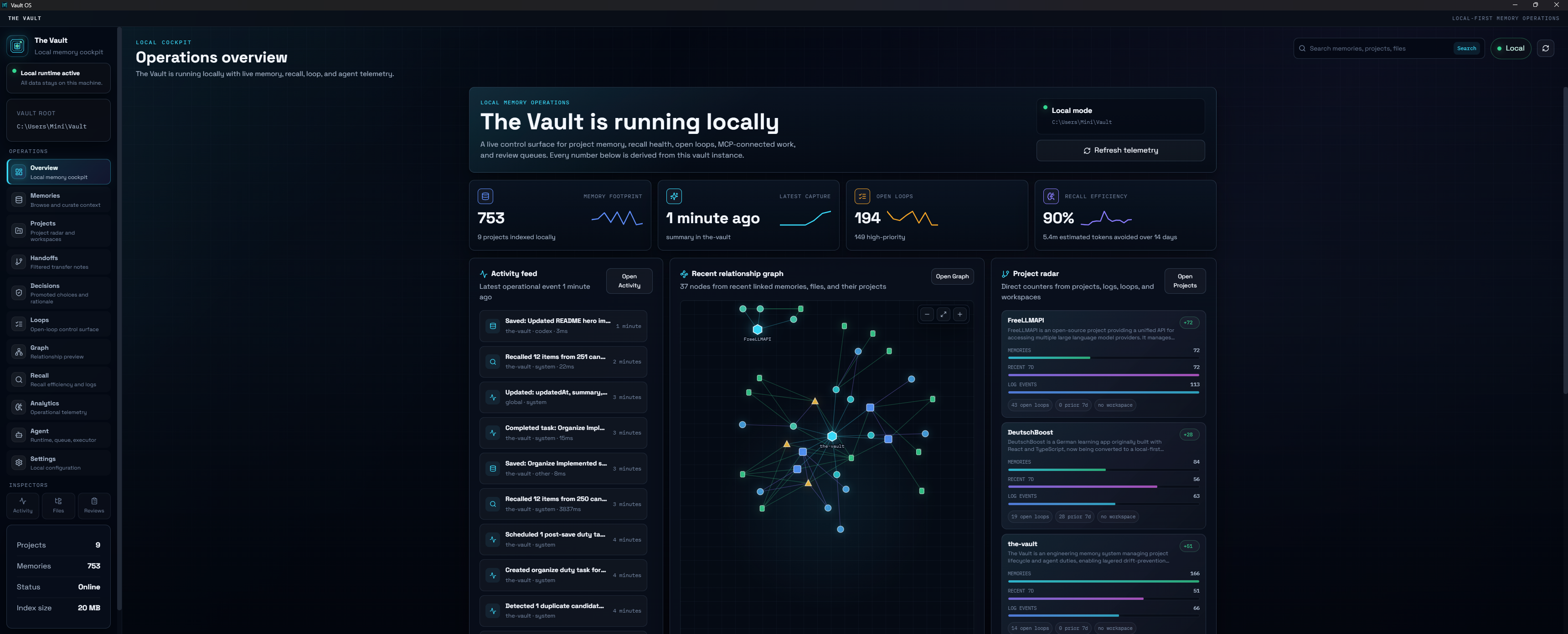

Operations Overview

The Overview is the daily operator surface: live local status, activity, project radar, recent relationship graph, open loops, recall trends, telemetry, and review queues.

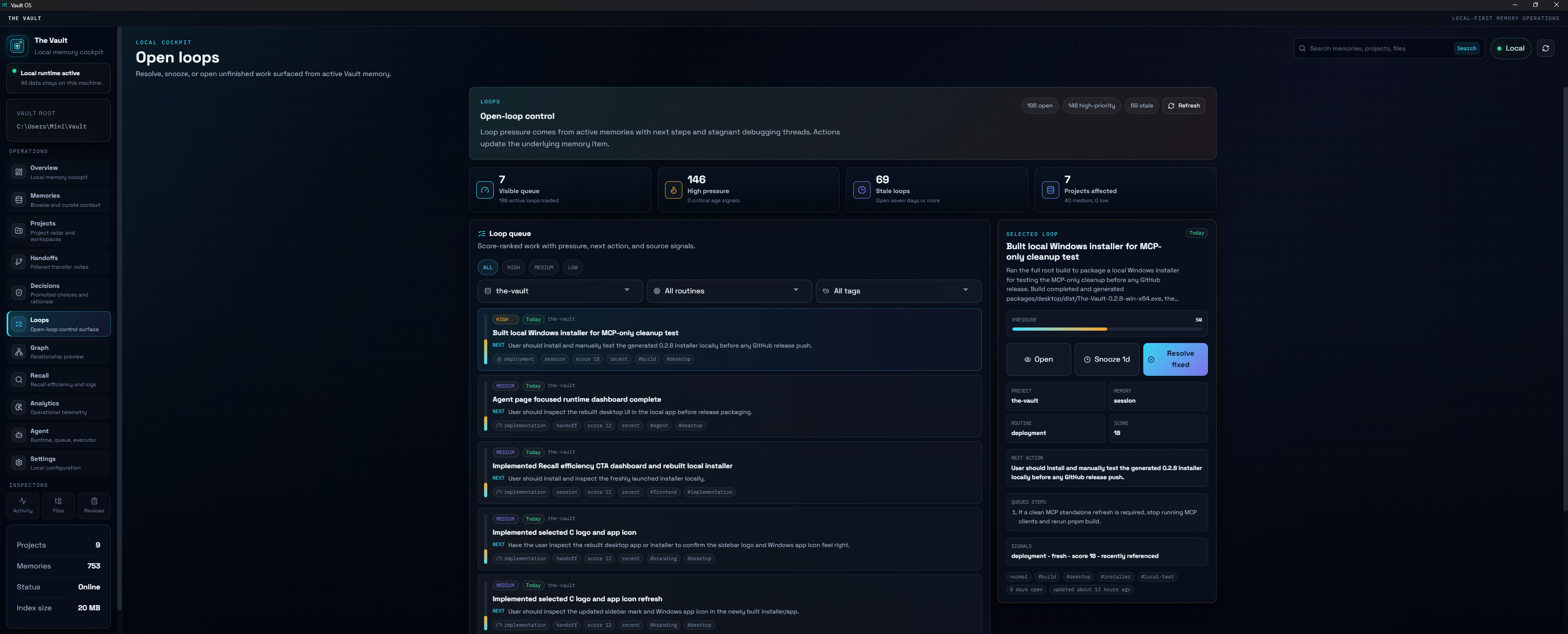

Open Loops

The Loops page turns unfinished work into an explicit queue. Operators can filter by project, routine, and tag, inspect the selected loop, then open, snooze, or resolve it.

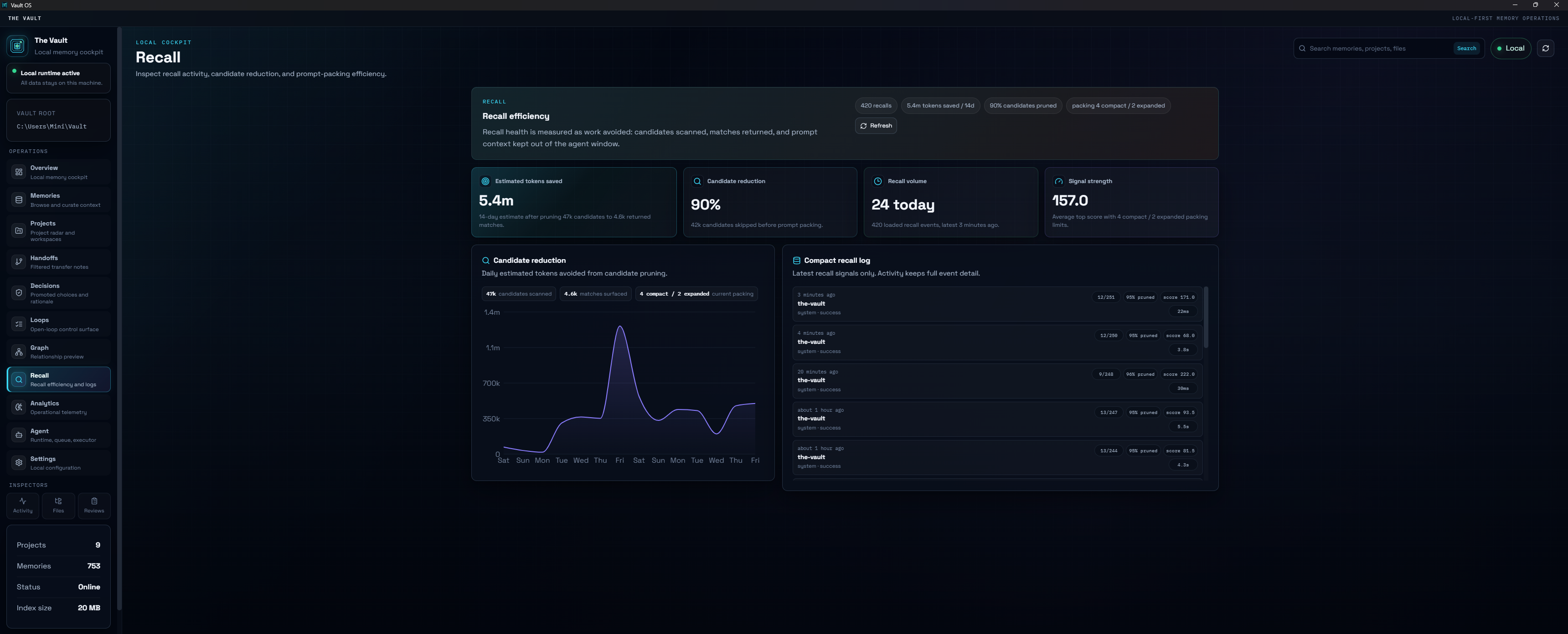

Recall Efficiency

Recall shows how much prompt context Vault avoided sending to the agent window: estimated tokens saved, candidate pruning, recall volume, signal strength, and a compact signal log. When Graphify is enabled, recall activity also records graph-aware context use so operators can see when the project graph is contributing to the answer path.

Graphify Project Graph

The Graph page is now Graphify-aware. Vault keeps Graphify optional, but when it is installed and enabled for a project, Vault stores graph artifacts under managed extension paths, embeds Graphify's generated graph.html, preserves the last good graph when rebuilds fail, and asks for a source folder before building projects that do not yet have one.

Memory Bank

The Memory Bank is the main inspection surface for saved project context: search, filter, select a record, inspect metadata, and review the full saved summary without leaving the desktop console.

Install For Normal Use

For Windows users, use the GitHub Release installer:

1. Open the repository's Releases page.
2. Download The-Vault-<version>-win-x64.exe.
3. Run the installer.
4. Open The Vault.
5. Go to Settings -> Client setup.
6. Connect Codex, Claude Desktop, or Claude Code.
7. Restart the client so it launches the updated vault-memory server.

Do not download the .blockmap file unless you are debugging release assets. It is used by updater tooling, not manual installation.

Installed builds store user data separately from the app installation. Updating the app should not delete an existing vault database or memory files.

Upgrading from a 0.2.x build auto-migrates existing Vault MCP entries and the Claude Code skill install path on app startup when a previous Vault connection is detected.

Install From Source

Requirements:

• Node.js 22 or newer
• pnpm 10 or newer
• Git
• Windows if you want to build the NSIS installer locally

Install dependencies:

pnpm install

Run the desktop app in development:

pnpm --filter @the-vault/desktop dev

Run the CLI directly:

pnpm --filter @the-vault/cli dev -- status

Run the MCP server over stdio:

pnpm --filter @the-vault/mcp-server dev

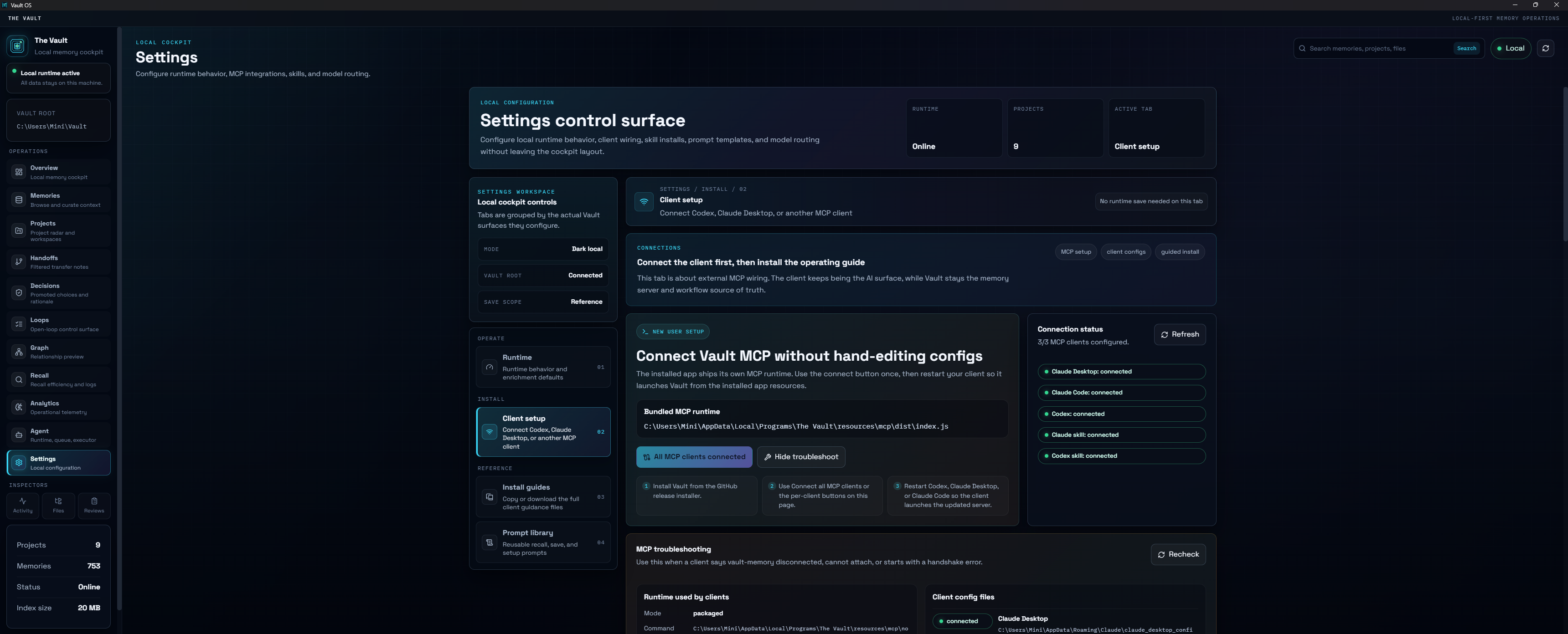

MCP Setup

Installed Desktop App

Installed releases include a bundled MCP sidecar runtime:

resources/mcp/node.exe
resources/mcp/dist/index.js

Use Settings -> Client setup in the desktop app. The UI writes only the Vault-specific MCP entry and keeps other client config entries intact. It also shows connection status and includes a troubleshooting panel.

Source Checkout

For development machines using the repo directly:

pnpm setup:mcp

That command:

• builds @the-vault/core and @the-vault/mcp-server
• deploys a standalone MCP runtime to mcp-standalone/
• verifies an MCP initialize handshake
• backs up existing client config files before editing
• writes vault-memory entries for supported clients

Configure only one client:

pnpm setup:mcp -- --client codex
pnpm setup:mcp -- --client claude-desktop
pnpm setup:mcp -- --client claude-code

Dry-run the setup without changing files:

pnpm setup:mcp:dry-run

Agent Skill Guides

The repo includes agent-facing operating guides:

• skills/claude-vault-skill.md
• skills/codex-vault-skill.md

Installed releases package these guide files under app resources. The desktop Client setup page can install or reference them at:

• Claude Code: %USERPROFILE%\.claude\skills\vault-memory\SKILL.md
• Codex: %USERPROFILE%\.codex\AGENTS.md

The guides teach agents when to recall, when to save, how to structure memory, how to bootstrap client brain projects, and how to use queued Vault tasks.

Client brain projects are provider-specific operating memory, not fixed roles:

• Codex uses Codex-brain.
• Claude Code uses claude-code-brain.
• Claude Desktop uses claude-desktop-brain.

Each guide tells the client to call vault_list_projects first, create one canonical bootstrap memory if its brain project is missing, recall the brain for durable operating lessons, and keep ordinary implementation facts in the relevant project memory.

They also include Graphify routing guidance. For code structure, dependency, path, neighbor, and impact questions, agents should call Vault's Graphify MCP tools first instead of jumping straight to broad file search. Vault remains the interface; agents should not call the raw Graphify CLI during normal use.

They also include optional Vault Collab MCP guidance. Vault MCP stays the durable memory layer; Vault Collab MCP is the live session and handoff inbox layer when its vault_collab_* tools are attached. Clients should register sessions, check the inbox only when idle or user-approved, claim handoffs deliberately, and save full execution briefs back to Vault memory.

Graphify Extension

Graphify is integrated as an optional local extension, not vendored into The Vault. Vault owns the lifecycle and policy surface, while Graphify owns graph extraction and the generated graph UI.

What Vault manages:

• runtime detection and install guidance from Settings -> Extensions -> Graphify
• per-project source folder selection
• Graphify builds into Vault-managed extension directories
• artifact discovery for graph.json, GRAPH_REPORT.md, and graph.html
• safe desktop embedding of the generated graph
• stale, failed, or missing graph fallback without breaking memory save/recall
• local telemetry for graph-aware recall and token-saving estimates

Graphify adds these agent-facing MCP tools through Vault:

Tool	Purpose
vault_recall_with_graph_context	Combine ranked Vault memory with graph-guided project context.
vault_graphify_status	Check runtime, project graph state, freshness, and artifact availability.
vault_graphify_build_project_graph	Queue or run a project graph build through Vault's managed pipeline.
vault_graphify_query	Ask a structural graph question for a project.
vault_graphify_get_node	Fetch a file or symbol node and compact metadata.
vault_graphify_get_neighbors	Expand context around a known graph node.
vault_graphify_shortest_path	Find the graph path between two files or symbols.
vault_graphify_explain_impact	Estimate likely affected files and tests for a proposed change.

If Graphify is not installed, disabled, stale, or failed, Vault keeps normal memory features working and reports the fallback reason instead of hiding the failure.

Vault Collab Extension

Vault Collab is an optional, provider-neutral collaboration layer for real-time multi-agent work, kept separate from the memory engine: it uses its own local SQLite store and the Vault core only ever reads it, so memory works identically whether Vault Collab is on, off, or uninstalled.

It lets Codex, Claude Code, and other MCP clients coordinate live:

• Sessions register with a role; the live roster auto-cleans stale/ghost sessions via lease + heartbeat.
• Work is shared as handoffs (publish -> claim -> resolve) with append-only discussion threads.
• Pull-based delivery: each agent drains its own inbox with a receive work-loop, so coordination never depends on injecting messages into another agent's terminal.
• Permission-gated launch: an agent (or the user) can request a new agent; the user approves it in the cockpit and runs the returned copy-command in a terminal. The Vault never silently spawns processes.
• The desktop Vault Collab cockpit is the operator surface: a single "Needs You" action area, agents grouped by role, a handoff/work board, and a shared conversation/event stream.

Vault Collab ships as a separate package/repo and connects through its own vault_collab_* MCP tools. Connect it from Settings -> Client setup -> Connect Vault Collab MCP.

Memory Model

Common memory types:

• session
• summary
• decision
• plan
• artifact
• handoff
• reference

Memory Quality Principles

A good memory is specific enough to help a future agent act without re-reading the whole repo. Include:

• exact project name
• precise subject
• what changed
• why it changed
• files touched
• decisions made
• next steps
• tags and keywords

High-quality memory improves future recall. Vague saves create vague recall packs; specific saves give agents concrete project state, file context, and next actions.

Recall Model

Recall is designed to return useful context, not every matching record. Ranking uses signals such as:

• exact project match
• subject and keyword overlap
• tag overlap
• memory type
• priority
• promoted or canonical status
• recency
• relationship expansion
• lifecycle status

Promoted and canonical memories are intentionally boosted because they represent durable project truths.

Project Hygiene

The Vault treats project identity as data, not just a folder name. It supports:

• project listing
• project descriptions
• project relationship records
• duplicate and old-name cleanup
• canonical naming decisions
• merge workflows for duplicated project entries

This matters because long-running AI work often creates naming drift across sessions and clients.

Lifecycle Management

The Vault avoids immediate destructive cleanup. Low-signal records can move through reversible states:

active -> stale -> archived -> pending_delete -> deleted

Deletion requires explicit confirmation. This keeps recall quality manageable without silently losing useful history.

Workspace Layout

packages/
  core/          Shared Vault engine, database, ranking, services, task system
  cli/           Command-line entry point over core APIs
  mcp-server/    MCP stdio server for agent integrations
  desktop/       Electron and React desktop console

docs/            Protocol notes, roadmap status, implementation plans
skills/          Agent-facing Vault memory guides
scripts/         MCP setup, deployment, and maintenance scripts
.github/         Release workflow for Windows installer builds

Core logic belongs in packages/core. The CLI, MCP server, and desktop app should stay thin wrappers around shared core APIs.

Common Commands

pnpm install
pnpm lint
pnpm test
pnpm build
pnpm --filter @the-vault/desktop dev
pnpm --filter @the-vault/cli dev -- status
pnpm --filter @the-vault/mcp-server dev
pnpm setup:mcp

Build And Release

Build everything locally:

pnpm build

The root build:

1. builds core, CLI, and MCP packages
2. deploys the standalone MCP runtime
3. builds the Electron desktop app
4. creates a Windows installer under packages/desktop/dist/

Release builds are created by GitHub Actions when a version tag is pushed:

git tag -a v0.2.9 -m "v0.2.9"
git push origin v0.2.9

The workflow typechecks the repo, builds the installer, verifies the bundled MCP sidecar, uploads artifacts, and publishes a GitHub Release.

Data And Privacy

The Vault is local-first:

• memory data is stored locally
• SQLite is used for registry and operational state
• memory files live under the configured Vault root
• Graphify runtime state and graph artifacts live under Vault-managed local extension paths
• client config writes are local machine changes
• generated build output and local vault data should not be committed

Secrets and machine-specific files should stay out of Git:

• .env*
• local Vault data
• generated dist/ folders
• generated mcp-standalone/
• client-local settings
• API keys and runtime state

Troubleshooting

Desktop Opens But MCP Client Does Not See Vault

Use Settings -> Client setup -> Troubleshoot MCP. Check that the configured client points to the bundled runtime for installed builds or mcp-standalone/dist/index.js for source checkouts.

Restart Codex, Claude Desktop, or Claude Code after changing MCP config.

Codex Skill Shows Not Configured

Open Settings -> Client setup and click Install guide under Codex skill. Installed builds write the guide reference to:

%USERPROFILE%\.codex\AGENTS.md

Then refresh the connection status.

Windows Build Fails Around Native Modules

better-sqlite3 is a native dependency. Stop running desktop, MCP, and Node processes that may be holding better_sqlite3.node, then rebuild.

Installed App Uses Existing Dev Data

That is expected when the installed app and source checkout resolve the same Vault root. App updates should not delete existing Vault data.

Current Maturity

The Vault is usable today for:

• local memory
• MCP integration
• desktop workflows
• client setup
• recall and save flows
• optional Graphify project graphs and graph-aware MCP context
• task records
• Windows installer releases

It is still evolving in these areas:

• recall explainability
• Graphify graph quality, semantic mode tuning, and project relationship views
• analytics for usage, recall quality, and project activity
• onboarding polish
• release hardening
• deeper memory curation

See docs/master-plan-status.md for a more detailed implementation status map.

Project Tags

local-first ai-memory agent-memory mcp-server graphify project-graph codex claude electron sqlite typescript developer-tools workflow-continuity knowledge-management task-delegation project-context

Repository Discipline

• Keep domain behavior in packages/core.
• Keep interface packages thin.
• Do not commit generated build output.
• Do not commit local vault data or secrets.
• Prefer focused commits with imperative subjects.
• Do not add Co-authored-by trailers unless explicitly requested.

License

The Vault is licensed under the MIT License. See LICENSE.
