archmax

A semantic layer for your databases. Describe your data once, let AI agents query it intelligently.

Documentation  ·  Issues  ·  GitHub

Heads up: archmax is experimental. The core ideas are stable, but APIs, file formats, and configuration may change between releases. We try to avoid breaking changes, but can't guarantee stability yet. Pin your version and check the changelog before upgrading.

Built on the Open Semantic Interchange (OSI) spec, an open standard for describing datasets, relationships, and metrics in a vendor-neutral way. archmax is the runtime that turns OSI models into a live, queryable semantic layer for AI agents.

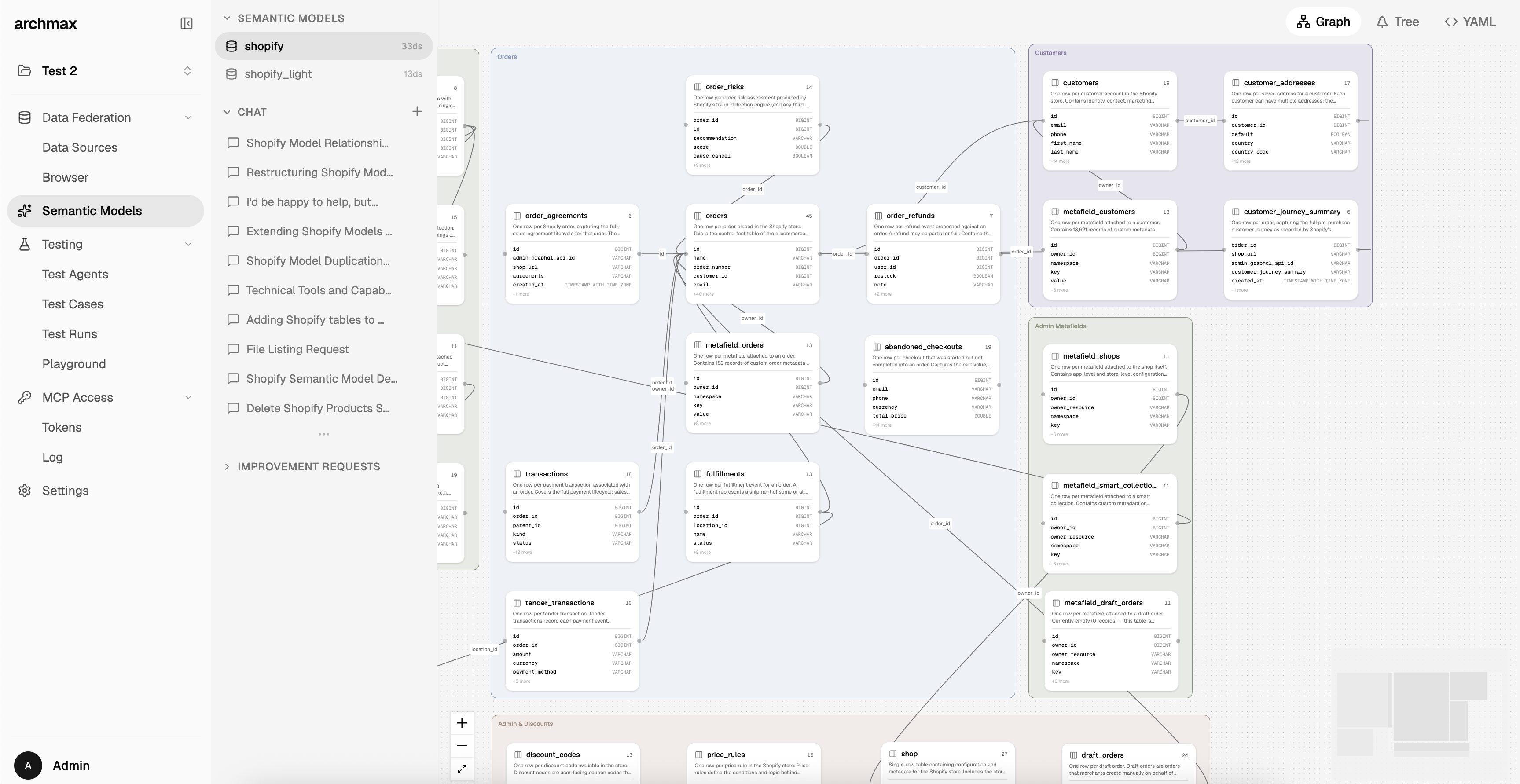

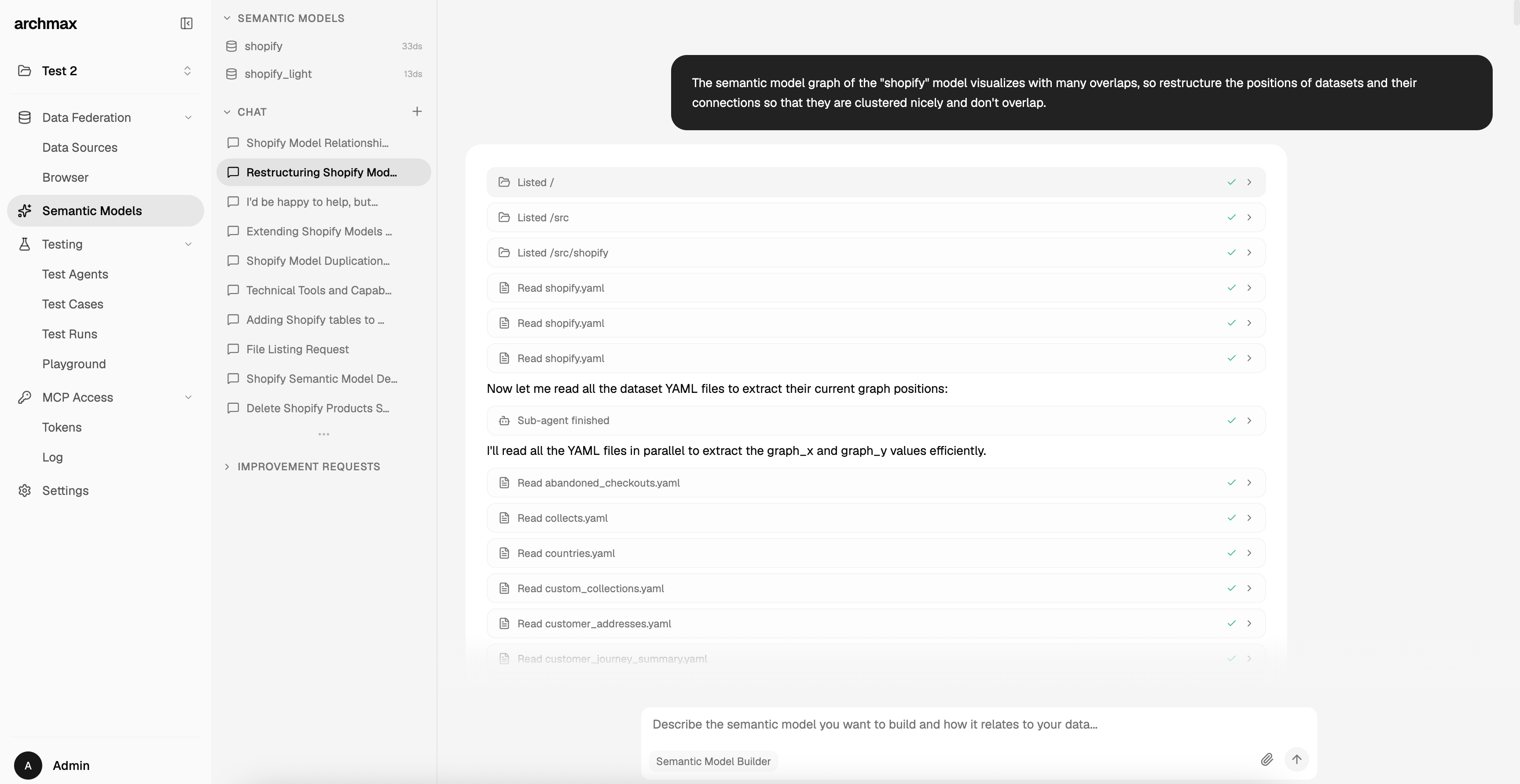

Graph View	Model Builder	Data Browser

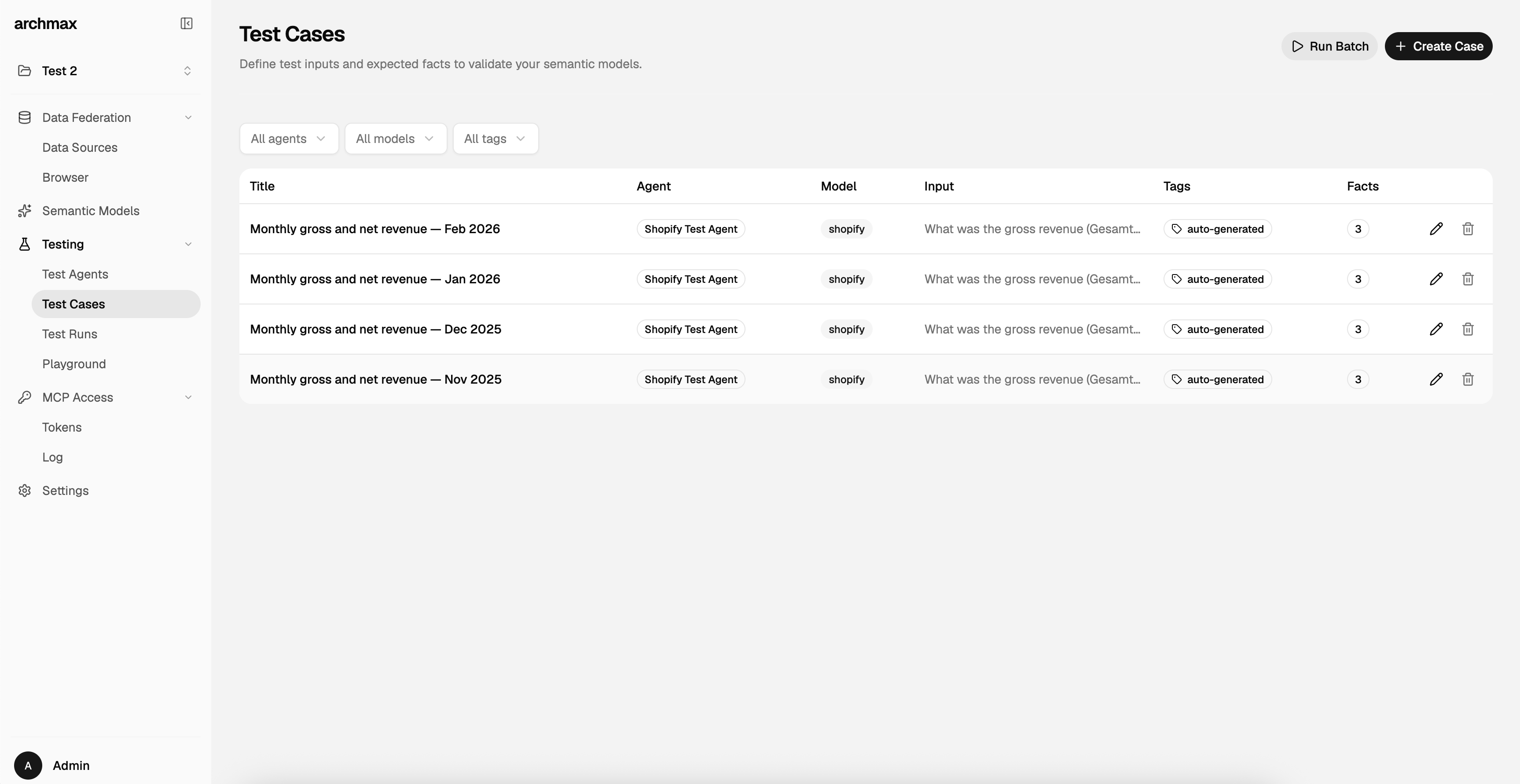

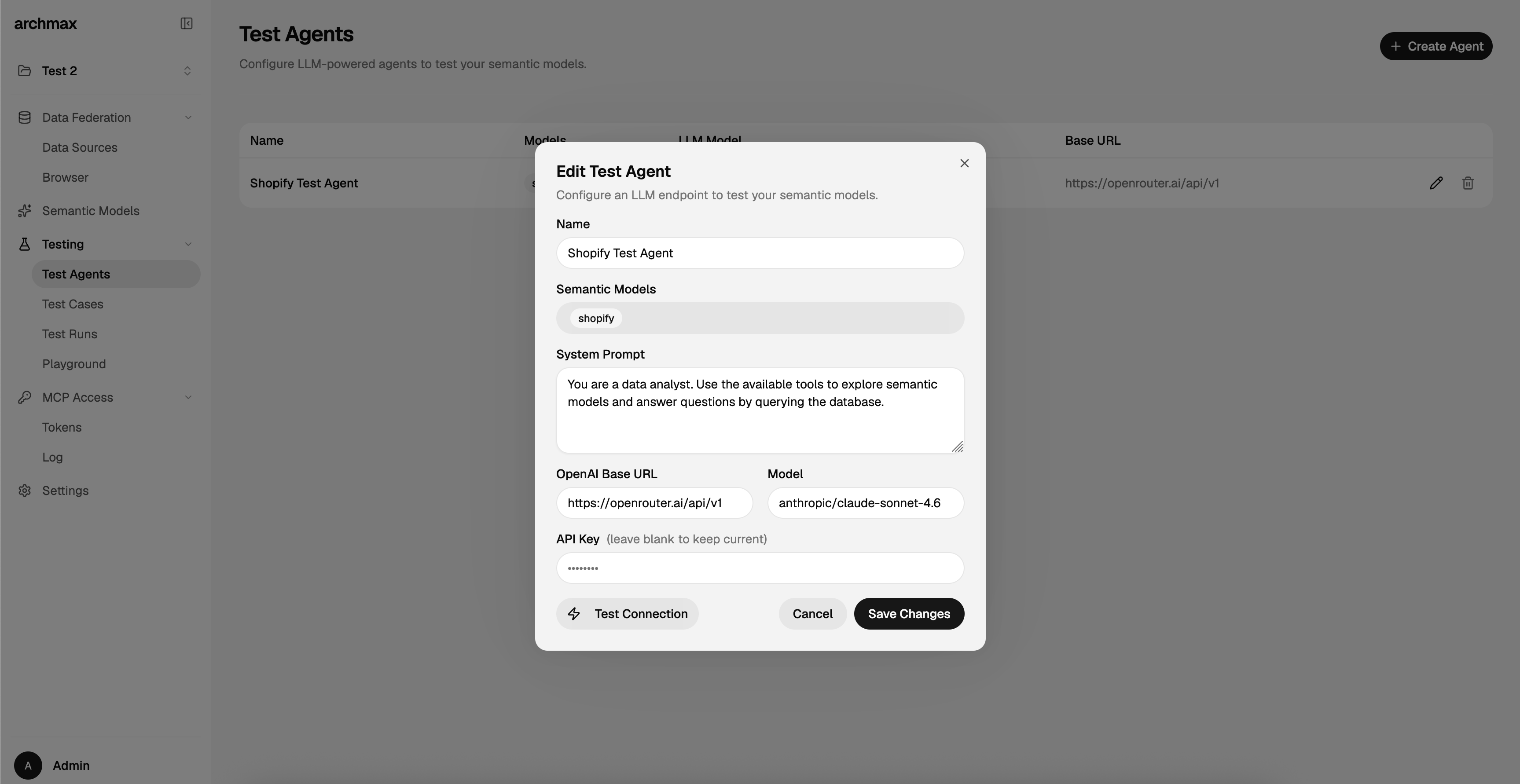

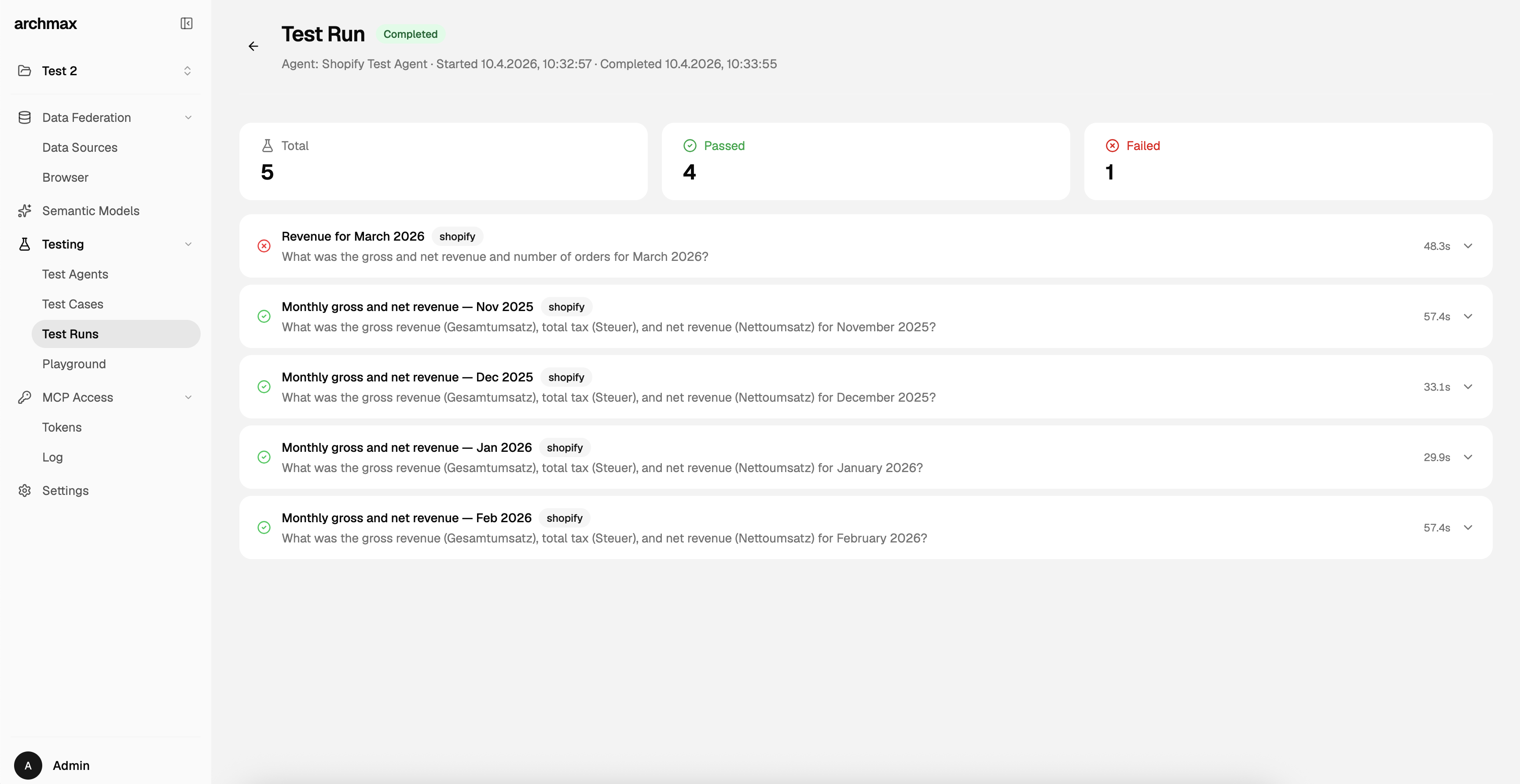

Test Agents	Test Cases	Test Runs

The Problem

Connecting AI agents to databases today is a gamble. You either hand over raw SQL access and hope the LLM doesn't hallucinate column names, run destructive queries, or leak sensitive data, or you spend weeks writing bespoke tool integrations that break the moment your schema changes.

Even when agents can query your database, they have no idea what the data actually means. A column called amt_01 could be revenue, tax, or a refund. A table called dim_cust is meaningless without business context. Without that context, agents guess, and guessing on real data has real consequences.

The gap between "AI can write SQL" and "AI understands our data" is where most agent-database projects stall.

How archmax Solves This

archmax puts a semantic layer between your databases and AI agents. You describe your data once (what tables mean, how they relate, what metrics matter) and archmax exposes that knowledge through the Model Context Protocol (MCP).

Instead of raw database access, agents get:

• Business context: field descriptions, synonyms, examples, and enum values so the agent knows amt_01 is "gross revenue in EUR"
• Guardrails: read-only queries scoped to sandboxed VIEWs, not raw tables; token-based access with model-level permissions
• Federation: a single query interface across Postgres, MySQL, MSSQL, SQLite, and DuckDB, powered by DuckDB's in-process engine
• Structure: typed datasets, explicit relationships, and reusable metric definitions grounded in the OSI spec

The result: AI agents that query your data reliably, safely, and with understanding, not guesswork.

Features

• Semantic Models: describe tables as datasets with typed fields, relationships, and metrics in YAML
• MCP Server: expose your semantic layer to any MCP-compatible AI agent (Claude, Cursor, custom agents)
• Data Federation: query across Postgres, MySQL, MSSQL, SQLite, and DuckDB from a single project
• AI-Assisted Model Builder: a chat-based agent discovers schemas, maps fields, detects enums, and infers relationships
• Scoped Query Execution: agents run read-only SQL against sandboxed VIEWs, never raw tables
• Token-Based Access Control: MCP tokens with configurable model scopes and expiry
• Testing Suite: test cases that validate whether agents can use your semantic models correctly
• Self-Hosted: deploy with Docker in minutes, keep your data on your infrastructure

Quick Start

Docker (Standalone)

Run archmax as a single container with embedded MongoDB and Redis:

docker run -d \
  --name archmax \
  -p 8080:8080 \
  -e BETTER_AUTH_SECRET=$(openssl rand -base64 32) \
  -e UI_USERNAME=admin \
  -e UI_PASSWORD=changeme \
  -v ~/.archmax:/app/data \
  archmaxai/archmax:latest

Save your BETTER_AUTH_SECRET. If you lose this value or change it on a restart, all sessions and authentication data become invalid. Generate it beforehand and store it in a safe place.

Open http://localhost:8080 and log in with username admin (or your UI_USERNAME) and the password you set in UI_PASSWORD.

For production deployments, use Docker Compose (separate containers for MongoDB and Redis). See the Installation guide for details.

Local Development

git clone https://github.com/archmaxai/archmax.git
cd archmax
cp .env.example .env.local   # Edit with your settings
pnpm install
pnpm dev

Architecture

archmax/
├── apps/
│   ├── api/          # Hono API server
│   ├── frontend/     # Vite + React SPA (TanStack Router)
│   ├── worker/       # BullMQ worker for agent jobs
│   └── docs/         # Documentation site (Astro Starlight)
├── packages/
│   ├── core/         # Shared models, services, config (@archmax/core)
│   └── ui/           # React UI components (@archmax/ui)
└── openspec/         # Specifications and change proposals

Tech stack: TypeScript, Hono, React 19, Vite 6, MongoDB, DuckDB, Tailwind CSS 4, Turborepo

MCP Tools

Connecting an AI Agent

Configure your MCP client with:

• Endpoint: https://your-server/mcp/<project-slug>/mcp
• Auth: Bearer <your-mcp-token>

{
  "mcpServers": {
    "archmax": {
      "url": "https://your-server/mcp/your-project/mcp",
      "headers": {
        "Authorization": "Bearer sk-your-token"
      }
    }
  }
}

Configuration

Key environment variables (see .env.example for the full list):

Contributing

archmax uses OpenSpec for spec-driven development. Every feature PR must include a corresponding spec change.

1. Install the CLI: npm install -g openspec-cli
2. Create a proposal under openspec/changes/<change-id>/ with spec deltas
3. Validate: openspec validate <change-id> --strict
4. Implement after approval
5. Include a docs update task if the change affects user-facing behavior

See the Contributing guide for details.

License

AGPL-3.0
