SUMMARY

Lens — an AI coding-agent lens: turns conversations into visual overviews, local-first transparent proxy + knowledge-graph view

README.md

Lens · 透镜

English | 中文

Turn AI coding agent dialogues into interactive panoramas.
将 AI 编程代理的对话流变为可视化全景。

GitCode Gitee GitHub GitHub Rust Preact Tauri

English

Lens is a local-first, transparent HTTP proxy that records the complete communication between AI coding agents (OpenCode, Codex, Claude Code) and LLM APIs — then turns those dialogues into interactive visualizations.

It uses your agent's own API keys. Lens just passively watches, records, and visualizes. No configuration changes needed in your agent.

Dashboard

How It Works

┌─────────────┐     HTTP/HTTPS      ┌──────────┐      forward       ┌────────────┐
│ AI Agent    │ ──────────────────▶ │  Lens    │ ────────────────▶  │ LLM API    │
│ (Codex,     │ ◀────────────────── │  Proxy   │ ◀────────────────  │ (OpenAI,   │
│  Claude...) │    (with MITM TLS)  │  :9999   │                    │  Anthropic)│
└─────────────┘                     └────┬─────┘                    └────────────┘
                                         │
                                         ▼ record
                                   ┌──────────┐      ┌──────────┐
                                   │  SQLite  │ ───▶ │  Web UI  │
                                   │  lens.db │      │  /api/*  │
                                   └──────────┘      └──────────┘

Features

  • Zero-config agent integration — Set one environment variable, agent works unchanged
  • Multi-agent recognition — Auto-detects OpenCode, Codex, Claude Code (heuristic detection for others)
  • HTTPS interception — Full TLS MITM with dynamic certificate signing
  • Conversation Timeline — Full message history with expandable tool calls
  • Stats Dashboard — Token usage, agent distribution, model comparison
  • Knowledge Graph — Entity extraction (files, functions, topics) with force-directed layout
  • Cross-platform — macOS, Linux, Windows (Tauri v2 desktop)

Quick Start

# Build
cargo build --release

# Start proxy (in one terminal)
./target/release/lens proxy

# Start web viewer (in another terminal)
./target/release/lens view

# In your agent's terminal:
export HTTP_PROXY=http://127.0.0.1:9999
export HTTPS_PROXY=http://127.0.0.1:9999
# ... use your agent as normal

Platform Proxy Setup

VS Code (settings.json):

{
  "http.proxy": "http://127.0.0.1:9999"
}

Cursor (Settings → Network → Proxy):

http://127.0.0.1:9999

Terminal agents (Codex, Claude Code, etc.):

export HTTP_PROXY=http://127.0.0.1:9999
export HTTPS_PROXY=http://127.0.0.1:9999

Screenshots

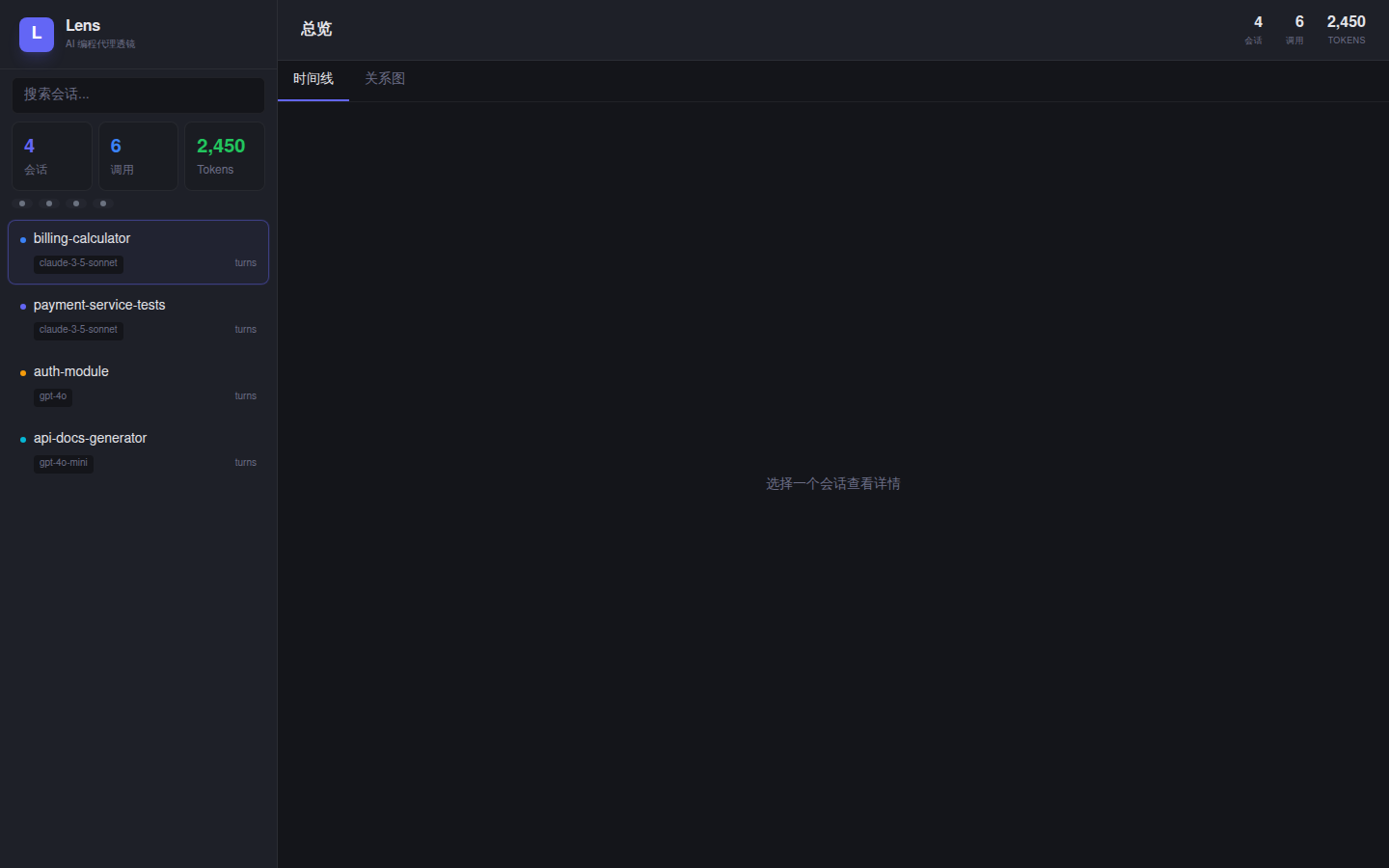

Dashboard Timeline Graph

Architecture

lens/
├── src/
│   ├── proxy/          # HTTP/HTTPS transparent proxy
│   │   ├── server.rs   # Entry & dispatch
│   │   ├── connect.rs  # HTTPS CONNECT + MITM
│   │   ├── http_handler.rs # HTTP proxy handler
│   │   ├── io.rs       # I/O helpers
│   │   ├── cert.rs     # TLS cert management
│   │   ├── parser.rs   # LLM request/response parser
│   │   └── request.rs  # Agent detection + adapter context extraction
│   ├── engine/
│   │   ├── store.rs    # SQLite storage
│   │   ├── graph.rs    # Knowledge graph builder
│   │   └── summary.rs  # Conversation summarization
│   ├── adapter/        # Agent type detection
│   └── web/            # Axum REST API server
├── frontend/           # Preact + Vite + Tailwind
│   ├── src/components/ # UI components
│   └── src/lib/        # API client, types
└── web/                # Built frontend assets

License

MIT

中文

Lens（透镜） 是一个本地优先的透明 HTTP 代理，完整录制 AI 编程代理（OpenCode、Codex、Claude Code）与 LLM API 之间的通信，并将其转化为交互式可视化。

它使用 你自己的 API 密钥。Lens 只是被动地观察、记录和可视化，无需修改你的 agent 配置。

工作原理

Lens 作为本地代理运行在 127.0.0.1:9999，拦截 HTTP/HTTPS 流量（包括 TLS MITM），解析 LLM 对话结构，存入 SQLite 数据库，并通过 Web 面板提供可视化。

特性

  • 零配置集成 — 设置一个环境变量，agent 无需改动
  • 多代理识别 — 自动识别 OpenCode、Codex、Claude Code（其他代理通过启发式检测）
  • HTTPS 拦截 — 完整的 TLS MITM + 动态证书签发
  • 对话时间线 — 完整消息历史，可折叠的工具调用
  • 统计面板 — Token 用量、代理分布、模型对比
  • 知识图谱 — 自动提取实体（文件、函数、话题），力导向布局
  • 跨平台 — macOS、Linux、Windows（基于 Tauri v2）

快速开始

# 构建
cargo build --release

# 启动代理（第一个终端）
./target/release/lens proxy

# 启动可视化面板（第二个终端）
./target/release/lens view

# 在你的 agent 终端中：
export HTTP_PROXY=http://127.0.0.1:9999
export HTTPS_PROXY=http://127.0.0.1:9999
# ... 正常使用你的 agent

各平台代理设置

VS Code（settings.json）：

{
  "http.proxy": "http://127.0.0.1:9999"
}

Cursor（设置 → 网络 → 代理）：

http://127.0.0.1:9999

终端 agent（Codex、Claude Code 等）：

export HTTP_PROXY=http://127.0.0.1:9999
export HTTPS_PROXY=http://127.0.0.1:9999

项目结构

lens/
├── src/
│   ├── proxy/          # HTTP/HTTPS 透明代理
│   │   ├── server.rs   # 入口 & 分发
│   │   ├── connect.rs  # HTTPS CONNECT + MITM
│   │   ├── http_handler.rs # HTTP 代理处理
│   │   ├── io.rs       # I/O 辅助
│   │   ├── cert.rs     # TLS 证书管理
│   │   ├── parser.rs   # LLM 请求/响应解析
│   │   └── request.rs  # Agent 检测 + 适配器上下文提取
│   ├── engine/
│   │   ├── store.rs    # SQLite 存储
│   │   ├── graph.rs    # 知识图谱构建
│   │   └── summary.rs  # 对话总结
│   ├── adapter/        # Agent 类型检测
│   └── web/            # Axum REST API 服务器
├── frontend/           # Preact + Vite + Tailwind
│   ├── src/components/ # UI 组件
│   └── src/lib/        # API 客户端、类型
└── web/                # 构建后的前端资源

许可证

MIT
