spatialboard

Build infinite canvas apps in React — whiteboards, node graphs, and slide decks.

Try it ↗

Getting started · Custom nodes · Data flow · Agents & LLMs · SBD format · Examples

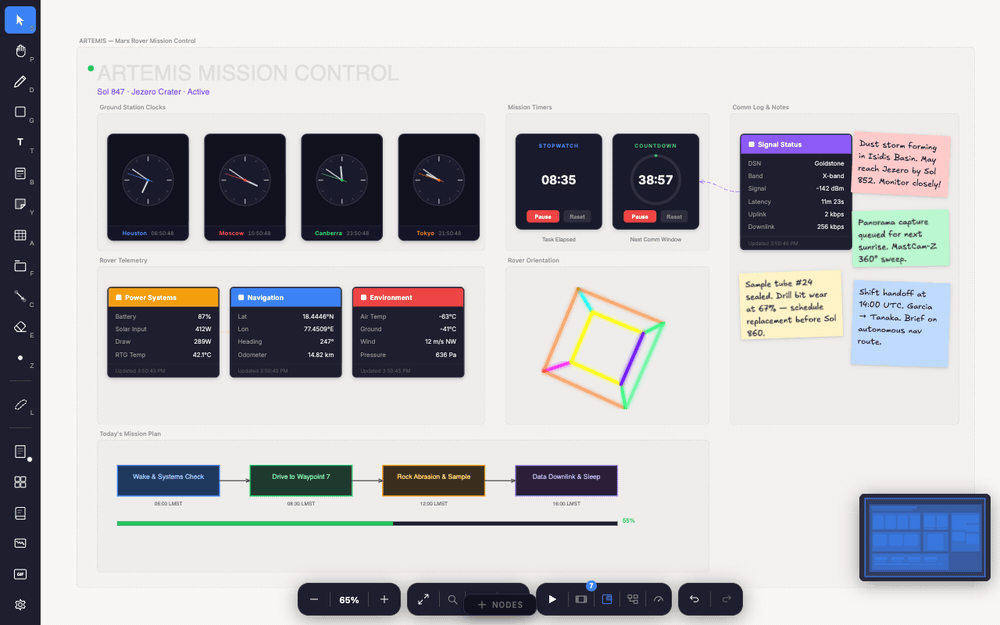

_{The Mission Control board from the examples — click it to open it live. The clocks, telemetry cards, timers, and 3D wireframe are custom nodes built with the same public API as the built-in stickies, frames, text, and connectors.}

SpatialBoard is a whiteboard, node-graph editor, presentation surface, and
LLM-readable board format in one MIT-licensed TypeScript library. All board
state lives in a SpatialEngine, with a React shell on top: you get an
infinite canvas with hand-drawn aesthetics out of the box, and a registry API
that turns that canvas into whatever your product needs — a diagramming tool,
a visual programming environment, a slide deck, or a board that AI agents can
read and write.

Feature highlights

• Whiteboarding, complete — pressure-aware freehand ink, rough hand-drawn
  shapes, sticky notes, rich text, images, and frames, with snapping, smart
  alignment guides, grouping, align/distribute, infinite pan/zoom, undo
  history, and a minimap.
• Custom nodes are the core API — everything on the canvas is a node
  type: a React component plus a declarative definition. The built-ins use
  the same public API you do.
• Typed data flow — nodes declare input/output ports and a pure
  compute function; the reactive DataFlowEngine propagates values through
  the wired graph, detects cycles, and badges live values on edges.
• Presentations built in — frames double as slides, stepped through with
  animated transitions (pan, fade, dissolve, zoom, fold, 3D cube). One call:
  engine.enterPresentation().
• Collaboration-ready — transport-agnostic remote ops and live gesture
  awareness; wire it to any sync layer or CRDT. Storage stays your business.
• AI-native — budgeted board snapshots for LLM context, a programmatic
  drawing API, and SBD: a markdown-compatible board format that models both
  read and write.
• Headless entry — spatialboard/engine imports without React or CSS, so
  the engine runs in tests, scripts, and agent tooling.
• Interop — imports Excalidraw .excalidrawlib shape libraries, and a
  built-in Mermaid importer turns flowcharts and sequence diagrams into
  editable nodes.

Quick start

npm install spatialboard

import { SpatialBoard, SpatialEngine } from "spatialboard";
import "spatialboard/style.css";
import { useMemo } from "react";

export default function App() {
  const engine = useMemo(() => new SpatialEngine(), []);
  return (
    <div style={{ width: "100vw", height: "100vh" }}>
      <SpatialBoard engine={engine} />
    </div>
  );
}

react / react-dom (^18 || ^19) are the only required peer
dependencies. Three entry points let you take exactly as much as you need:

docs/getting-started.md covers the engine
lifecycle, persistence, and the key props.

What you can build

A whiteboard. Freehand ink (perfect-freehand), rough hand-drawn shapes
(roughjs), sticky notes, rich-text blocks (BlockNote), images, text, and
frames — everything in the feature list above, working together out of the
box.

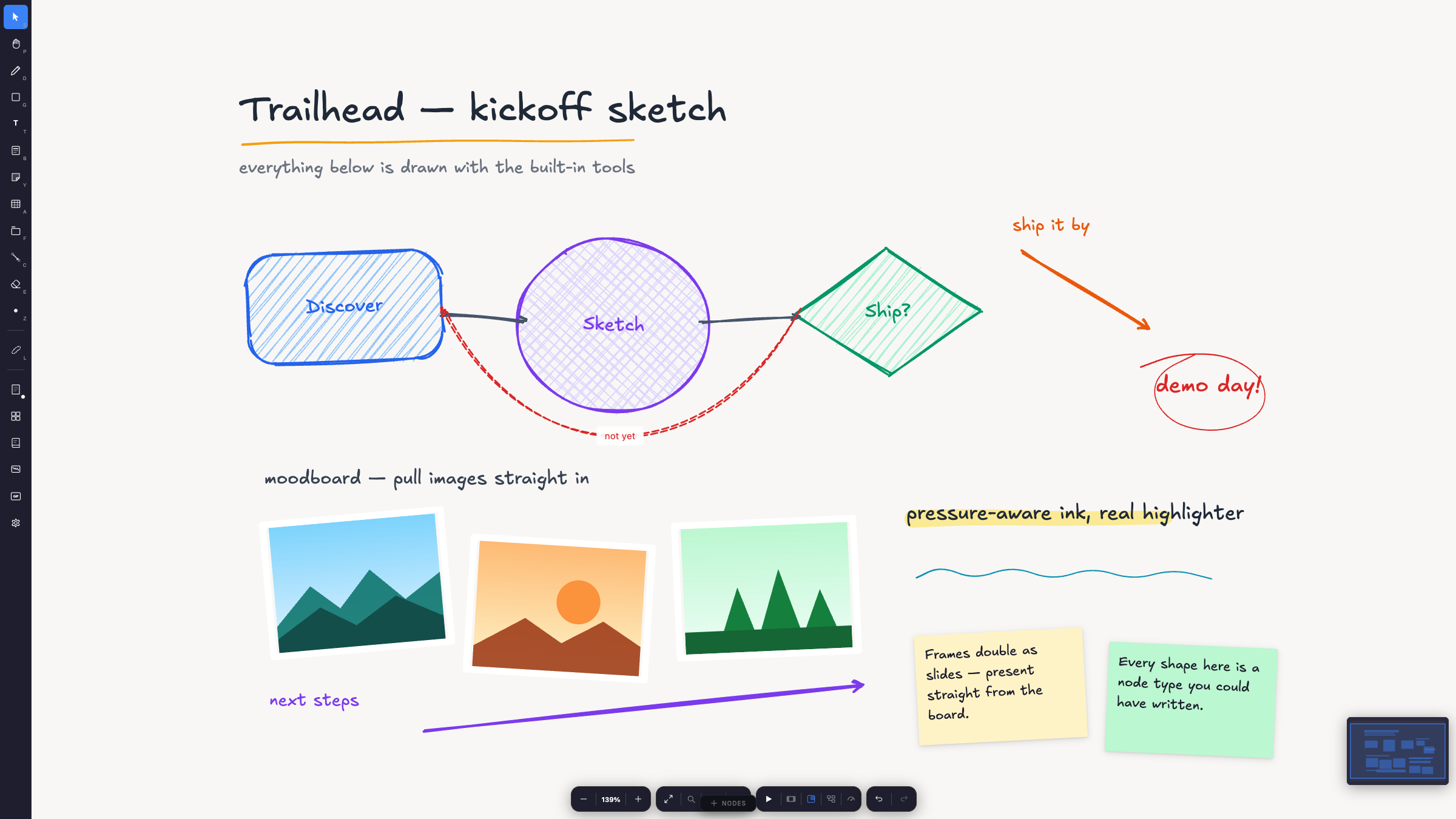

_{Rough shapes with hachure fills, sketchy edges, pen / pencil / highlighter ink, rotated images, and stickies — all built-in node types, all in the hand-drawn register.}

A node-based tool. Define your own node types with typed input/output
ports and a pure compute function; the reactive DataFlowEngine propagates
values through the wired graph. This is the foundation for visual
programming, pipelines, and dashboards. See
docs/data-flow.md.

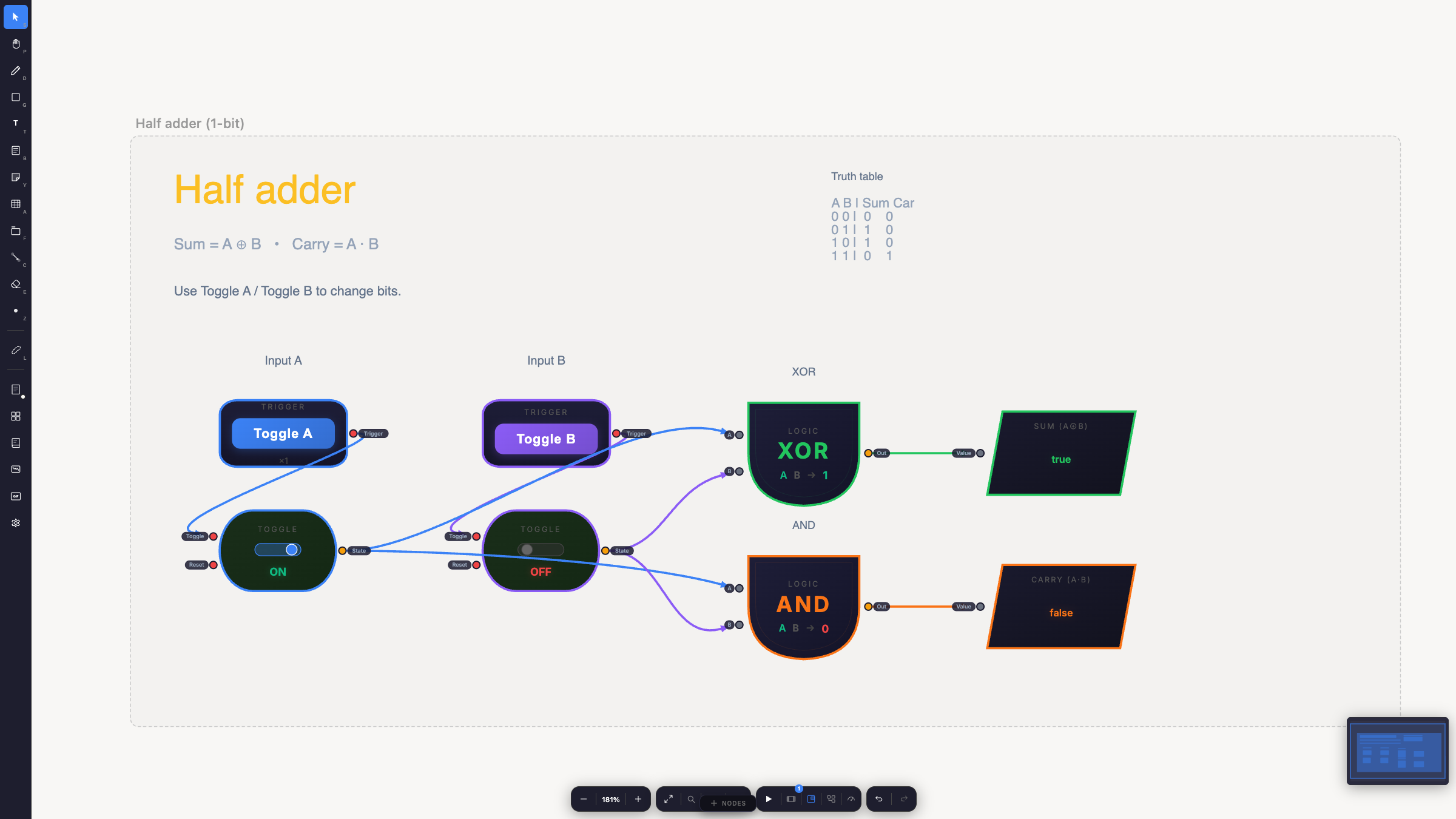

_{A one-bit half adder. Flipping a toggle propagates through the wired graph — the gates recompute and the Sum and Carry displays update — with no host code in the loop.}

A presentation. Frames double as slides: order them explicitly or let
reading order decide, then step through with animated transitions. One method
call — engine.enterPresentation().

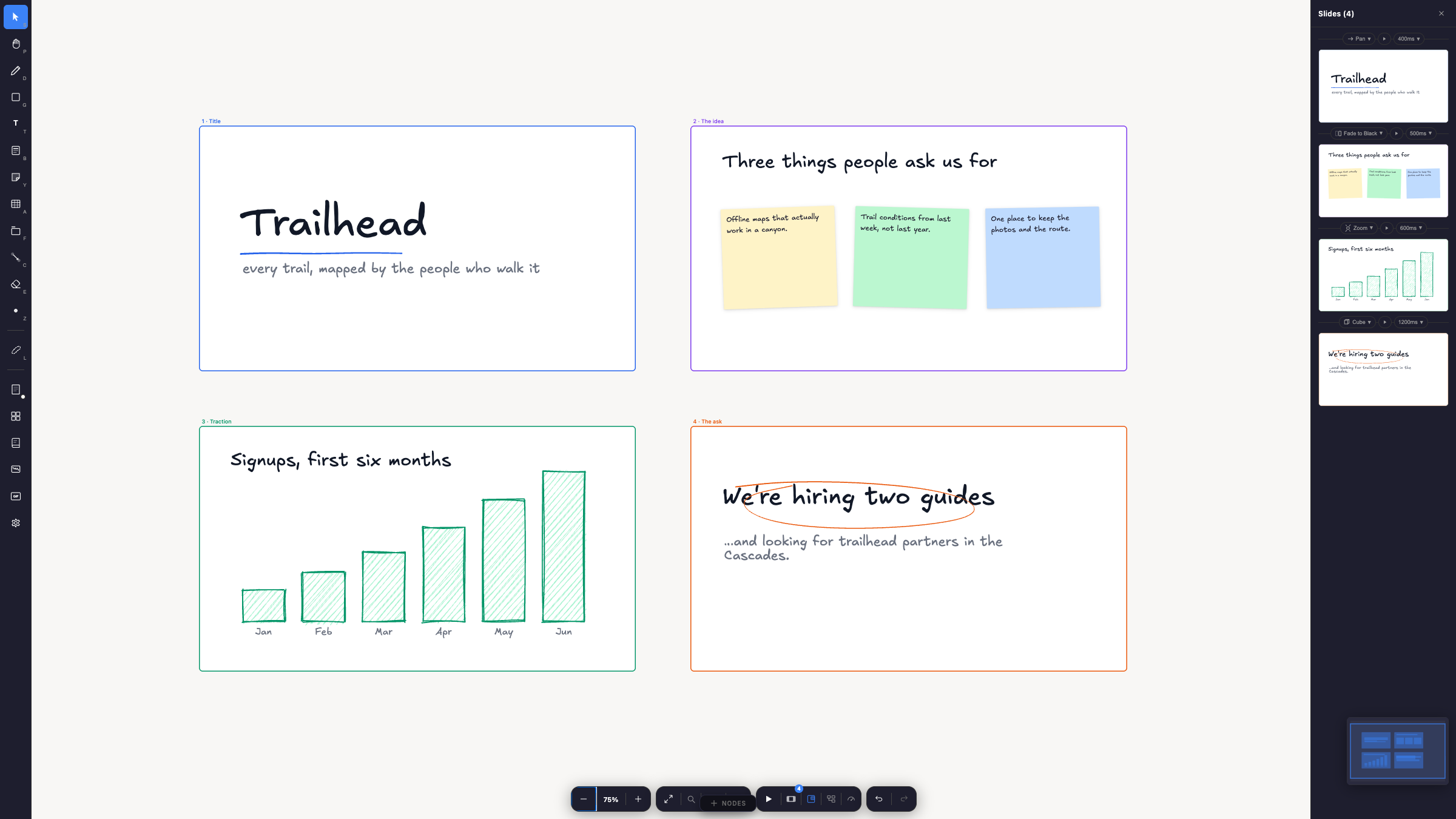

_{The same four frames are both a canvas layout and an ordered deck. The slides panel picks the transition per slide — pan, fade, zoom, cube — and Present runs them.}

A collaborative canvas. The engine exposes remote-op methods
(addRemoteNode, applyRemoteNodeUpdate, deleteRemoteNode) and broadcasts
gesture awareness (live stroke, shape, drag, eraser, and laser previews) so
you can wire it to any transport or CRDT. Storage is deliberately not
SpatialBoard's business — serialize with toSBD()/toJSON() and persist
however you like.

An AI-native surface. getAgentState() returns a structured, budgeted
snapshot for LLM context (getAgentStateMarkdown() for prompts); a
programmatic creation API (createShape, createSticky, createEdge, …)
plus beginAgentAction() batching lets agents draw; and the whole board
round-trips through SBD — a markdown-compatible format that models can
both read and write. See docs/agents.md and
sbd-spec.md.

Custom nodes in one glance

Everything on the canvas is a node type — the built-ins use the same API you
do. A custom type is a React component plus a definition object:

import type { NodeTypeDefinition, NodeRendererProps } from "spatialboard";

type CounterData = { count: number };

function Counter({ data, updateData }: NodeRendererProps<CounterData>) {
  return (
    <button onClick={() => updateData({ count: data.count + 1 })}>
      Clicked {data.count} times
    </button>
  );
}

export const counterNodeType: NodeTypeDefinition<CounterData> = {
  type: "counter",
  component: Counter,
};

// <SpatialBoard nodeTypes={[...coreBoardNodes, counterNodeType]} />

Definitions can also declare container behavior, custom hit-testing, a
properties panel, lifecycle hooks (onCreate, onResize, onFlip, …), and
data-flow ports with a compute function. The full tour:
docs/custom-nodes.md.

The SBD format

Boards serialize to SBD — a markdown document with HTML-comment
directives. It is diff-stable, hand-editable, and LLM-friendly:

<!--@meta sbd="3" background="dot-grid" -->

<!--@frame id="f1" x="100" y="100" w="400" h="300" label="Plan" -->

<!--@sticky id="s1" x="40" y="60" w="200" h="150" parent="f1" color="#FEF3C7" -->
Battery check at 06:00.

<!--@edge id="e1" from="s1" to="f1" style="dashed" -->

Round-trip with await engine.toSBD() / await engine.fromSBD(text). The
lower-level functions are serializeToSBD(nodes) and parseSBD(text) (which
returns { nodes, meta, warnings }). Spec in sbd-spec.md.

Documentation

Examples

Four runnable apps — three focused tiers plus the kitchen sink, all hosted
live at
spatialboard.hishamkhalifa.com. All
are self-contained, persist to localStorage, and work offline (PWA):

• examples/basic
  (live) — the slim core
  board (<SpatialBoard />), no rich text and zero @blocknote peers.
• examples/rich-text
  (live) — opt-in
  BlockNote nodes via spatialboard/blocknote.
• examples/custom-nodes
  (live) — three
  custom node types wired as a live data-flow graph
  (Number × Number → Multiply → Gauge).
• examples/dev-app
  (live) — the development
  playground: every feature and ~40 custom node types. Every board pictured
  above ships here — Whiteboard, Half adder, Deck, and Mission Control all
  load from the debug panel.

From the package root:

npm install
npm run dev            # examples/basic
npm run dev:rich-text  # examples/rich-text
npm run dev:custom     # examples/custom-nodes
npm run dev:app        # examples/dev-app

docs/examples.md walks them from the one-liner up to the full
playground.

Optional integrations

• GIF picker — pass gifApiBaseUrl and SpatialBoard renders a GIF search
  UI against your endpoint (Klipy-compatible response shape; see
  src/utils/klipy.ts).
• Theming — override sidebar/panel tokens via the theme prop; RTL and
  localization via direction and localization.
• Read-only + preview modes — readOnly keeps pan/zoom/select alive while
  guarding all mutations; preview renders a static board.

Roadmap

Roughly in the order I plan to tackle things — open an issue if you think
the order is wrong:

1. Better test coverage. The suite covers the
   engine core, serialization, export, and geometry, but the interaction
   layer (pointer gestures, selection, undo), the data-flow edge cases, and
   the React rendering side are still mostly verified by me clicking
   around.
2. MCP server. SBD and getAgentStateMarkdown() already give models a
   way to read and write boards; an MCP server would make that a standard
   plug instead of a bring-your-own-glue exercise.
3. CRDT collaboration example. The engine is transport-agnostic by
   design, but "wire it to any CRDT" deserves a worked end-to-end example.

Development

npm install
npm run dev        # examples/basic (or dev:rich-text / dev:custom / dev:app)
npm run typecheck
npm run test
npm run build      # dist/ (generated; not committed)

Contributing

Contributions are welcome — see CONTRIBUTING.md. Security
reports go through SECURITY.md.

License

SpatialBoard is MIT licensed — development and production, no
license keys, no watermarks. Third-party components and their licenses are
inventoried in THIRD_PARTY_NOTICES.md; bundled and
runtime fonts in FONTS.md.
