Grok Build Desktop GUI — open-source Electron AI coding agent for xAI Grok Build / grok CLI. Native tools, MCP, third-party models, parallel sessions. Windows, macOS, Linux.

README.md

English | 简体中文

Grok Build GUI — Grok Desktop AI Coding Agent icon

Grok Build GUI

Open-source Grok Desktop for the native Grok Build / grok AI coding agent

Electron AI coding workspace · xAI Grok Build runtime · Streaming tools · MCP · Third-party LLMs · Windows / macOS / Linux

Native tool execution · Parallel agent sessions · OpenAI & Anthropic providers · 59 native settings · English & 中文

Release
Stars
Downloads
Release Build
Windows
macOS
Linux
Electron
License

⬇ Download v0.1.1 ·
⭐ Star on GitHub ·
Quick Start ·
Features ·
Third-Party Models

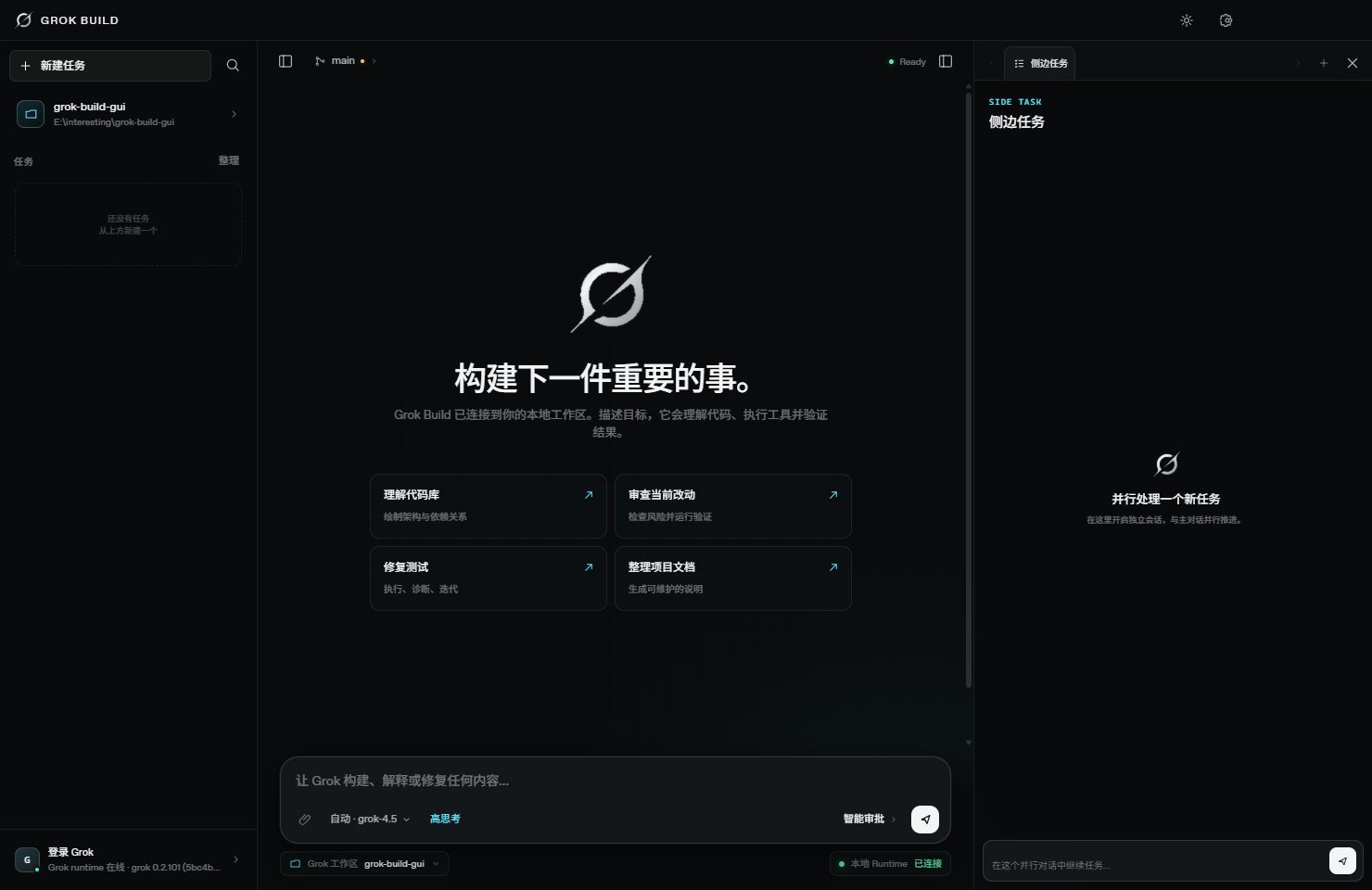

Grok Build GUI desktop — AI coding agent workspace with streaming tools, terminals, and Git

Looking for a Grok Build desktop app, Grok GUI, xAI Grok coding agent client, or an Electron AI coding workspace that keeps the real grok runtime? This is it.


Why Grok Build GUI

You want… Grok Build GUI gives you…
A real Grok / Grok Build desktop Visual Electron UI on top of the native grok CLI & TUI runtime
An AI coding agent, not a chat wrapper Shell, files, search, web, edits, MCP, Skills, Plugins, Hooks, Subagents
Third-party models that can use tools OpenAI-compatible & Anthropic discovery + local tool-call bridge
Parallel local development Side agents, persistent terminals, embedded browser, Git in one window
Local-first credentials Runtime, files, and Git stay on your machine; API keys stay out of the Renderer

Grok Build GUI (also searchable as Grok Build Desktop, Grok Desktop GUI, grok-build-gui) is the community desktop client for the open Grok Build AI coding runtime. CLI, TUI, and GUI share the same sessions, Memory, tools, permissions, and ~/.grok/config.toml — so behavior stays aligned instead of drifting across rewrites.

It is not a second Agent stack and not a web chat page inside Electron:

  • Every task runs through the local grok / Grok Build runtime
  • Live output arrives via --output-format streaming-json
  • Multi-turn work continues with native sessionId + --resume
  • Tool activity mirrors updates.jsonl / events.jsonl
  • Third-party models land in native [model.*] config and the same Agent loop

One line: keep the native Grok Build execution engine; get a desktop workflow for chat, tools, parallel tasks, models, and local developer tooling.


Highlights

  1. Native Grok Build runtime — CLI, TUI, and GUI share sessions, Memory, MCP, Skills, Plugins, Hooks, Subagents, and Worktrees
  2. Visible AI tool execution — Thinking, Shell, files, search, web, edits, and permission events in real order
  3. Third-party LLMs with tools — OpenAI Compatible & Anthropic probing plus a local compatibility bridge
  4. Parallel coding workspace — Main agent + side agents, multi-tab terminals, and embedded browsers
  5. 59 typed native settings — Searchable UI with protected TOML writes, backups, and a full editor
  6. Local-first security — Redacted account data; Provider secrets never enter Renderer storage or TOML
  7. Built for Grok visuals — English / 中文 UI, Signal Cyan theme, Braille Grok mark, dense desktop layout
  8. Cross-platform releases — Windows Setup/Portable, macOS Intel/Apple Silicon DMG, Linux AppImage/DEB + SHA-256

Current Release

Latest public release: v0.1.1 — provider chat-model management, attachment improvements, and desktop fixes after the first public preview.

Capability Status
Native grok / Grok Build runtime integration
Streaming text, Thinking, and tool lifecycle
Native session continuation
Tool permission policy selection
Third-party model discovery and tool probing
OpenAI / Anthropic tool compatibility bridge
Per-provider chat model management
65-command Slash picker
59 native Grok settings
Instant English / Chinese switching
Multiple terminals, browsers, and side Agents
Git state, branch creation, and switching
Windows Setup / Portable ZIP
macOS Intel / Apple Silicon DMG ✅ unsigned preview
Linux AppImage / DEB
Automated builds and SHA-256 verification

The desktop package does not bundle the Grok runtime. Install the native grok CLI first, or point GROK_BINARY to a local runtime binary.


Interface Gallery

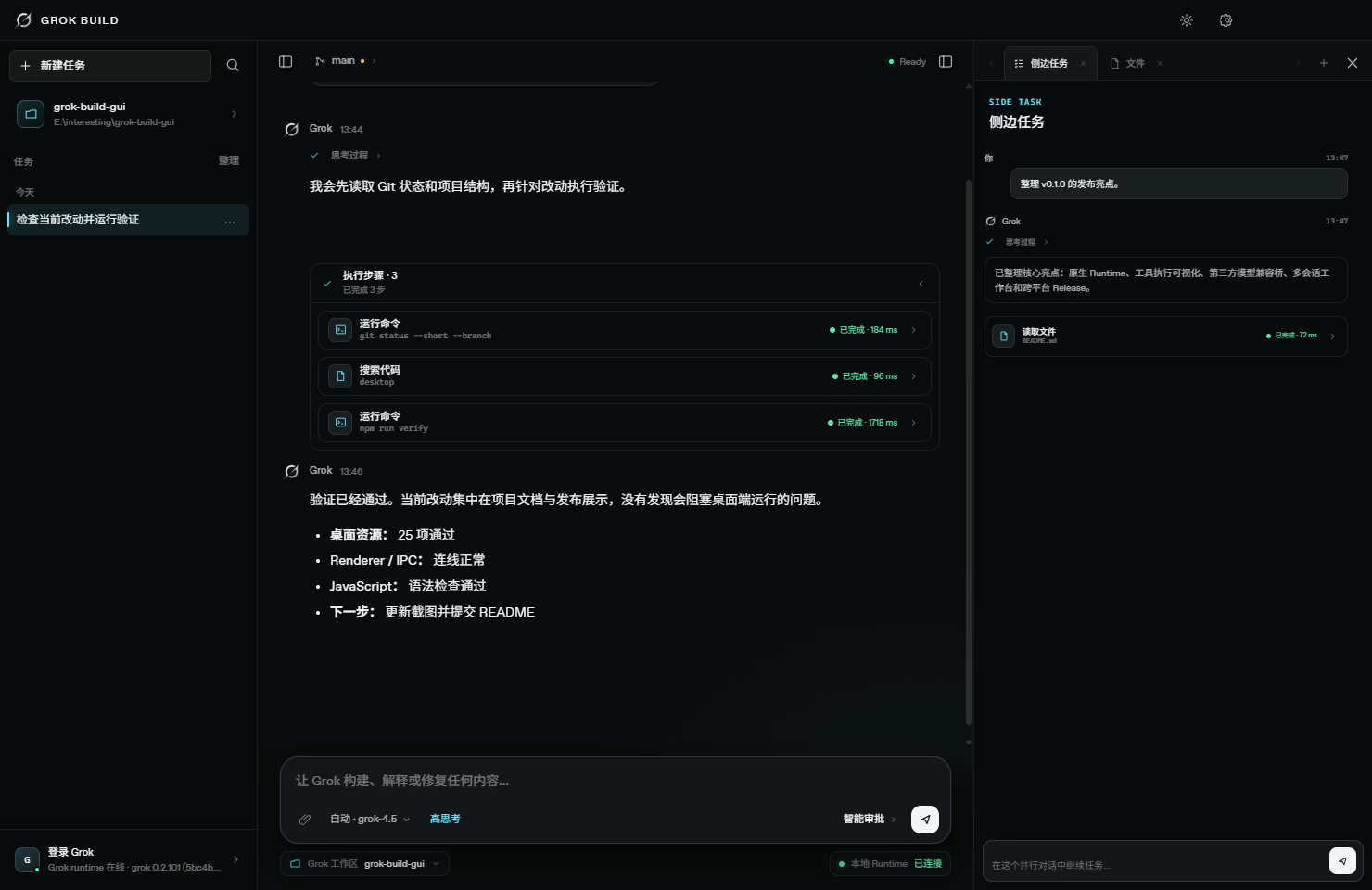

Native tool execution and parallel side task

Native tool execution and parallel side task

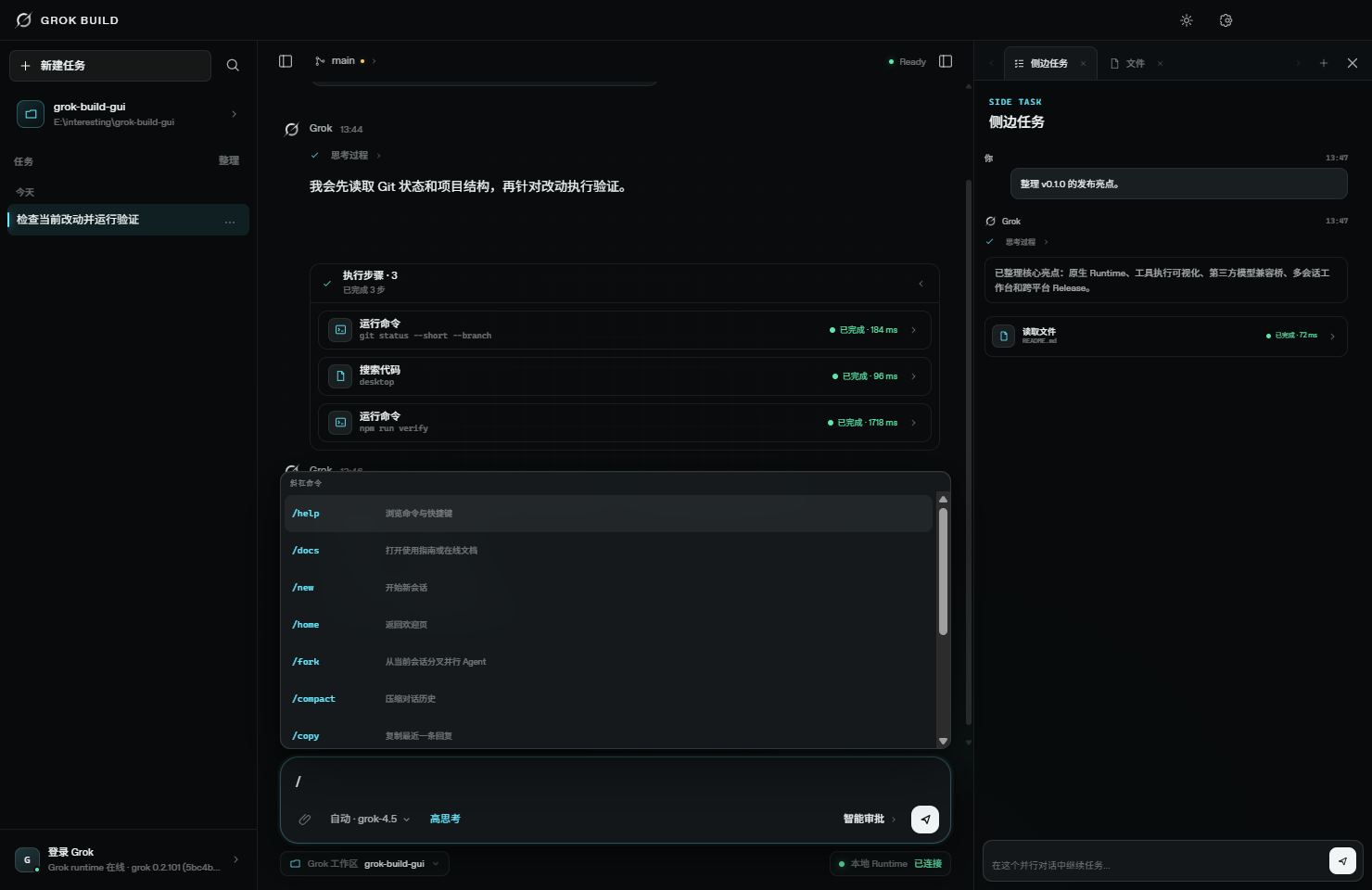

65-command Slash picker

Slash command picker

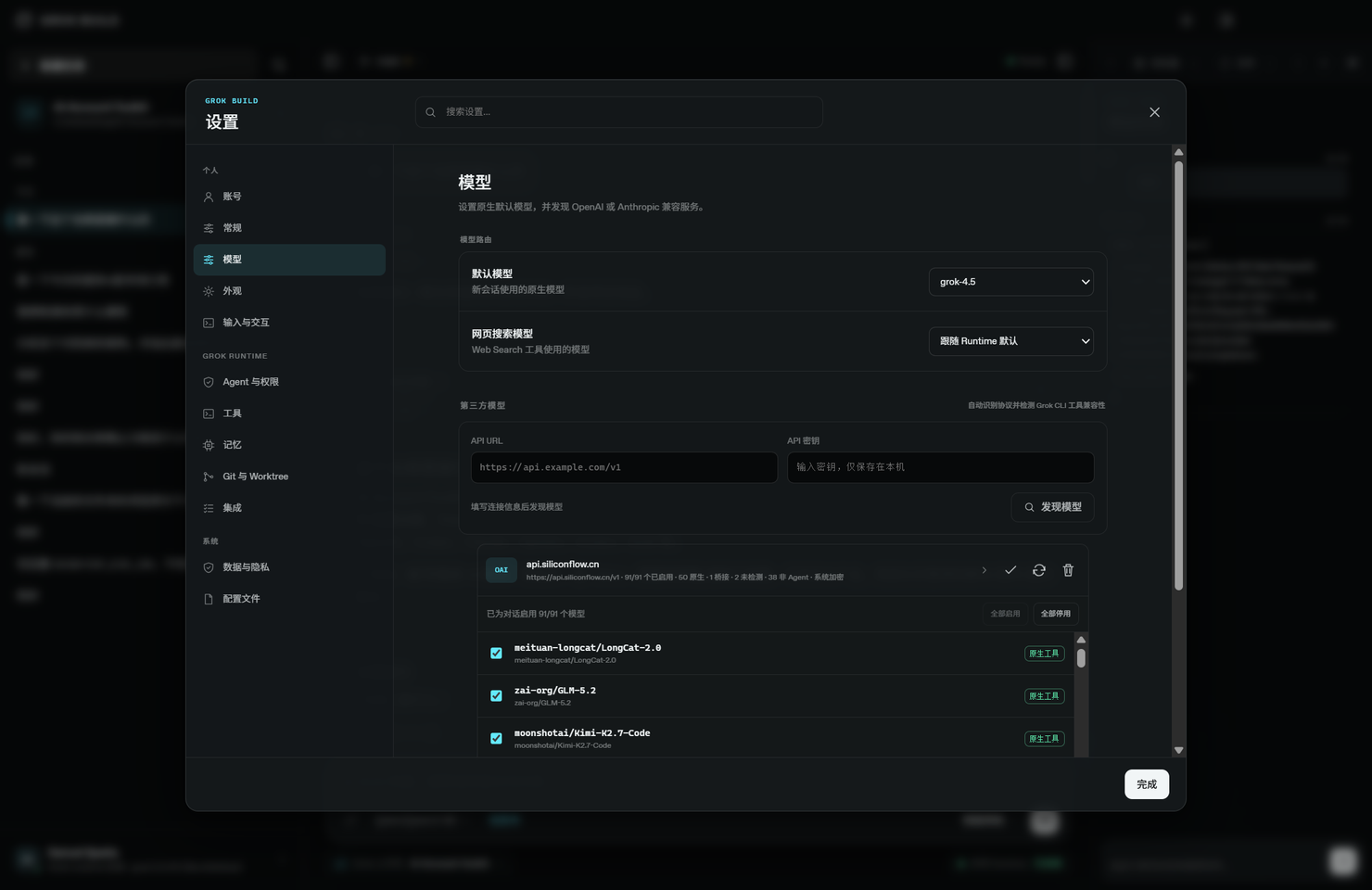

Third-party models and tool capability

Third-party model providers and tool capability

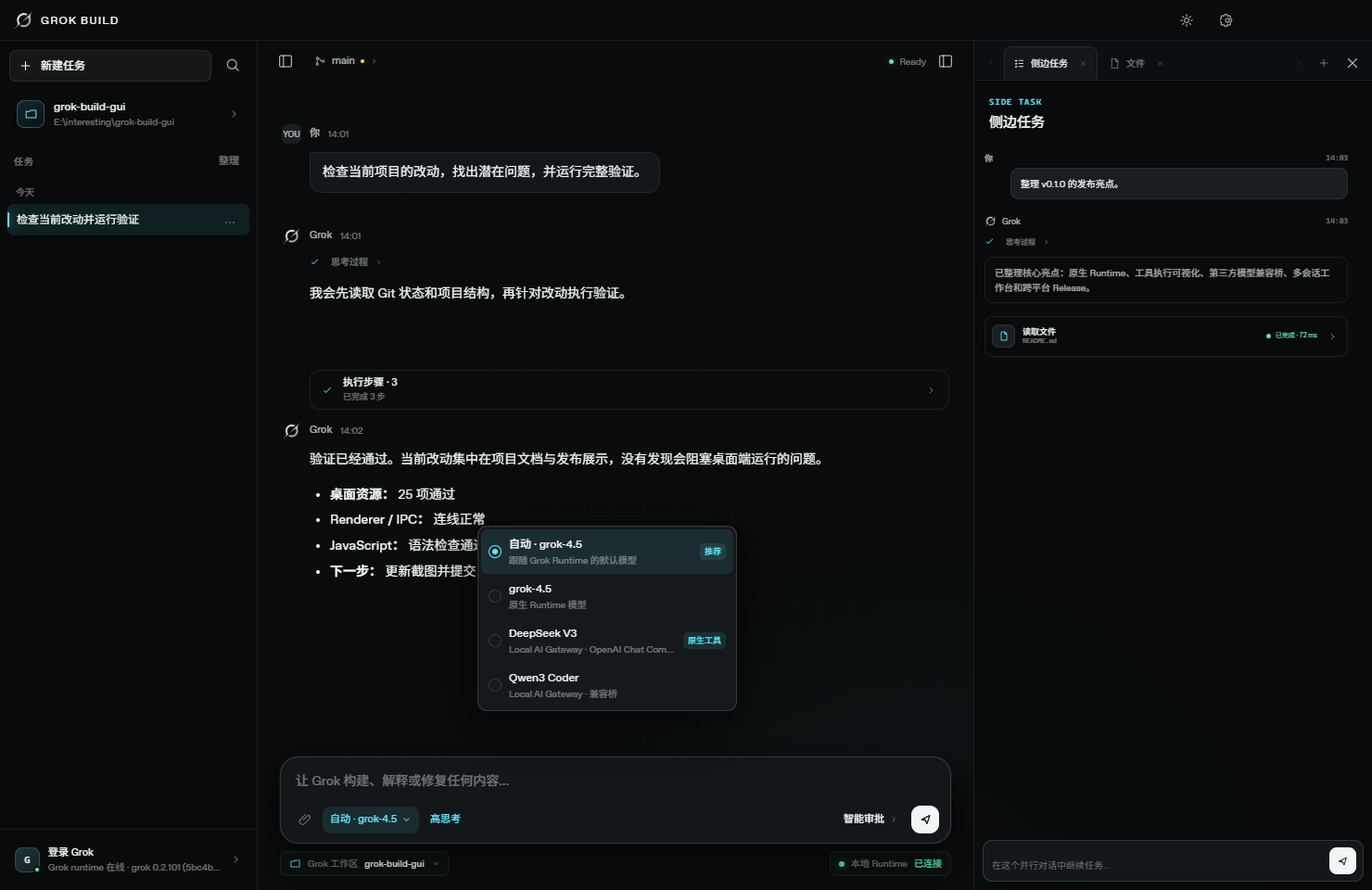

Native runtime model picker

Grok runtime model picker

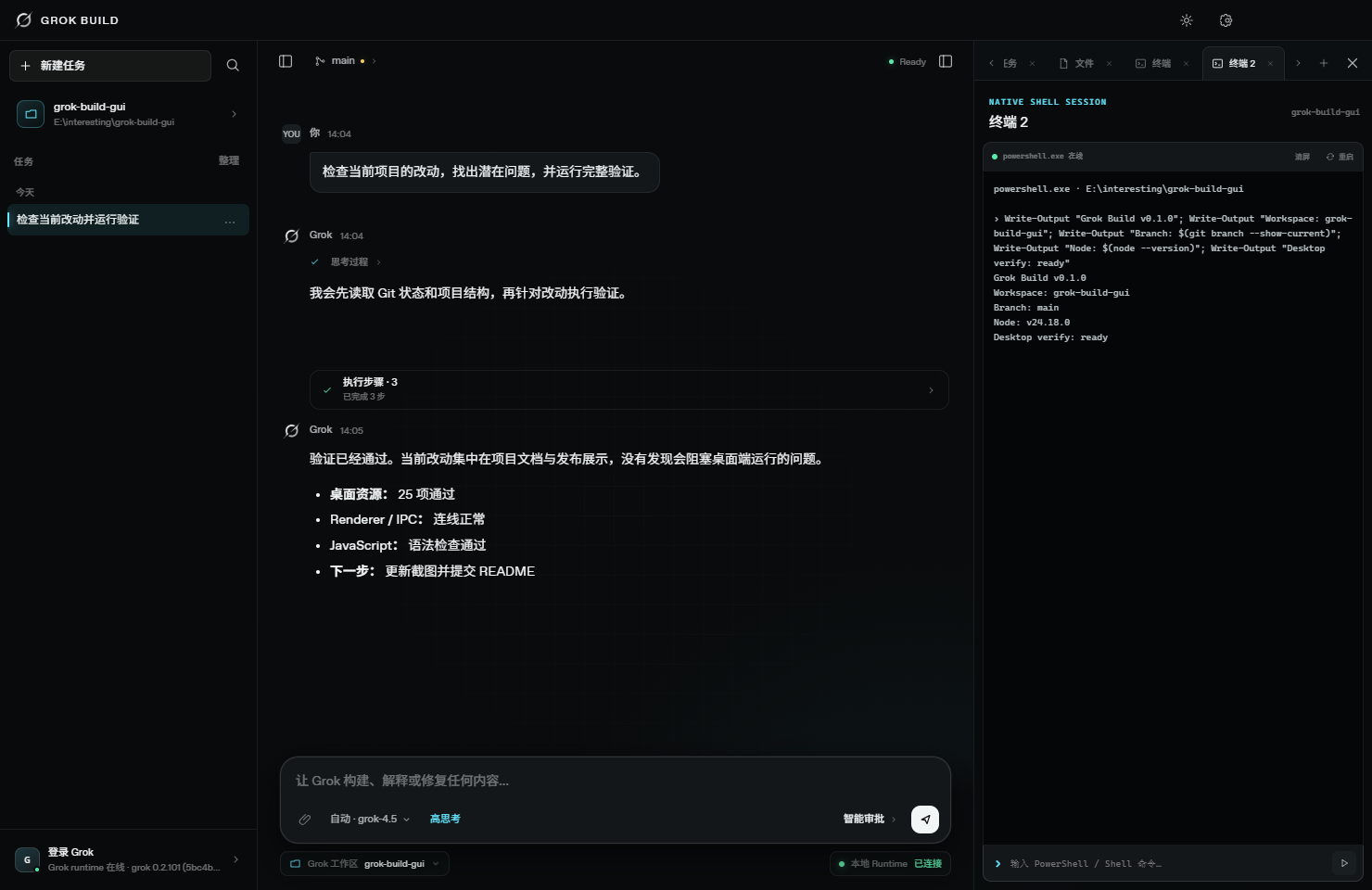

Multi-tab persistent terminals

Persistent terminal workbench

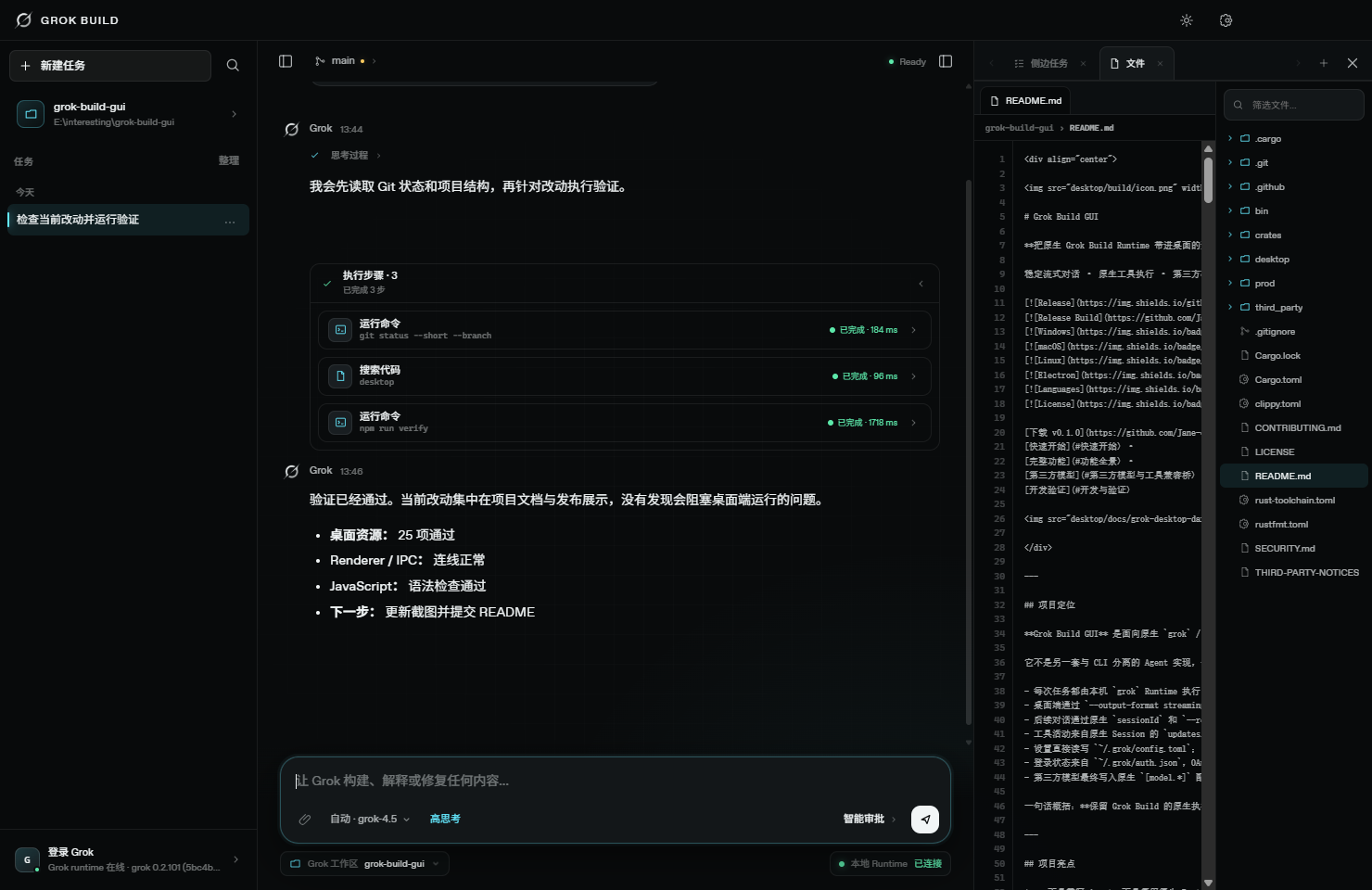

File tree and read-only preview

Workspace file explorer

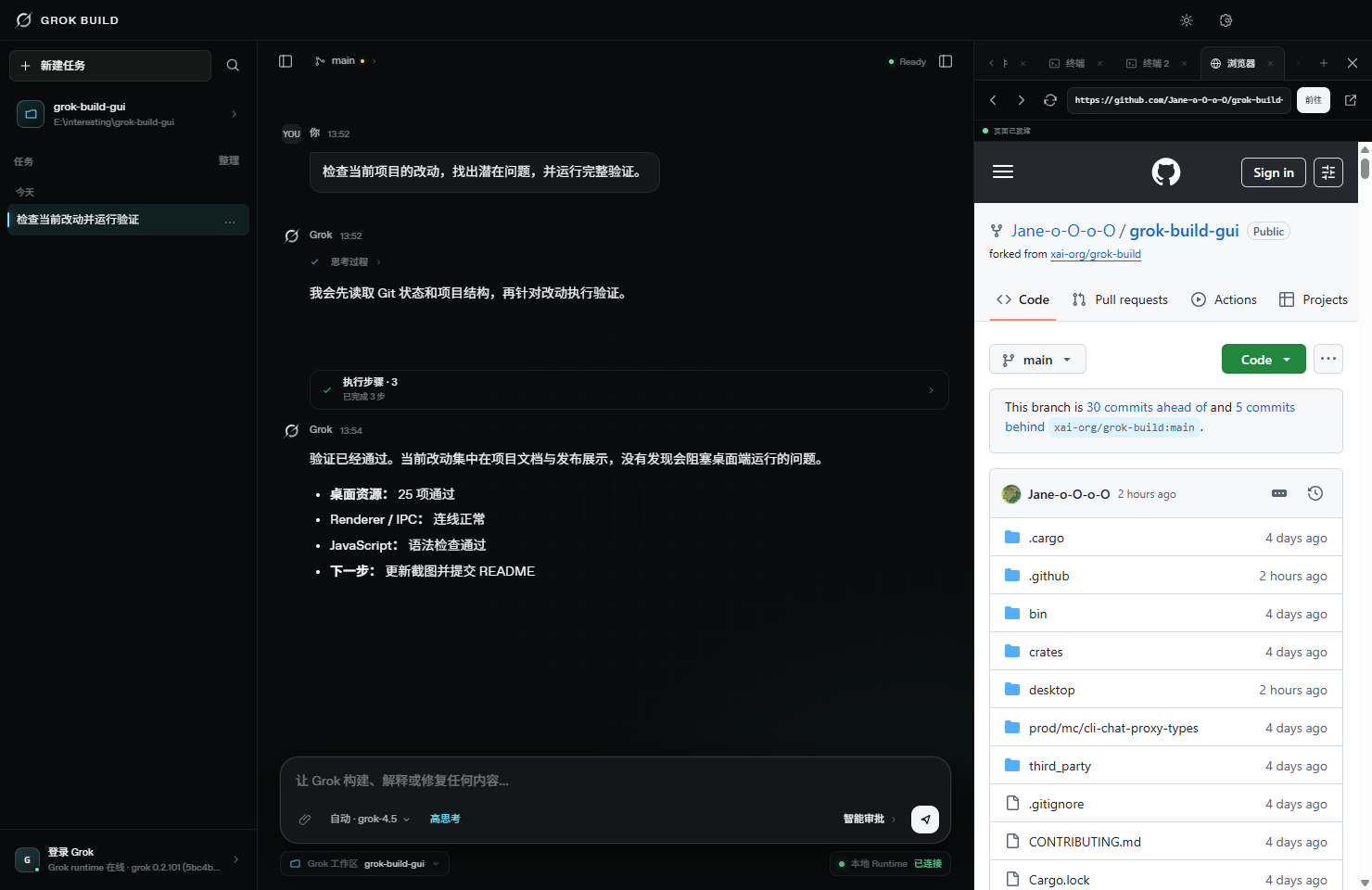

Embedded browser and local services

Embedded browser workbench

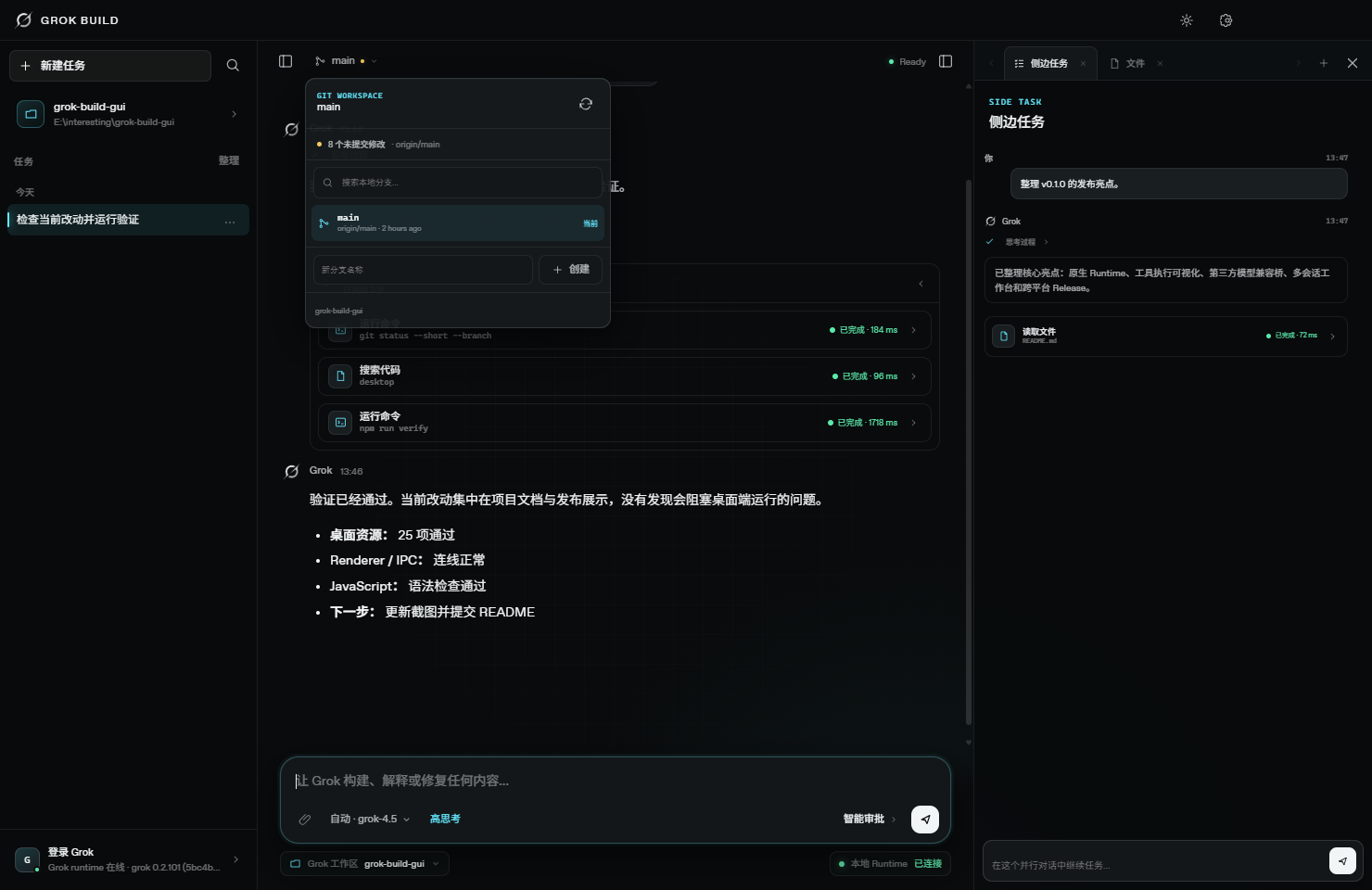

Git branch and workspace status

Git branch and workspace status

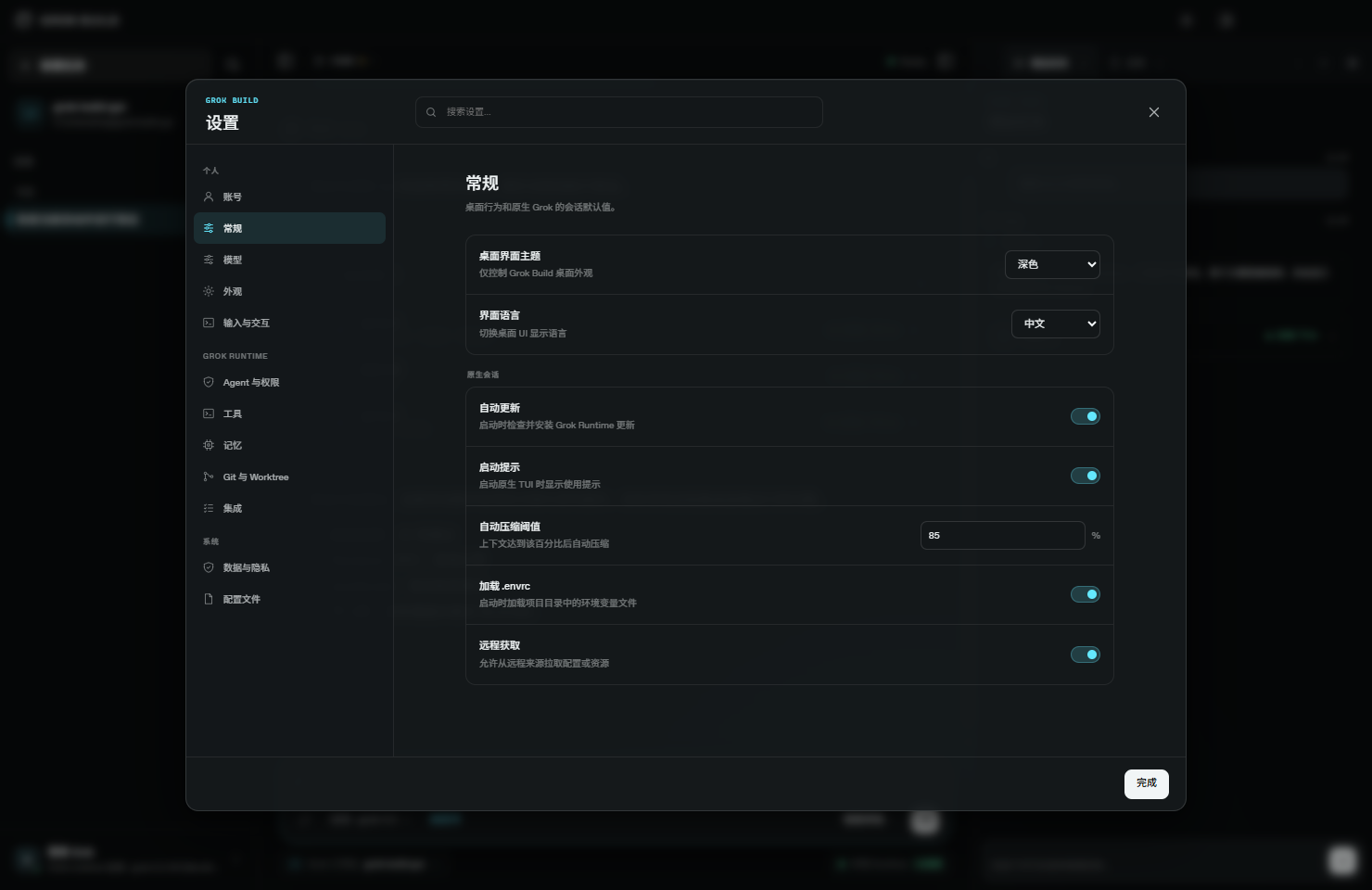

59 native settings

Grok native settings center

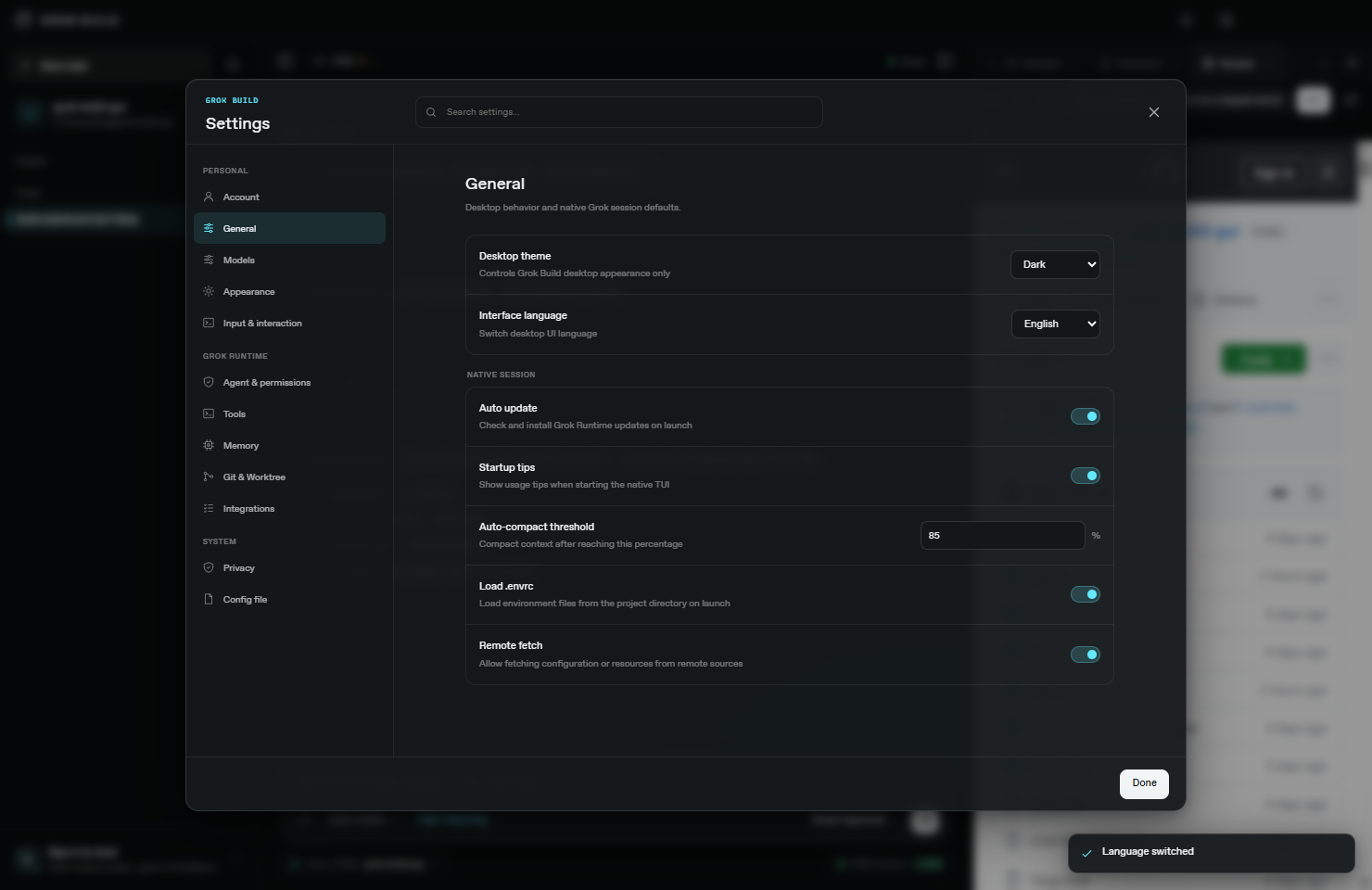

Instant English / Chinese switching

English desktop interface

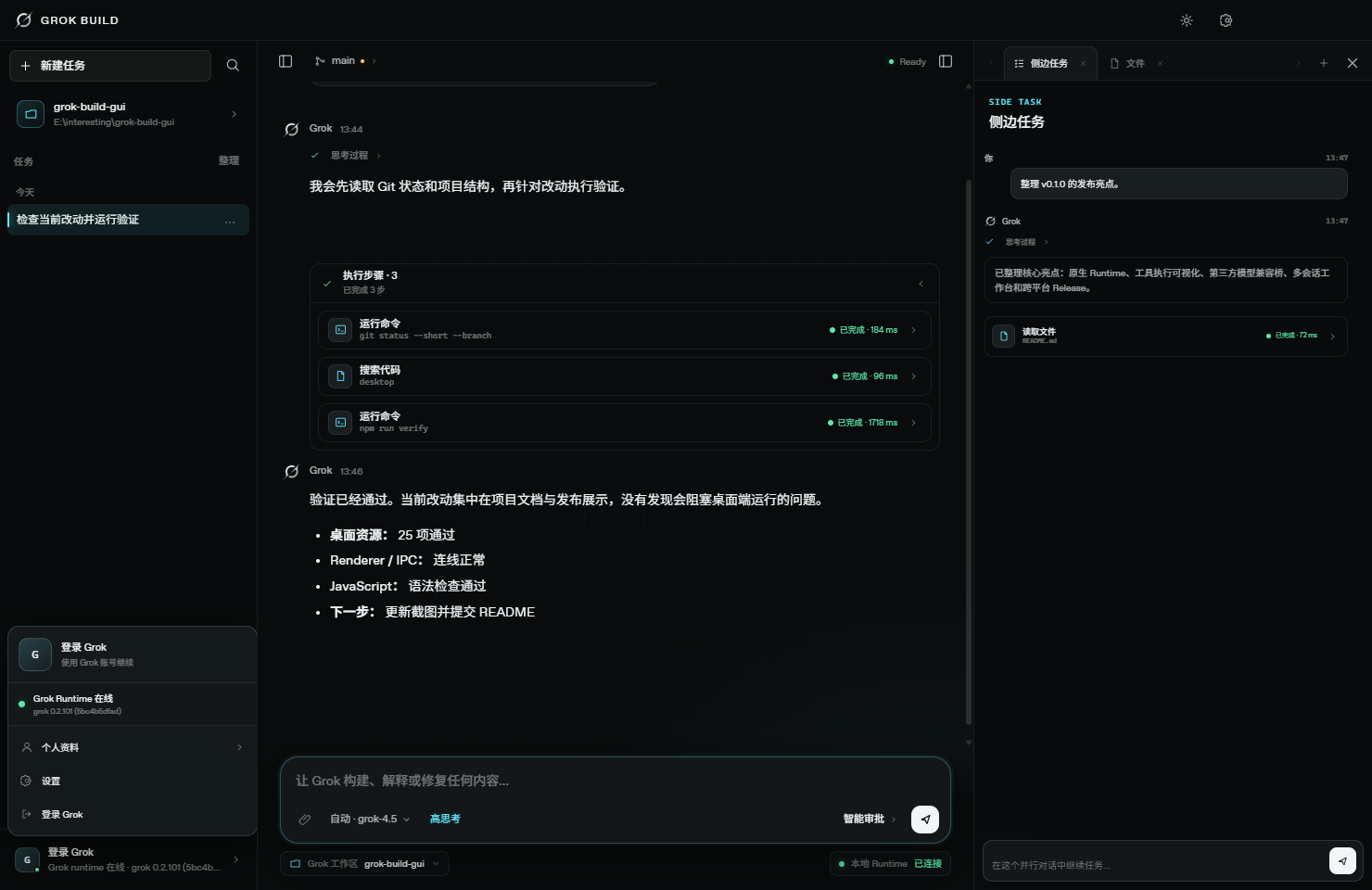

Account and runtime status

Grok account and runtime status

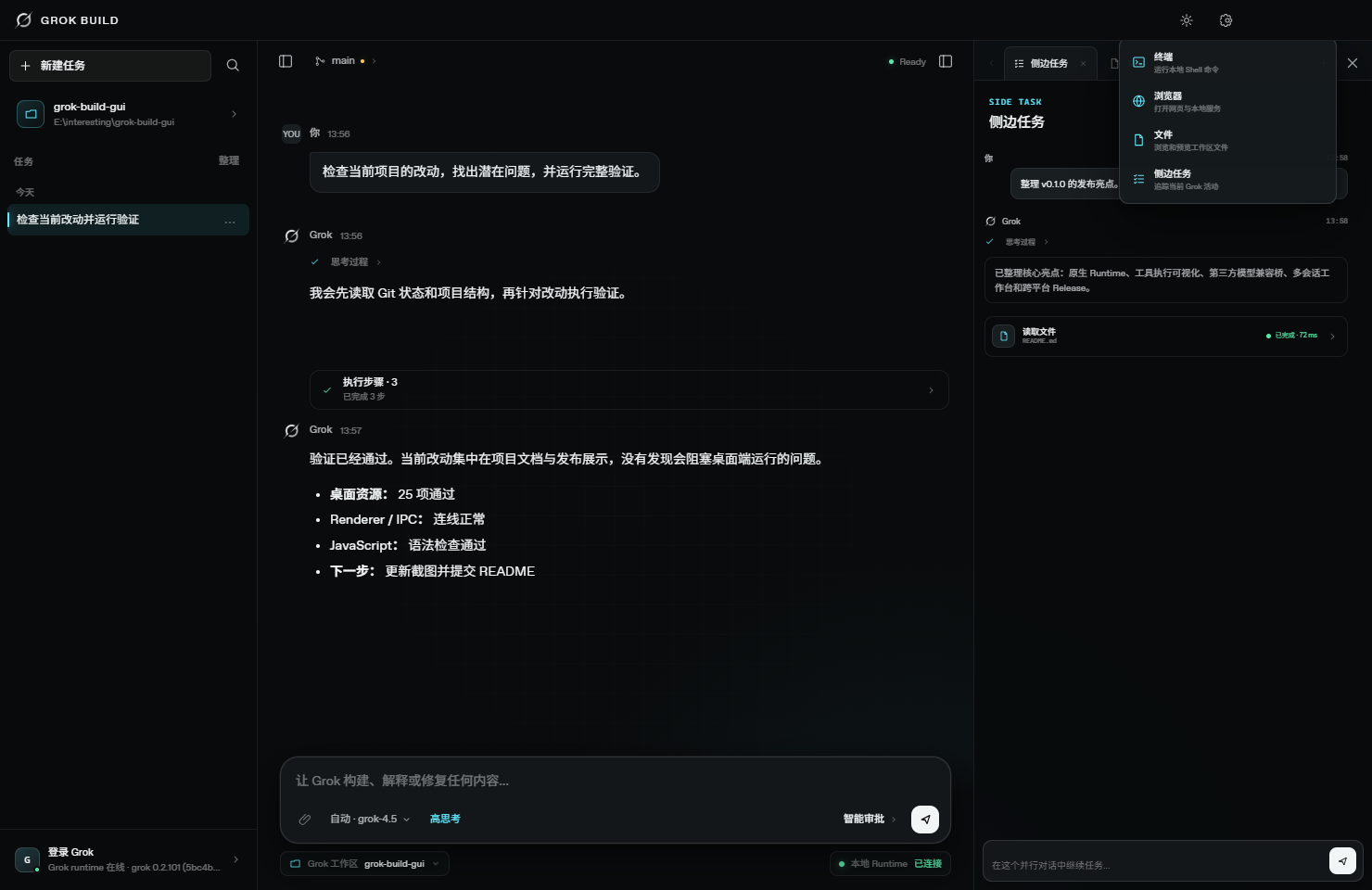

Workbench feature picker

Workbench feature picker

Download

All packages are built from the same v0.1.1 tag through GitHub Actions. The release also includes SHA256SUMS.txt.

Platform Download Notes
Windows x64 Setup.exe Standard installer
Windows x64 Portable.zip Extract and run Grok Build.exe
macOS Apple Silicon arm64.dmg M-series Macs, unsigned preview
macOS Intel x64.dmg Intel Macs, unsigned preview
Linux x64 AppImage Portable Linux app
Debian / Ubuntu x64 DEB System package
Checksums SHA256SUMS.txt SHA-256 for all six packages

Full release page: https://github.com/Jane-o-O-o-O/grok-build-desktop/releases/tag/v0.1.1

Linux AppImage

chmod +x Grok-Build-Desktop-0.1.1-Linux-x86_64.AppImage
./Grok-Build-Desktop-0.1.1-Linux-x86_64.AppImage

macOS Preview Note

The v0.1.1 DMGs are built automatically but are not yet signed or notarized with an Apple Developer identity. macOS may show a developer verification prompt on first launch. In Finder, right-click the app and choose Open.


Quick Start

1. Verify the Grok Runtime

grok --version
grok models

2. Run the Desktop App

Use a package from the release above, or run from source:

git clone https://github.com/Jane-o-O-o-O/grok-build-desktop.git
cd grok-build-desktop/desktop
npm install
npm start

Development mode:

npm run dev

Preview the Renderer without Electron main-process or runtime integration:

npm run preview
# http://127.0.0.1:4174

Runtime Discovery Order

The desktop app searches for the runtime in this order:

  1. GROK_BINARY environment variable.
  2. resources/bin/grok or grok.exe in a packaged application.
  3. Repository target/release/xai-grok-pager build.
  4. Repository target/debug/xai-grok-pager build.
  5. ~/.grok/bin/grok.
  6. grok available in the system PATH.

Specify a runtime explicitly:

$env:GROK_BINARY = "C:\path\to\grok.exe"
npm start

Feature Map

Area Current implementation
Native Agent runtime streaming-json, native sessions, new session IDs, --resume, model, reasoning effort, permission mode, attachment paths
Streaming conversation Text deltas, Thinking, Markdown, code blocks, stop generation, diagnostics, scroll follow, jump to bottom
Tool execution Tool type, input, output, state, file locations, working directory, duration, exit code, grouped consecutive steps
Composer Model, reasoning effort, permission policy, attachments, Slash picker, Enter to send, Shift+Enter for newline
Third-party models OpenAI / Anthropic detection, model discovery, individual and batch tool probing, local compatibility bridge
Session management Local task history, date groups, native sessionId, stop and continue, multi-turn context
Right workbench Multiple terminals, multiple browsers, file tree and read-only preview, multiple side Agents
Git workspace Current branch, Detached HEAD, Dirty, Staged, Upstream, Ahead/Behind, create and switch
Settings center 59 native settings, global search, section navigation, integration summary, raw TOML editor, backups
Account and runtime OAuth login/logout, redacted profile, team and role, runtime path, version, model catalog refresh
Internationalization Instant English / Chinese switching across the primary interface, settings, Provider, account, and workbench
Network proxy System proxy/PAC, HTTP(S), SOCKS, shared environment for runtime/OAuth/models/terminal, localhost bypass
Release engineering Parallel Windows/macOS/Linux builds, Draft Release creation, checksum manifest, tag-triggered workflow

Native Runtime and Sessions

CLI Invocation

The main conversation and side tasks are translated into native CLI arguments:

grok --cwd WORKSPACE -p PROMPT --output-format streaming-json

Depending on the selected state, the desktop app adds:

--session-id SESSION_ID
--resume SESSION_ID
--model MODEL
--reasoning-effort low|medium|high
--permission-mode auto|dontAsk
--always-approve

The GUI and TUI therefore use the same Agent, tools, and configuration rather than maintaining two independent behavior stacks.

Multi-Turn Sessions

Each main task stores:

  • Title.
  • Working directory.
  • Creation and update timestamps.
  • Desktop message history.
  • Native sessionId.

The desktop app assigns a Session ID on the first turn and continues subsequent turns with --resume SESSION_ID. Task history is stored locally in Renderer storage. Attachments remain in the active Composer state and are not persisted as historical attachment objects.

Attachments

The Composer accepts attachments in three ways: choose files with the paperclip button, drag files from the desktop into the conversation, or paste an image directly into the prompt with the system paste shortcut. Dragged files retain their native absolute paths; pasted PNG, JPEG, WebP, GIF, and BMP images are validated and written to the app's temporary attachment directory before being added. Duplicate paths are ignored, the list is capped at 32 attachments, and a drag overlay confirms the drop target.

At send time, the app appends attachment paths to the Prompt. The runtime then reads those files through its own tools and permission policies; the Renderer does not preload file contents into message history.


Streaming, Thinking, and Tool Execution

Stable Streaming Rendering

The desktop app consumes line-delimited runtime JSON and merges high-frequency text updates into requestAnimationFrame render cycles, reducing repeated layout, flicker, and scroll jitter.

Handled events include:

  • Text deltas.
  • Thinking / Reasoning deltas.
  • Runtime diagnostics.
  • Session binding.
  • Tool start, update, completion, and failure.
  • Permission request and resolution.
  • Phase and turn lifecycle events.
  • Normal completion, cancellation, and abnormal exit.

Native Tool Activity Bridge

In addition to standard output, the app follows native session files:

updates.jsonl
events.jsonl

This allows structured tool_call, tool_call_update, lifecycle, and permission events from the TUI/runtime to be routed into the correct desktop conversation.

Tool Cards

Tool cards are inserted at their real execution positions and can be expanded independently. They show:

  • Shell, file, search, web, and edit tool categories.
  • Input arguments and a compact summary.
  • Output.
  • Related file locations.
  • Current working directory.
  • Pending / Running / Permission / Completed / Failed / Cancelled state.
  • Duration.
  • Exit code.

Consecutive tool calls can be grouped into an Execution Steps block with live progress, permission attention, and failure counts. The main conversation and side tasks share the same rendering model.

The GUI displays native permission events and selects the CLI permission policy. Final permission decisions still belong to the runtime; the desktop app does not bypass the runtime to approve tools directly.


Composer, Models, and 65 Slash Commands

The Composer provides:

  • Enter to send.
  • Shift + Enter for a newline.
  • Local file attachments.
  • Native and third-party model selection.
  • Low / Medium / High reasoning effort.
  • Automatic, strict, and full-access permission policies.
  • Runtime and workspace status.
  • Stop-generation control.
  • Searchable Slash command picker.

Typing / opens a picker containing 65 commands, with alias search, arrow navigation, Enter / Tab selection, and Escape dismissal.

Desktop-native commands such as /new, /model, /effort, /settings, /theme, /login, /logout, /cd, /copy, and /tasks are handled immediately by the interface. Other commands are inserted into the Composer and sent to the native runtime, including:

/fork        /compact      /context      /hooks
/plugins     /skills       /memory       /plan
/resume      /mcps         /btw          /recap
/voice       /loop         /imagine      /usage
/tasks       /goal         /code-review  /check-work

Third-Party Models and Tool Compatibility Bridge

Settings → Models can add OpenAI-compatible or Anthropic services to the native Grok model catalog.

Provider Setup

  1. Enter an API Base URL.
  2. Enter an API Key.
  3. Select Discover models.
  4. The desktop app tries OpenAI and Anthropic protocols.
  5. It retrieves the model list from /v1/models.
  6. Probe one model or the entire Provider for tool capability.
  7. Select the models to keep.
  8. Saved models immediately appear in the Composer model picker.

Protocol and Backend Detection

Protocol Model catalog Tool probe Runtime backend
OpenAI Compatible GET /v1/models Chat Completions, then Responses fallback chat_completions / responses
Anthropic Messages GET /v1/models with x-api-key Native Messages tool call messages

Each model receives one of four capability labels:

  • Native — returns usable tool calls directly.
  • Bridge — requires tool-call normalization by the desktop bridge.
  • Unsupported — no compatible tool protocol was detected.
  • Unknown — has not been probed yet.

Batch probing shows live progress. Saved Providers can refresh their model catalog, re-run capability checks, or be removed.

Why the Compatibility Bridge Exists

Some OpenAI-compatible services can generate tool arguments but omit the tool name, return only the legacy function_call shape, or do not support streaming tool deltas. The desktop app runs a tokenized local bridge bound only to 127.0.0.1 that can:

  • Normalize legacy function_call into tool_calls.
  • Infer a missing tool name when exactly one JSON Schema matches.
  • Generate missing Tool Call IDs.
  • Use a non-streaming upstream request for tool calls when needed.
  • Convert the normalized result back into SSE deltas for the runtime.
  • Preserve the selected OpenAI, Responses, or Anthropic backend.

Compatible third-party models can therefore enter the native Grok Agent tool loop instead of falling back to text-only chat.

Native Model Configuration

Saving a Provider generates a desktop-managed [model.*] section such as:

[model."REMOTE_MODEL_ID-provider"]
model = "REMOTE_MODEL_ID"
base_url = "http://127.0.0.1:PORT/TOKEN/provider/PROVIDER_ID/v1"
env_key = "GROK_DESKTOP_KEY_PROVIDER_ID"
api_backend = "chat_completions"
stream_tool_calls = false

The bridge address is created dynamically at application startup. The settings UI may display Provider name, Base URL, protocol, and capability state; request forwarding and secret decryption stay in Electron's main process.

API Key Handling

  • API Keys are not written to ~/.grok/config.toml.
  • API Keys do not enter Renderer Local Storage.
  • The Renderer receives only redacted state such as hasKey and keyProtected.
  • Electron safeStorage is used when the system supports it.
  • Keys are injected into the runtime through environment variables.
  • The compatibility bridge listens on 127.0.0.1 and uses a random token path.

Multi-Tab Workbench

The right side is a resizable, browser-style tab workbench. Terminal, browser, and side-task tabs support multiple independent instances; the Files view stays single-instance. Overflow controls scroll through long tab lists.

The left task sidebar and right workbench can both be resized. Their widths are saved in local application state.

Persistent Terminals

  • PowerShell on Windows and the login Shell on macOS/Linux.
  • One independent persistent Shell process per tab.
  • Initial directory equals the workspace active when the tab is created.
  • cd, environment variables, and Shell state persist between commands.
  • Live stdout and stderr.
  • Command history, clear, restart, and close controls.
  • Separate process, output, and history for every terminal tab.

Embedded Browser

  • Electron WebView-based.
  • Supports websites and local development servers.
  • Back, forward, reload, address navigation, and loading state.
  • localhost, 127.0.0.1, and ::1 automatically use HTTP.
  • Regular domains automatically receive HTTPS.
  • Independent URL and navigation state per tab.
  • Open the current page in the system browser.
  • Node Integration disabled, with Context Isolation and Sandbox enabled.

File Browser and Preview

  • Lazy directory tree expansion.
  • Filename filtering.
  • Read-only text preview.
  • Breadcrumb and file tab.
  • Open with the system application, reveal in file manager, copy relative/absolute path, and copy filename.
  • Dependency and build directories such as node_modules, target, and dist are excluded.
  • Main-process path boundary validation blocks reads outside the workspace.
  • Binary files and previews larger than 1 MB are rejected.

Parallel Side Tasks

  • Independent messages, sessionId, run state, and stop control per tab.
  • Same streaming text, Thinking, and tool cards as the main conversation.
  • The latest ten main-thread messages are included as current context when a side task is sent.
  • Uses the same workspace and native project Memory.
  • Multiple side tasks can run in parallel without overwriting the main session.

Git Workspace

The branch control reads real Git state:

  • Current local branch.
  • Short commit ID for Detached HEAD.
  • Clean or dirty workspace.
  • Number of uncommitted files.
  • Number of staged files.
  • Upstream branch.
  • Ahead / Behind counts.
  • Recently updated local branches.

You can search and switch local branches, or create a new branch and switch to it immediately. New branch names are validated with:

git check-ref-format --branch

Branch creation and switching are locked while an Agent task is active, preventing the code context from changing mid-run. Git itself continues to protect operations that would overwrite local changes, and its error message is shown in the desktop UI.


Native Settings Center

The settings center reads and writes:

~/.grok/config.toml

It provides section navigation, global search, typed controls, integration summaries, and a full TOML editor.

59 Typed Settings

These settings map to native Grok runtime/TUI configuration. Some affect the runtime or TUI rather than the desktop Renderer itself.

Category Count Representative settings
General and models 7 Default model, Web Search model, auto update, startup tips, compaction threshold, .envrc, remote catalog
Appearance and display 12 TUI Theme, system theme mapping, Compact, Screen Mode, timestamps, Thinking, tool grouping, Mermaid, refresh cadence
Agent and permissions 8 Permission Mode, remember approvals, default permission, question timeout, Subagents, two-pass compaction, Fork model, cancellation policy
Input, voice, and scrolling 16 Readline/Vim, suggestions, Voice Mode/STT Language, scroll behavior, selection behavior, six contextual hints
Local tools 5 Respect Gitignore, Bash Timeout, output limit, LSP Tools, Codebase Indexing
Memory 6 Enabled, Save on End, Watcher, result count, minimum score, Initial Injection
Git and Worktree 3 New Session Worktree, Fork Worktree, Hunk Tracker
Data and privacy 2 Telemetry, Feedback
Total 59 Type, enum, and numeric range validation

Protected Configuration Writes

When changing one typed setting, the desktop app:

  1. Re-reads the current TOML.
  2. Updates only the requested section and key.
  3. Preserves comments, unknown fields, and third-party model configuration.
  4. Validates booleans, numbers, ranges, and enums.
  5. Writes to a temporary file and atomically replaces the target.
  6. Creates a backup:
~/.grok/config.toml.desktop-backup

The Config file page keeps a full TOML editor for MCP, Plugins, Skills, Hooks, Agents, Sandbox, Permission Rules, enterprise authentication, and other open-ended settings.

Integration Summary

The settings center reports native integration directories and configuration:

  • MCP.
  • Plugins.
  • Skills.
  • Hooks.
  • Agents.
  • Custom Models.

It shows discovered item counts, source, and path, and can open the corresponding configuration file or directory.


Grok Account and Runtime

The account entry combines:

  • Login identity.
  • Email.
  • Team and role.
  • Login method.
  • Runtime online state.
  • Runtime path.
  • Runtime version.
  • Profile, settings, login, and logout actions.

Login delegates to:

grok login --oauth

The native runtime opens OAuth in the system browser. The desktop UI surfaces the launch, browser-opened, completed, and error states.

Logout delegates to:

grok logout

Profile data is read from ~/.grok/auth.json. Only redacted fields such as display name, email, team, role, and login method enter Renderer state. Tokens, refresh tokens, and API Keys stay out of the page.


Network and System Proxy

The desktop app uses Electron/Chromium to resolve operating-system proxy and PAC configuration:

  • HTTP, HTTPS, SOCKS, and PAC routing.
  • Shared with the native runtime, OAuth, model catalog, third-party providers, and terminal processes.
  • Re-resolved before runtime detection and model requests.
  • System proxy changes do not require restarting the entire app.
  • Third-party Providers resolve PAC against their own Base URL rather than an xAI URL.
  • Model discovery and tool probes use the Chromium Session.
  • NO_PROXY keeps localhost, 127.0.0.1, ::1, and the local model bridge direct.

English and Chinese UI / Grok Visual System

v0.1.1 includes English and Simplified Chinese interfaces:

  • Switch instantly from Settings → General.
  • Language preference is saved locally.
  • No application restart is required.
  • Covers the main interface, Composer, account, settings, Provider management, primary tool states, workbench, and notifications.
  • Native settings and enum values use a separate localization catalog.

The visual system is not a generic blue AI client template. It extends Grok Build's TUI identity into a desktop language:

  • Deep-space black surfaces.
  • Signal Cyan accent color.
  • Compact desktop information density.
  • Fine-border cards and blurred overlays.
  • 150 / 320 ms motion rhythm.
  • Braille Grok mark derived from TUI views/welcome/logo.rs.
  • logo07.txt interface contour and high-resolution logo24.txt application icon.
  • Bottom-left to top-right gray-to-primary-text shimmer.

See desktop/docs/DESIGN_ADAPTATION.md for the design adaptation record.


Security and Local Data Boundaries

Electron Boundary

  • Renderer contextIsolation enabled.
  • Renderer Sandbox enabled.
  • Renderer Node Integration disabled.
  • Local capabilities exposed only through an allowlisted Preload API.
  • WebView Preload removed and Node Integration disabled.
  • New windows are redirected to the system browser.
  • File preview limited to the current workspace.
  • File size, binary content, and path traversal validated in the main process.

Data Locations

Data Location / handling
Native Grok configuration ~/.grok/config.toml
Configuration backup ~/.grok/config.toml.desktop-backup
Grok account profile ~/.grok/auth.json, redacted before Renderer delivery
Native session and tool events ~/.grok/sessions/...
Third-party Providers Electron userData/providers.json
Third-party API Keys Encrypted with safeStorage when available; absent from TOML and Renderer
Desktop task history and layout Renderer Local Storage
Attachments Local path added at send time; attachment list not persisted as history
Pasted images Format-validated image in the operating-system temporary directory; maximum 25 MB per image

Architecture

flowchart LR
    UI[Electron Renderer\nChat / Settings / Workbench] -->|Context Bridge| Preload[Preload allowlist]
    Preload -->|IPC| Main[Electron Main]
    Main -->|streaming-json| Grok[Native grok Runtime]
    Main --> Session[updates.jsonl / events.jsonl]
    Main --> Config[~/.grok/config.toml]
    Main --> Auth[~/.grok/auth.json]
    Main --> Secrets[Electron safeStorage]
    Main --> Bridge[127.0.0.1 Provider Bridge]
    Bridge --> Providers[OpenAI / Anthropic Providers]
    Grok --> Tools[Shell / Files / Web / MCP]
    Grok --> Memory[Sessions / Memory / Worktree]

Main Data Flow

  1. Renderer sends Prompt, workspace, model, reasoning effort, and permission policy to Preload.
  2. Preload forwards them to the main process through allowlisted IPC.
  3. The main process launches the local grok child process.
  4. Streaming JSON from stdout becomes text, Thinking, and completion events.
  5. Session JSONL becomes tool, permission, and lifecycle events.
  6. Renderer routes events to the main conversation or the correct side task.
  7. Native sessionId is stored with the desktop task and reused through --resume.

Development and Verification

Requirements

  • Node.js 20+
  • npm
  • Git
  • Grok Build runtime

Install Dependencies

cd desktop
npm install

Full Desktop Verification

npm run verify
npm run test:providers
npm run test:bridge
npm run test:config
npm run test:account
npm run test:git
npm run test:cli

Current coverage includes:

  • 25 desktop assets, Renderer/IPC wiring, and JavaScript syntax.
  • OpenAI and Anthropic model discovery.
  • Provider authentication headers.
  • Native [model.*] generation and preservation.
  • Individual and batch tool capability classification.
  • Tool-name repair and non-streaming compatibility bridge.
  • Verification that API Keys do not enter native TOML.
  • All 59 native setting reads and writes.
  • Targeted TOML updates, unknown-field preservation, and backups.
  • Grok account profile redaction.
  • Git branch discovery, dirty state, creation, and switching.
  • Generic CLI arguments, sessions, and permission-mode mapping.
  • Localized dynamic workbench labels.

Local Packaging

cd desktop
npm run pack
npm run dist

Windows unpacked output:

desktop/dist/win-unpacked/Grok Build.exe

Automated Releases

Pushing a v* tag triggers .github/workflows/release-desktop.yml:

  1. Run the full test suite on Ubuntu.
  2. Build Windows Setup and Portable ZIP.
  3. Build x64 and arm64 DMGs on macOS.
  4. Build AppImage and DEB on Ubuntu.
  5. Collect packages and generate SHA256SUMS.txt.
  6. Create a Draft Release and upload every artifact.

Repository Structure

Path Responsibility
desktop/ Electron desktop application
desktop/main.cjs Window, runtime, session events, account, proxy, files, terminal, and IPC
desktop/preload.cjs Context Bridge allowlist
desktop/cli-runtime.cjs Prompt, session, model, reasoning, and permission CLI arguments
desktop/provider-config.cjs Provider discovery, tool probing, and native model configuration
desktop/provider-bridge.cjs Local tool-call bridge and SSE normalization
desktop/native-config.cjs Protected reads and writes for 59 native TOML settings
desktop/account-info.cjs Grok account parsing and redaction
desktop/git-workspace.cjs Git state, branch creation, and switching
desktop/renderer/app.js Sessions, tool cards, workbench, settings, and interactions
desktop/renderer/i18n.js Main interface English / Chinese catalog and DOM localization
desktop/renderer/locales-native.js Native setting, enum, and integration localization catalog
desktop/renderer/app.css Desktop layout, components, motion, and responsive styling
desktop/docs/ Current screenshots, design record, and capability audit
desktop/scripts/ Static verification and Provider, Bridge, Config, Account, Git, and CLI tests
crates/codegen/xai-grok-pager Native TUI, rendering, input, and user guide
crates/codegen/xai-grok-shell Agent runtime, sessions, authentication, and configuration
crates/codegen/xai-grok-tools Shell, file, search, and other tools
crates/codegen/xai-grok-workspace Workspace, version control, execution, and checkpoints

Current Boundaries

To keep expectations aligned with the current codebase:

  • The desktop app requires a local Grok runtime; release packages do not yet bundle the CLI.
  • Windows is the primary manually verified platform; macOS and Linux packages are produced by the automated build pipeline.
  • macOS DMGs are currently unsigned and not notarized.
  • The Files view is a browser and read-only preview, not a full code editor.
  • The GUI displays permission events and selects CLI policy; the runtime still makes the permission decision.
  • Third-party Agent tool support depends on the Provider's tool-calling protocol, and the settings UI reports the probe result.
  • Raw TOML remains the complete configuration path for MCP, Plugins, Skills, Hooks, Agents, and advanced rules.

Native TUI Documentation

The complete native user guide is located at:

crates/codegen/xai-grok-pager/docs/user-guide/

It covers authentication, keyboard shortcuts, Slash Commands, configuration, themes, MCP, Skills, Plugins, Hooks, Memory, Headless mode, ACP, Subagents, Sandbox, Plan Mode, background tasks, and usage monitoring.


Search Topics

Useful when searching GitHub, Google, or package indexes:

grok-build · grok-build-desktop · grok-build-gui · grok desktop · grok gui · xai grok · grok coding agent · ai coding agent · electron ai agent · mcp desktop · openai compatible · anthropic · agent client protocol · windows macos linux

If this project helps your Grok Build workflow, ⭐ star the repo so more developers can find it.


Maintainer

  • Jane-o-O-o-O — AI Application Engineer / Agent Developer

Issues, feature suggestions, and pull requests are welcome.

License

First-party code is licensed under Apache License 2.0. Third-party and ported code remains under its respective licenses. See:

Grok, xAI, and related marks belong to their respective owners. This repository is a community desktop interface built on the open Grok Build runtime/TUI source included in the repository; it is not an official xAI desktop product.

Reviews (0)

No results found
