Cairn

cairn /kɛːn/ — a mound of stones built as a trail marker, placed one at a time by those who pass, so that those who follow can find their way.

Every Claude Code response distills what it learned into structured knowledge. The user never sees it. A hook captures it. A database stores it. The next session knows.

Cairn exploits the gap between raw LLM output and rendered display in Claude Code and VS Code Copilot Chat. Memory metadata is invisible to the user — angle bracket tags are stripped from the CLI, markdown link definitions don't render in Copilot's chat panel — but preserved in the hook system. This creates an invisible control plane where the LLM distills portable knowledge on every turn, and the infrastructure enforces it mechanically.

No cloud. No API keys. No MCP. One SQLite file. Two hooks. No additional LLM calls — knowledge is distilled as part of the normal response, not via a separate extraction step.

What makes this different

Most LLM memory systems treat memory as infrastructure around the LLM — capturing at session end, on compaction, via batch tools, or when the LLM calls an explicit tool. Retrieval fires at session start or when the user's prompt happens to match something stored.

Cairn delivers per-turn granular knowledge capture and retrieval, making the LLM an active participant in its own memory lifecycle on every single turn:

• Every response → the LLM distills what it learned into structured, portable knowledge
• Every response → the LLM self-assesses whether it has sufficient context and requests retrieval if not
• Every response → keywords are extracted and cross-project knowledge is staged for the next turn

All three are enforced mechanically. The LLM cannot forget to participate. No other memory system operates this way.

The LLM is the knowledge author — at zero extra cost. Knowledge is distilled as part of every response, not via a separate LLM call. Other systems run a second Claude invocation after the session to extract memories. Cairn's memory block is invisible tail content appended to the normal response — the same tokens that answer the user also distill the knowledge. No extra API calls, no added latency, no background processes for extraction.

The knowledge channel is invisible. The user sees a clean response. The hook infrastructure sees structured entries with type, topic, confidence signals, and retrieval requests. The LLM writes to a channel the user can't see.

The LLM controls the retrieval loop. It declares when it lacks context. A Stop hook searches the database, injects results, and re-prompts — all before the response reaches the user. The LLM also rates what it gets back — corroborating, flagging irrelevance, or annotating contradictions — building a veracity signal across sessions.

Enforcement is mechanical, not advisory. A Stop hook fires after every response. No memory block? Blocked and re-prompted. Says it's incomplete? Blocked and continued. Needs context? Blocked, searched, injected, continued. The LLM can't forget to participate.

How it compares

Surveyed the top 30 GitHub "claude memory" repos (April 2026) plus the two most prominent dedicated memory systems (Claude-Mem, Mem0). The landscape breaks into four approaches:

Cairn is the only system that makes the LLM an active participant on every turn with zero extra LLM calls:

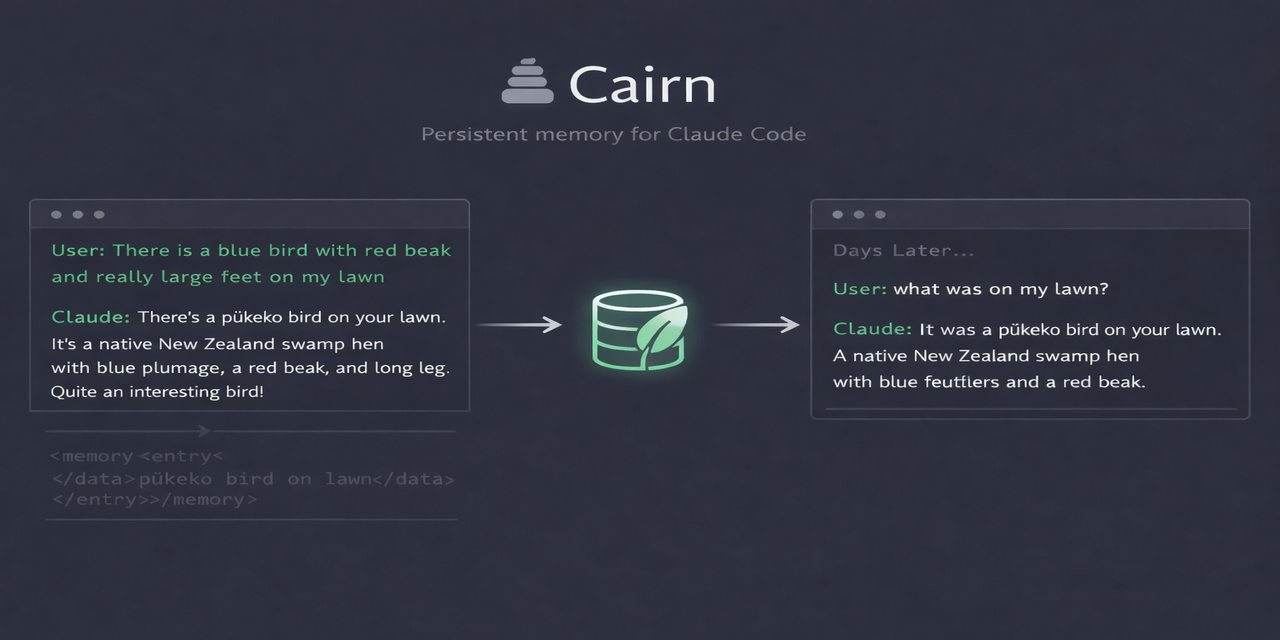

Session 1 — casual conversation in ~/temp:

You:    "I see a fairly big mostly blue bird on my lawn. Solid red beak and huge feet"
Claude: "That's a pukeko — NZ Purple Swamphen..."

Session 2 — different directory, days later, working on something unrelated:

You:    "what was on my lawn?"
Claude: "A pukeko — NZ Purple Swamphen. Large blue bird, red beak, big feet."

The user never asked Claude to remember the bird. Never asked it to look anything up. The memory was captured invisibly in session 1 and surfaced automatically in session 2.

Features

• Cross-session memory — decisions, preferences, facts, corrections, people, projects, skills, workflows
• Per-turn memory authoring — the LLM writes structured memories on every response, enforced mechanically; no separate capture step
• Per-turn context self-assessment — the LLM declares when it lacks context on every response; the system retrieves and re-prompts automatically
• Five retrieval layers — CWD-based project bootstrap, proactive first-prompt push, per-prompt mid-session injection, cross-project keyword surfacing, LLM-requested pull, plus gotcha injection on file access
• Hybrid FTS5 + vector search with RRF — exact keyword matches (error codes, function names) fused with semantic similarity via Reciprocal Rank Fusion; dual-method matches ranked higher than single-method
• Type-prefix fan-out — query expansion that searches with each memory type prefix (fact, decision, correction, etc.) and takes the max similarity per memory; closes the embedding gap between bare queries and type-prefixed stored memories
• Veracity tracking — confidence represents corroboration, not retrieval rank; + corroborates, -! annotates contradictions with reasons that persist for future sessions
• Cross-encoder re-ranking — after diversity filtering, a cross-encoder (ms-marco-MiniLM-L-6-v2) jointly scores (query, memory) pairs, catching semantic relationships that independent embeddings miss; blended with composite score at configurable weight
• Memory consolidation — automated pipeline merges duplicate memories using NLI entailment scoring, with Haiku generating consolidated entries; runs daily via cron
• Contradiction detection — NLI-based contradiction scoring with Haiku assessment identifies superseded memories and auto-archives them; also detects plan→implementation pairs (older intent confirmed built by a newer memory) and archives the stale plan as EXECUTED; incremental via pair assessment cache
• Session handoff digest — every 10 turns the LLM emits a structured session summary (branch, in-progress work, decisions, blockers, next action) as a project memory; the next session resumes from it via project bootstrap
• Semantic search — local embeddings via all-MiniLM-L6-v2 with sqlite-vec indexed vector search; no API key required
• Project bootstrap — on session start, injects standing-context memories (preferences, facts, project state) for the current working directory; gives Claude project awareness from CWD alone, independent of prompt content
• Per-prompt context injection — on every subsequent prompt, searches for relevant past context mid-conversation; catches cases where relevant memories exist but the LLM didn't know to ask
• Project scoping — memories auto-labelled by working directory, retrievable per-project or globally
• Invisible — metadata tags are stripped from user display; the system operates transparently
• Quality gates — 10 configurable filters including garbage, borderline, relative, dominance, diversity, and cross-encoder re-ranking
• Contradiction handling — same-topic updates suppress the old entry; negation heuristics dampen conflicting memories; -! annotations preserve why something was wrong
• Correction-file association — when a correction is stored, surrounding file paths are automatically extracted from the transcript and linked; future access to those files injects the correction proactively
• Gotcha injection — PreToolUse hook surfaces corrections and relevant context before Read/Edit/Write tool calls on associated files
• Dual-platform support — works with both Claude Code CLI (<memory> tags, stripped from terminal) and VS Code Copilot Chat ([cm]: markdown link definitions, invisible in chat panel); transcript adapter normalizes both formats transparently
• Compact memory format — dual-format parser supports both verbose (- type: fact) and compact (fact/topic: content [k: kw1, kw2]) memory blocks
• Completeness enforcement — complete: false blocks stop and re-prompts with remaining work; trailing intent detection blocks when the LLM promises action without following through
• Bootstrap enforcement — forces context checks every N turns to build the habit of cairn-first reasoning
• Active bootstrap trigger — pattern-based detection of knowledge questions ("what did we decide", "remind me about", "what aspect of my X") fires an immediate context check, not just on the N-turn timer
• Thin-retrieval escalation — when push retrieval returns too few or too-weak results, the next stop hook stages a reminder forcing the LLM to run query.py directly or re-declare with a refined need; catches the failure mode where the LLM trusts an empty push as authoritative absence
• Query-quality enforcement — detects phoned-in context_need declarations that don't reference the substantive terms from the user's question; staged reminder asks for a refined declaration
• Multi-query decomposition — | separator in find_similar and query.py --semantic runs each subquery independently and merges by best score; tight semantic vectors per topic instead of one blurred embedding
• Type-aware scope bias — person and preference memory types ignore the project scope penalty so biographical/cross-cutting facts about the user surface in any session, not just the project where they were captured
• Project label override — CAIRN_PROJECT=name claude overrides the cwd-based default for catch-all directories or benchmark isolation
• Verbatim session recovery — every memory links back to the exact conversation that produced it; --context <id> retrieves the verbatim transcript excerpt from the original session — the actual words spoken, not a summary or reconstruction. No other surveyed system provides this.
• Self-improving — retrieval outcome feedback adaptively tightens thresholds when results are poor
• Memory audit — /cairn audit reviews session memories for accuracy, enriches thin entries, fills gaps; background agent (audit_agent.py) reads transcripts via claude -p for automated review
• Archive over delete — superseded and incorrect memories are archived with reasons, preserving the learning trail of rejected approaches and mistakes
• Content enforcement — strict metadata validation, content density checks, anti-fabrication rules
• Health check — --check validates the full chain (DB, hooks, daemon, embeddings, rules) post-install
• Self-healing embeddings — auto-starts daemon and backfills when memories are stored without embeddings
• Web dashboard — browser-based UI at localhost:8420 for monitoring and management; overview stats, memory browser with search, session explorer with transcript viewer, retrieval metrics, embedding performance, token usage estimates, per-session generated-vs-consumed memory flow, retention dashboard with excerpt snapshots, session triage, config editor
• Systemic health monitoring — tracks persistent failures across daemon, embedding, and hook subsystems; writes .impaired sentinel file on degradation triggering a visible warning in the LLM's prompt; desktop notifications via notify-send; health pill in dashboard
• Ephemeral DB split — transient operational data (metrics, hook state, pair assessments) isolated in a separate cairn-ephemeral.db to contain corruption blast radius away from durable memories
• Annotation audit trail — every confidence feedback event (+, -, -!) logged to memory_annotation_log with reason and session, enabling post-hoc review of how memory confidence evolved
• Excerpt snapshots — stop hook auto-captures the assistant message as source context; --context <id> reads the excerpt first for instant recovery without transcript search
• Subagent mode — automatic detection via agent_id in hook input; keeps bootstrap + L1 context injection, skips enforcement/L1.5/L2; stop hook opportunistically stores volunteered memories without blocking
• Embedding instrumentation — per-call timing for daemon, local model, vector search, brute-force search, and fan-out expansion; surfaced in dashboard metrics panel
• Repo ingestion — mechanistic extraction + Haiku distillation turns any git repo into portable knowledge entries; 24 extractors cover docs, deps, configs, schemas, HTTP routes, CLI args, exports, protobuf, CMake flags, event interfaces, DB tables, C/C++ headers, ROS2 interfaces, CAN DBC, Yocto/BitBake, device tree, Docker/CI, plus tree-sitter AST parsing (8 languages) and dependency graph analysis
• Incremental re-ingestion — section-level fingerprinting detects what changed since last ingestion; only changed sections are sent to Haiku, unchanged memories preserved; --full forces complete re-ingestion; extractor version tracking triggers re-processing when extractor logic changes
• Env var overrides — any config value tunable via CAIRN_<NAME>=value without editing source
• API proxy (artifact-free, default on) — an opt-out bidirectional proxy (cairn/proxy/) that injects context and strips every Cairn artifact (<memory>/[cm] blocks, <cairn_context>, system reminders) from the request/response stream, so the model receives memory but the prompt stays byte-exact for Anthropic prompt caching; runs on 127.0.0.1:8789, fronted by a c launcher and a */5 keep-alive cron. Opt out with CAIRN_PROXY_ENABLED=0
• Code-graph navigation (cairn-graph) — zero-cost, no-LLM query layer over a code-review-graph symbol graph: locate symbols, callers/callees, blast radius, tests, and context packs. Surfaced automatically into sessions as a session-start orientation block (Tier 1) and per-file structural context on Read/Edit (Tier 2)
• Graph fleet — an hourly cron + first-contact prompt hook keep every git repo under the configured roots graph-ready, so structural context is available before first contact, independent of whether Cairn has been active there
• Review write-back (cairn-review-writeback) — persists durable review rationale (the why that survives the fix) keyed to the target repo and changed file/symbol, surfaced later via cairn-graph --knowledge
• Subagent memory capture — a SubagentStop hook routes a subagent's final [cm] block (invisible to the parent Stop hook) into storage, chained to the parent session, enforcement skipped
• Dev-container support — the daemon exposes a TCP listener (port 47390) with cairn_recall/cairn_remember opcodes plus a container injector and extension auto-installer, so containerised sessions reach the host cairn
• Calibration system (Phases 1–7) — a complementary track that captures how to interact with this user (level, style, preferences); a per-session analyser, agent-invoked CLI, self-modification passes, and a dashboard tab. See the Calibration section below

Quick start

git clone https://github.com/jimovonz/cairn.git ~/cairn
cd ~/cairn
./install.sh            # CPU embeddings (default, ~200MB PyTorch)
./install.sh --gpu      # GPU embeddings (CUDA, ~2.3GB PyTorch)

Restart Claude Code (or VS Code with Copilot). The system is now active in every session.

The installer:

1. Creates a Python venv and installs dependencies (CPU-only PyTorch by default)
2. Initializes the SQLite database
3. Deploys global hooks, instructions, and the /cairn slash command
4. Downloads 3 models (~250MB total, one-time): embedding (all-MiniLM-L6-v2), cross-encoder (ms-marco-MiniLM-L-6-v2), NLI (nli-MiniLM2-L6-H768)
5. Starts the embedding daemon
6. Enables the artifact-free API proxy on 127.0.0.1:8789 (default on; opt out with CAIRN_PROXY_ENABLED=0) and installs the c launcher in your shell rc
7. Bootstraps the code-graph fleet in the background (builds a symbol graph for every repo under the configured roots)
8. Installs cron jobs: memory consolidation (3:00 AM), contradiction detection (3:30 AM), calibration analyser (00:00) + self-modification (00:30), graph-fleet sweep (hourly), and a */5 proxy keep-alive

Usage

The system works automatically. No manual action required.

Every Claude Code response produces invisible metadata that gets captured and stored. When the LLM needs past context, it requests it and the system injects relevant memories with project scoping, confidence scores, and recency weighting.

Slash commands

Repo ingestion

Ingest any git repository into Cairn as portable knowledge entries. Two-phase pipeline: mechanistic extraction (no LLM) followed by Haiku distillation into one-liner memories.

python3 cairn/ingest.py /path/to/repo                     # extract + distill + store
python3 cairn/ingest.py /path/to/repo --dry-run            # preview without storing
python3 cairn/ingest.py /path/to/repo --phase1-only        # extraction only, no Haiku
python3 cairn/ingest.py /path/to/repo --project myproj     # override project name
python3 cairn/ingest.py /path/to/repo --recurse-submodules # include git submodules

24 extractors cover a broad range of project types:

Memories are tagged with the project name and git commit SHA for provenance. Re-running ingestion diffs against existing entries and archives superseded ones. Dependency graph edges are persisted to memory_relations and queryable via query.py --deps <project>.

How it works

The invisible metadata mechanism

Every LLM response ends with a <memory> block using angle bracket tags. Claude Code strips these from the displayed output — the user sees a clean response. But the Stop hook has full access to the structured data.

<memory>
- type: decision
- topic: auth-approach
- content: Use JWT for stateless auth, no server sessions
- keywords: authentication, JWT, session
- source_messages: 15-22
- complete: true
</memory>

Five retrieval layers

Veracity system

Confidence represents veracity — how well-corroborated a memory is across sessions. It is not used in retrieval scoring (similarity, recency, and scope handle ranking).

• + → corroboration: confidence += 0.1 × (1 - confidence) — saturating boost
• - → irrelevant: no change (irrelevance is not evidence against truth)
• -! reason → contradiction: annotates the memory with a reason it's wrong, preserved for future sessions

Memories start at 0.7 (unverified). No passive decay — important but rarely accessed memories retain their confidence indefinitely.

Quality gates

Retrieved results pass through 10 configurable gates before injection:

1. Low-information pre-filter (skip generic queries)
2. Garbage gate (reject if best similarity < 0.35)
3. Borderline gate (reject weak similarity + low score)
4. Adaptive threshold (auto-tighten if recent retrievals were poor)
5. Relative filter (drop entries far below the best match)
6. Diversity filter (deduplicate near-identical results)
7. Cross-encoder re-ranking (joint query-memory scoring with score floor)
8. Dominance suppression (include runner-up if close to leader)
9. Weak-entry suppression (don't inject if top result is unreliable)
10. Hard cap (max 5 entries)

All thresholds configurable in cairn/config.py.

Architecture

See ARCHITECTURE.md for the full technical reference (1400+ lines), including:

• Database schema (memories, sessions, history, metrics)
• Composite scoring formula
• Deduplication and contradiction handling
• Embedding strategy and vector search
• Loop protection mechanisms
• Design decisions and rationale

File structure

cairn/
├── install.sh              # One-command installer
├── uninstall.sh            # Clean removal
├── pyproject.toml          # Package metadata and dependencies
├── CLAUDE.md               # Project-local LLM instructions
├── .claude/
│   ├── settings.json       # Project-local hooks
│   └── rules/
│       └── memory-system.md  # Full system rules for the LLM
├── cairn/
│   ├── config.py           # All tunable parameters (env var overrides)
│   ├── init_db.py          # Schema and migrations
│   ├── query.py            # CLI query tool (20+ commands)
│   ├── dashboard.py        # Web dashboard (localhost:8420)
│   ├── embeddings.py       # Embedding with daemon support + composite scoring
│   ├── daemon.py           # Background server (embeddings, cross-encoder, NLI, TCP listener)
│   ├── consolidate.py      # Memory consolidation + contradiction detection pipeline
│   ├── contradiction_scan.py # Legacy contradiction scanner
│   ├── ingest.py           # Repo ingestion (24 extractors + Haiku distillation)
│   ├── graph.py            # cairn-graph CLI over the code-review-graph symbol graph
│   ├── graph_fleet.py      # Keeps every repo's code graph fresh (sweep + status)
│   ├── repo_discovery.py   # Graph orientation/build on session contact
│   ├── review_writeback.py # cairn-review-writeback — durable review rationale
│   ├── container_injector.py # Dev-container context injection
│   ├── analyser.py         # Calibration analyser (per-session LLM pass)
│   ├── calibration.py      # Calibration CLI (agent-invoked)
│   ├── calibration_inject.py # UserPromptSubmit calibration injector
│   ├── calibration_selfmod.py # Calibration self-modification passes
│   ├── session_extract.py  # Clean a session JSONL to signal-only text
│   ├── proxy/              # Artifact-free API proxy (default on, port 8789)
│   │   ├── server.py       #   daemonized proxy + start/stop/restart
│   │   ├── request_inject.py #   inject context into outbound requests
│   │   ├── response_filter.py #   strip Cairn artifacts from responses
│   │   ├── cm_filter.py    #   strip [cm]/<memory> blocks
│   │   └── sidecar.py      #   capture stripped artifacts for the hooks
│   ├── sync/              # Multi-node sync (experimental, not installed by default)
│   └── static/
│       └── index.html      # Dashboard single-page UI
├── logs/                   # Cron job output (consolidation, contradiction, calibration, graph)
├── hooks/
│   ├── stop_hook.py        # Orchestrator: session, parsing, routing (Stop + SubagentStop)
│   ├── prompt_hook.py      # Project bootstrap + Layer 1/1.5/2 + graph orientation
│   ├── pretool_hook.py     # PreToolUse hook — gotcha + graph file-context injection
│   ├── posttool_hook.py    # PostToolUse hook
│   ├── hook_helpers.py     # Shared DB access, logging, metrics
│   ├── parser.py           # Memory block parsing (ParseResult NamedTuple)
│   ├── storage.py          # Insert, dedup, confidence, quality gates
│   ├── enforcement.py      # Trailing intent detection, continuation counting
│   ├── retrieval.py        # Context retrieval with RRF fusion, Layer 2, context cache
│   ├── health.py           # Systemic failure detection — sentinel, notifications
│   └── hash_verify.py      # Response hash verification (log-only, non-blocking)
└── templates/              # Installer templates for global config (+ cairn-launcher.sh)

Requirements

• Claude Code v2.1+
• Python 3.10+
• ~1.5GB disk (3 models + venv)
• ~500MB download on first install (PyTorch CPU + sentence-transformers + 3 models; ~2.5GB with --gpu)
• ~500MB RAM (when embedding daemon is running; auto-shuts down after 30min idle)

Platform: Developed and tested on Ubuntu 22.04. Linux and macOS should work. Windows requires WSL — the installer is bash, and the embedding daemon uses Unix sockets. The core hooks work without the daemon (slower embedding, no daemon acceleration) but install.sh must run in a Unix shell.

Concurrency: Safe for multiple simultaneous Claude Code sessions, cron jobs, and external integrations. SQLite runs in WAL mode with a 5-second busy timeout — concurrent readers with queued writers.

Configuration

All tunable parameters are in cairn/config.py. Any value can be overridden via environment variable: CAIRN_<NAME>=value (e.g. CAIRN_DEDUP_THRESHOLD=0.90).

• Retrieval thresholds per layer
• Composite scoring weights
• Confidence boost/penalty rates
• Quality gate thresholds
• Deduplication sensitivity
• Cross-encoder re-ranking (CROSS_ENCODER_ENABLED, CROSS_ENCODER_WEIGHT, CROSS_ENCODER_SCORE_FLOOR)
• NLI consolidation/contradiction (NLI_ENABLED, NLI_ENTAILMENT_THRESHOLD, NLI_CONTRADICTION_THRESHOLD)
• Consolidation clustering (CONSOLIDATION_SIMILARITY_THRESHOLD, CONSOLIDATION_MIN_CLUSTER_SIZE)
• Query expansion (QUERY_EXPANSION_FANOUT — type-prefix fan-out, default on)
• Trailing intent detection threshold
• Loop protection limits

Key design decisions

Limitations

Claude Code only. Cairn is tightly coupled to Claude Code's hook system and tag-stripping behaviour. It will not work with Cursor, VS Code agents, other LLMs, or the Claude web interface. This is by design — the architecture exploits Claude Code's specific capabilities rather than targeting a lowest common denominator.

LLM cooperation is imperfect. The system depends on the LLM reliably producing well-formed <memory> blocks and accurately declaring when it needs context. In practice, the LLM sometimes answers "I don't know" before the hook can inject memories, or produces generic memories instead of extracting specific facts. Mechanical enforcement (the Stop hook) catches most failures but adds a re-prompt turn when it does.

Tag invisibility is behaviour-dependent. The invisible metadata relies on Claude Code stripping angle bracket tags from rendered output. If Anthropic changes this rendering behaviour, memory blocks would become visible to users. The system would still function but the clean UX would degrade.

Distillation is lossy. Memories are one-line summaries. The --context command can recover the full conversation around any memory, but only while Claude Code retains the transcript file. Claude Code's cleanupPeriodDays setting (default 30) controls how long transcripts are kept — increase it if you need longer context recovery. After cleanup, the one-line summary persists permanently.

Failure modes

Things that can go wrong and how the system handles them:

Calibration (Phases 1–7)

Cairn answers what is known; calibration shapes how responses are generated — level, style, preferences, approach. The full pipeline is shipped:

• Schema — calibration_rows (durable DB) holds the profile; calibration_deliveries (ephemeral DB) is a turn-indexed log of which rows were injected, scored by the analyser's effectiveness pass; calibration_qf_embeddings (schema v7) stores per-qf vectors for symmetric retrieval.
• Analyser — cairn-calibration-analyser analyse <jsonl> runs one LLM pass (default claude-sonnet-4-6) per session over a cleaned transcript, emitting 13 bounded dimensions as sectioned JSON across two write paths (calibration_rows for how signal, the memories table with source_ref="analyser-session-arc" for what signal that needs the arc). cairn-calibration-analyser cron walks ~/.claude/projects/*/*.jsonl, picks idle un-analysed sessions, and processes them with per-session error isolation. Incremental: a session is re-analysed only once its turn count grows past a threshold.
• Injector — a UserPromptSubmit layer injects the active profile and logs deliveries; retrieval scores each row by the max cosine over its per-qf embeddings.
• Agent-invoked CLI — cairn-calibration is driven from natural-language intent, never user-typed (e.g. "treat me as an expert" → mode --level expert, "stop reminding me about X" → mute, "I prefer Y" → add --source explicit). --show-profile and --review surface state.
• Self-modification — cairn-calibration-selfmod auto-archives low-follow rows, auto-promotes corroborated ones, and decays unused rows; borderline cases are surfaced into a review queue (nightly cron at 00:30).
• CLAUDE.md import — cairn-calibration-import-claude-md seeds pinned explicit rows from first-person preference statements (idempotent via SHA tracking).
• Dashboard — a calibration tab (http://localhost:5174/) with Profile, Effectiveness, Review Queue, and Summary panels.

The analyser (00:00) and self-modification (00:30) run nightly via cron. See docs/spec-calibration-system.md (Amendment 1 for the dimension list and dual-write rationale).

Contributing

See CONTRIBUTING.md. Bug fixes, retrieval improvements, test coverage, and platform compatibility contributions are especially welcome.

Testing

1141 tests across 67 test files. Most tests use mock vectors and patched DB paths — no embedding model required. Quality benchmarks (test_retrieval_quality*.py, test_query_expansion.py) use real embeddings for ground-truth validation and skip gracefully in CI. The table below is a representative selection covering the core retrieval/memory suite plus the proxy, calibration, code-graph, and review write-back subsystems; see tests/ for the full set.

cd ~/cairn
python3 -m pytest tests/

License

MIT
