FieldCraft

An open-source, clean-room CAE application in pure Rust: from a parametric SolidCraft part to a
verified finite element analysis, with tetrahedral and hexahedral meshing, its own implicit,
explicit, thermal and lattice Boltzmann solvers, and decks for Abaqus, Nastran and LS-DYNA. The
desktop app, the command line and AI agents (over MCP) drive the same commands.

Status: early but working end to end — open a part, mesh it, define the analysis, solve,
see the results — with a nonlinear implicit solver (large deformation, plasticity, rubber) now
in place. Hex meshing is the centre of gravity. Next: buckling and arc-length, contact, then
the wider material and multiphysics library. See ROADMAP.md.
Want to help? Pick an issue labelled
good first issue or
help wanted and read
CONTRIBUTING.md.

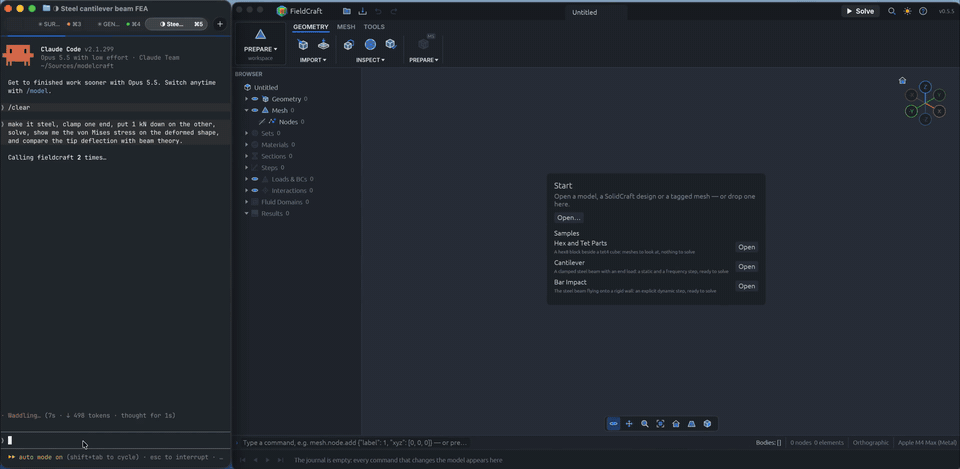

Claude driving FieldCraft through its MCP server: one prompt, and it opens the part, meshes it, defines and solves the analysis, then checks the tip deflection against beam theory. Real session, waits shortened. Full video.

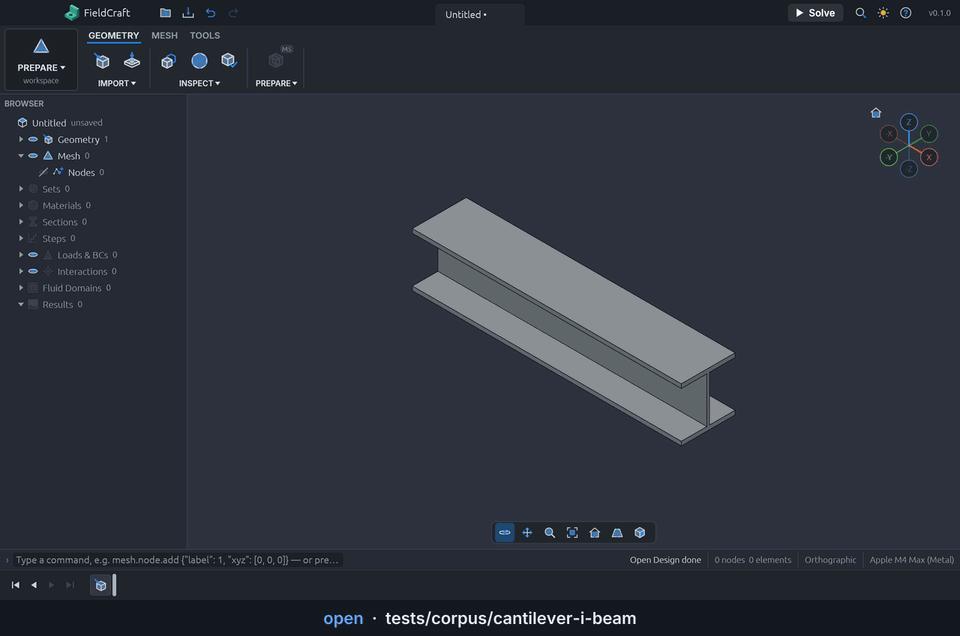

An AI agent drives FieldCraft over MCP, each stage captioned with the tool it
calls: it opens an I-beam, hex meshes it, defines the material, the clamp and a 1000 N tip load,
solves, and shows the von Mises stress and the deformed shape (tip deflection 0.176 mm; beam
theory with shear 0.177 mm).
MP4 · regenerated by tools/demo-video.

Download

• macOS: open the .dmg and drag FieldCraft into Applications (Apple silicon and Intel).
• Windows: unzip and run fieldcraft.exe.
• Linux: the .AppImage (allow it to run as a program), or the .tar.gz.
• Browser: try it at jyviko.github.io/fieldcraft, no install.
• Command line: fieldcraft-cli ships in every package; AI agents connect to it over MCP
  (docs/mcp.md).

Every release lists its checksums in SHA256SUMS.txt. Building from source is in
CONTRIBUTING.md.

Hex meshing a part that does not sweep

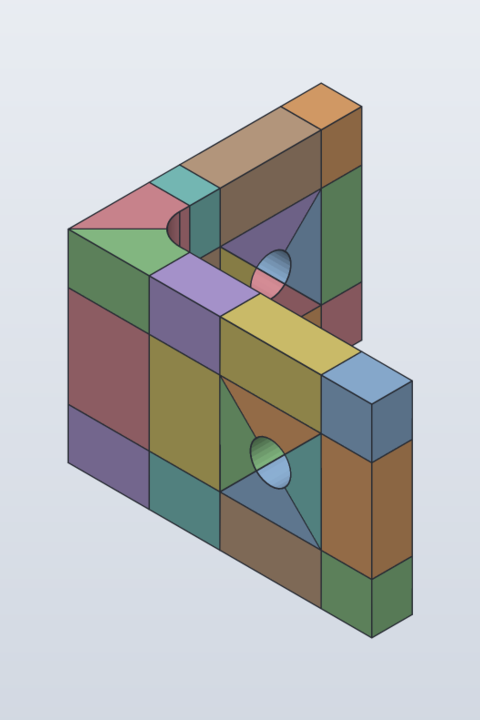

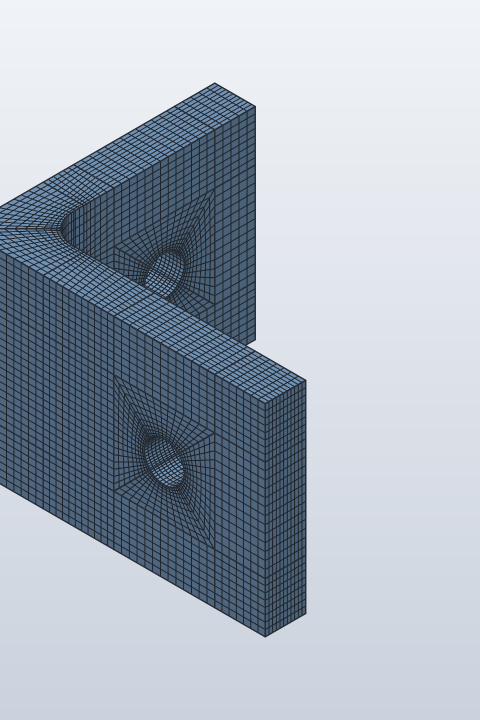

A filleted L-bracket with a hole through each leg cannot be swept in one piece. Split into 30
cells in SolidCraft, FieldCraft meshes it all-hex as one conforming mesh — O-grids round the holes,
graded through the fillet — and its hex20 tip deflection matches a fine tet10 solution to 0.1 %.
The same part also meshes all-hex automatically with the octree mesher (mesh.hex.octree).

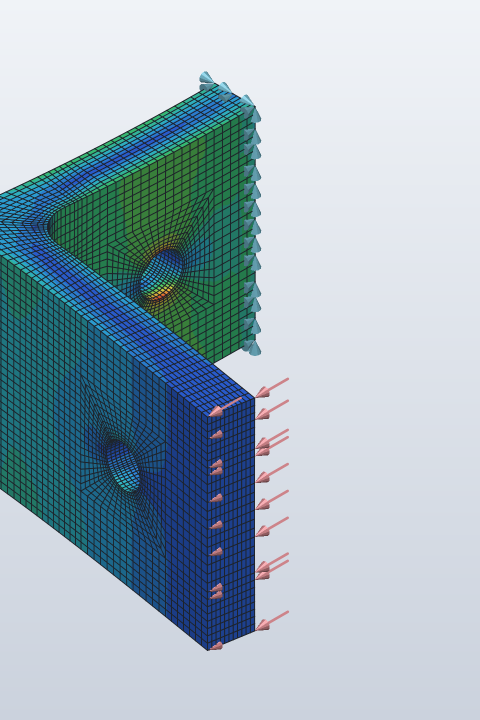

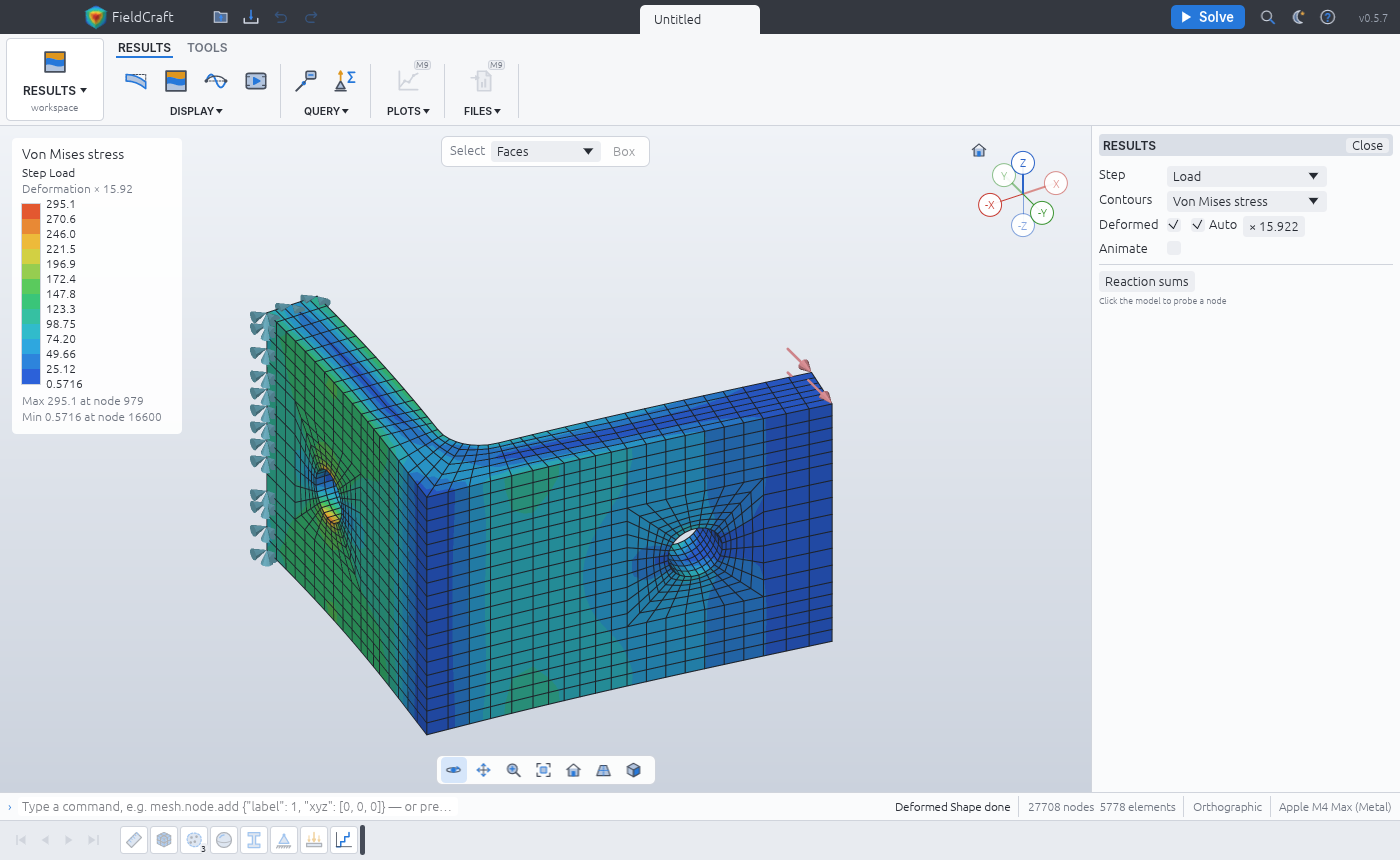

Cells	Conforming hex mesh	Von Mises (clamp and load drawn)

What it does today

• Geometry in: SolidCraft designs (.solidcraft) with persistent face, edge and body names,
  and face-tagged 3MF meshes; surface checks (weld, manifold, orientation, self-intersection).
• Meshing: constrained Delaunay tetrahedra (tet4, tet10) with exact predicates and a
  certified validity gate; Delaunay refinement, smoothing and sliver removal; structured hex by
  sweeping, revolving and mapping (hex8, hex20), and conforming multi-block hex across a part
  split into cells (mesh.hex.blocks); unstructured octree all-hex for any part
  (mesh.hex.octree); 2D quad and tri meshes; quality metrics per element and set.
• Elements: solids (tet4, tet10, wedge6, hex8 with incompatible modes, hex20 full and
  reduced, hybrid u–p for near-incompressible materials), plane stress, plane strain and
  axisymmetric, trusses, Timoshenko beams, MITC3/MITC4 shells, springs, dashpots and point masses.
• Model: sets bound to geometry names, so they survive remeshing; isotropic and orthotropic
  elasticity, J2 plasticity (isotropic and kinematic hardening, Johnson–Cook), Johnson–Cook
  damage, neo-Hookean, Mooney–Rivlin and Yeoh hyperelasticity, thermal properties; fixed, displacement,
  symmetry and temperature conditions; forces, moments, pressure, gravity, centrifugal and heat
  loads; reference points with kinematic and distributing couplings; undo, redo and a
  text-diffable .fieldcraft file.
• Solvers: linear static and frequency (supernodal Cholesky, block Lanczos); nonlinear static
  by Newton–Raphson with automatic increments — large deformation (total Lagrangian) on every
  solid element, follower pressure, finite- and small-strain plasticity sharing one return map
  with the explicit solver, rubber and thermal strain, with measured quadratic convergence; steady and
  transient heat transfer and coupled thermal stress; explicit dynamics with plasticity, damage,
  erosion and rigid walls; D3Q19 lattice Boltzmann flow with forces on the part's faces. Results
  never depend on the thread count.
• Decks: Abaqus, Nastran and LS-DYNA writers, each refusing by name what it cannot express.

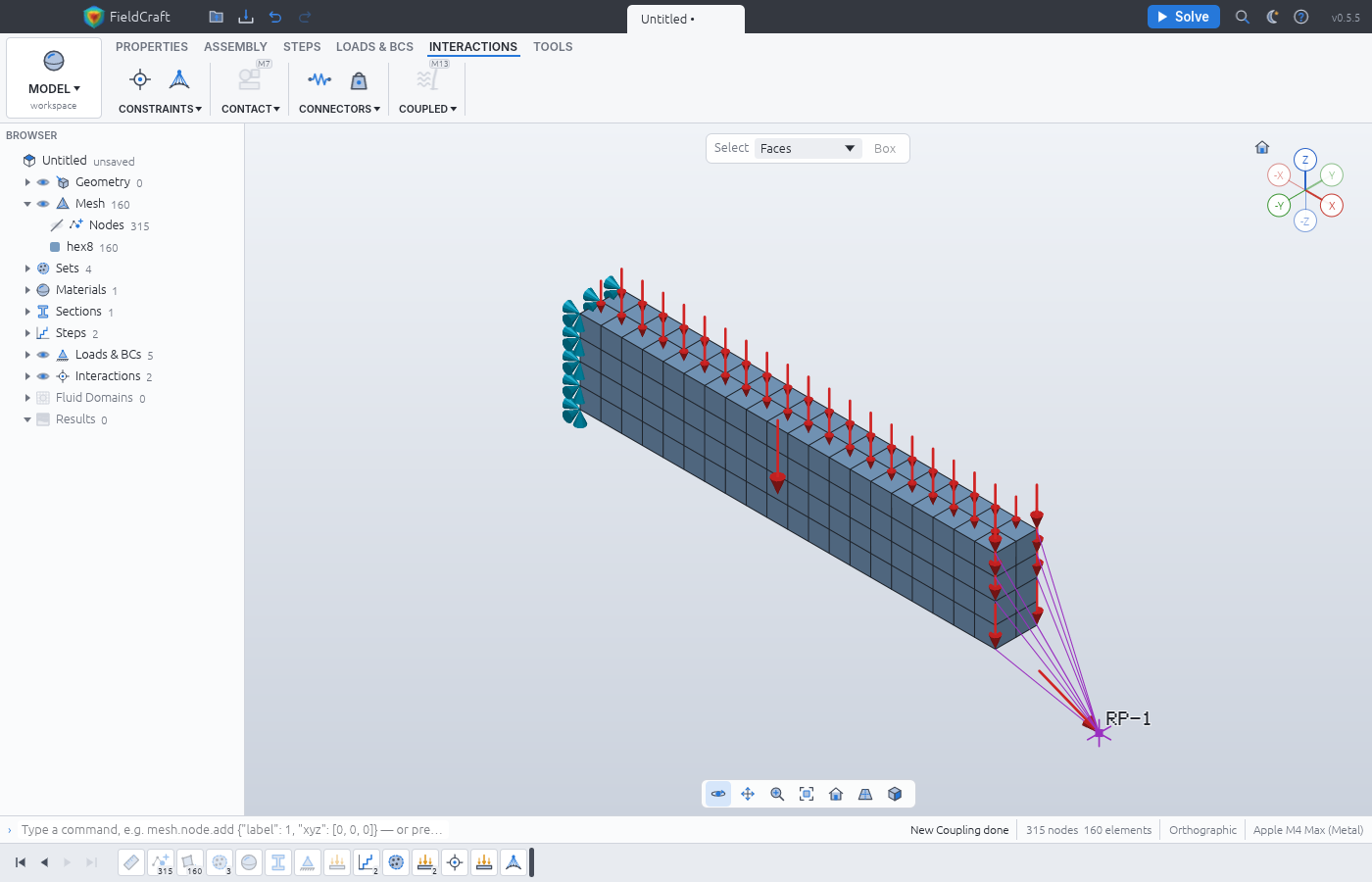

• Results: contours of stress, strain and displacement with a legend, deformed shapes, mode
  shapes, explicit and nonlinear frames, probes and reaction sums; supports, loads, reference
  points and couplings drawn in the viewport.
• Verification: every capability is checked against closed forms and published benchmarks
  (NAFEMS, MacNeal–Harder, Scordelis–Lo, the elastica, Hill's plastic cylinder, Rivlin's tube) in tests/oracle, with results frozen
  so they cannot drift: 170 of 176 quantities pass in 50 cases, the 6 others documented known
  failures (docs/oracle.md).
• Driving it: a desktop app in the Craft family's layout, a CLI, a JSON control channel and an
  MCP server; every capability is a command (docs/features.md).

Examples

Ready-to-solve samples: open one from File ▸ Samples (or the start screen), or start the app
with fieldcraft --sample NAME, and press Solve. Each opens and solves within half a minute and is checked
against a closed form or a reference solution (docs/examples.md).

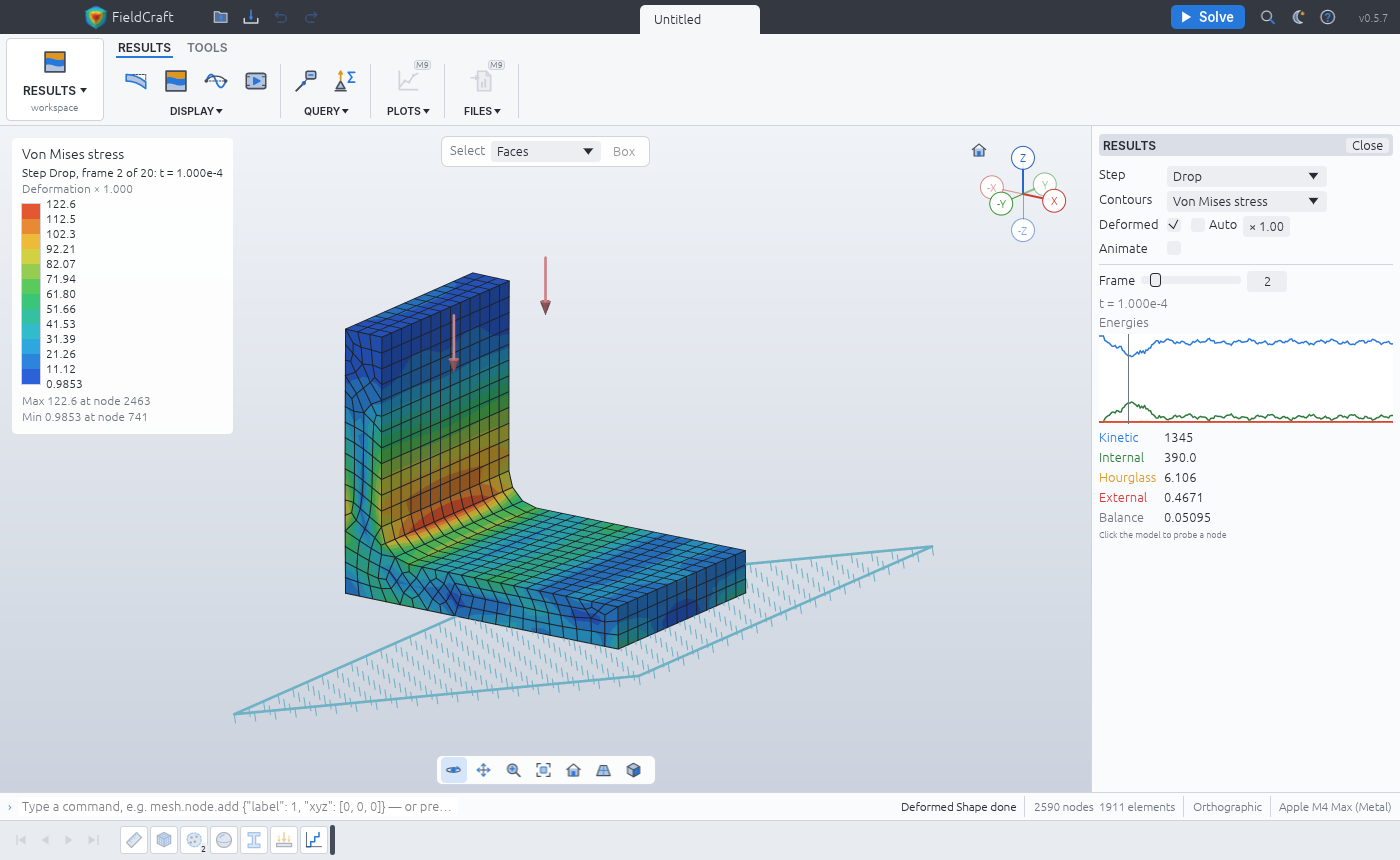

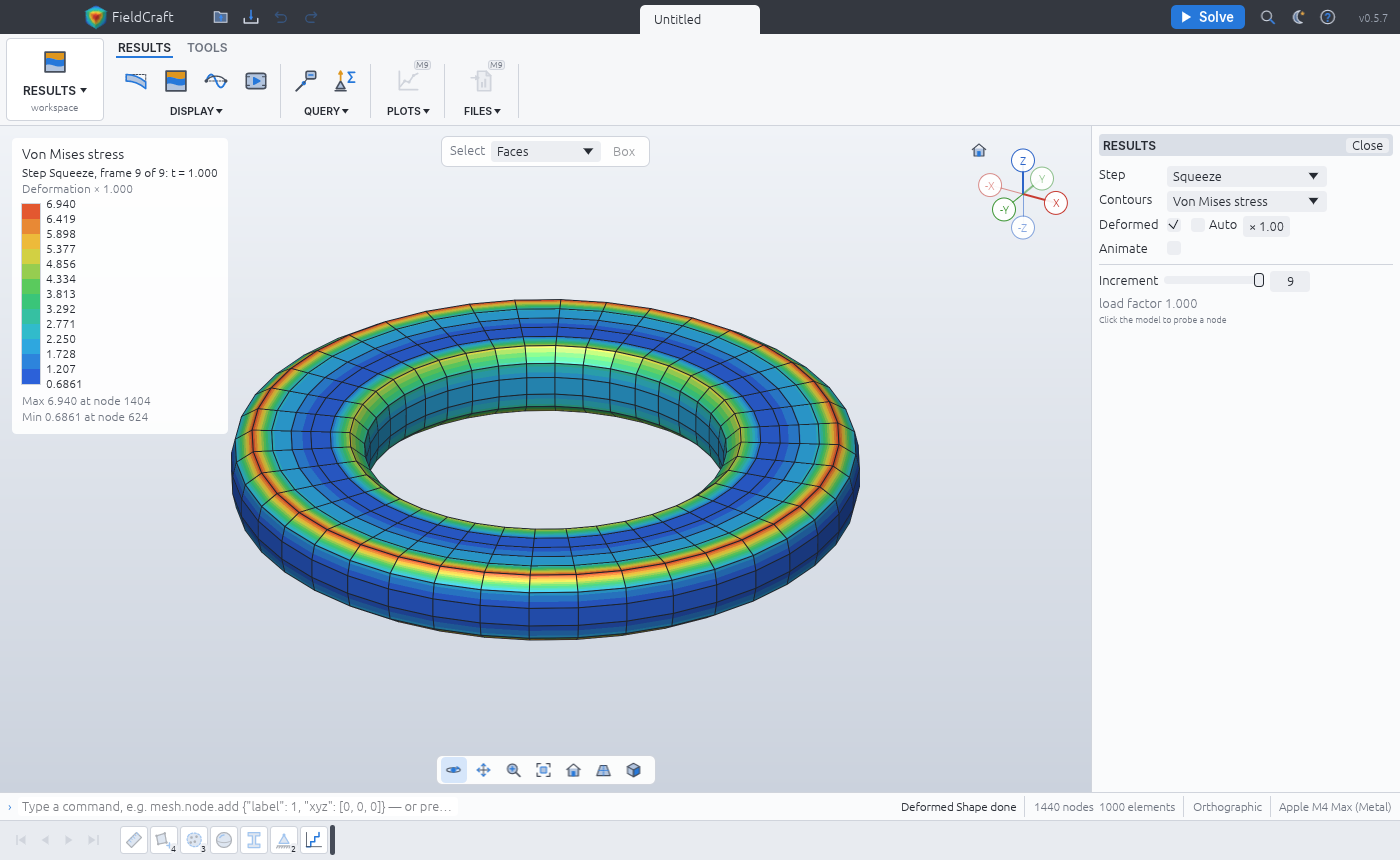

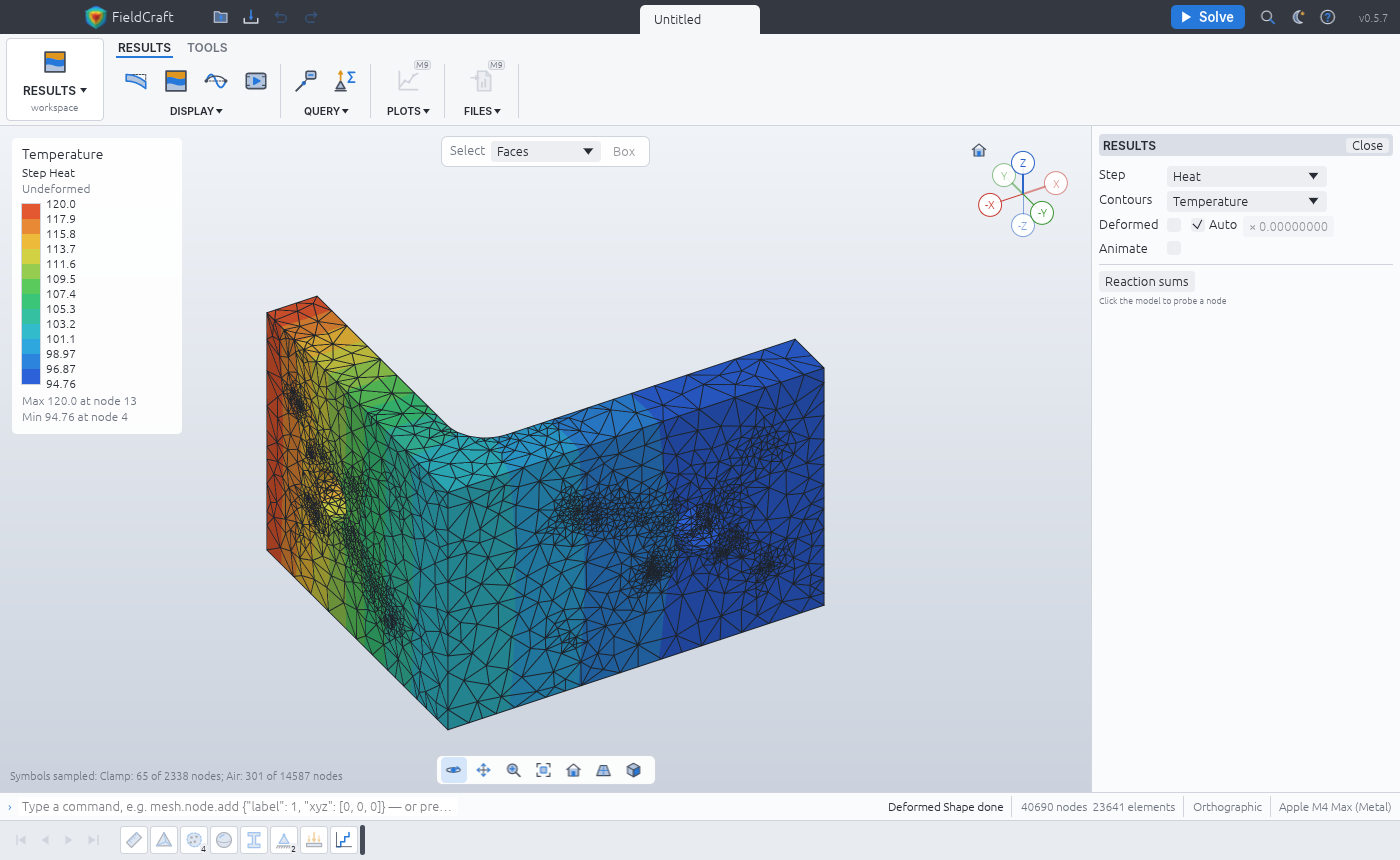

Drop test (drop-test): an aluminium bracket dropped 2 m onto a tilted floor; explicit dynamics, the strike's stress waves	Rubber seal (rubber-seal): a Mooney–Rivlin gasket ring squeezed 25 %; nonlinear static, large strain	Heated bracket (heated-bracket): a clamped steel bracket heated at one end; steady heat and thermal stress

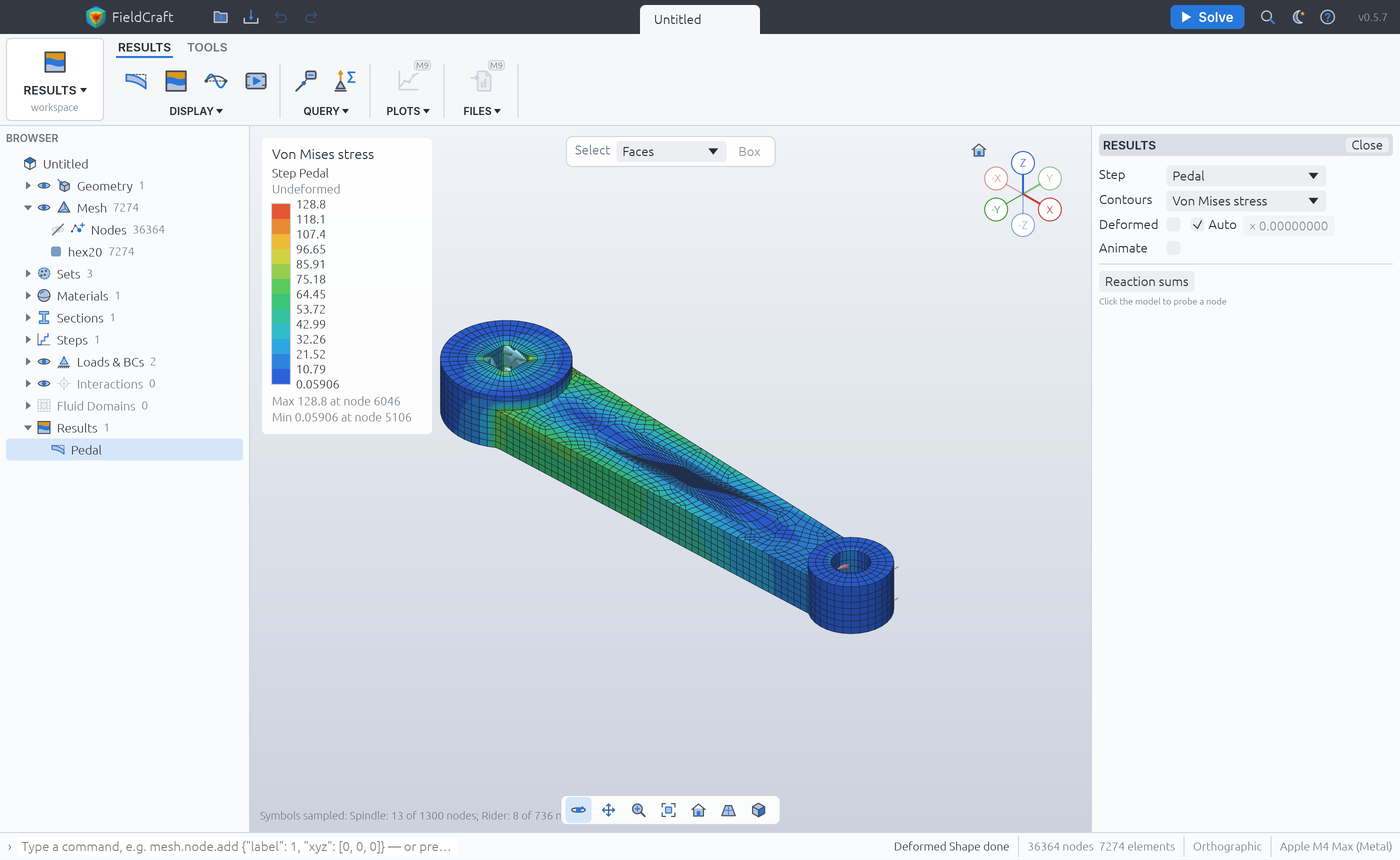

Hex-meshed bracket (bracket-hex): the bracket split into 30 cells, meshed all-hex (hex20), von Mises	Bicycle crank arm (crank-arm): an aluminium crank swept all-hex (hex20), a rider's weight on the pedal; root bending within 0.3 % of M/Z	No picture yet: the viewport does not draw flow results (M12). Flow past a bracket (flow-past): air past an L-bracket on the floor; lattice Boltzmann flow, the drag and the force on each face

Build

cargo xtask ci                                  # fmt, assets, licences, layers, clippy, tests, wasm
cargo xtask test --heavy                        # the heavy (ignored) tests and the doc tests
cargo run -p fieldcraft-cli -- commands         # every command and its parameters
cargo run -p fieldcraft-cli -- run script.json  # run a command script
cargo run -p fieldcraft-cli -- mcp              # MCP server on stdio for AI agents (docs/mcp.md)

Rust 1.95 or later, with the wasm32-unknown-unknown target for cargo xtask ci.

Documentation

• Examples: the ready-to-solve samples and their checks
• Architecture: crates, layers and the meshing pipeline
• Element library and verification and validation
• Capability checklist and roadmap
• Libraries and licences
• AI agents (MCP): claude mcp add fieldcraft -- /path/to/fieldcraft-cli mcp
• Control protocol: driving the desktop app
• Releasing: how a release is built, verified and published
• Contributing and agent instructions

License

Dual-licensed under MIT or Apache-2.0, at your option. Notices
are in NOTICE; third-party licences in THIRD-PARTY-LICENSES.txt.
