Translate Book: arXiv

An agent skill for Claude Code, Codex and OpenClaw that turns an arXiv paper into a translated, printable book. It reads the paper's LaTeX source, so equations, figures, tables and the paper's own numbering carry over. PDF, DOCX and EPUB books work too, through Calibre.

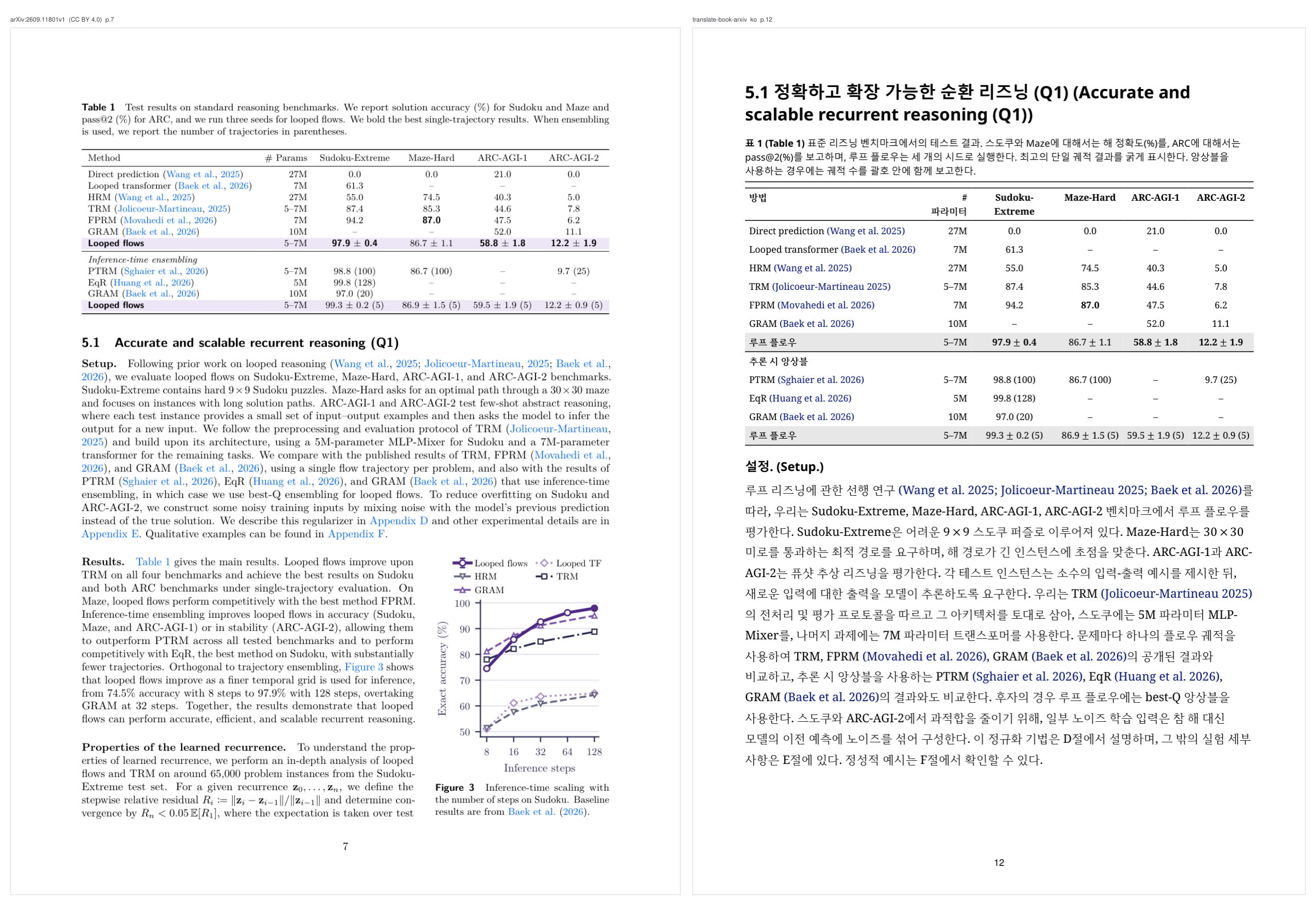

_{Left: page 7 of arXiv:2609.11801, Thinking with Looped Flows (CC BY 4.0). Right: page 12 of the Korean book this skill built from its LaTeX source. Every number in Table 1, and every ±, is the paper's. The whole book, 29 pages: looped-flows_ko.pdf. More pages, with source and licence: assets/demo.}

npx skills add kcy4334-lgtm/translate-book-arxiv -a claude-code -g

Then ask: "translate /path/to/paper.pdf to Korean". The skill recognises an arXiv preprint from its first page and asks before it downloads the source. Other agents and a manual install are under Quick Start.

A PDF translator only gets what a PDF reader can recover, and equations do not survive that: pdftohtml breaks every formula into positioned text spans, and no option puts it back together. This skill works from the LaTeX the authors wrote.

The target language is a flag: zh, en, ja, ko, fr, de, es, and others. The print layout is measured against Korean, and ships with Korean typography tuned.

Forked from deusyu/translate-book, which grew out of claude_translater and built the agent-skill workflow: sub-agents translating chunks in parallel, manifest checks, resumable runs and several output formats from one pipeline. This fork develops the arXiv LaTeX path and the logs and advisors that ship with it.

How It Works

arXiv paper (PDF)                    │  any other book (PDF/DOCX/EPUB)
  │  detected from the page-1 stamp   │
  ▼                                   ▼
Fetch /e-print → flatten the LaTeX    Calibre ebook-convert → HTMLZ → HTML
  │  the paper's own macros resolved from the .sty files it ships
  │  equation, theorem, section and float numbers read from the source
  │  figures rasterised from the original vector PDFs, captions attached
  ▼                                   ▼
Markdown, with $...$ math intact  ←───┘
  │
  ▼
Split into chunks (chunk0001.md, chunk0002.md, ...)
  │  manifest.json tracks chunk hashes
  │  the reference list becomes its own chunk and is copied, not translated
  ▼
Parallel sub-agents (work queue, 8 in flight by default)
  │  each sub-agent: read 1 chunk → translate → write output_chunk*.md
  │  each chunk is verified, recorded and merged as it lands
  ▼
Validate (manifest hash check, 1:1 source↔output match)
  │
  ▼
Merge → Pandoc → HTML (with TOC) → Pandoc DOCX / Calibre EPUB / Chromium PDF

Each chunk goes to a sub-agent with a fresh context, so a long book never fills one session and nothing gets cut off at the end.

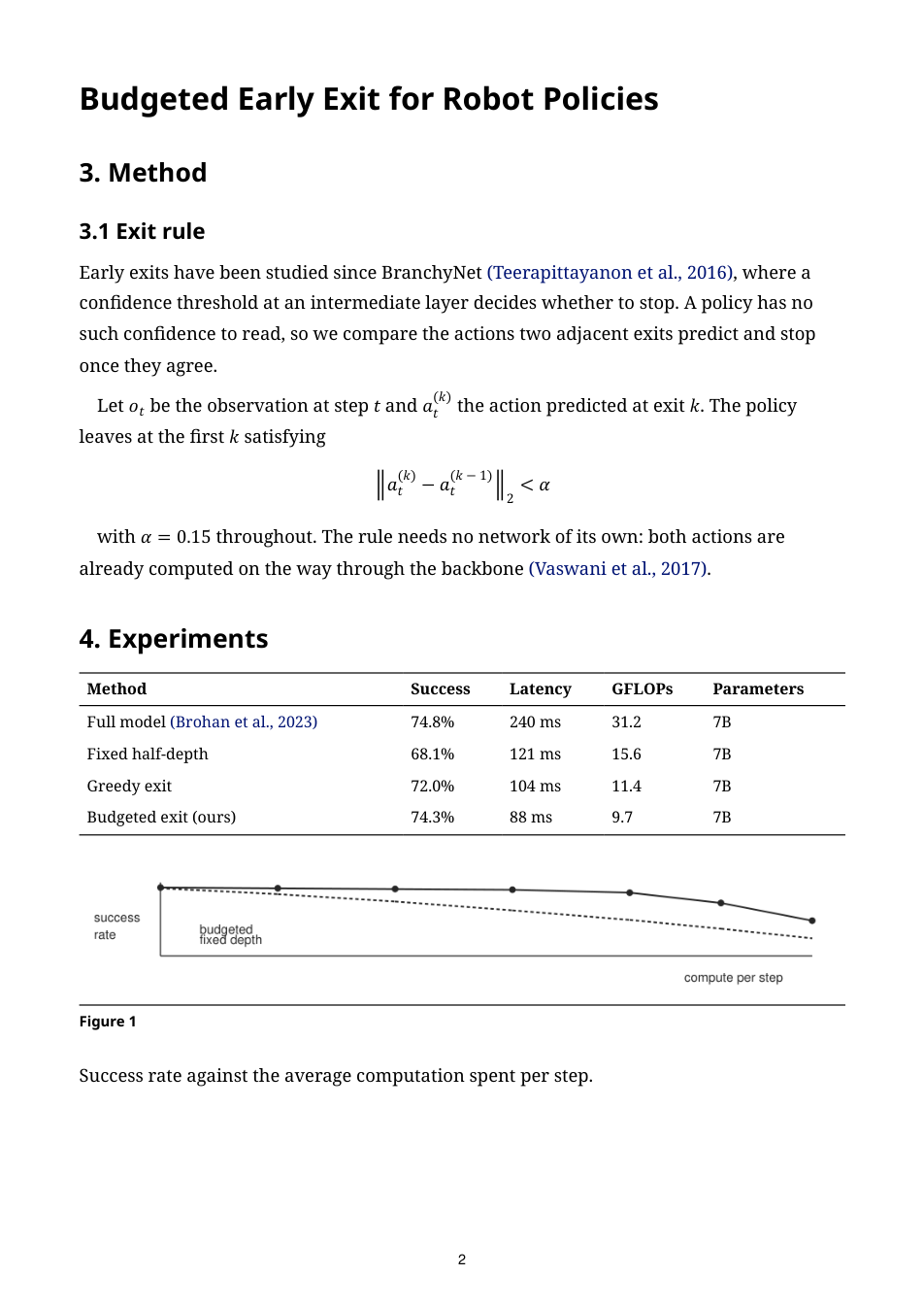

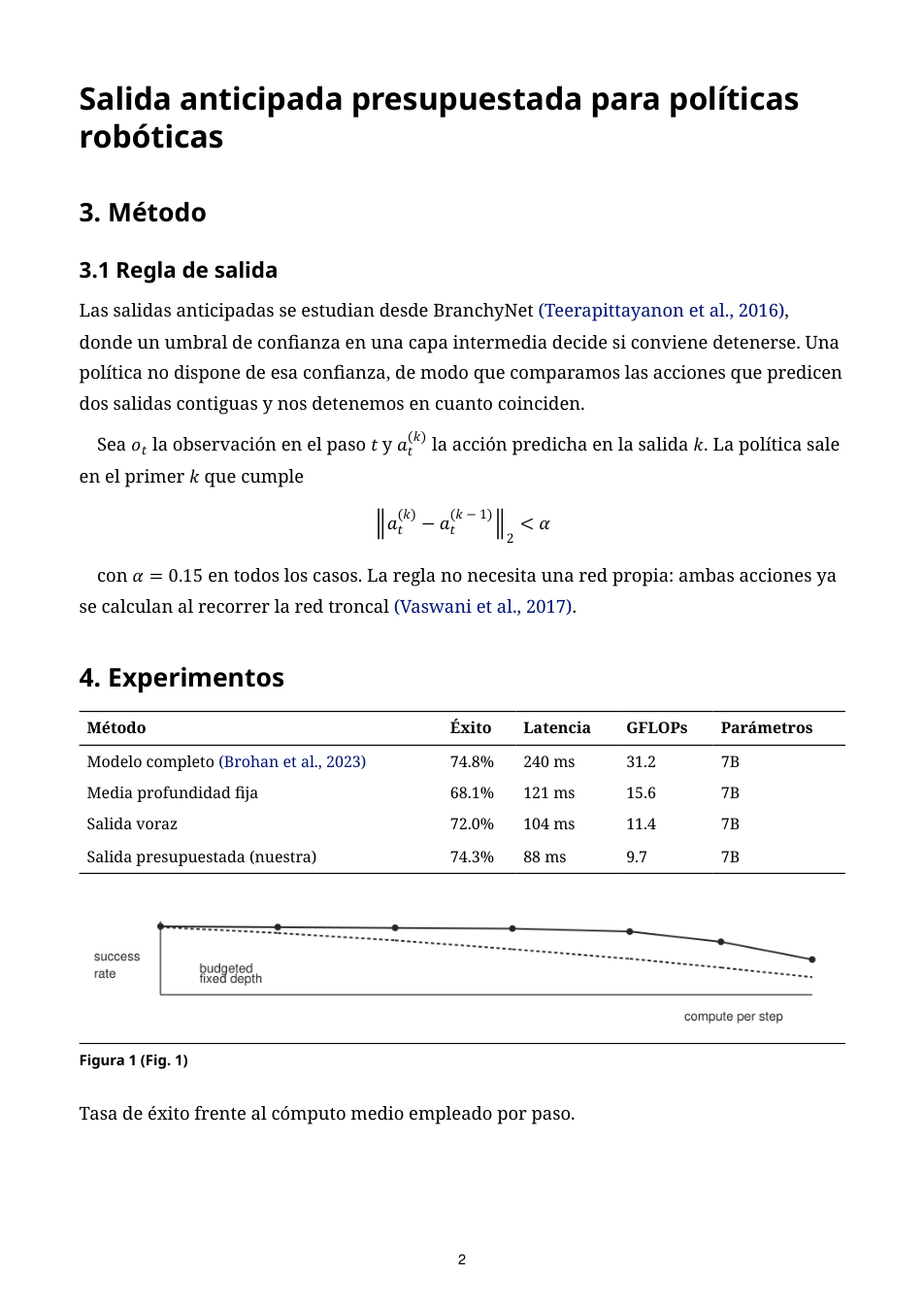

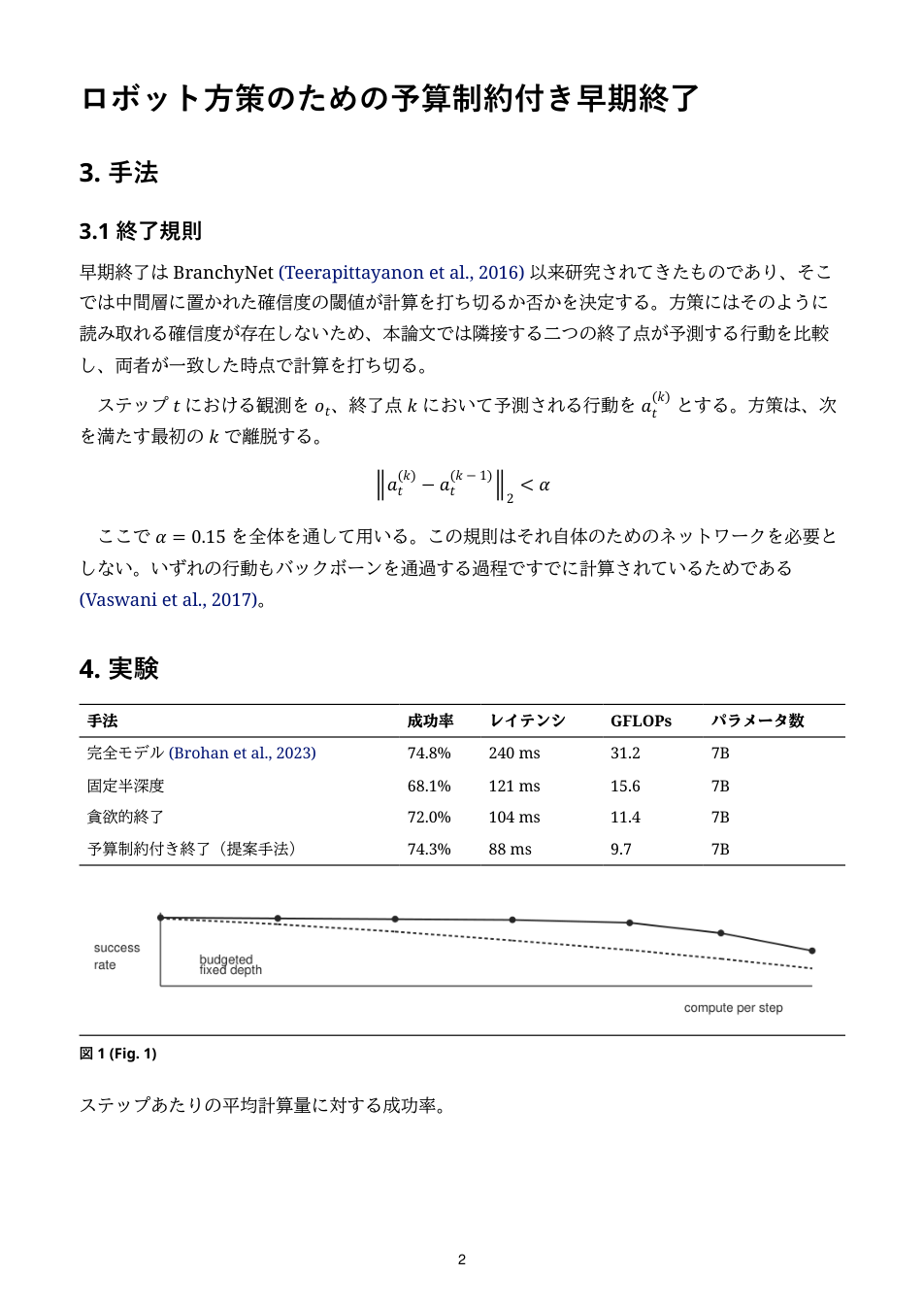

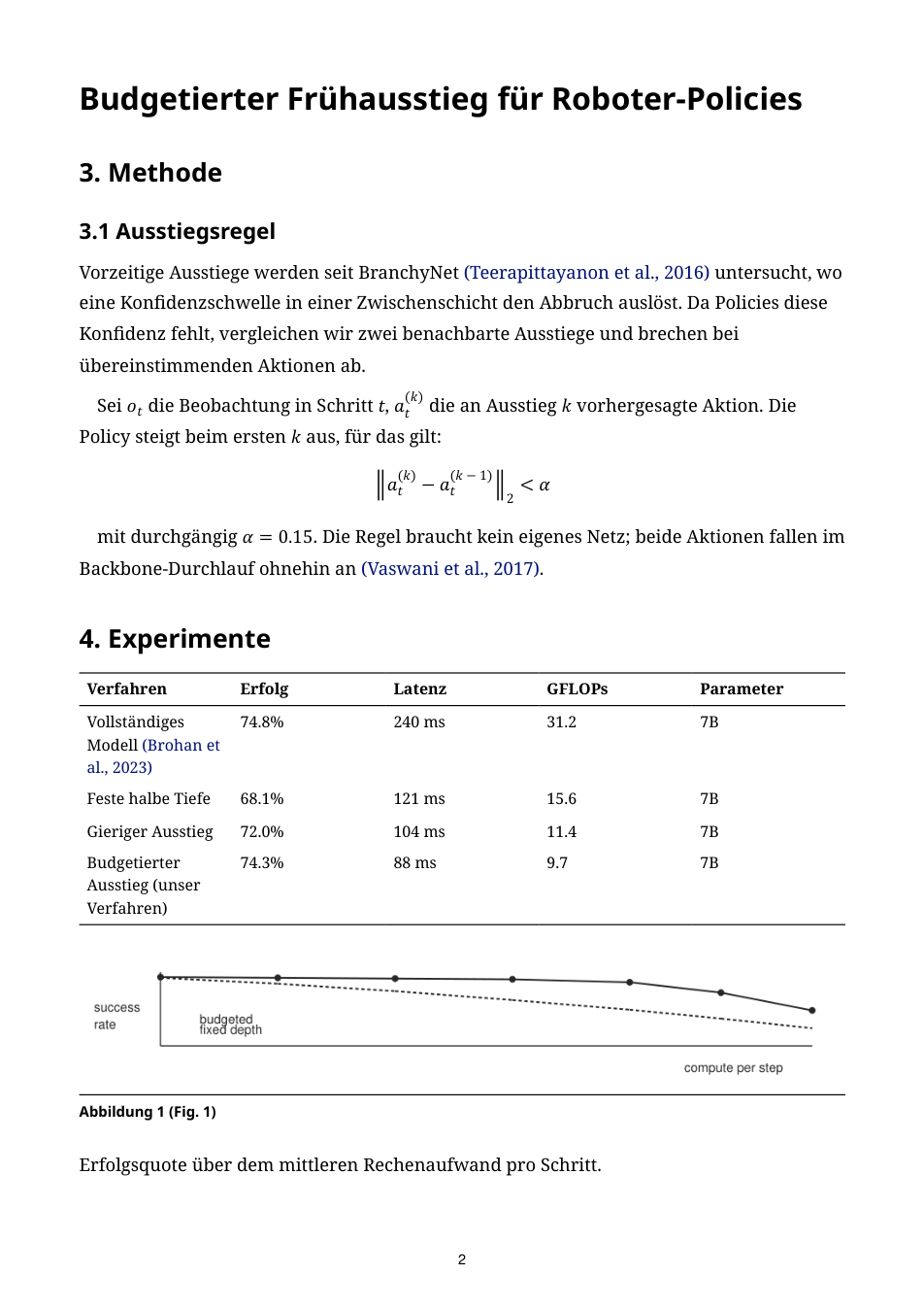

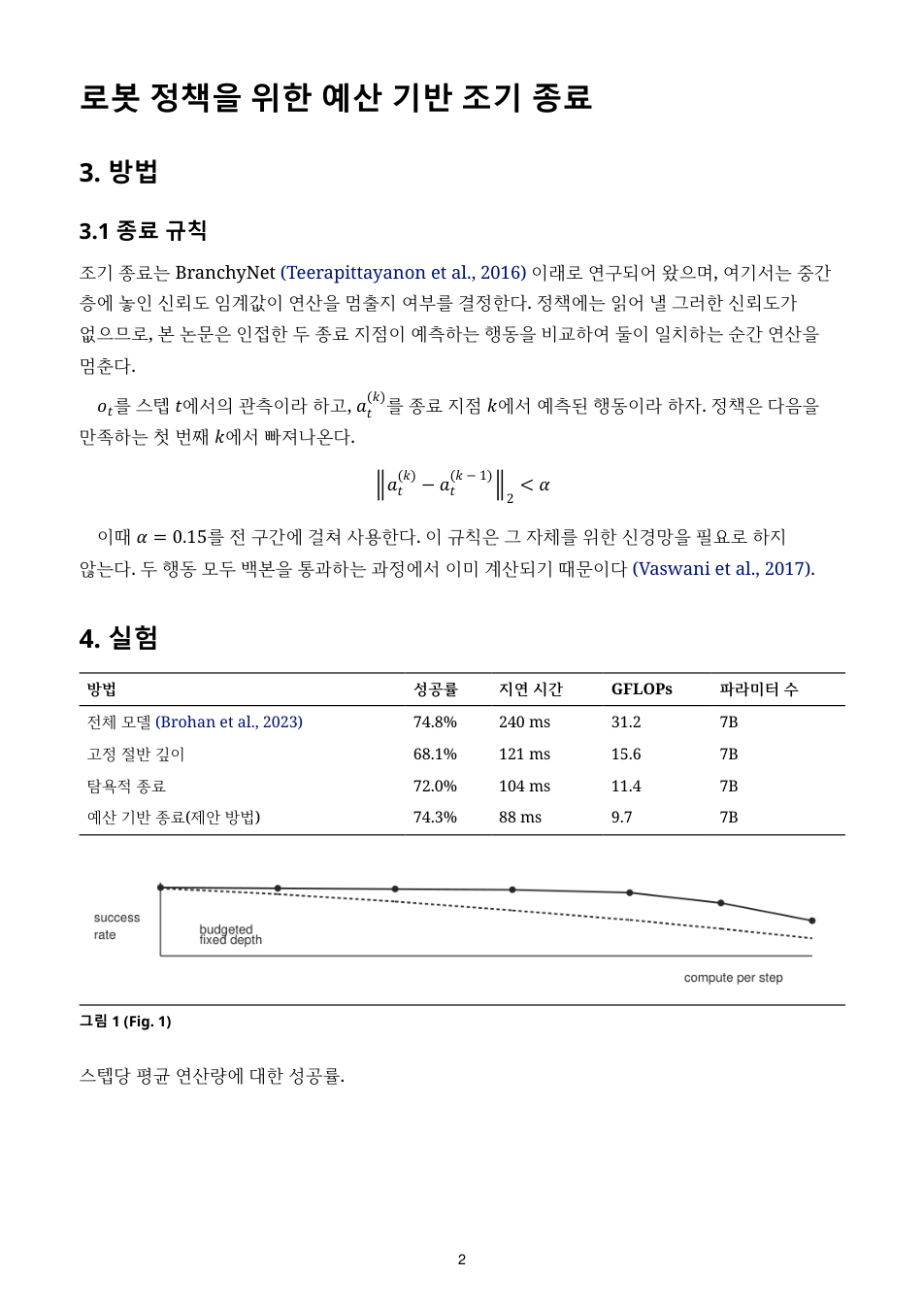

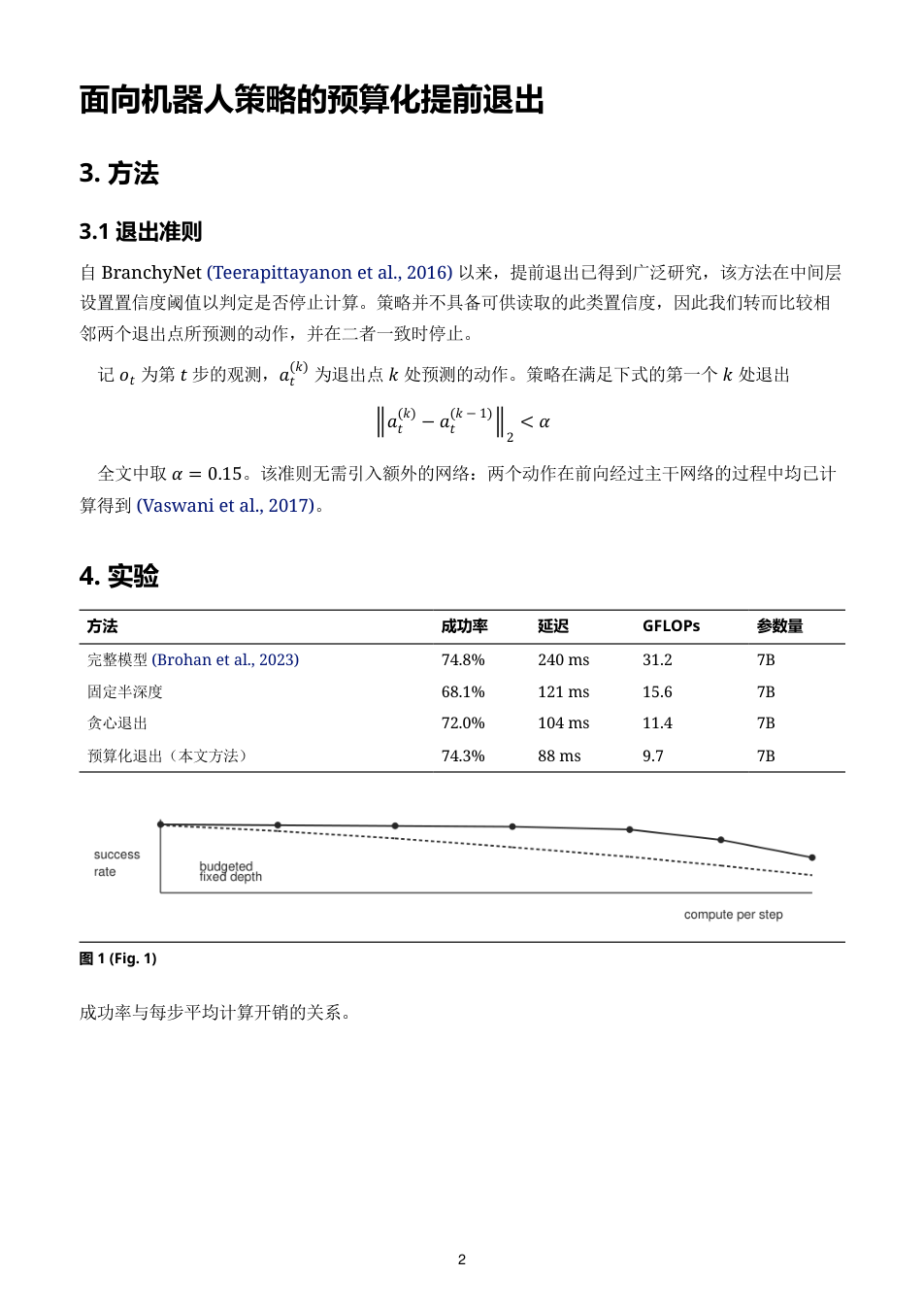

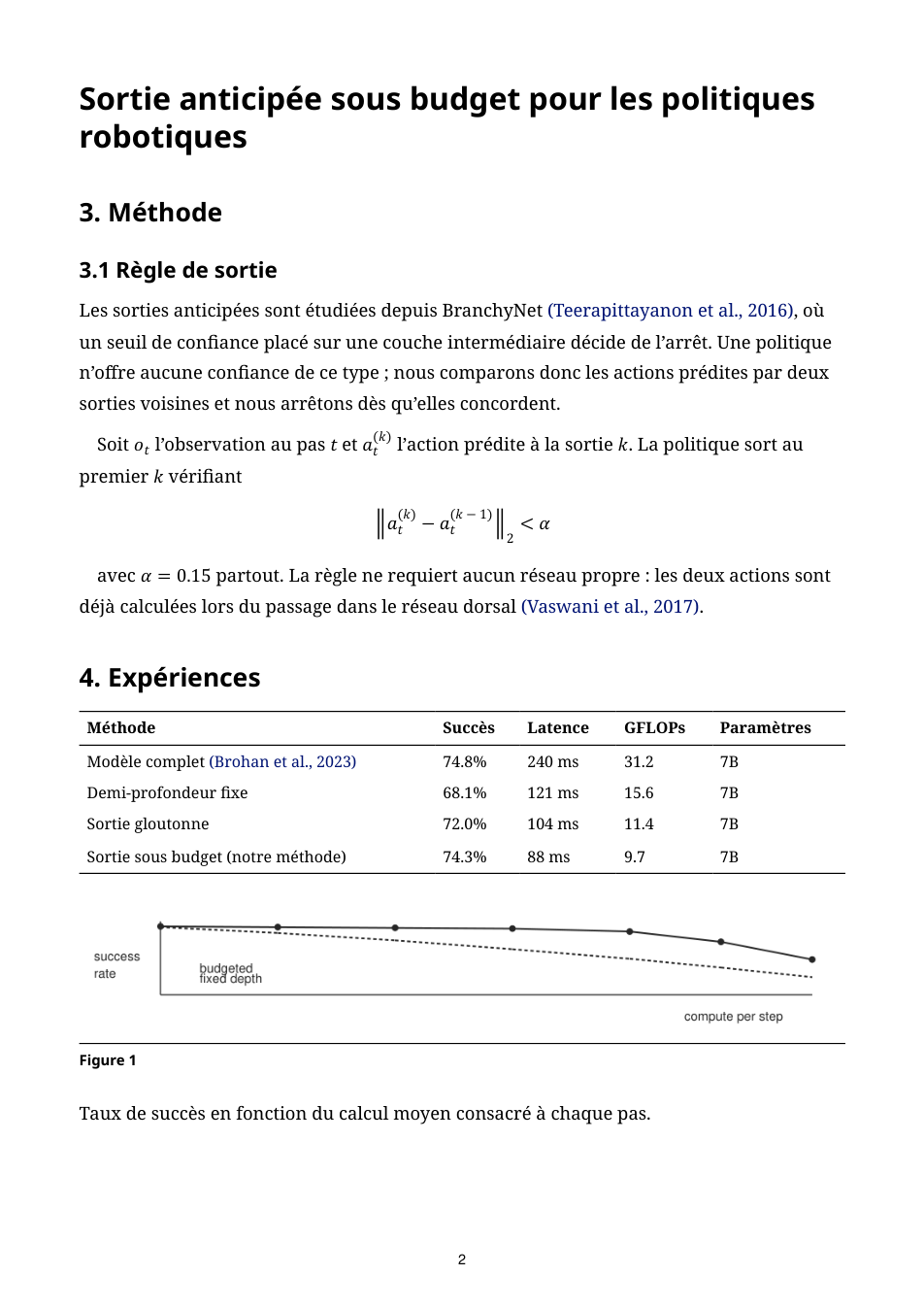

What it prints

The same page in each language: numbered sections, a display equation, citations, a results table and a figure. Click any page for the full-size render.

English (source)	한국어	日本語	简体中文
Français	Deutsch	Español

The float label follows the language (Figure 1, 그림 1 (Fig. 1), 図 1). Table headers and method names are translated; numbers, units and citations are not. The body font is chosen per script, and line breaking follows each language's rules.

This page was written for the repository, with made-up results, so it can be shown in seven languages without depending on any paper's licence. Its source is tests/fixtures/sample_page.md with one translation per language beside it, and python tests/sample_pages.py renders every image again with the shipped a4-book profile.

Features

• Numbers come from the paper: equation, theorem, section, float and subfigure numbers are read from the LaTeX source and checked against the original PDF by tests/source_probe.py
• The paper's own macros are resolved: a paper's .sty is never \input, so pandoc would print \ie or \parhead as they are. scripts/paper_macros.py expands the definitions the paper ships: 4,099 calls across 21 papers, with nothing lost but the macro names on the six papers diffed word by word. When it cannot expand one safely it refuses and names the macro and the reason
• The reference list is copied as is: it becomes its own chunk, usually the largest, at 27–34% of a paper's characters
• Parallel sub-agents: a work queue keeps 8 translators running, each with its own context; the next chunk starts as soon as a slot frees
• Every chunk is checked before it counts: scripts/verify_chunk.py compares each output with its source, the glossary it was given and the chunk it quoted
• Consistent terms: a glossary built before translation, a per-chunk term table, and short read-only excerpts from the neighbouring chunks for names and pronouns
• Resumable: SHA-256 hashes in a manifest keep stale outputs out of the merge, and a changed glossary re-translates only the chunks that used the changed terms
• Print-ready PDF: headless Chromium against a real @page box (A4, 18/18/22/18 mm, 11.5 pt), page numbers stamped afterwards because Chrome has no margin boxes. scripts/layout.py holds the page geometry and fonts
• Output: HTML with a floating TOC, DOCX, EPUB and PDF, with an optional EPUB cover, working folder and export name
• Tests: 2,290, standard library only, run in CI

Growing the skill

Each paper brings LaTeX constructs the last one did not have. Four stores ship with the skill so a construct met once is handled the next time:

The census answers "has this ever been seen?" with a count, and lists what has never been seen, so a pattern that has never met a real example is not trusted. tests/test_source_lint.py fails when the corpus has met a construct nobody has classified, so a new construct is dealt with before release.

Four advisor sub-agents read the stores:

• old-man: before concluding a paper does not contain something, or writing a pattern whose match decides it; names the spellings and layouts the pattern would miss
• question-monster: after concluding something is impossible; hands back candidates to test
• fast-finder: instead of reading the logs; returns the few entries that bear on the question
• referee: once a whole run is gated; tells a tool fault from a briefing fault from a role's

An example

From one working session:

1. \ie was printing mid-sentence in a finished Korean book, five times, where the paper's PDF prints "i.e." five times.
2. Fixed by resolving the paper's macros from the .sty it ships (scripts/paper_macros.py).
3. old-man, asked what that fix would miss, found two more: a display opened by a macro (\newcommand{\be}{\begin{equation}}), which a regex looking for \begin cannot see, and a name bound to \hspace that looks like an abbreviation; expanding it would have deleted a listing's indentation.
4. question-monster found a third: an odd $ inside an \ifmmode body broke $ pairing for the rest of one paper, and 73 rewrites were landing inside its formulas.
5. All three were fixed and recorded, and the census now counts their shapes, so the next paper with one fails a test instead of reaching a reader.

Prerequisites

Setting up on a new machine? INSTALL.md walks through placement and verification.

Run python scripts/doctor.py --strict first. It reports what is installed and what is missing, using the same lookups as the pipeline, and exits non-zero when something required is absent.

• Agent runtime: Claude Code, Codex or OpenClaw
• Python 3.8+
• Pandoc: every Markdown and HTML conversion goes through it (download)
• Chromium, Chrome or Edge: prints the PDF. Set TRANSLATE_BOOK_CHROME if yours is somewhere the finder does not look
• Calibre: ebook-convert, for EPUB output and for PDF/DOCX/EPUB input (download). An arXiv paper builds its PDF and DOCX without it; only the EPUB is skipped
• PyMuPDF (pip install pymupdf): stamps page numbers, and every probe that reads a PDF needs it
• pypandoc (pip install pypandoc): used by the conversion path
• beautifulsoup4: optional, for a better table of contents

Fonts decide whether you get the same pages. A missing font falls back to one with different metrics, the lines break elsewhere, and the page count changes.

To check that a machine produces the same output, build a real PDF and measure it:

python tests/layout_probe.py --strict
python -m unittest discover -s tests -p "test_*.py"

What it runs, fetches and writes

Everything the skill does outside your agent's own conversation:

• Fetches one thing over the network: an arXiv paper's LaTeX source,
  https://arxiv.org/e-print/<id>, and only after asking you. The request
  carries the user agent translate-book/1.0 and nothing about you; the
  download is cached in the working folder, so a resumed run does not fetch
  it again. Nothing else is downloaded.
• Sends nothing. There is no telemetry and no upload. The translation is
  done by your agent's own model, in its own sub-agents.
• Runs its bundled Python scripts, Pandoc, Calibre's ebook-convert, and
  a headless Chromium, Chrome or Edge to print the PDF.
• Writes its working files and the finished book into <book>_temp/, in
  the current directory or under the temp_root you name. When a run teaches
  it something, it appends to its own logs inside the skill folder
  (KNOWLEDGE.md, KNOWHOW.md, REFEREE.md, referee/runs.json,
  corpus/shapes.json), and it records which advisors were consulted in
  advisors/consults.jsonl there.
  scripts/install_advisors.py copies the four advisor definitions and the
  translator agent to ~/.claude/agents/, and only when you run it yourself.
  Installed as a plugin, the plugin carries them instead.

Quick Start

1. Install

Restart the agent if the skill does not appear.

2. Translate

Ask the agent:

translate /path/to/paper.pdf to Japanese

In Claude Code you can also type /translate-book translate /path/to/paper.pdf to Japanese, and in Codex $translate-book Translate /path/to/paper.pdf into Japanese. The skill runs the whole pipeline: convert, chunk, translate in parallel, validate, merge and build every format.

3. Find the outputs

Everything is in {book_name}_temp/:

Verifying a build

Defects in this pipeline usually show up as missing content, with no error message. Each check below compares a built <name>_temp directory with something the build did not produce itself; add --strict to exit non-zero.

Troubleshooting

Pipeline Details

Step 1: Convert

python3 scripts/convert.py /path/to/paper.pdf --olang ko --allow-network

For an arXiv preprint, detected from the stamp on page 1, --allow-network lets the script download the LaTeX source; the skill asks you before passing it. --backend arxiv or --arxiv-id <id> chooses this path explicitly. The source is flattened, the paper's macros resolved, figures rasterised from the original files, and pandoc turns the result into Markdown with the math intact. Without --allow-network, and for every other book, Calibre converts the input to HTMLZ, which becomes Markdown.

Either way the Markdown is split into chunks of about 6,000 characters. manifest.json records the SHA-256 of each source chunk, and source_fingerprint.json ties the temp dir to the exact source file, so running against a replaced file stops instead of reusing old chunks.

The working directory is {book_name}_temp/ under the current directory; --temp-root /path/to/work puts it under another parent.

Step 1.5: Glossary

Each chunk is translated by a fresh sub-agent, so a name could come out differently in different chunks. A glossary built before translation prevents that:

1. Sample 5 chunks (first, last and three evenly spaced).
2. Extract proper nouns and recurring terms, and pick one translation for each.
3. Write <temp_dir>/glossary.json (schema below; it can be edited by hand).
4. python3 scripts/glossary.py count-frequencies <temp_dir> fills in how often each term occurs. ASCII terms match on word boundaries, so cat does not match category; CJK terms match as substrings; single-character CJK terms are rejected; aliases count toward their term.
5. For each chunk, python3 scripts/glossary.py print-terms-for-chunk <temp_dir> chunkNNNN.md prints a table of the terms that appear in it plus the most frequent ones in the book, and that table goes into the chunk's prompt as a hard constraint.

{
  "version": 2,
  "terms": [
    {"id": "Manhattan", "source": "Manhattan", "target": "曼哈顿",
     "category": "place", "aliases": [], "gender": "unknown",
     "confidence": "medium", "frequency": 12,
     "evidence_refs": [], "notes": ""}
  ],
  "high_frequency_top_n": 20,
  "applied_meta_hashes": {}
}

An existing glossary.json is never overwritten; edit it between runs, or delete it to rebuild. Version 1 files are upgraded on first load, and the upgrade stops with a message if two terms share a source. scripts/run_state.py records which terms each chunk used, so a later glossary edit re-translates only the chunks it affects.

Step 2: Translate

Sub-agents run as a work queue, 8 at a time by default. Each one reads one chunk (for example chunk0042.md), translates it with its term table and the short excerpts from the chunks around it, and writes output_chunk0042.md plus output_chunk0042.meta.json, its notes for the glossary.

As each chunk lands it is verified (verify_chunk.py), recorded, and its notes merged, in that order. The reference-list chunk is written by convert.py and never sent to a sub-agent.

Before starting, scripts/run_state.py plan <temp_dir> decides which chunks need translating, which only need recording, and which are unchanged. A re-run skips chunks that already have valid output, and a failed chunk is retried once. --retranslate-untracked forces old outputs through the current glossary when adopting an older temp dir.

Step 3: Merge and build

python3 scripts/merge_and_build.py --temp-dir paper_temp --title "translated title"

--cover cover.jpg gives the EPUB a cover, and --export-name <stem> adds copies such as <stem>.epub next to the standard book.* files.

Before merging, the script checks that every source chunk has an output, that the source hashes still match the manifest, and that no output is empty; an empty chunk stops the merge. Then it merges, converts to HTML with Pandoc and adds the TOC, and builds DOCX with Pandoc, EPUB with Calibre and the PDF with headless Chromium. --docx-engine calibre and --pdf-engine calibre switch to the older Calibre routes, which drop the math in DOCX and ignore the print layout in PDF.

A temp dir belongs to one run. After changing the title, author, language, template or images, use a fresh temp dir or delete the built files listed under Troubleshooting first.

Project Structure

Development

Test assets

Baseline inputs live in tests/baselines/<book-id>/. Full-pipeline outputs go to tests/.artifacts/, which is not committed; run from inside it so {book_name}_temp/ lands there and not in the repository root:

mkdir -p tests/.artifacts && cd tests/.artifacts
python3 ../../scripts/convert.py ../baselines/standard-alice/standard-alice.epub --olang zh
# translate with the skill, then:
python3 ../../scripts/merge_and_build.py --temp-dir standard-alice_temp --title "test"

Releases

Versions are git tags on main. The tag is the only version anchor; no file holds a version string.

python -m unittest discover -s tests -p "test_*.py"    # green first
git push origin main
git tag vX.Y.Z && git push --tags
python tools/build_plugin_branch.py && git push origin claude-plugin

/release in .claude/commands/release.md runs the last three lines and stops at the first failure. A tag already on the remote is not moved without asking, because someone may have fetched it.

The last line refreshes the claude-plugin branch, which Anthropic's plugin directory follows instead of main. The directory refuses any file over 5 MiB and holds binaries for review, while main keeps the test books the suite needs, so the branch is built from the tag with only the files the skill runs on plus .claude-plugin/plugin.json. The directory also holds a plugin whose allowed-tools lets it run any Python, so the branch's SKILL.md allows only the scripts it names, by their ${CLAUDE_PLUGIN_ROOT} path; main keeps {baseDir} and Bash(python *) for the runtimes that do not fill in that variable.

This fork is not published on ClawHub. The upstream project publishes there as translate-book, and that name is theirs.

A translated book is attached to a release only when the paper's licence allows it. looped-flows_ko.pdf on v0.4.2 comes from a CC BY 4.0 paper. A paper under arXiv's default licence does not allow redistributing a translation, and arXiv states which licence applies in the <license> field of its OAI-PMH record (the Atom API has no licence field).

Contributing

Please open an issue rather than a pull request. A change has to be checked against the rules in SKILL.md, the chunk and manifest contracts, the baseline assets and the release flow together. If you have a patch, put the idea, the key diff, a failing case or your verification notes in the issue; a pull request may be closed in favour of one.

A useful issue includes:

• current and expected behaviour
• input format and environment: PDF/DOCX/EPUB, OS, Python, Calibre and Pandoc versions
• minimal steps to reproduce, with a small public-domain sample if possible
• logs, screenshots or the generated file names that show the failure

Roadmap

The upstream project's plan for name and term consistency (issue #7) has shipped in three phases: glossary feedback from sub-agents, neighbouring-chunk context for pronouns, and selective re-translation. A fourth, warming up the glossary before the first chunks run, is open until real books show it is needed.

Star History

License

MIT
