Neo Studio

🇨🇳 中文: README_ZH.md

From one sentence to prompt, image, and film: AI prompt enhancement, image generation and reference editing,
and MiniMax H3 multi-segment video direction — all in one plugin. The LLM can run inside the ComfyUI process
with zero extra dependencies.

Install: search Neo Studio in ComfyUI Manager (published to the ComfyUI Registry), see Installation.

Why Neo Studio

Capability	Usual approach	Neo Studio
Local LLM	Needs llama-cpp-python (often fails to build on Windows)	Native: safetensors text-generation models run inside the ComfyUI process, no extra dependency
Cloud LLM	Fill endpoint and model name by hand	Built-in DeepSeek, Alibaba Cloud Bailian, Kimi, Zhipu GLM, SiliconFlow — add an API key and go; 🔌 Test Connection verifies live
Model downloads	Download manually, then drag files into folders	ModelScope + Hugging Face dual-source search, files land in the right model folder by repo path, resumable downloads
Chinese input	English / filename matching only	Chinese skill names searchable by full pinyin and initials; pinyin LoRA trigger-word suggestions
Image / video generation	Wire up dozens of nodes	Pick a skill and generate (skills ship a workflow.json template); H3 multi-segment director with drag-and-reorder timeline
After moving machines	Red nodes everywhere, fix paths one by one	🅝 menu → "Repair Workflow" matches broken paths against real files on disk in one click
Asset reuse	Pick images one by one with LoadImage	Gallery lightbox + ✈️ one-click write into a target node; recipes send to canvas in one click

Works without an LLM

Available right after install and restart, with no model or API key configured:

• 🖼️ Neo Gallery — asset browsing, lightbox, file management, ✈️ one-click send to node; Civitai LoRA matching and bookmarks; batch LoRA tagging
• 🧊 Neo Recipes — save prompt + media as a recipe, one-click send to workflow (with director recipe editor)
• 🔧 Workflow Repair — one-click fix for broken model paths
• 📥 Model Hub — ModelScope / Hugging Face dual-source search with resumable downloads (ModelScope listing and search work anonymously)
• 🔲 Neo Reference Grid / 🧩 Neo Grid Split — reference-image grid management, automatic storyboard grid splitting
• 🧊 Neo Studio — standalone page (neo-studio.bat or http://127.0.0.1:8188/neo-studio; neo-studio-app.bat opens it in its own window): Assets, Director, Skills, Settings

LLM enhancement (✨ generate / image captioning / translate & classify) is the optional second step;
the three modes are documented in docs/en/llm.md.

Features

Module	Type	Description
Neo Prompt Encoder	Node	Prompt management + AI enhancement; CONDITIONING + text for txt2img → prompts.md
Neo Prompt Agent	Node	Prompt generation without CLIP; PROMPT text + BUNDLE → prompts.md

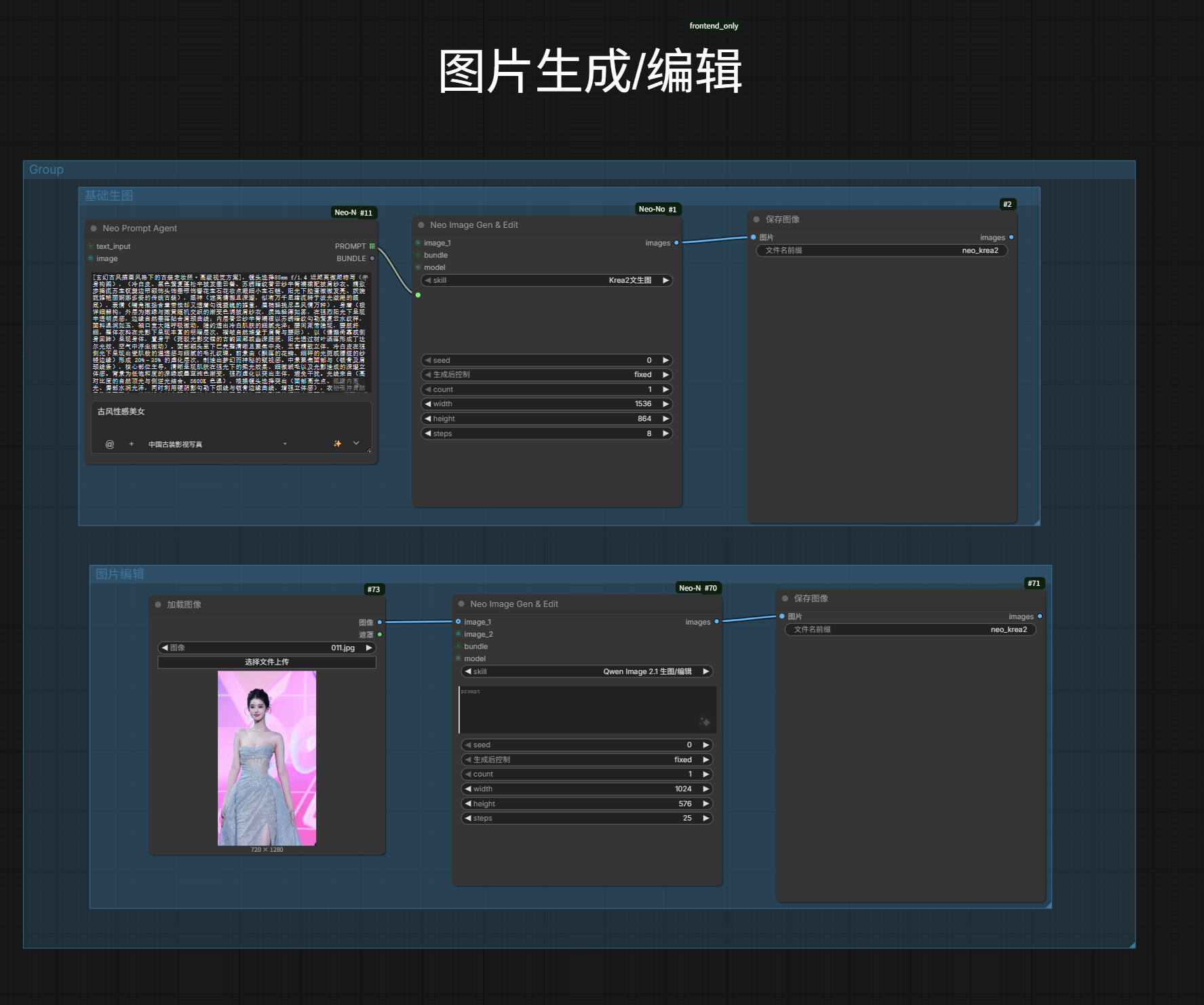

Neo Image Gen & Edit	Node	Skill-template generation / reference editing; IMAGE output → image-gen.md
H3 Video Director	Node	MiniMax H3 multi-segment video with native audio; drag-reorder timeline → h3-video-gen.md
Neo Bundle Expand	Node	BUNDLE → prompt + image_1..9 for official H3 Reference-to-Video → prompts.md
Neo Reference Grid	Node	Prompt + up to 12 reference images in one grid node → prompts.md
Neo Grid Split	Node	Storyboard grid → IMAGE batch + embedded prompt → h3-video-gen.md
Neo Gallery	Sidebar	Asset browser, lightbox, send-to-node, Civitai LoRA, LoRA tagging → gallery.md
Bookmarks	Asset panel	Local bookmarks + Civitai bookmarks (download-on-open) → gallery.md
Neo Recipes	Sidebar	Recipe management with one-click send to workflow → recipes.md
Workflow Repair	Menu item	One-click fix for broken model paths → workflow-repair.md
Model Hub	Menu item	Dual-source repo search, category placement, resumable downloads → model-hub.md
Skill Management	Menu item	Inline workflow editing, canvas import & writeback, change preview + history → skills.md
MCP Server	Standalone process	Claude Desktop / Cursor calling image & director tools over stdio → mcp.md

Node appearance:

Demo

Interaction recordings (click a thumbnail to open the matching doc):

•
  — 🎞️ H3 Video Director · timeline reorder
• — 🧊 Neo Recipes · one-click send

Installation

Neo Studio App is the recommended form. It is the Studio window (Assets / Director / Skills /
Settings), it starts and stops ComfyUI from its own settings page, and it puts the plugin into
custom_nodes by itself — you never touch the plugin folder. It needs a ComfyUI install with its
Python interpreter; it does not bundle ComfyUI.

• Portable app — a single file, Neo-Studio-<version>-windows-x64.exe, attached to
  GitHub Releases by
  .github/workflows/release-app.yml (built by tools\build_studio_exe.ps1, unsigned — expect a
  SmartScreen prompt on first run). It derives the ComfyUI root and the interpreter from its
  own location, opens a first-setup page when it cannot find them, and installs or updates the
  plugin from its bundled copy — user data dirs are carried over, a git checkout is never touched.
• From source — clone the repo and run tools/neo-studio-app.vbs (no console window;
  tools/neo-studio-app.bat is the debug entry, --debug opens DevTools). Every launch syncs
  studio/ into custom_nodes (same-name files only, nothing in the target is deleted).

The window, the offline service and the kernel controls:
Neo Studio (Standalone App).

ComfyUI plugin form — the nodes inside ComfyUI's own UI, without the Studio window

• ComfyUI Manager: search Neo Studio and install.
• comfy CLI: comfy node install comfyui-neo-studio
• Manual: clone into ComfyUI/custom_nodes/, then restart ComfyUI:

git clone https://github.com/neoneo-ai/neo-studio.git ComfyUI/custom_nodes/comfyui-neo-studio

The clone form runs on the repo root __init__.py, which hands node and route registration to
studio/; the installed package (Registry, Manager, tools/install_plugin.ps1, desktop sync) has
studio/__init__.py at its own root and never goes through it.

Source install: tools/install_plugin.ps1 installs the code and the built-in presets and writes the
configs/data_root.json data-root pointer (user data lives outside the plugin dir, so uninstalling
is just deleting the plugin dir). Commands, parameters and release switches:
docs/en/release.md.

Upgrading from the old package: the Registry package moved from comfyui-neo-nodes to
comfyui-neo-studio, and nothing disables the old folder for you — the plugin sync only writes
comfyui-neo-studio. Delete ComfyUI/custom_nodes/ComfyUI-Neo-Nodes (or rename it to
ComfyUI-Neo-Nodes.disabled, which ComfyUI skips) before installing the new one: keeping both directories
registers the same nodes twice. Installs from 1.2.0 on keep user data outside the plugin directory, so
removing the old folder touches no data. The pre-1.2.0 plugin kept configs/, gallery/, prompts/,
recipes/, skills/ and locals/ inside its own folder and there is no migration — copy those into the
data root first.

Dependencies

• openai, PyYAML, pypinyin, Pillow (auto-installed via requirements.txt; Pillow ships with ComfyUI core)
• Optional extras (features degrade gracefully when a package is missing): laya (smart skill picking),
  pillow-heif (HEIC reading), oss2 (Backyard OSS upload)
• llama_cpp_python (optional, only for local LLM inference)

Quick Start

1. Open Neo Studio (the app) — it installs the plugin and starts ComfyUI for you. Plugin-only
   users: install it and restart ComfyUI.
2. Zero-config features first (no LLM, no model setup needed): ✈️ send an asset from the Gallery
   lightbox into a LoadImage-type node (gallery.md), download models from the Model
   Hub with automatic category placement (model-hub.md), repair broken workflow
   paths from the 🅝 menu (workflow-repair.md).
3. Configure an LLM — pick one; needed for ✨ enhancement, image captioning and translate/classify:
   Native (safetensors in models/text_encoders/, runs inside the ComfyUI process, zero extra
   dependency), Remote (provider + API key, "🔌 Test Connection" verifies live) or Local (GGUF in
   models/LLM/). Setup, endpoints and GGUF rules: docs/en/llm.md.
4. First prompt: add a Neo Prompt Agent node → type a short description → click ✨ → AI-generated
   prompt text (no CLIP needed).
5. First image: add a Neo Image Gen & Edit node → pick an image-gen skill → prompt (from the Agent
   or manual) + optional reference images → queue → IMAGE output. Needs a GPU / VRAM, and the skill must
   declare gen_image: true and ship a workflow.json; model / Text Encoder / VAE default to "Auto".
6. First multi-segment video: add a H3 Video Director node → pick a video_director recipe → drag
   to reorder segments / regenerate a single segment → stitched into one VIDEO with audio.

Key Concepts

• Skill: A bundled template containing model config (model/VAE/CLIP), workflow, and default parameters. Preset skills are read-only; copy to customize.
• Bundle: Runtime payload — prompt text + optional reference images.
• Recipe: Saved prompt + media assets for reuse. Director recipes support multi-segment video generation with a timeline editor.

Neo Studio (Standalone App)

Canvas-independent page with four tabs: Assets (the full Gallery), Director (director recipes + editor +
full-film generation with progress, cancel and live preview), Skills, Settings (image / video / LLM /
ComfyUI log). Canvas-only actions show a hint instead of failing.

Entry	What it does
neo-studio.bat	Opens http://127.0.0.1:8188/neo-studio in the browser, and starts ComfyUI for you
neo-studio-app.vbs	The same page in its own WebView2 window — no console, no browser tab; window geometry and Studio state survive restarts (needs pywebview; the WebView2 Runtime ships with Windows)
neo-studio-app.bat	Console/debug entry for the same window (--debug opens DevTools)
tools/neo-studio.exe	Packaged launcher with the clapperboard icon — built by tools\build_studio_exe.ps1 (release.md)

• Offline service — app/studio_server.py on ComfyUI port + 3 (8191 by default) keeps browsing, skill /
  recipe editing, settings (LLM included), Model Hub, bookmarks and LoRA tagging working while ComfyUI is down.
  Anything that needs the ComfyUI runtime answers 409 offline, the UI says "needs ComfyUI", and the generate
  buttons become start buttons.
• The header only reports state — "● Running" / "● Stopped" / "● Starting", with the port, the PID and who
  launched it in the tooltip. The actions live at the top of Settings → 启动设置: one state line plus
  "▶ Start kernel" and "■ Stop kernel", the one that cannot run right now disabled.
• The window opens first — the dependency self-check, the service setup and the ComfyUI spawn run on a
  background thread behind a splash page; once the port answers, the page connects generation in place — no
  navigation, no reload — and stopping ComfyUI flips it back to the offline Studio.
• Closing the window stops the ComfyUI the desktop started (one you started yourself is left alone); a ComfyUI
  already listening on the port is attached to, never doubled.
• Canvas jumps stay in the window — "⤒ 主画布编辑" and "🎬 新影工坊" switch in place, and the desktop
  re-injects a "🎬 返回 Studio" pill on every non-Studio page.
• ComfyUI's log is under Settings → Log; the desktop's own trace (startup, page jumps, window drags) goes to
  data/studio_desktop.log.

Frameless window, window & taskbar icon, exe packaging, portable launcher and the source sync:
Developer_EN.md.

Documentation

Full index with a one-line summary of every module doc: docs/en/README.md.

Changelog & License

Version history: CHANGELOG.md. SPDX-License-Identifier: Apache-2.0

10000+ portrait prompt collection source: civitai.com/models/2231696

Developer Docs

Project structure, backend modules, API routes, node registration, tests, and the Studio desktop internals
(offline service, capability table, drag loop, launcher config): Developer_EN.md.

---

Contributing

Fork and open a pull request — no organization membership needed. Setup, the test commands, the node and route
checklists and the commit rules: CONTRIBUTING.md. Vulnerability reporting and the key
redaction rule: SECURITY.md.
