Crypto MCP Server
by Corax CoLAB & PelleNybe 🚀🪙

The ultimate AI-driven command center for your local crypto operations, featuring a dark, cyberpunk/command-center aesthetic.

👨‍💻 Developer & Company

Architected by Pelle Nyberg & Corax CoLAB

This product is proudly brought to you by Corax CoLAB and PelleNybe, the architects behind cyber-physical systems that secure your future in an increasingly regulated and resource-constrained world.

We unite:
🤖 Edge AI & Autonomous Systems
🔗 Blockchain & Decentralized Finance
🌌 Advanced 3D Data Visualization

✨ 10 Technical and Visual Upgrades

1. Async Portfolio MCP: The portfolio_mcp.py now fetches concurrent exchange balances using ccxt.async_support for incredibly fast dashboard load times.
2. Robust Proxy Timeouts: The Node backend implements robust AbortSignal logic for MCP communication, preventing hanging connections.
3. SQLite Indices: The backend automatically initializes proper database indices on orders.db for created_at and status to dramatically speed up log querying.
4. WebSocket Resilience: The React frontend implements a centralized, self-healing Socket.io client ensuring the dashboard never goes stale if the backend restarts.
5. Strict Input Validation: Backend order execution endpoints rigorously validate symbol format, trade side, and order type before dispatching to the MCP.
6. Cyberpunk Loaders: Components like PortfolioPanel and TickerPanel feature animated, stylized loading states during data decryption.
7. Neon Toasts: A custom notification system provides sleek, auto-dismissing visual feedback for system events and order executions.
8. Enhanced Orders Table: The OrdersLogPanel is upgraded with pagination, neon-color-coded status badges, and interactive hover effects.
9. Glitch Effects: Critical data changes trigger subtle CSS glitch animations, enhancing the cyberpunk aesthetic.
10. Dynamic Theme Colors: The entire dashboard reacts to global market sentiment, shifting its neon glowing borders based on whether the market is bullish or bearish.

🌌 100% Real Data Integration & Visualizer Dynamics (Upgraded v3.0)

The Crypto MCP Server has been heavily upgraded to ensure every single conceptual placeholder has been actively replaced with real data mechanisms. The entire system operates without a single mockup across visualizers. All 3D graphs reflect live local data.

• Dark Pool Sonar: Real-time 3D sonar pings for large volume "whale" trades on central exchanges. Connected to MCP_CCXT to monitor fetch_trades data and renders physics-based 3D ripples with @react-three/fiber.
• Flash-Crash Prediction Matrix: Visualizes the ratio of bids to asks as a dynamic glowing heatmap grid, tracking potential liquidity drains using MCP_CCXT fetch_order_book.
• Galaxy View (Gravity Well): Maps the top 50 cryptocurrencies in a 3D galaxy using MCP_COINGECKO. Star size = Market Cap, orbit speed = Volume, color = 24h change.
• AI Sentiment Word-Cloud Sphere: Fetches recent crypto news via MCP_NEWS and extracts trending keywords and sentiment to form a 3D interactive floating word sphere.
• Gas & Network Congestion Hologram: Visualizes current Ethereum network congestion as a glowing, pulsating reactor core using MCP_ONCHAIN gas_price. Faster pulsing/red colors indicate high congestion.

Legacy Visualizers

• Arbitrage Wormhole: Live Cross-DEX arbitrage detection using multi-exchange CCXT MCP polling.
• Neural Trade Visualizer: Calculates genuine diagnostic routing data retrieved from live orderbooks (L2 Bids/Asks) using react-three-fiber.
• Quantum Risk Map: Real-time 3D topography of your portfolio risk exposure.
• Orbital Portfolio Deck: A dynamic, physics-based 3D visualization of your actual asset allocation.
• Global Weather System: An interactive background system that reacts to the current market sentiment (Bull, Bear, Neutral), altering the entire visual environment.

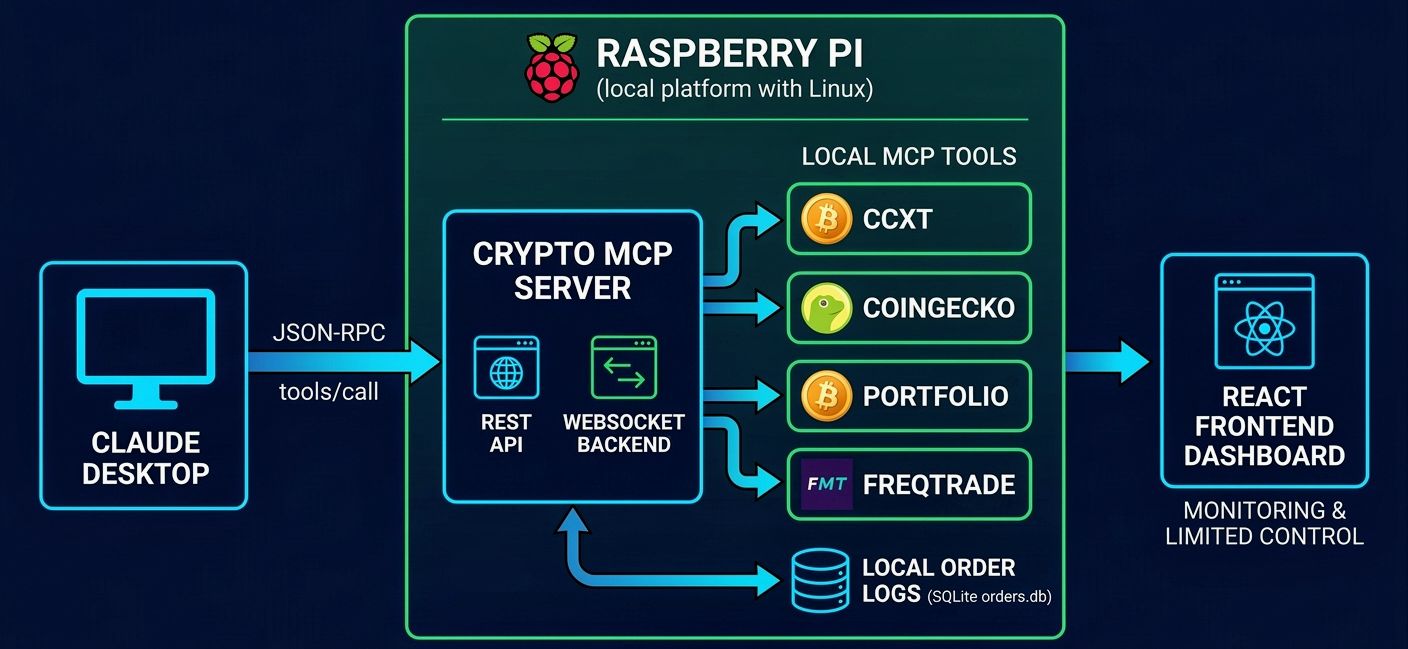

🗺️ System Overview & Architecture

The image series below illustrates the four key stages of the Crypto MCP Server, bridging AI (Claude Desktop), local tools, and blockchain technology.

📚 Table of contents

• Developer & Company
• New AI Capabilities & Real Data
• System Overview & Architecture
• ✅ Quick start — automated (install.sh)
• Manual install (condensed)
• Configuration (.env) & MCP endpoints
• 🔗 Claude Desktop integration (step-by-step)
• Dashboard user manual
• SQLite & logs
• Security & best practices

✅ Quick start — automated (recommended) — install.sh 🎯

Place the provided install.sh into $HOME/install.sh (or $HOME/cryptomcpserver/install.sh if you prefer). Make it executable and run it:

# Save install.sh to $HOME/install.sh, then:
cd $HOME
chmod +x install.sh
./install.sh

What install.sh does (summary):

1. Creates directories and writes backend & frontend files.
2. Installs Node.js if missing and runs npm install for backend & frontend.
3. Ensures the orders table exists in $HOME/cryptomcpserver/gui/backend/orders.db.
4. Frees port 4000 if occupied, then installs & enables the systemd service crypto-mcp-gui.service.
5. Attempts a production build of the frontend.

After running, check service status and logs:

sudo systemctl status crypto-mcp-gui.service
sudo journalctl -u crypto-mcp-gui.service -f

🛠 Manual install (condensed)

If you prefer to do everything yourself:

1. Install system deps:

   sudo apt update
   sudo apt install -y curl build-essential ca-certificates git


2. Install Node.js (if needed):

   curl -sL https://deb.nodesource.com/setup_20.x | sudo -E bash -
   sudo apt install -y nodejs


3. Backend & Global Config:

   cd $HOME/cryptomcpserver
   cp .env.example .env
   # edit .env to add your passwords, keys, and allowed pairs

   cd gui/backend
   npm install


4. Frontend (dev):

   cd $HOME/cryptomcpserver/gui/frontend
   npm install
   npm run dev -- --host   # open http://PI_IP:5173 on your laptop


5. Systemd (backend):

   # Create /etc/systemd/system/crypto-mcp-gui.service
   sudo systemctl daemon-reload
   sudo systemctl enable --now crypto-mcp-gui.service


⚙️ Configuration: .env (global & backend)

The system uses a centralized .env file located at the root of the project to manage both Python MCP servers and the Node.js backend.

Copy and edit $HOME/cryptomcpserver/.env.example → .env:

# Essential configuration
PORT=4000
DASHBOARD_PASSWORD=your_secure_password # Required for trading and AI reasoning
ALLOWED_PAIRS=BTC/USDT,SOL/USDT # Fail-closed security: only these pairs are allowed
MAX_TRADE_USD=100.0 # Maximum allowed trade amount per transaction

# API Keys
BINANCE_API_KEY=your_key
BINANCE_API_SECRET=your_secret

🔗 Claude Desktop integration (detailed) 🧩

Add MCP servers in Claude Desktop (step-by-step)

1. Open Claude Desktop app.
2. Open App Settings / Preferences.
3. Find Local MCP Servers.
4. Click + (Add) — fill fields one by one:
   • Name: ccxt
   • Description: CCXT MCP – exchange trading & market data
   • Transport: http
   • Endpoint: http://127.0.0.1:7001/mcp (if Claude runs on Pi) or http://<pi-ip>:7001/mcp (if Claude runs on laptop)
5. Save. Repeat for other MCPs (coingecko, portfolio, onchain, ta, notifier, llm, etc.) with their respective ports.

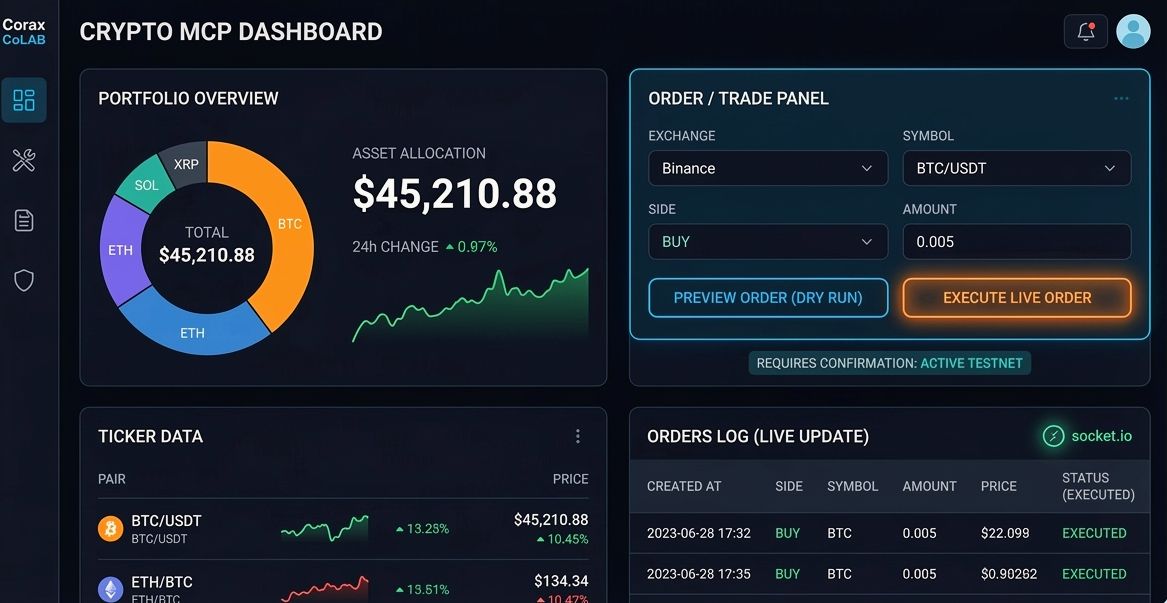

🖥 Dashboard — what you can do (user manual)

• 📊 Portfolio: View aggregated balances & USD value (async fetching for speed).
• 📈 Ticker: Live market data (via ccxt MCP).
• 🛒 Order / Trade:
  • Preview (dry_run): Calculates estimated cost and logs a preview.
  • Confirm → Place order: Sends create_order to CCXT MCP (backend requires execute:true).
• 📜 Orders log: Shows previews and executed orders (real-time updates via socket.io, paginated with indices).
• 🤖 AI Copilot: Voice-activated command center powered by real local LLMs.

⚠️ Safety: Always test with testnet keys. The UI requires confirmation to execute live orders.

🗄 SQLite & logs

DB file: $HOME/cryptomcpserver/gui/backend/orders.db

Inspect last 10 orders:

sqlite3 $HOME/cryptomcpserver/gui/backend/orders.db \
  "SELECT id,created_at,exchange,symbol,side,amount,price,status FROM orders ORDER BY created_at DESC LIMIT 10;"

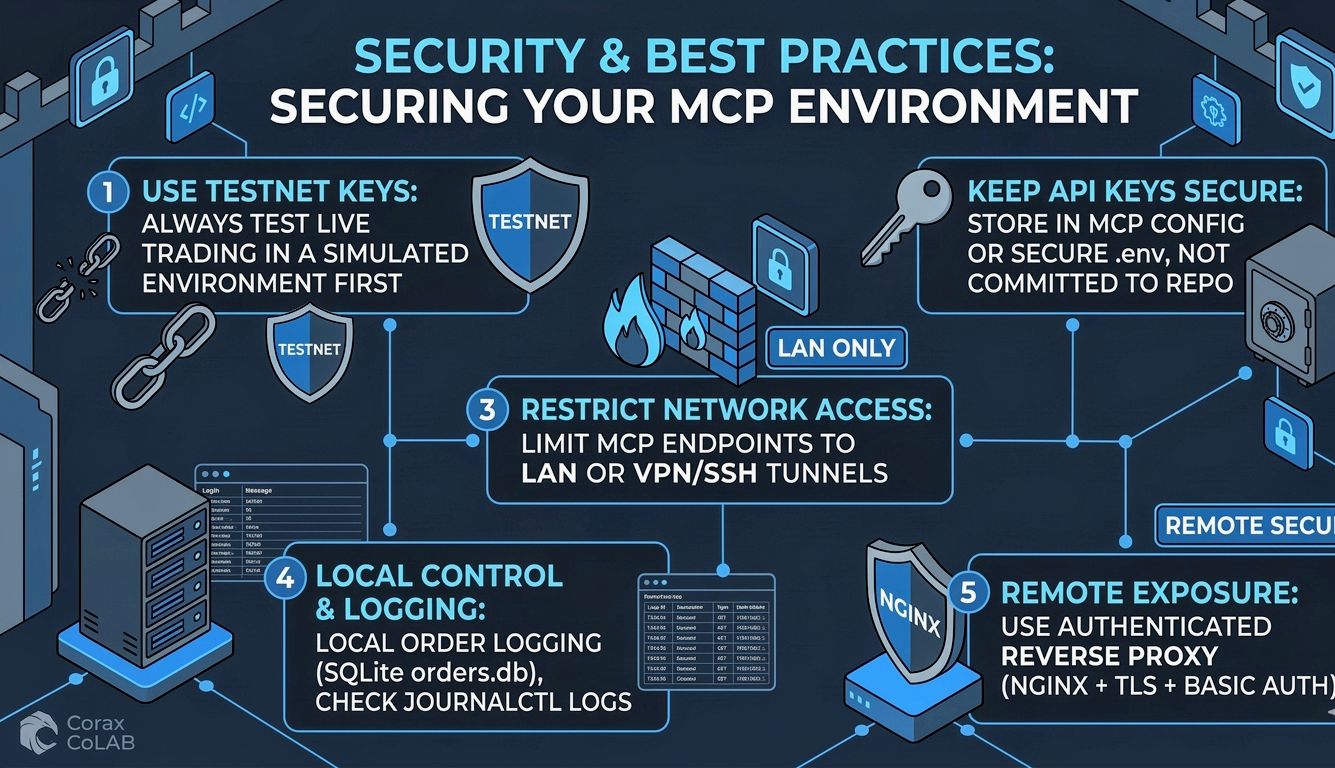

🔒 Security & best practices

• Use testnet keys while testing.
• Keep API keys out of repo — store them in the MCP server config or in secure .env not committed.
• Restrict access to MCP endpoints to LAN only (UFW rules) or use VPN/SSH tunnels.
• Auth bypass vulnerabilities via insecure req.ip validation on localhost have been successfully patched. /api/order/pending and /api/order/reasoning endpoints are now fully secured with DASHBOARD_PASSWORD verification.
