Design System MCP Server

A single-instance Model Context Protocol server that gives AI coding agents authoritative design-system context before they generate UI.

It indexes a design-system Git repository containing tokens, principles, patterns, voice/tone guidance, prompt templates, and validation rules. MCP-compatible IDEs, editors, and internal agents can then ask questions like:

• Which design tokens should I use for this button?
• What confirmation-dialog pattern exists?
• What voice and tone should this empty state use?
• Does this generated UI contain raw hex colors or other rule violations?

Why This Exists

AI coding agents often generate UI without knowing your design system. They hard-code colors, invent spacing, miss patterns, and write off-voice copy. This server gives those agents a first-class, current, machine-readable source of truth.

Real Output Examples

These are generated trial pages from real token and handoff sources, not marketing mockups.

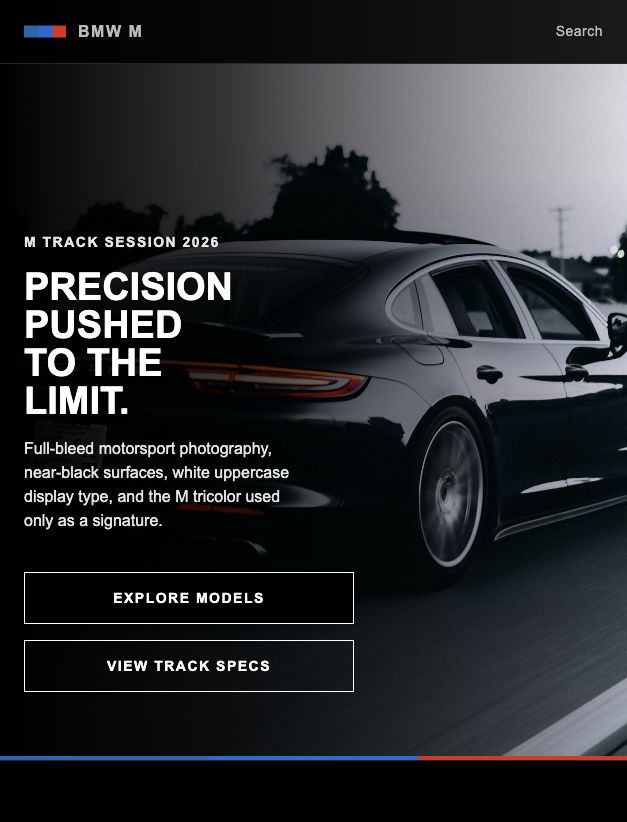

Community Markdown / getdesign handoff trial

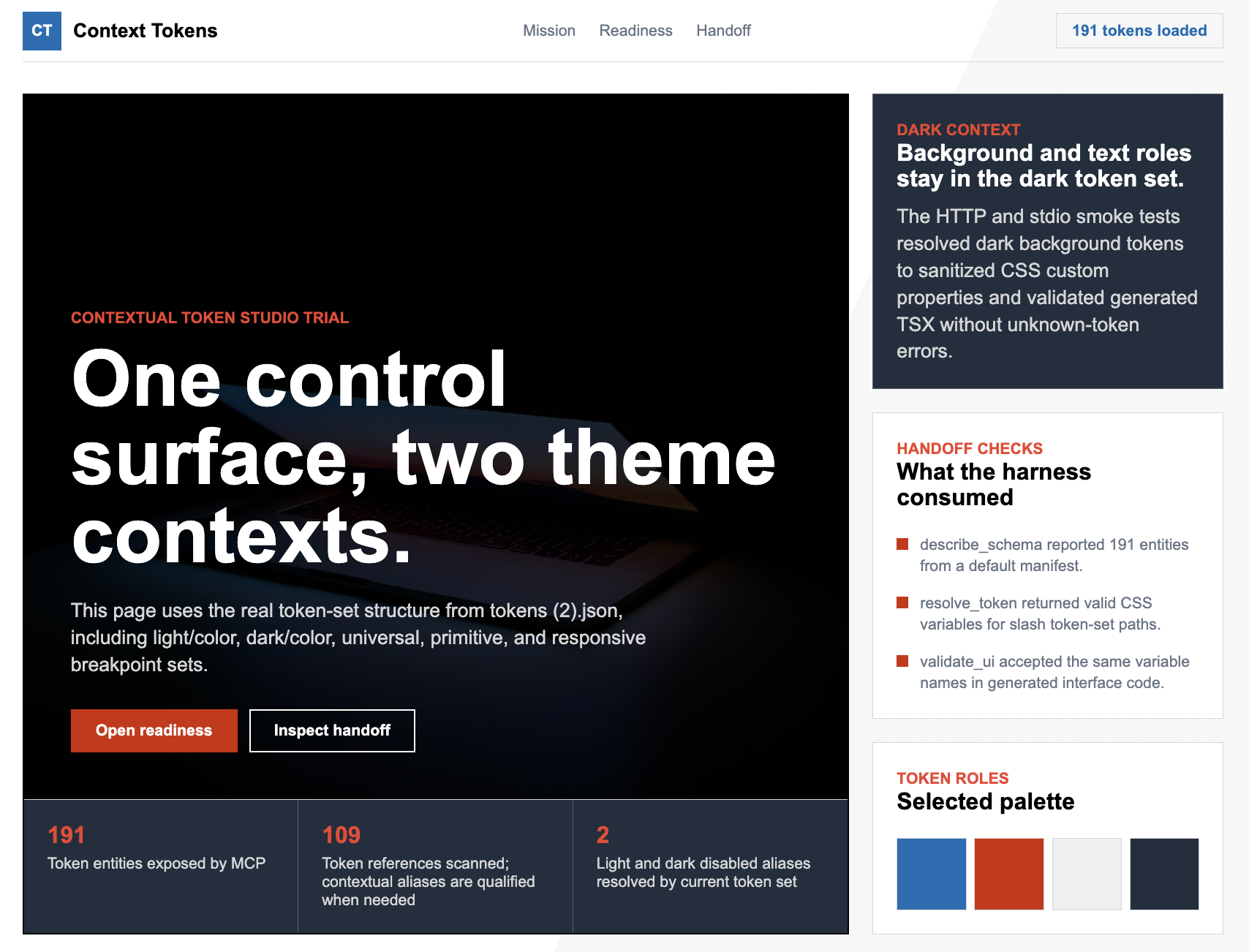

Token Studio contextual token-set trial

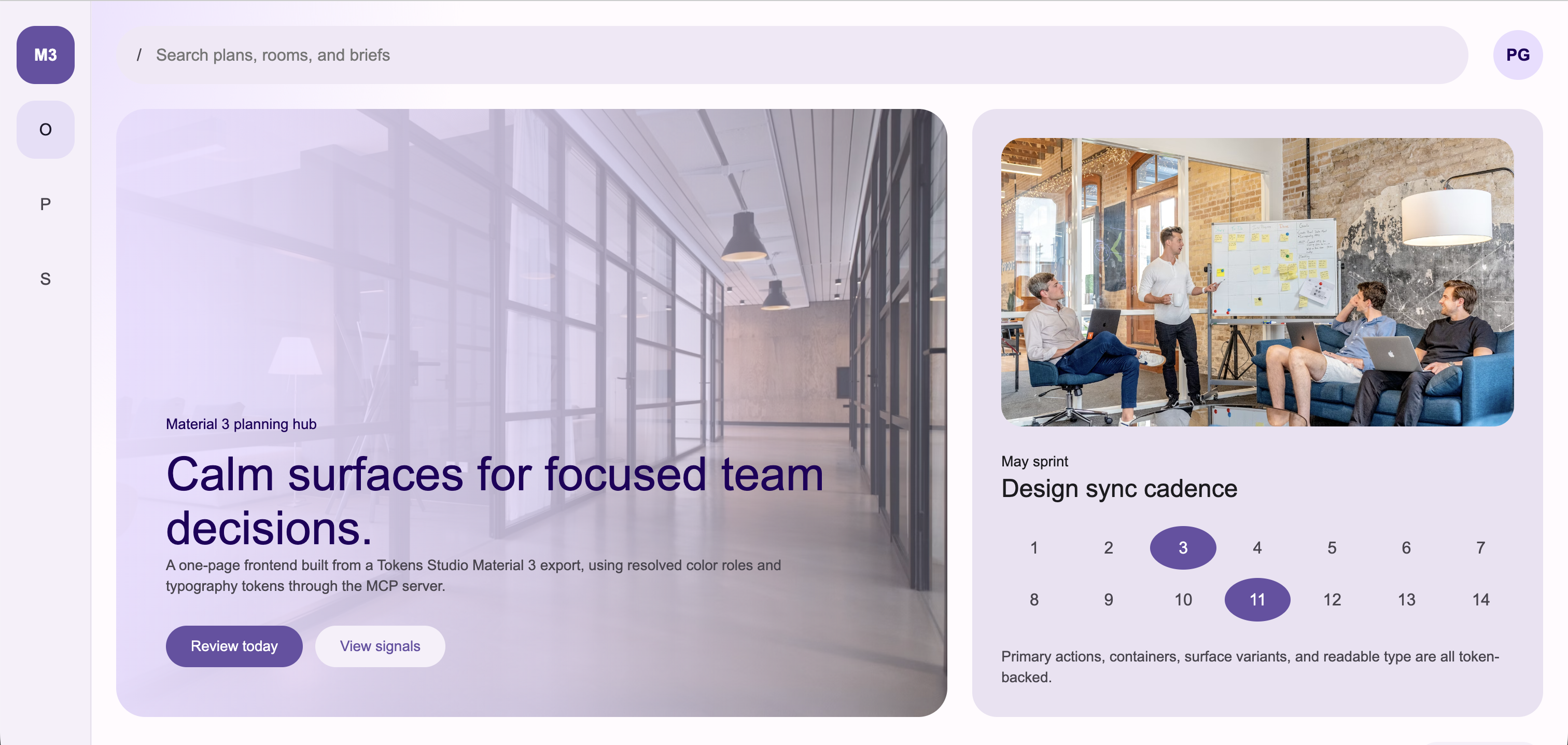

Material 3 token export trial

Current Status

Implemented:

• Local source mode from a checked-out design-system repo
• Git source mode with clone/pull refresh
• stdio transport for local IDE use
• Streamable HTTP transport for hosted use
• In-memory bundle and MiniSearch index
• Style Dictionary token loading
• Community Markdown / getdesign.md token loading for Markdown-only or hybrid handoff repos
• Token Studio export compatibility, including contextual token-set references
• DTCG whole-token alias compatibility for trailing .@ references
• Markdown and MDX content loading
• Prompt template loading
• JSON regex validation rules
• AST-backed JSX prop-value validation rules
• Component metadata ingestion from components/*/component.json
• TypeScript component API parser for *Props interfaces and type literals
• Storybook CSF story parser for canonical examples, variants, controls, and play-function interaction notes
• Canonical usage examples, constraints, and prop metadata
• Composition recommendation and composition/prop validation
• Deterministic decision explanations, recommendation provenance, violation provenance, and repair payloads where a single safe edit is known
• Built-in semantic token, accessibility, copy/voice, deprecated token, and deprecated component checks
• Optional HTTP API-key auth
• Health, readiness, version, and admin refresh endpoints
• MCP prompts registered from the loaded source repo (prompts/*.prompt.md)
• MCP resources for design://manifest, design://schema, design://entity/{id}, plus per-type templates design://principle/{id}, design://pattern/{id}, design://component/{id}, design://prompt/{name}
• Operator runbook (docs/runbook.md), client setup guide (docs/client-setup.md), sample Fly + Kubernetes deployment manifests under deploy/
• Performance baseline gates in CI (tests/integration/perf-baseline.test.ts)
• CI-friendly validation CLI (pnpm validate -- --source <design-system-repo> <file...>) with JSON/SARIF output, composition-plan validation, and nonzero exit on error violations
• Machine-readable workflow contract at design://workflow for design-system-first agent harnesses

Design Principles

This project intentionally stays small.

• Single Node.js process
• No Redis
• No database
• No object store
• No bundle publishing pipeline
• No multi-instance coordination
• Source of truth is the design-system Git repo
• Hot state is an in-memory bundle rebuilt on startup and refresh

If you need horizontal scaling, persistent user state, OAuth, or external search, treat that as a separate future proposal rather than quietly adding it here.

Architecture

Design-system Git repo
  tokens/*.tokens.json
  docs/principles/*.md
  docs/patterns/*.md
  docs/conventions/*.md
  docs/voice-and-tone.md
  components/
    Button/
      component.json
      Button.tsx
      Button.stories.tsx
  prompts/*.prompt.md
  rules/*.json
  manifest.json
        |
        | clone/pull or local path
        v
Single Node.js MCP server
  Style Dictionary token resolution
  Markdown/frontmatter parsing
  JSON rule loading
  MiniSearch index
  In-memory bundle
        |
        | stdio or Streamable HTTP
        v
AI coding agents

Prerequisites

• Node.js 22.0.0 or newer (LTS recommended; matches package.json engines.node)
• pnpm 9.0.0 or newer (engines.pnpm)
• git 2.5+, if using DS_MCP_SOURCE_MODE=git (modern distros all qualify; we rely on --branch/--single-branch/--depth 1)

Recommended:

corepack enable
corepack prepare [email protected] --activate

In this workspace, Homebrew pnpm is known to work:

PATH=/opt/homebrew/bin:$PATH pnpm test

Install

pnpm install
pnpm build

Design-System Source Repo Format

The server reads a separate design-system content repo. A minimal source repo looks like this:

design-system/
  manifest.json
  getdesign.md
  tokens/
    core.tokens.json
    semantic.tokens.json
  docs/
    principles/
      clarity.md
    patterns/
      confirmation-dialog.md
    conventions/
      forms.mdx
    voice-and-tone.md
  components/
    Button/
      component.json
      Button.tsx
      Button.stories.tsx
  prompts/
    build_with_design_system.prompt.md
  rules/
    no-hex-colors.json

manifest.json

The manifest declares content types and relations. New content types belong here, not as new MCP tools.

{
  "schemaVersion": "1.0.0",
  "schema": {
    "types": {
      "token": {
        "description": "Design token",
        "searchable": ["name", "summary", "tags", "$type"]
      },
      "principle": {
        "description": "Design principle",
        "searchable": ["title", "summary", "body", "tags"]
      },
      "pattern": {
        "description": "Reusable UI pattern",
        "searchable": ["title", "summary", "body", "tags"]
      }
    },
    "relations": {
      "follows_principle": { "from": "pattern", "to": "principle" }
    }
  }
}

Tokens

Tokens use DTCG-style JSON and are resolved through Style Dictionary.

{
  "color": {
    "blue": {
      "500": {
        "$value": "#2563EB",
        "$type": "color",
        "$description": "Brand blue 500"
      }
    },
    "action": {
      "primary": {
        "$value": "{color.blue.500}",
        "$type": "color",
        "$description": "Primary action color"
      }
    }
  }
}

Community Markdown can also define tokens in YAML frontmatter. Use tokens: for full DTCG-shaped token trees, or use top-level community sections when the design system is authored as a single Markdown file: colors, spacing, rounded, radius, radii, typography, and components. The server normalizes these sections to DTCG-shaped input, then feeds the result through Style Dictionary with any tokens/*.tokens.json files. This supports Markdown-only repos and hybrid token+Markdown repos while keeping resolve_token, validate_ui, and validate_composition deterministic.

---
tokens:
  color:
    brand:
      primary:
        value: "#2563EB"
        type: color
        description: Primary brand action.
      primaryHover:
        value: "{color.brand.primary}"
        type: color
---

# Design System

Token tables in Markdown prose are searchable guidance only. For machine-readable token resolution, put token data in Markdown frontmatter tokens: or in tokens/*.tokens.json.

---
colors:
  canvas: "#000000"
  on-dark: "#ffffff"
spacing:
  section: 96px
rounded:
  none: 0px
typography:
  display-xl:
    fontFamily: "BMWTypeNextLatin, sans-serif"
    fontSize: 80px
components:
  button-primary:
    backgroundColor: "{colors.canvas}"
    textColor: "{colors.on-dark}"
---

# Community Design System

For Markdown-only repositories that intentionally provide tokens plus prose but not full enterprise component/pattern metadata, call inspect_coverage with profile: "community". The default enterprise profile still treats missing required entity types as errors.

Tokens Studio exports are also supported when saved under tokens/*.tokens.json. If a file contains token-set metadata and unqualified references such as {color.primary.40}, the loader rewrites those references before Style Dictionary resolves them. When the current token set owns the target, that local target wins; for example, light/color.color.action.disabled can resolve {color.disabled} to {light/color.color.disabled} while dark/color.color.action.disabled resolves the same reference to {dark/color.color.disabled}. If the current token set does not own the target, the loader falls back to the single token set that owns it globally, for example {global.color.primary.40}. Ambiguous targets that cannot be resolved by either rule remain Style Dictionary errors. The server does not replace Style Dictionary resolution; this is a compatibility shim for common Tokens Studio exports.

CSS platform output encodes non-alphanumeric token-path characters into valid, collision-resistant custom-property names. A token path like light/color.color.action.primary.disabled is returned as var(--light_u002f_color-color-action-primary-disabled), and validate_ui checks that same encoded name. This keeps slash-containing token sets compatible with generated CSS while preserving the original token entity id.

DTCG whole-token aliases that include a trailing .@ marker are normalized when the target token exists. For example, {composite.border.thin.@} is passed to Style Dictionary as {composite.border.thin}. Missing targets are not guessed; they remain Style Dictionary reference errors.

Token Source Compatibility

Token-only sources can enforce deterministic token use and catch raw values, unknown CSS variables, deprecated tokens, accessibility issues, and copy issues. Full enterprise handoff still needs component metadata, pattern contracts, voice rules, and conventions beside the tokens.

Markdown Docs

Docs use YAML frontmatter plus Markdown or MDX body:

---
id: principle:clarity
type: principle
title: Clarity
summary: Be clear, not clever.
tags: [principle, accessibility]
---

# Clarity

Use plain language and obvious affordances.

Pattern docs can also include a machine-checkable contract in frontmatter. validate_composition enforces this before code generation.

MDX files are supported in docs/principles, docs/patterns, and docs/conventions. The loader keeps frontmatter and prose searchable while stripping imports, exports, and component-only JSX from the indexed body. It also extracts common handoff structure into entity.data.structured so agents do not need to parse prose themselves:

• <DoDont doText="..." dontText="..." /> pairs become structured.do and structured.dont.
• ## Do, ## Do not, ## Accessibility, and ## Migration list sections become stable arrays.
• ## Props Markdown tables become structured.propTables with normalized prop rows.

Community-published root docs are also supported for UX-to-dev handoff. Root files named getdesign.md, design-system.md, design.md, styleguide.md, or guidelines.md are loaded as convention entities by default; root Markdown/MDX files with frontmatter id, type, or tokens are loaded too. This makes public/community formats searchable without adding content-specific MCP tools.

Docs and metadata may also reference entity ids directly, such as component:button or token:color.action.primary. The bundle infers deterministic references relations from those explicit ids, so get_related can walk the graph even when frontmatter did not include a manual related entry.

contract:
  requiredComponents:
    - component:button
  requiredTokens:
    - token:color.action.danger
  requiredPrinciples:
    - principle:clarity
  componentOrder:
    - component:card
    - component:button
  propRequirements:
    - component: component:button
      prop: variant
      equals: danger
      severity: error
      message: Confirmation dialog confirm action must use the danger button variant.
  parentChildRules:
    - parent: component:card
      child: component:button
      relationship: required
      severity: error
      message: Confirmation action must be nested inside the dialog container.
  platformRequirements:
    - platform: web
      framework: react
      requiredComponents:
        - component:card
      forbiddenComponents:
        - component:button-group
      requiredTokens:
        - token:color.surface.default
  slots:
    - name: confirm-action
      required: true
      component: component:button
  constraints:
    - id: confirmation-specific-copy
      severity: warning
      message: Confirmation copy must name the object and irreversible action.

Prompt Templates

Prompt files live under prompts/*.prompt.md:

---
name: build_with_design_system
description: Build UI using this design system
arguments:
  - name: component_type
    required: true
---

Build a {{component_type}} using the design system.

Component Metadata

Component metadata lives in components/<ComponentName>/component.json. This gives agents stable imports, prop contracts, canonical examples, constraints, and relationships without requiring the MCP server to generate application code.

When TypeScript source files are present beside component.json, the loader also reads the first matching *Props interface or type literal, preferring <ComponentName>Props. Extracted props include names, types, required flags, string-union values, JSDoc descriptions, @default, @deprecated, replacement hints, and simple controlled-state hints. Extracted props are merged into the metadata. Hand-authored component.json values win when both sources define the same prop.

When Storybook CSF files such as Card.stories.tsx are present, object stories with literal args are converted into additional usage examples. The parser also carries literal argTypes.options as controls and stores play functions as interaction notes. This keeps get_usage aligned with existing component examples without executing Storybook.

{
  "id": "component:button",
  "type": "component",
  "name": "Button",
  "summary": "Action trigger for primary, secondary, and destructive user actions.",
  "package": "@acme/ui",
  "importPath": "@acme/ui/button",
  "dependencies": [
    {
      "package": "@acme/ui",
      "version": "^2.0.0",
      "type": "runtime",
      "reason": "Provides the Button component implementation."
    }
  ],
  "importGuidance": {
    "named": ["Button"],
    "sideEffects": [],
    "notes": ["Import Button from @acme/ui/button; do not deep-import internal files."]
  },
  "status": "stable",
  "replacedBy": [],
  "tags": ["action", "form"],
  "props": [
    {
      "name": "variant",
      "type": "\"primary\" | \"secondary\" | \"danger\"",
      "required": true,
      "values": ["primary", "secondary", "danger"],
      "description": "Visual intent. Use danger only for destructive actions."
    }
  ],
  "examples": [
    {
      "name": "Destructive confirm action",
      "language": "tsx",
      "code": "import { Button } from \"@acme/ui/button\";\n\n<Button variant=\"danger\">Delete project</Button>"
    }
  ],
  "constraints": [
    {
      "id": "button-specific-label",
      "severity": "error",
      "message": "Button labels must name the action and object."
    }
  ],
  "tokens": ["token:color.action.primary"],
  "principles": ["principle:clarity"],
  "patterns": ["pattern:confirmation-dialog"],
  "related": []
}

Deprecated components can declare migration chains:

{
  "id": "component:legacy-button",
  "status": "deprecated",
  "replacedBy": ["component:button"],
  "migration": {
    "steps": [
      "Replace LegacyButton imports with Button imports.",
      "Map intent=\"danger\" to variant=\"danger\"."
    ],
    "examples": [
      {
        "name": "LegacyButton to Button",
        "language": "tsx",
        "code": "<Button variant=\"danger\">Delete project</Button>"
      }
    ]
  }
}

validate_composition treats deprecated components as error-severity legacy usage and suggests replacement component ids when declared. inspect_coverage reports stale replacedBy targets.

Example source-enriched props:

export interface CardProps {
  /** Short heading shown at the top of the card. */
  title: string;
  /** Visual tone for the card container. */
  tone?: "neutral" | "accent" | "danger";
}

Validation Rules

Rules live under rules/*.json. Source repos can define regex detectors for simple text checks and AST-backed JSX prop value detectors for component API constraints.

{
  "id": "no-hex-colors",
  "description": "Raw hex colors must use design tokens",
  "severity": "error",
  "appliesTo": ["tsx", "jsx", "ts", "js", "css"],
  "detector": {
    "type": "regex",
    "pattern": "#[0-9a-fA-F]{3,8}\\b",
    "message": "Raw hex color {match} - use a color token instead"
  }
}

Invalid JSON, schema-invalid rules, duplicate rule IDs, invalid regex patterns, and invalid regex flags are skipped with structured warnings.

{
  "id": "no-button-ghost-variant",
  "description": "Button variant must be one of the design-system variants.",
  "severity": "error",
  "appliesTo": ["tsx", "jsx"],
  "detector": {
    "type": "jsx-prop-value",
    "component": "Button",
    "prop": "variant",
    "disallow": ["ghost"],
    "message": "Button variant '{value}' is not in the design system."
  }
}

Configuration

All configuration is read from environment variables and validated at boot.

See .env.example.

Run Locally With stdio

Use stdio mode for IDEs that spawn local MCP servers.

pnpm build

DS_MCP_MODE=stdio \
DS_MCP_SOURCE_MODE=local \
DS_MCP_SOURCE_PATH=/absolute/path/to/design-system \
node dist/index.js

Example MCP client command:

{
  "mcpServers": {
    "design-system": {
      "command": "node",
      "args": ["/absolute/path/to/design-system-mcp/dist/index.js"],
      "env": {
        "DS_MCP_MODE": "stdio",
        "DS_MCP_SOURCE_MODE": "local",
        "DS_MCP_SOURCE_PATH": "/absolute/path/to/design-system"
      }
    }
  }
}

Run Locally With HTTP

HTTP mode exposes Streamable HTTP MCP at /mcp.

DS_MCP_MODE=http \
DS_MCP_SOURCE_MODE=local \
DS_MCP_SOURCE_PATH=/absolute/path/to/design-system \
PORT=3000 \
pnpm dev

Useful endpoints:

curl http://localhost:3000/healthz
curl http://localhost:3000/readyz
curl http://localhost:3000/version

Run From a Git Source

DS_MCP_MODE=http \
DS_MCP_SOURCE_MODE=git \
DS_MCP_SOURCE_URL=https://github.com/your-org/design-system.git \
DS_MCP_SOURCE_BRANCH=main \
PORT=3000 \
pnpm dev

The server clones the source repo into DS_MCP_CACHE_DIR, pulls periodically, and atomically swaps in a rebuilt bundle when content changes.

For private HTTPS repositories, set GIT_AUTH_TOKEN. The token is injected into Git operations and redacted from logs.

API Key Auth

HTTP auth is optional. When enabled, clients must send:

Authorization: Bearer <api-key>

Create a high-entropy key:

openssl rand -base64 32

Store only its SHA-256 hex digest in DS_MCP_API_KEYS:

printf '%s' 'your-api-key-here' | shasum -a 256 | awk '{print $1}'

Run with auth:

DS_MCP_MODE=http \
DS_MCP_AUTH_MODE=apikey \
DS_MCP_API_KEYS=<sha256-hex-digest> \
DS_MCP_SOURCE_MODE=local \
DS_MCP_SOURCE_PATH=/absolute/path/to/design-system \
pnpm dev

Admin Refresh

Set DS_MCP_ADMIN_TOKEN to enable manual refresh:

curl -X POST http://localhost:3000/admin/refresh \
  -H "Authorization: Bearer $DS_MCP_ADMIN_TOKEN"

During graceful drain, /readyz, /mcp, and /admin/refresh return 503. /healthz remains 200 while the process is alive.

MCP Tools

The server exposes generic verbs:

Design-System-First Handoff Flow

For best UX-to-dev consistency, agents and CI should follow this sequence:

1. Read design://workflow or call describe_schema.
2. Call inspect_coverage to understand whether the source is enterprise-complete or token-only/community-grade.
3. Call recommend_composition with the UI intent.
4. Call explain_decision for selected components, patterns, or tokens when the harness needs auditable reasoning.
5. Call get_usage for selected components and resolve_token for every concrete token value.
6. Call validate_composition before generating code.
7. Generate code.
8. Call validate_ui and apply deterministic repair / replaceWith edits first.
9. In CI or final harness mode, run pnpm validate -- --mode final_check --composition composition.json <file...>.

The server publishes the workflow contract at design://workflow; hard blocking is enforced by the validation CLI and by any client harness that honors that resource.

Example validate_ui request:

{
  "code": "const color = '#2563EB';",
  "language": "tsx",
  "rules": ["no-hex-colors"]
}

validate_ui also runs built-in semantic token, accessibility, and copy/voice checks:

• no-raw-length-values blocks raw px, rem, and em values.
• no-raw-color-functions blocks raw rgb(), rgba(), hsl(), and hsla() values.
• no-unknown-css-vars blocks token-like CSS variables that do not resolve to known design tokens.
• prefer-semantic-tokens warns when app code uses primitive tokens instead of semantic aliases.
• no-deprecated-tokens blocks deprecated token aliases and suggests replacements when declared.
• a11y-img-alt requires images to have alt text or another accessible name.
• a11y-button-name requires buttons to have visible text or an accessible name.
• a11y-link-name requires links to have visible text or an accessible name.
• a11y-form-control-label requires inputs, selects, and textareas to have labels or accessible names.
• a11y-no-positive-tabindex blocks positive tab order overrides.
• a11y-no-autofocus warns when markup uses autofocus.
• a11y-valid-aria-role blocks invalid ARIA role names.
• copy-no-blame blocks copy that blames the user.
• copy-no-hype warns on hype, alarmism, and exclamation marks.
• copy-no-vague-actions warns on vague action labels such as "Submit" or "Process".
• copy-no-destructive-hedging warns when destructive copy uses hedging language.

When a violation has one deterministic edit, the response includes replaceWith and a structured repair payload:

{
  "ruleId": "no-deprecated-tokens",
  "match": "var(--color-action-legacyPrimary)",
  "replaceWith": "var(--color-action-primary)",
  "repair": {
    "operation": "replace",
    "before": "var(--color-action-legacyPrimary)",
    "after": "var(--color-action-primary)"
  }
}

Rules that require product judgment still return human-readable suggestion text without an auto-fix.

Example response:

{
  "ok": false,
  "violations": [
    {
      "ruleId": "no-hex-colors",
      "severity": "error",
      "message": "Raw hex color #2563EB - use a color token instead",
      "line": 1,
      "column": 16,
      "match": "#2563EB",
      "provenance": {
        "ruleSource": "source-repo",
        "rulePath": "rules/no-hex-colors.json"
      }
    }
  ],
  "ranRules": ["no-hex-colors"],
  "bundleVersion": "nogit-2026-05-01T16:40:00.000Z"
}

Docker

Build:

docker build -t ds-mcp-server .

Run against a local source checkout:

docker run --rm -p 3000:3000 \
  -e DS_MCP_MODE=http \
  -e DS_MCP_SOURCE_MODE=local \
  -e DS_MCP_SOURCE_PATH=/design-system \
  -v /absolute/path/to/design-system:/design-system:ro \
  ds-mcp-server

Use docker-compose.yml as a starting point for local hosted-mode testing.

Development

pnpm install
pnpm lint
pnpm typecheck
pnpm test
pnpm build

Run only unit or integration tests:

pnpm test:unit
pnpm test:integration

Validate changed UI files against a local design-system source repo in CI:

pnpm validate -- --source ./path/to/design-system src/App.tsx
pnpm validate -- --source ./path/to/design-system --format sarif src/App.tsx > ds-results.sarif
pnpm validate -- --source ./path/to/design-system --composition composition.json
pnpm validate -- --source ./path/to/design-system --mode final_check --composition composition.json src/App.tsx

The command prints JSON or SARIF and exits 1 if any error-severity validate_ui / validate_composition violation is found. In --mode final_check, it also exits 1 when required harness evidence is missing, such as running UI validation without a composition plan.

This project follows test-first development for non-trivial changes. Add focused tests first, implement the smallest safe change, then run the relevant verification before committing.

Repository Layout

src/
  auth/              API-key validation
  bundle/            Manifest, token, markdown, prompt, and rule loading
  observability/     Pino logger
  search/            MiniSearch index
  server/            MCP server wiring and shared types
  source/            Local and Git source adapters
  tools/             MCP tool handlers
  transport/         stdio and Streamable HTTP transports
  util/              Small shared utilities
  validation/        validate_ui detector helpers
tests/
  fixtures/          Sample design-system repo
  integration/       End-to-end tool/transport tests
  unit/              Unit tests

Contributing

Before opening a pull request:

1. Keep the single-instance architecture intact.
2. Do not add Redis, a database, object storage, queues, or multi-instance coordination.
3. Add or update tests before changing behavior.
4. Run:

pnpm lint
pnpm typecheck
pnpm test
pnpm build

Security

• Do not commit .env files, deploy keys, API keys, or admin tokens.
• Use high-entropy API keys and store only SHA-256 hex digests.
• Logs redact common secret/header fields.
• The MCP surface is read-only. Authoring stays in the design-system Git repo.

License

MIT. See LICENSE.
