⚡ Why GoldPan AI v3.2?

Modern RAG pipelines and MCP tool servers fail before embedding even begins: scanned PDFs arrive without selectable text, web pages carry 60% navigation boilerplate or hidden Indirect Prompt Injection (OWASP LLM01) payloads, and English-centric embedding models fail on Vietnamese legal and technical documents (especially legacy TCVN3 / VNI-Windows encodings and unaccented queries).

GoldPan AI v3.2 is a local-first multimodal data refinery, Tier-1 & Tier-2 Agent Context Firewall, Offline Vietnamese OCR Engine, Multilingual E5 ONNX + SQLite FTS5 Hybrid RAG Workspace, and Model Context Protocol (MCP) server engineered to sift pure signal ("gold") from noisy and untrusted inputs:

1. Pillar 1 — Tier-1 & Tier-2 Agent Context Firewall (sanitize | audit | strict): Defends downstream LLM agents against Indirect Prompt Injection across static HTML/CSS (display:none, opacity:0, font-size:0, <style> AST class/ID rules), Playwright Tier-2 Computed-Style DOM (window.getComputedStyle(el) catching external stylesheets, fg === bg same-color stealth, and getBoundingClientRect() off-screen positioning), PDF character attributes (<1pt / white fill via pdfplumber), DOCX vanished runs (<w:vanish/>), Unicode Tags (U+E0000–U+E007F), Bidi overrides, fake ChatML/Llama delimiters (<|im_start|>, [INST]), and Markdown image exfiltration beacons—while preserving 0% False Positive Rate (FPR) on legitimate OWASP/cybersecurity papers. See THREAT_MODEL.md.
2. Pillar 2 — Multilingual & Vietnamese Hybrid RAG Core: Pairs local intfloat/multilingual-e5-small (384-dim ONNX) with automatic "query: " / "passage: " prefixing and a persistent SQLite FTS5 (goldpan_fts.db) lexical index (bm25() with đ/Đ -> d diacritic folding, compound bigrams, and atomic chunk deletion), automatic TCVN3 (ABC) & VNI-Windows -> Unicode NFC conversion, and a Hierarchical Breadcrumb Chunker (Phần > Chương > Mục > Điều > Khoản).
3. Pillar 3 — Offline Vietnamese OCR & 2D Integral-Image Sauvola Binarization: Automatically detects scanned PDFs (< 30 chars/page via pdfplumber), rasterizes pages via pypdfium2, applies $\mathcal{O}(1)$ 2D Integral-Image Sauvola Local Adaptive Thresholding to recover crisp text under uneven shadow/lighting gradients, and executes a multi-tier offline OCR fallback chain (RapidOCR ONNX -> Tesseract vie -> VietOCR -> Builtin Glyph).
4. Pillar 4 — 3-Tier Hardware Acceleration & Reproducible GoldPan Bench CI Gate: Hardware-aware ONNX provider routing (CPUExecutionProvider INT8, DmlExecutionProvider FP32 on AMD Radeon RX 6600 / DirectML, CoreMLExecutionProvider on Apple Silicon, OpenVINOExecutionProvider on Intel) verified across Ubuntu, Windows, and macOS via goldpan bench --ci-gate with 95% Wilson Score Confidence Intervals.

🏛️ Four Core Pillars of GoldPan v3.2

1. Tier-1 & Tier-2 Agent Context Firewall (backend/goldpan/firewall/ & web_extractor.py)

• Tier-1 Static & Binary Steganographic Stripping (context_firewall.py): Parses inline styles and <style> blocks (.class, #id, [attr], CSS variables color: var(--x); background: var(--x)) to strip hidden DOM nodes before Trafilatura text extraction; filters <1pt/white PDF characters and DOCX <w:vanish/> runs; removes Unicode Tag (U+E0000–U+E007F) and Bidi/Zero-Width characters; neutralizes <|im_start|>/[INST] delimiters; and blocks Markdown image exfiltration beacons.
• Tier-2 Playwright Computed-Style DOM Firewall (web_extractor.py): Evaluates rendered DOM nodes via window.getComputedStyle(el) and el.getBoundingClientRect() in headless Chromium/Chrome/Edge to catch stealth payloads hidden via external CSS bundles, zero-opacity layers, fg === bg color camouflage, or off-screen transforms (translate(-9999px)).
• Context-Aware Semantic Risk Scoring & MCP Data Spotlighting: Flags imperative override payloads (risk_score 0.0–1.0, signals) in English and Vietnamese while distinguishing academic security documentation (Hard Negatives). Supports <untrusted_document_content source="..." firewall_mode="..." risk_score="..."> wrapping and _meta.provenance.firewall telemetry.

2. Multilingual & Vietnamese Hybrid RAG Engine (backend/goldpan/kb/)

• Multilingual E5 ONNX (onnx_embedder.py): Enforces the asymmetric E5 contract (passage: ... on indexing, query: ... on search) with L2 normalization in isolated collection goldpan_kb_e5_v3 (plus optional cross-collection Reciprocal Rank Fusion with Gemini 768d Matryoshka embeddings).
• Persistent SQLite FTS5 (fts_index.py): Eliminates $\mathcal{O}(N)$ in-memory corpus rebuilds by persisting text_nfc and text_folded in chroma_data/goldpan_fts.db (WAL mode), fusing FTS5 bm25() with dense vectors via Reciprocal Rank Fusion (RRF, k=60), and atomically purging FTS5 records upon document deletion.
• Legacy Vietnamese Encoding Decoder (vn_encoding.py): Detects and converts VNI-Windows, TCVN3 (ABC), and decomposed Unicode NFD into composed Unicode NFC at the token level without corrupting English/French prose.
• Hierarchical Breadcrumb Chunker (chunker.py): Tracks both Markdown (# H1 > ## H2 > ### H3) and Vietnamese statutory structure (Phần > Chương > Mục > Điều > Khoản), prepending [Ngữ cảnh: ...] to every chunk and extracting so_hieu, ngay_ban_hanh, and loai_van_ban.

3. Offline Vietnamese OCR & 2D Integral-Image Sauvola Binarization (backend/goldpan/ocr/)

• Automatic Scanned PDF Detection (pdf_scanner.py): Inspects character density per page (< 30 chars/page threshold) and rasterizes scanned pages at 200 DPI via pypdfium2 with strict context-manager file-handle cleanup.
• 2D Integral-Image Sauvola Adaptive Thresholding (image_preprocess.py): Computes local mean $\mu(x,y)$ and standard deviation $\sigma(x,y)$ over a $W \times W$ neighborhood in $\mathcal{O}(1)$ time per pixel using summed-area tables:
  $$T(x, y) = \mu(x, y) \cdot \left[1 + k \cdot \left(\frac{\sigma(x, y)}{R} - 1\right)\right]$$
  Followed by projection-profile deskew (-5° to +5°) to maximize OCR character accuracy on shadowed phone scans.
• Multi-Backend Offline Chain (engine.py): Cascades through RapidOCR (ONNX) $\rightarrow$ pytesseract (vie+eng) $\rightarrow$ VietOCR $\rightarrow$ deterministic builtin_glyph fallback, exposing OCR confidence and backend telemetry across CLI (goldpan ocr), MCP (goldpan_ocr), and REST (/api/ocr, /api/extract/file).

4. 3-Tier Hardware-Aware ONNX Acceleration (goldpan doctor)

📊 GoldPan Bench Empirical Evaluation

Reproduce at any time with goldpan bench --ci-gate (dataset SHA-256 hashes verified automatically; see BENCHMARK_REPORT.md):

Track B: Multilingual & Vietnamese Hybrid Retrieval (16 Held-Out Queries across 4 Categories)

• vi_accented / vi_unaccented / vi_paraphrase: 100.0% Recall@1 & Recall@3 (MRR@5 = 1.0000), including legacy VNI-Windows (Boä Luaät Lao Ñoäng) and TCVN3 (Thông tư 80/2021/TT-BTC) documents.
• cross_lingual_en_vi: 75.0% Recall@3 ([30.1%, 95.4%] 95% Wilson CI).

Track A: Agent Context Firewall (13 Multi-Vector Attacks + 4 Benign Hard Negatives)

🧰 CLI & Model Context Protocol (MCP) Server

1. Command-Line Interface (goldpan)

# Install GoldPan v3.2 (add [directml] on Windows DX12 GPUs, [ocr] for RapidOCR + pypdfium2, or [all])
pip install -e .
# pip install -e ".[all]"

# 1. Diagnose hardware execution provider, warmup latency, OCR engine, SQLite FTS5 & v2->v3 migration
goldpan doctor

# 2. Extract clean Markdown protected by the Agent Context Firewall (sanitize | audit | strict)
goldpan extract https://example.com --firewall-mode sanitize --spotlight

# 3. Run standalone Offline Vietnamese OCR on a scanned PDF or image
goldpan ocr ./scan_hop_dong.pdf --json

# 4. Ingest documents into the v3 Multilingual E5 + SQLite FTS5 Knowledge Base
goldpan ingest ./luat_so_huu_tri_tue.pdf --local

# 5. Hybrid RRF search (supports accented, unaccented, paraphrased & cross-lingual queries)
goldpan search "dieu 15 luat so huu tri tue khong bao ho quyen tac gia" --top-k 4

# 6. Re-index / migrate existing KB/*.md or v2 chunks into v3 E5 + SQLite FTS5
goldpan reindex

# 7. Audit all indexed Knowledge Base chunks for prompt injection signatures
goldpan audit

# 8. Run the reproducible Dual-Track Benchmark & CI Regression Gate
goldpan bench --ci-gate --output-md BENCHMARK_REPORT.md

2. MCP Server (goldpan-mcp) for AI Coding Agents

Register goldpan-mcp in Claude Desktop, Claude Code, Cursor, or Antigravity:

{
  "mcpServers": {
    "goldpan": {
      "command": "C:/path/to/GoldPan/venv/Scripts/goldpan-mcp.exe",
      "args": [],
      "env": {
        "GEMINI_API_KEY": ""
      }
    }
  }
}

🖥️ Workspace Tour

Built with Next.js 16, React 19, Tailwind CSS v4, and Framer Motion in a high-contrast Dark Stone & Gold (#0C0A09 / #FACC15) theme with live Agent Context Firewall badges and Offline Vietnamese OCR controls.

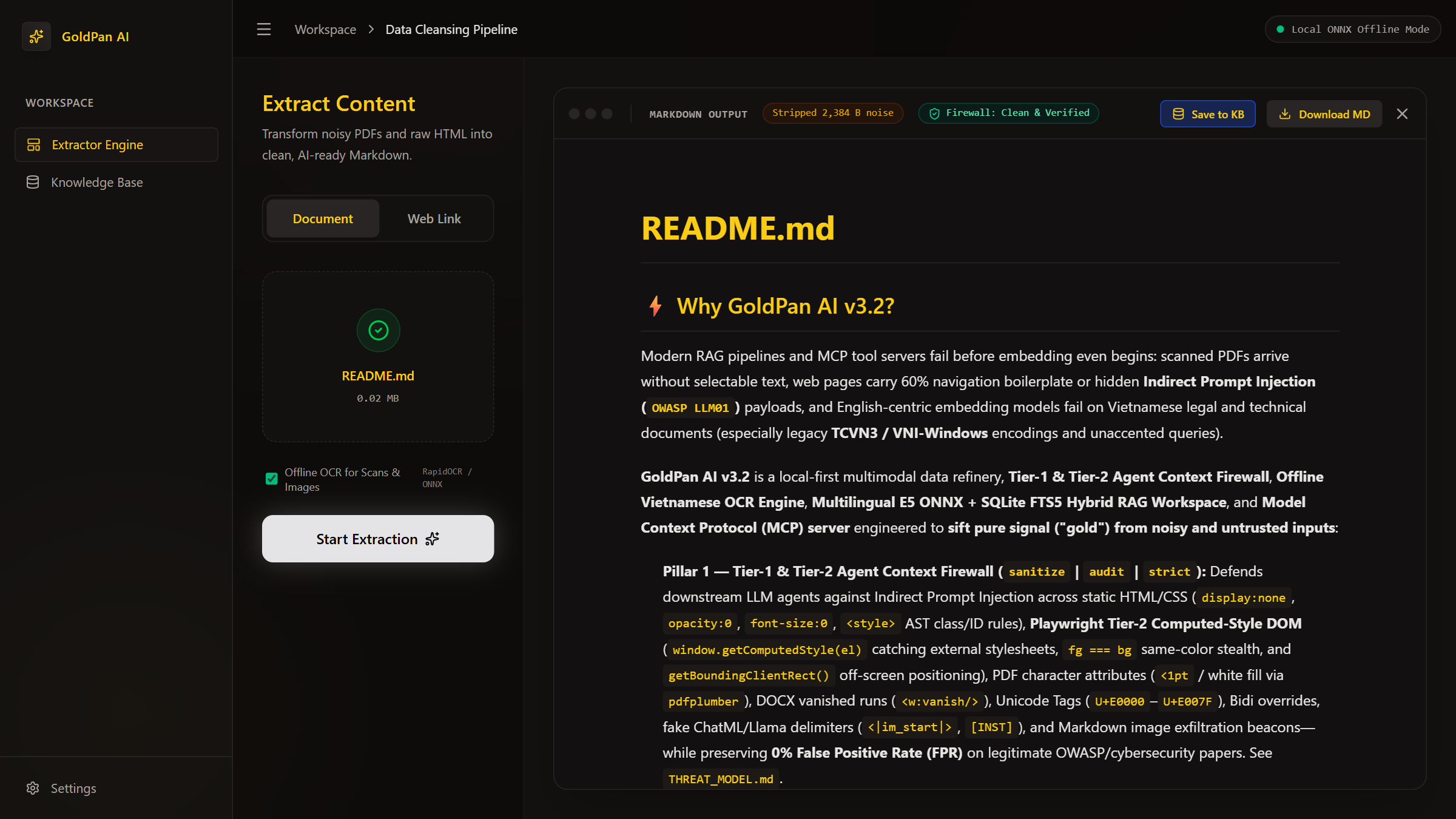

1. Data Cleansing & Context Firewall Extractor (assets/workspace-extractor.png)

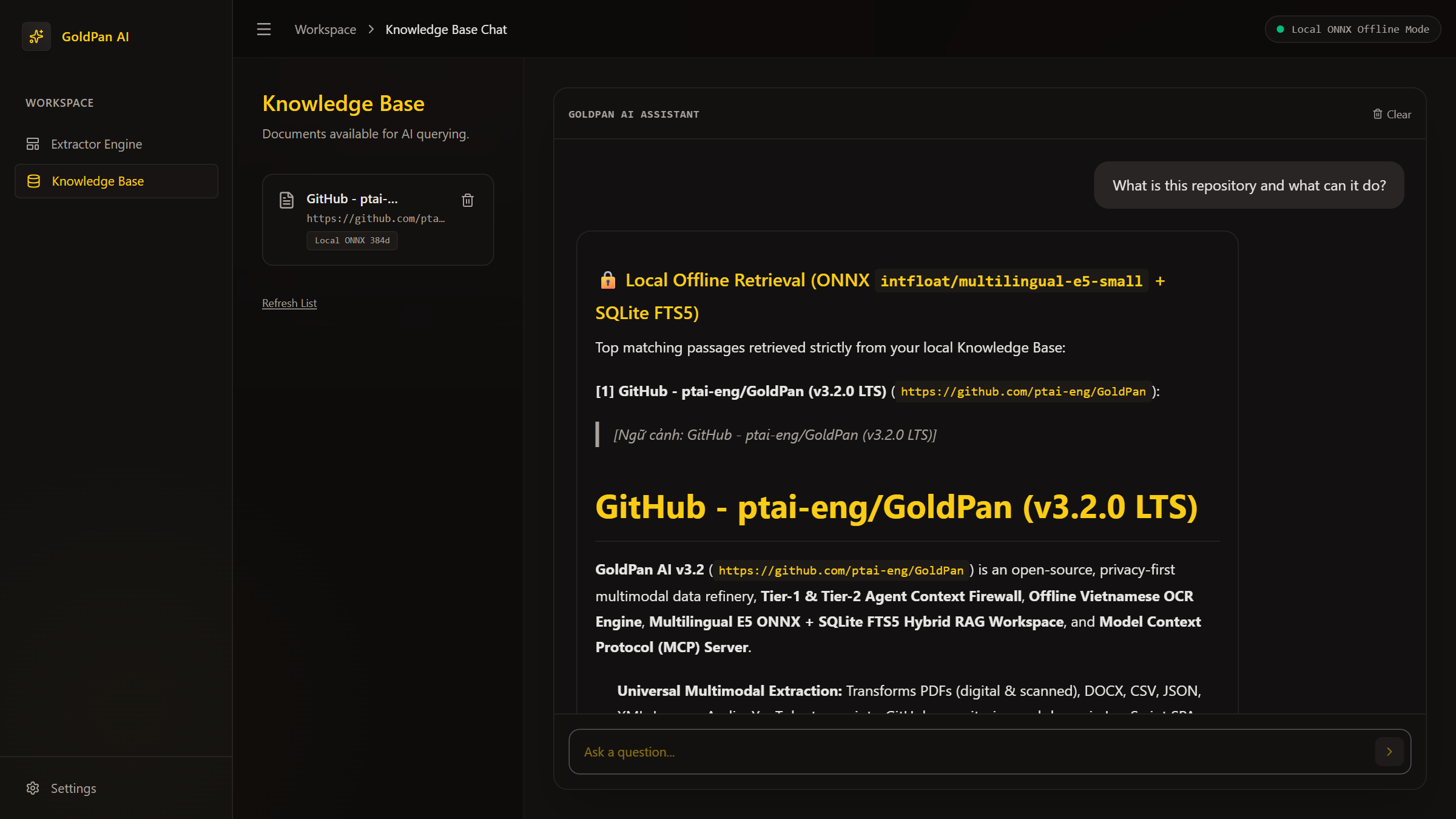

2. Local Hybrid RAG Knowledge Base (assets/workspace-rag-chat.png)

🚀 Quick Start

git clone https://github.com/ptai-eng/GoldPan.git
cd GoldPan

python -m venv venv
.\venv\Scripts\activate
pip install -r requirements.txt
pip install -e ".[dev]"

# Run all 16 verification, security, Offline OCR, Playwright DOM Firewall & benchmark suites
.\venv\Scripts\python.exe run_tests.py
.\venv\Scripts\python.exe backend/tests/test_api.py

To launch the full interactive workspace (FastAPI on :8000 + Next.js 16 on :3000):

# Terminal 1 — FastAPI Backend
.\venv\Scripts\python.exe -m uvicorn backend.main:app --reload --port 8000

# Terminal 2 — Next.js 16 Frontend
cd frontend
npm install
npm run dev

🏁 Release Evolution (v1.0 $\rightarrow$ v3.2.0 LTS) & Future Horizons

• v1.0 — Foundation: Multimodal extraction pipeline (MarkItDown, Trafilatura, LiteParse), heuristic boilerplate filtering, and ChromaDB vector storage.
• v2.0 & v2.1.1 — Hybrid RAG & MCP Server: Added JSON-RPC 2.0 MCP Server (goldpan-mcp), Typer CLI (goldpan), Dual-Mode Embeddings (Local ONNX 384d + Gemini 768d MRL), and Reciprocal Rank Fusion (RRF).
• v3.0.0 — Multilingual E5, SQLite FTS5 & Agent Context Firewall: Upgraded dense retrieval to intfloat/multilingual-e5-small (query: / passage:), persistent SQLite FTS5 (WAL mode + Vietnamese diacritic folding), TCVN3/VNI-Windows decoding, HierarchicalBreadcrumbChunker, Tier-1 AgentContextFirewall, 3-Tier GPU Diagnostics (goldpan doctor), and GoldPan Bench (--ci-gate).
• v3.1.0 — Offline Vietnamese OCR & Tier-2 Silicon Acceleration: Added goldpan.ocr (is_scanned_pdf, 2D Integral-Image Sauvola Adaptive Binarization, RapidOCR/Tesseract/VietOCR fallback chain), goldpan_ocr MCP tool, and Tier-2 CoreMLExecutionProvider (Apple Silicon) + OpenVINOExecutionProvider (Intel) support.
• v3.2.0 (Current Production LTS) — Playwright Tier-2 DOM Firewall & Cross-Platform CI: Added headless Playwright window.getComputedStyle(el) + <style> AST DOM sanitization, atomic FTS5 chunk deletion, Next.js 16 Playwright E2E suite, GitHub contributor templates, and 100% green CI across ubuntu-latest, windows-latest, and macos-14.
• Future Horizons (v4.0 Exploration Ideas): Optional local Whisper ONNX audio transcription (goldpan[asr]), entity-linked GraphRAG over statutory cross-references, and containerized Docker Compose deployment profiles.

📜 License

Released under the MIT License. Crafted by Hoang Kim Phat Tai (ptai-eng).
