Frameflow

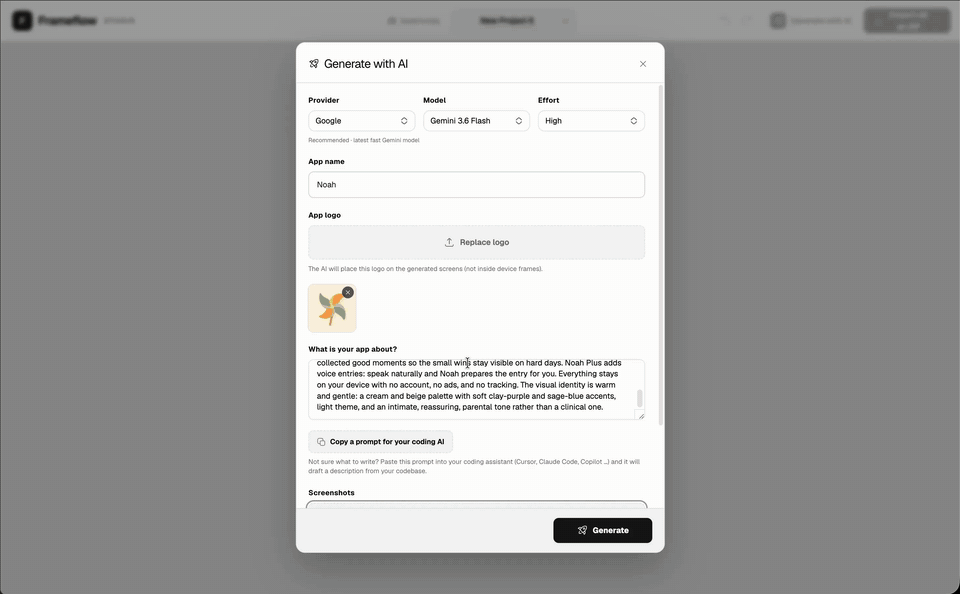

An AI-first, local-first canvas editor for creating complete iOS App Store screenshot sets in the browser. The AI agent builds real, editable designs instead of flattening your ideas into generated images.

Describe your app, upload raw screenshots, and an AI agent designs the full set — not as opaque bitmaps, but by driving the same editor operations you'd use by hand. Every text layer, gradient, shape, and device mockup it places stays a real canvas element: select it, restyle it, move it, or redo it manually. Then export every artboard at exact store resolutions.

Projects live entirely in your browser — no account, no backend. The editor itself works without any API key; bring your own key only for AI generation.

Features

• AI that designs, not renders — the agent works through editor tool calls, so its output is a normal project: every element it creates is selectable and editable, and you can revise a single screen with the magic-cursor action instead of regenerating everything.
• Bring your own model — works with Moonshot, Google, Qwen, OpenAI, and Anthropic; pick provider and model per run.
• Full screenshot sets — design a multi-screen story on portrait artboards, not one image at a time.
• Direct manipulation — typography, gradients, shapes, images, mockups, alignment, stacking, and spacing are all hand-editable, with or without AI.
• Perspective device mockups — drop a raw screenshot into a device frame with correct 3D geometry.
• Local-first — projects and uploads are stored in IndexedDB in your browser.
• Store-ready export — download the whole set as 1290 × 2796 or 1242 × 2688 PNGs in one ZIP.

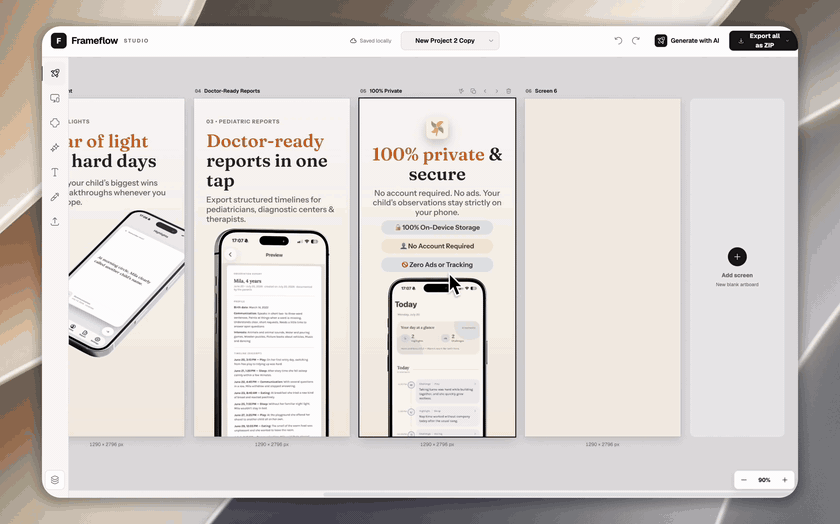

Refine one screen with AI

Select any artboard, describe the change, and let the AI agent revise just that screen. The result uses the same editor operations as the full-set generator and stays fully editable.

Quick start

Requires Bun 1.3+ and a current desktop browser.

bun install
bun run dev

Open http://127.0.0.1:4173 and start editing.

Using the editor

1. Start from a template or an empty screen.
2. Add text, device mockups, shapes, backgrounds, or uploads from the left sidebar.
3. Select an element to edit it; drag the handles to move, resize, or rotate.
4. Drop an uploaded PNG, JPG, or WebP anywhere on the canvas — or into a selected device frame.
5. Optionally use Generate with AI to create a set, or the magic-cursor action on a single screen to revise just that screen.
6. Export all as ZIP and pick a format.

Projects save automatically to the current browser profile. Clearing site data deletes them, so export anything important before wiping browser storage.

Set up AI generation

AI generation needs an API key for at least one provider — everything else in the editor works without one. Keys go in .env.local:

cp .env.example .env.local

VITE_MOONSHOT_API_KEY=
VITE_GOOGLE_GENERATIVE_AI_API_KEY=
VITE_ALIBABA_API_KEY=
VITE_OPENAI_API_KEY=
VITE_ANTHROPIC_API_KEY=
VITE_XAI_API_KEY=

Restart the dev server after changing keys. Pick the provider and model in the generation dialog — models with configurable reasoning also expose their effort levels there. If a selected provider has no key, the dialog names the missing variable and disables generation.

How it works, and what to know:

• Google, Qwen, OpenAI, Anthropic, and xAI are called directly from the browser via the AI SDK. Only Moonshot goes through the local /api/moonshot CORS proxy.
• When you start a run, your description and selected screenshots are sent to that provider. Normal editing, persistence, and export never call any AI service. Provider charges may apply.
• The VITE_* keys are embedded in client code by design — this setup is localhost-only. Never commit .env.local or deploy a keyed build (see Self-hosting).
• Prompts can be written in any language; generated canvas copy and summaries are in English.

For debugging, set FRAMEFLOW_AI_LOGGING=true in .env.local to write one JSON file per run to the git-ignored ai-logs/ directory. Logs record provider, model, timing, visible model output, tool activity, and token usage — never prompt text, screenshots, or API keys.

Commands

Changes to rendering, export, or AI behavior also need manual verification in the browser — the automated suite doesn't cover pixels.

Self-hosting

bun run build produces a static app in dist/. Built without provider keys, it can be hosted anywhere as a static site.

Do not host an AI-enabled build: Vite embeds VITE_* values into the client bundle, so any configured key becomes public. A hosted AI workflow would need its own authenticated backend or a short-lived credential exchange — neither is included here.

Architecture

Frameflow is a single-package React 19 + TypeScript + Vite + Tailwind CSS app.

src/App.tsx              Application composition
src/app/                 Project lifecycle, app shell, and export
src/editor/              History, editor actions, keyboard, pure calculations
src/components/          Canvas, toolbars, sidebar, modal, and shadcn UI
src/ai/                  AI runner, tool groups, prompt, measurement, previews
src/mockups/             Device definitions and perspective geometry
src/persistence.ts       IndexedDB project storage
src/types.ts             Shared editor models
src/styles/              Base styles and shadcn theme layer

docs/ARCHITECTURE.md covers data flow, the export pipeline, AI safety boundaries, and extension points. Adding a device asset? Read the mockup specification first. Working with a coding agent? AGENTS.md has the rules it should follow.

Contributing

The project is early, so there's plenty of room. If something is broken, fix it. If something is missing and you think others would want it too, add it. No need to ask first — a pull request is a fine way to start the conversation.

Bug reports, design improvements, docs fixes, and new device mockups count just as much as code. CONTRIBUTING.md has the setup and the conventions; the good first issue label is a good place to look if you'd like something already scoped. By participating you agree to the Code of Conduct.

• Questions and help: SUPPORT.md
• Security issues (privately, please): SECURITY.md
• Project roles and decisions: GOVERNANCE.md

License and trademarks

MIT — see LICENSE. Asset-specific terms are in ASSET_LICENSES.md. The "private": true flag in package.json only prevents accidental npm publication; it doesn't restrict the license.

Apple, App Store, and iPhone are trademarks of Apple Inc. Frameflow is an independent project, not affiliated with or endorsed by Apple. You remain responsible for following platform and trademark guidelines when using device mockups.
