Ask your AI things like:

"Who's on a call right now, and how deep is the sales queue?" 📊
"Create a preview campaign for the win-back list, attach the sales skill, and start it." 🛠️
"Stop the OUTBOUND_AGED campaign and add these 3 leads to the callback list." 📞
"Onboard the new agent: create the user, assign the billing skill at level 2." 🧑‍💼
"Is 555-867-5309 on our DNC? Check before anyone dials it." 🚫
"Pull yesterday's Call Log report and summarize abandon rates." 📈
"Build me a complete IVR: option 1 scheduling, option 2 billing, after hours goes to voicemail." 🧩

Under the hood, this server speaks Five9's Configuration (admin) and Statistics (supervisor) SOAP Web Services — the APIs that still run Five9's admin surface — and exposes them as clean JSON tools over MCP streamable HTTP. Hand-rolled envelopes, a ~60-line XML parser, no npm packages. Every tool has been exercised against a live Five9 domain.

✨ Built-in web UI

Deploy it and your Worker serves more than an API:

Page	What you get

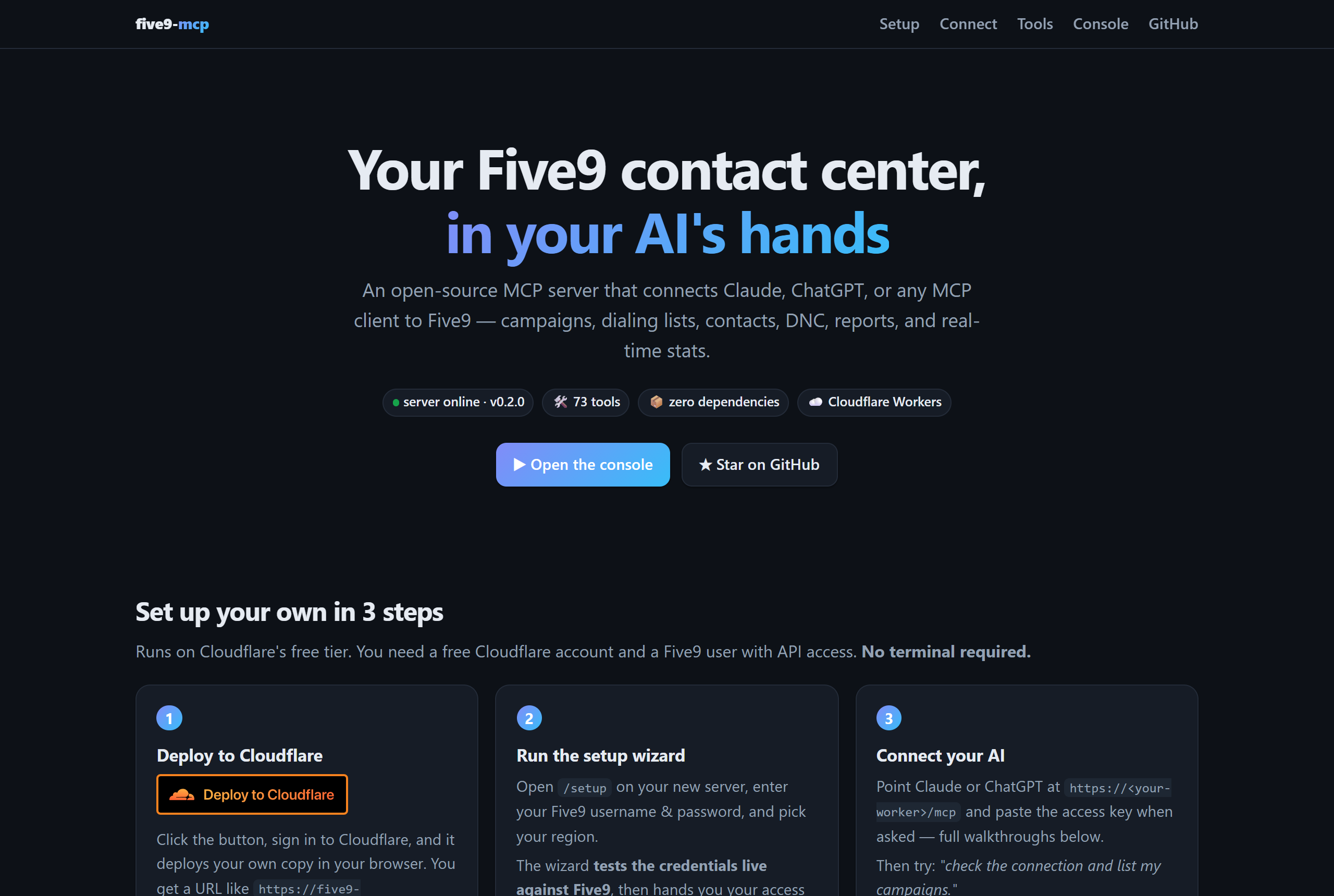

/	A polished landing page: live server status, this setup guide, click-by-click AI connection walkthroughs, and the full tool catalog
/setup	The setup wizard — enter Five9 credentials in your browser, get them verified live, receive your access key. No terminal, no secrets commands

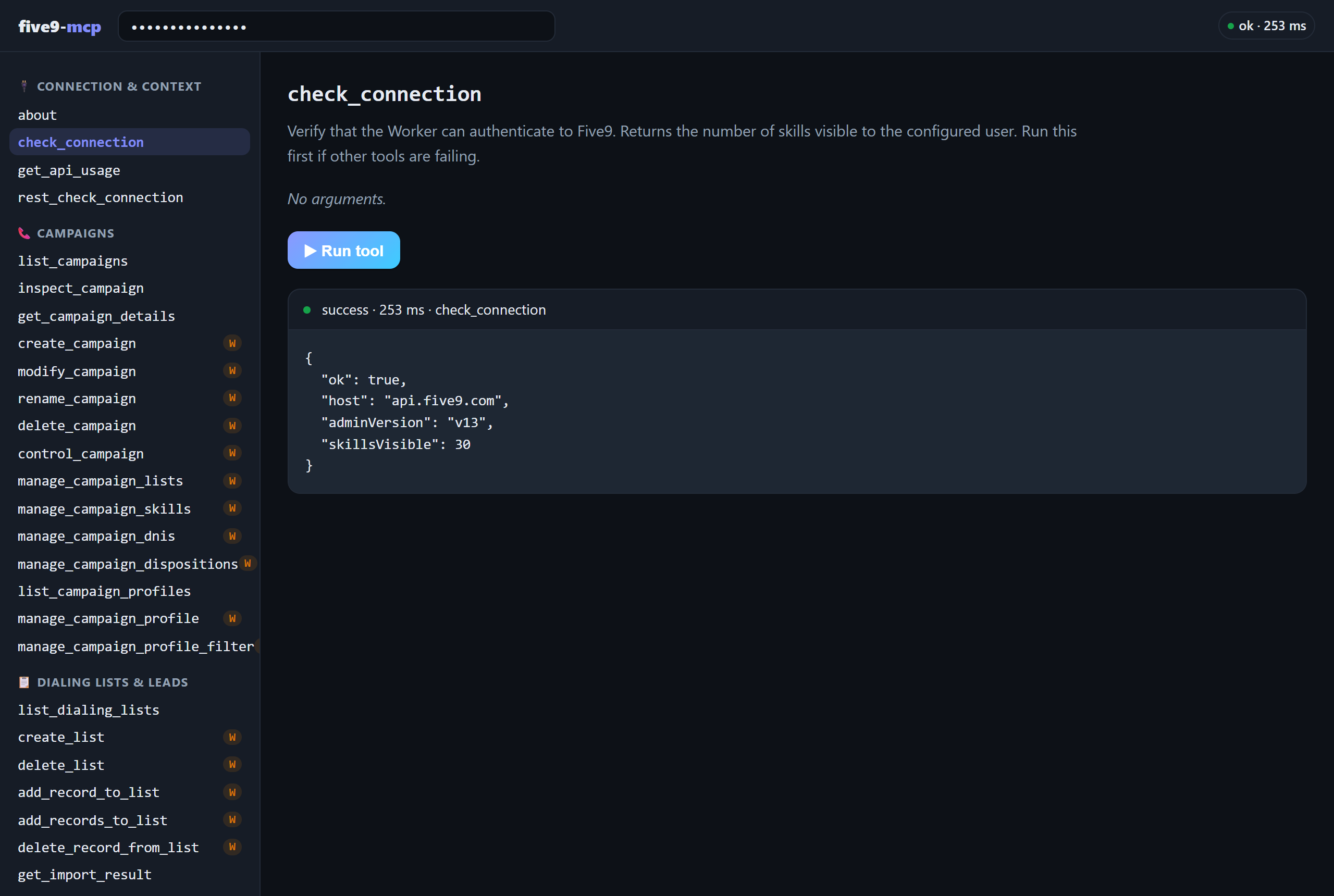

/console	An interactive console — paste your access key, pick any of the 77 grouped tools, fill a form generated from its schema, and run it against your live Five9 domain right from the browser
/mcp	The MCP endpoint itself (streamable HTTP, stateless)
/health	JSON healthcheck

The console is the fastest way to sanity-check credentials, explore what each tool returns, or debug a campaign — no AI required.

🚀 Quick start — no terminal needed

You need a free Cloudflare account and a Five9 user with API access — create a dedicated Five9 API user scoped to what you want an AI to do, don't reuse a personal admin login.

1 — Deploy to Cloudflare (one click, in your browser)

Sign in to Cloudflare and click through — it creates your own copy of this Worker (plus the KV namespace it needs) and gives you a URL like https://five9-mcp.you.workers.dev.

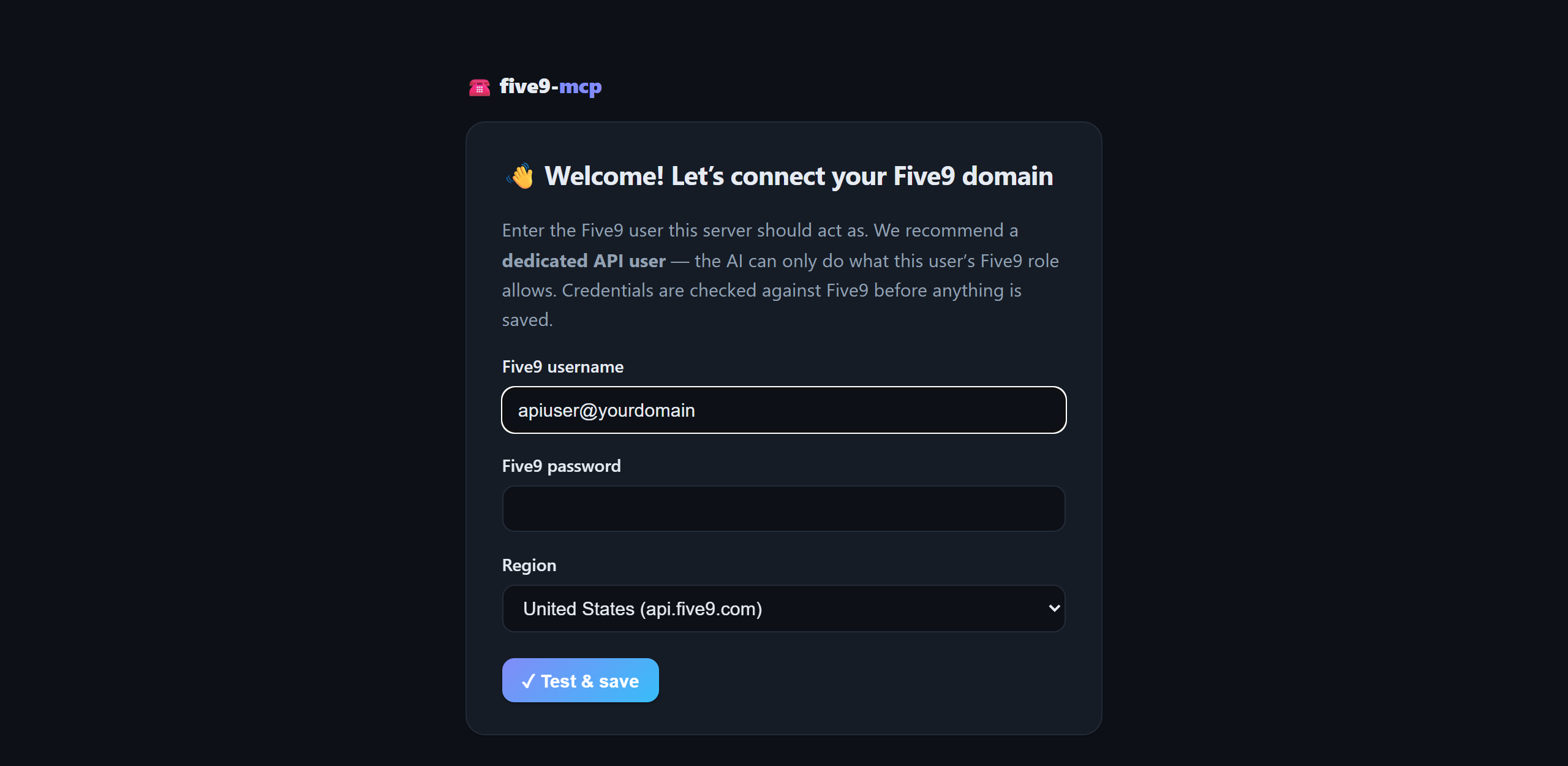

2 — Run the setup wizard (in your browser)

Open /setup on your new server. Enter your Five9 username, password, and region — the wizard verifies them live against Five9 before saving, then hands you your access key (shown once — store it in a password manager).

3 — Connect your AI (walkthroughs below), then ask it to "check the connection and list my campaigns." 🎉

⌨️ Prefer the CLI?

git clone https://github.com/ryanshatz/five9-mcp
cd five9-mcp
npx wrangler deploy   # provisions the CONFIG KV namespace on first deploy

Then either use the /setup wizard, or skip it and manage credentials as Wrangler secrets (secrets override the wizard):

npx wrangler secret put FIVE9_USERNAME   # e.g. apiuser@yourdomain
npx wrangler secret put FIVE9_PASSWORD
npx wrangler secret put MCP_AUTH_TOKEN   # a long random string — this is the key to your server

🌍 Non-US domain or different API version?

Defaults live in wrangler.toml and work for US domains:

Var	Default	Notes
FIVE9_API_HOST	api.five9.com	EU: api.eu.five9.com · Canada: api.ca.five9.com
FIVE9_ADMIN_VERSION	v13	Config Web Services WSDL version
FIVE9_SUPERVISOR_VERSION	v13	Statistics Web Services WSDL version

🔌 Connect your AI

Connect Claude (web & desktop)

Custom connectors are available on Free (one connector), Pro, Max, Team, and Enterprise plans.

1. In claude.ai or the Claude desktop app, open Settings → Connectors.
2. Click Add custom connector.
3. Name it Five9 and paste your server URL including the /mcp path:
   https://<your-worker>.workers.dev/mcp
4. Click Add, then Connect. Claude auto-discovers this server's built-in OAuth and opens its authorization page.
5. On the 🔐 five9-mcp screen, paste your MCP_AUTH_TOKEN as the access key and click Authorize.
6. In any chat, open the search & tools (＋) menu and make sure the Five9 connector is toggled on.

Team/Enterprise: an Owner first adds the connector under Organization settings → Connectors; members then click Connect in their own settings to authorize.

Connect ChatGPT

Custom MCP connectors require Developer mode (Plus/Pro; on Business/Enterprise an admin must allow custom connectors).

1. In ChatGPT on the web, open Settings → Apps & Connectors (sometimes labeled just Connectors).
2. Under Advanced settings, toggle Developer mode on.
3. Back on the Connectors page, click Create.
4. Name it Five9, set the MCP server URL to https://<your-worker>.workers.dev/mcp, and choose OAuth authentication.
5. Acknowledge the trust prompt and save. ChatGPT opens this server's authorization page — paste your MCP_AUTH_TOKEN and click Authorize.
6. In a new chat, open the ＋ / tools menu and enable the Five9 connector (Developer mode connectors are enabled per-conversation). ChatGPT asks you to confirm each tool call — sensible for anything that can start a dialer. 😄

Connect Claude Code

claude mcp add --transport http five9 https://<your-worker>.workers.dev/mcp \
  --header "Authorization: Bearer <your MCP_AUTH_TOKEN>"

The raw access key works directly as a bearer token — no OAuth dance. Run /mcp inside Claude Code to verify.

Any other MCP client

Anything that speaks MCP streamable HTTP works — complete the OAuth flow or send the access key as a bearer token:

curl -X POST https://<your-worker>.workers.dev/mcp \
  -H "Authorization: Bearer <MCP_AUTH_TOKEN>" \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{"name":"check_connection","arguments":{}}}'

🔐 How the built-in OAuth works

src/oauth.js implements a minimal OAuth 2.1 authorization server (metadata discovery, dynamic client registration, PKCE S256, refresh tokens) designed for a single-operator deployment:

• The "login" on the consent screen is the server's access key (MCP_AUTH_TOKEN).
• Everything is stateless — client IDs, auth codes, and tokens are HMAC-SHA256-signed blobs keyed by MCP_AUTH_TOKEN. No KV, no Durable Objects.
• Both auth paths work simultaneously: OAuth-minted tokens and the raw key as a bearer credential.
• Revoke everything at once by rotating the secret: npx wrangler secret put MCP_AUTH_TOKEN.

🧰 The toolbox

77 tools. 🟢 = read (always safe) · ✏️ = write (changes your domain — the server tells AIs to confirm with you first)

69 SOAP tools (username/password) + 8 OAuth New Platform REST tools (Consumer Key/Secret — see OAuth New Platform APIs).

🧩 IVR builder — whole call flows from plain English

The headline trick: describe a call flow in a paragraph and the AI designs it, shows you a Mermaid diagram in chat, and deploys a working IVR script. The model never freestyles Five9's IVR XML: it fills a constrained JSON flow spec (play / menu / business-hours / skill transfer / voicemail / hangup), a graph validator checks every branch and reference, and deterministic code emits designer-shaped XML (module wiring, prompt encoding, and field order all derived from real exported scripts).

	Tool	What it does
🟢	validate_ivr_flow	Graph-check a flow spec + verify referenced skills/prompts exist on the domain
🟢	render_ivr_flow	Render a flow spec or an existing IVR script as a Mermaid flowchart
✏️	build_ivr_script	Compose the full script XML and create it on the domain (dry_run to inspect first)
✏️	generate_prompt_audio	Voice a prompt with a modern AI voice and upload it as a Five9-ready G.711 u-law WAV. No API key needed: powered by Workers AI (Deepgram Aura, ~40 voices) built into your Worker

Recommended flow: validate → render (show the human!) → generate prompts → build → attach to an inbound campaign. generate_prompt_audio runs on Cloudflare Workers AI out of the box: no external TTS account, no API key, fractions of a cent per prompt billed to the Cloudflare account you already deployed to. ElevenLabs/OpenAI work too if you set their key secrets, and {tts} prompts (Five9's built-in robot voice) need nothing at all.

🔌 Connection & context

	Tool	What it does
🟢	about	Operator context for the AI — who runs this server and the ground rules
🟢	check_connection	Verify Five9 credentials work; returns visible skill count
🟢	get_api_usage	Current Five9 API usage counters vs rate limits

📞 Campaigns

	Tool	What it does
🟢	list_campaigns	List campaigns (name, type, state, mode)
🟢	inspect_campaign	State + attached lists + DNIS in one call
🟢	get_campaign_details	FULL campaign config (dialing mode, ratios, recording, wrap-up…)
✏️	create_campaign	Create outbound or inbound campaigns, BASIC or ADVANCED
✏️	modify_campaign	Edit any campaign setting — read-modify-write, pass only the changes
✏️	rename_campaign	Rename a campaign
✏️	delete_campaign	Delete a campaign
✏️	control_campaign	start / stop / force_stop / reset / reset_list_positions
✏️	manage_campaign_lists	Attach/detach dialing lists with priority
✏️	manage_campaign_skills	Add/remove routing skills on a campaign
✏️	manage_campaign_dnis	Attach/detach inbound numbers
✏️	manage_campaign_dispositions	Add/remove agent dispositions on a campaign
🟢	list_campaign_profiles	List campaign profiles (ANI, attempts, timeouts)
✏️	manage_campaign_profile	Create / modify / delete campaign profiles
✏️	manage_campaign_profile_filter	Read / edit a profile's CRM record-selection criteria and dialing order

📋 Dialing lists & leads

	Tool	What it does
🟢	list_dialing_lists	List dialing lists + record counts
✏️	create_list / delete_list	Create or delete a dialing list
✏️	add_record_to_list	Push a lead into a list (async import)
✏️	add_records_to_list	Bulk-add many leads in one async import (configurable CRM/list modes)
✏️	delete_record_from_list	Remove matching records from a list
🟢	get_import_result	Outcome of an async list/CRM import

👤 CRM contacts

	Tool	What it does
🟢	search_contacts	Look up contacts by exact field values
✏️	update_contact	Update a contact (sole-match safety by default)
✏️	bulk_update_contacts	Update many CRM contacts in one async import (poll with type "crm")
✏️	delete_contact	Delete a contact (only when exactly one matches)
🟢	list_contact_fields	The domain's contact field schema
✏️	manage_contact_field	Create / modify / delete custom CRM fields

🚫 Compliance

	Tool	What it does
✏️	manage_dnc	Check / add / remove numbers on the domain DNC list
🟢	get_dialing_rules	Domain dialing rules (time/state restrictions)

🧑‍💼 Users & skills

	Tool	What it does
🟢	list_users	List users with general info
🟢	get_user_details	One user's full record: roles, skills, groups
✏️	create_user	Create a user with roles, skills, and groups
✏️	modify_user	Edit a user's info — pass only the changes
✏️	delete_user	Delete a user
🟢	list_user_profiles	Role/permission templates
🟢	list_skills / get_skill_details	Skills, with or without assigned users
✏️	manage_skill	Create / modify / delete skills
✏️	manage_user_skills	Assign skills to users, set levels
✏️	set_user_roles	Grant / revoke roles (agent, admin, supervisor, reporting, crmManager) with permission tabs
🟢	list_agent_groups	Agent groups + members
✏️	manage_agent_group	Create / delete groups, add/remove agents
✏️	manage_reason_code	Not Ready / Logout reason codes

🏢 Domain configuration

	Tool	What it does
🟢	list_dispositions	Call dispositions and their settings
✏️	manage_disposition	Create / modify / rename / delete dispositions (incl. redial timers)
🟢	list_ivr_scripts / get_ivr_script	IVR scripts — metadata, or one script's full XML
✏️	manage_ivr_script	Create / modify / delete IVR scripts (push a full xmlDefinition)
🟢	list_prompts	Voice prompts on the domain
✏️	manage_tts_prompt	Create / modify / delete text-to-speech prompts
✏️	manage_wav_prompt	Create / modify / delete pre-recorded WAV prompts (base64; G.711 µ-law 8kHz mono)
🟢	list_dnis	Provisioned inbound numbers (optionally unassigned only)
🟢	list_call_variables	Call variables and variable groups
✏️	manage_call_variable	Create / delete custom call variables
🟢	list_web_connectors	Web connector integrations
✏️	manage_web_connector	Create / delete web connectors (URL pops agents trigger)
✏️	manage_speed_dial	List / create / delete speed-dial codes
🟢	get_vcc_configuration	Domain-level VCC settings

📈 Reporting & real-time

	Tool	What it does
🟢	run_report	Kick off any report by folder + name, optional time range
🟢	get_report_result	Poll for the report's CSV output
🟢	get_realtime_stats	AgentState, ACDStatus, CampaignState, campaign statistics (incl. dialer-manager & autodial views)

🔐 OAuth New Platform APIs (REST) — need a separate credential, see below

These tools speak Five9's modern OAuth 2.0 "New Platform" REST APIs, not the SOAP APIs the tools above use. They require an API Access Control credential (Consumer Key/Secret), not the SOAP username/password — see OAuth New Platform APIs.

	Tool	What it does
🟢	rest_check_connection	Verify the OAuth credential — acquires a bearer token (no domain data)
🟢✏️	rest_call	Generic authenticated call to any New Platform endpoint (method + path + body), with rate-limit/backoff and ETag support
🟢✏️	manage_circle	Circles — list / get / create / delete (no SOAP equivalent)
🟢	list_np_prompts	Voice prompts via the New Platform prompts API (paginated)
🟢	list_interaction_dispositions	Dispositions via the interactions API (richer than the SOAP list; read-only)
🟢	get_domain_info	Domain metadata (id, name, tenant, service endpoints)
🟢	list_data_tables	Data Tables (structured lookup tables; no SOAP equivalent) — uses a separate data-tables credential
🟢	get_data_table_rows	Rows of a Data Table by id (paginated)

🔐 OAuth New Platform APIs

Alongside the SOAP tools, the server can call Five9's newer OAuth 2.0 New Platform REST APIs (e.g. Circles, interactions, prompts, domain metadata). These use a different credential from the SOAP username/password:

• An API Access Control Consumer Key and Consumer Secret, generated in the Five9 Admin Console → API Access Control (a Controlled-Availability feature). Generating one needs the security → applications → Create applications permission, and the account must be migrated to Five9 Identity Service (users with legacy API/Agent/Supervisor roles are excluded from migration until those roles are removed).
• Configure them as env/secret vars (all separate from the SOAP creds):

FIVE9_CONSUMER_KEY=...           # "All APIs access" family credential (default)
FIVE9_CONSUMER_SECRET=...
FIVE9_DOMAIN_ID=131109           # your Admin Console domain id
FIVE9_REST_REGION=US             # US | US-ALPHA | CA | EU | IN | UK
# or pin the base URL directly: FIVE9_REST_BASE_URL=https://api.prod.us.five9.net

# Optional second credential for the "Data Tables access" family (its own key):
FIVE9_DT_CONSUMER_KEY=...
FIVE9_DT_CONSUMER_SECRET=...

Then run rest_check_connection to confirm the token flow. What each credential can reach is governed by its API family + scopes — all-apis-access does not literally grant every service, and write access is per-service.

Multiple credentials / families. Each API Access Control credential belongs to one family (mapped to an Apigee API Product), and that family decides which services the key may call. The server supports named credentials: default (from FIVE9_CONSUMER_KEY/SECRET) plus data-tables (from FIVE9_DT_CONSUMER_KEY/SECRET). The Data Tables tools use the data-tables credential automatically; rest_call and rest_check_connection accept a credential argument to pick one.

Note: Five9's getting-started doc lists the token endpoint as /v1/auth/token, but the live endpoint is /oauth2/v1/token (what this client uses).

🎨 Customizing the operator context

src/about.js holds the text served to connected AIs via the MCP instructions field and the about tool: who operates the server, why it exists, and how the AI should behave (e.g. "confirm before write actions"). Edit it to describe your own deployment — it ships with the original operator's context as an example.

🏗️ Architecture

No build step, no dependencies — plain JS modules in src/:

src/
├── index.js   # router, CORS, MCP JSON-RPC handler, /setup endpoint
├── five9.js   # SOAP client: envelope builder, ~60-line XML parser, one method per Five9 op
├── tools.js   # MCP tool definitions (JSON Schema) + dispatch
├── oauth.js   # stateless OAuth 2.1 server (single-operator model)
├── config.js  # config resolution: Wrangler secrets > KV (setup wizard)
├── ui.js      # landing page, setup wizard, interactive console
└── about.js   # operator context — edit this for your deployment

Requests are stateless: every MCP call opens a fresh Five9 SOAP exchange with HTTP Basic auth. The Statistics API additionally requires a setSessionParameters call, which get_realtime_stats performs per invocation.

⚔️ Notes on Five9's SOAP API (learned the hard way)

• Five9's endpoints are generated by JAXB and validate child-element order against the WSDL sequence. If you extend this server, pull the WSDL (https://api.five9.com/wsadmin/v13/AdminWebService?wsdl, HTTP Basic auth) and match the <xs:sequence> order exactly — including base types like basicImportSettings, whose elements come before the extension's.
• addToListCsv requires cleanListBeforeUpdate, crmAddMode, crmUpdateMode, and listAddMode even though the WSDL marks most of them minOccurs="0".
• List/CRM imports are asynchronous: the call returns an import identifier immediately; poll get_import_result for the outcome.
• Contact record values come back wrapped (<values><data>…</data></values>); several responses return a single object where you'd expect a one-element array. toArray() in five9.js normalizes this.
• Report time criteria order is <end> before <start> (JAXB alphabetical ordering).
• IVR xmlDefinition is the visual designer's persisted format: modules are wired by GUID (ascendants / singleDescendant / branches), inline TTS text is stored as gzip+base64 speakElement documents, and business-hours checks compare the __DAY__ (SUN=1..SAT=7) and __TIME__ (minutes since midnight) system variables. ivr.js encapsulates all of it.
• getPrompts returns no prompt ids (name + type only). File-prompt references inside IVR XML are accepted with id 0 + the prompt name and normalized server-side; the pushed script round-trips with the server-stamped domainId added.

🛡️ Security

• Five9 credentials live in your Cloudflare account only — as Worker secrets, or (wizard path) in a Workers KV namespace, encrypted at rest. No tool ever returns them, and Wrangler secrets always override KV.
• The setup wizard is open only on a fresh, unconfigured server — run it right after deploying. Once configured, any change requires the current access key, and env-managed servers refuse wizard changes entirely.
• Always complete setup (or set MCP_AUTH_TOKEN). An unconfigured server with no access key runs open — anyone who finds the URL can drive your contact center.
• Write tools (✏️ above) change your domain. Scope the Five9 API user's role to what you actually want an AI to do — Five9 permissions are the real security boundary.
• manage_dnc remove and delete_list deserve extra caution; the about instructions tell AIs to confirm before using them.
• The console stores your access key in your browser's localStorage only, and calls go same-origin to your own Worker.

💻 Development

npm run dev      # wrangler dev on http://localhost:8787
npm run deploy   # wrangler deploy

Put local secrets in .dev.vars (gitignored):

FIVE9_USERNAME=apiuser@yourdomain
FIVE9_PASSWORD=...
MCP_AUTH_TOKEN=dev-local-token

# Optional — external AI voice providers for generate_prompt_audio.
# The default (Workers AI / Deepgram Aura) needs no key at all.
ELEVENLABS_API_KEY=...
OPENAI_API_KEY=...

# Optional — OAuth New Platform REST tools (separate credential; see below)
FIVE9_CONSUMER_KEY=...
FIVE9_CONSUMER_SECRET=...
FIVE9_DOMAIN_ID=131109
FIVE9_REST_REGION=US
FIVE9_DT_CONSUMER_KEY=...        # optional: "Data Tables access" family
FIVE9_DT_CONSUMER_SECRET=...

Then open http://localhost:8787/console, paste dev-local-token, and run tools against your domain — or smoke-test from the CLI with the curl snippet above.

🤝 Contributing

PRs welcome! The Five9 Config API has ~180 operations and this server wraps 69 of the most useful — the pattern in five9.js + tools.js is easy to extend (read the SOAP notes first and save yourself a fight with the WSDL). Please keep the zero-dependency constraint.

📄 License

MIT · built by Ryan Shatzkamer
