eda-agent

MCP server that lets an AI (or any MCP-compatible client) interact with a live Altium Designer session. It exposes 200+ tools covering schematic, PCB, library, project, and design-agent operations over a persistent DelphiScript bridge. The AI reads the design you currently have open, asks questions about it, and can modify it in place while you watch.

⚠️ Experimental. Not all tools are extensively tested. Some can crash the Altium DelphiScript engine. See Known limitations before using on any design you haven't backed up.

Demo

Claude Code reviewing a buck converter through eda-agent. The feedback resistor divider on this schematic is intentionally wrong; Claude catches it among other recommendations.

Dashboard

Two dashboards ship with eda-agent:

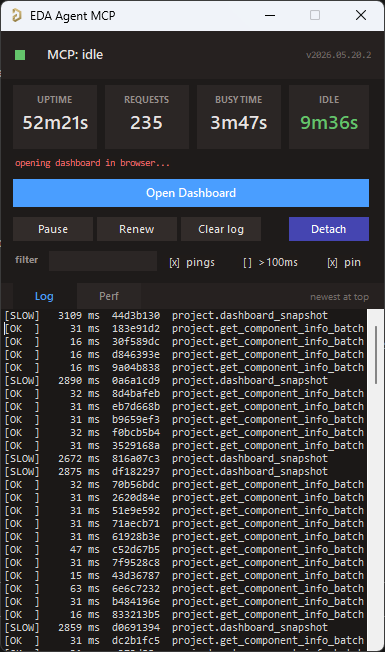

• In-Altium status window — a floating Altium-side window showing live status, request count, cumulative Altium-side time, auto-shutdown countdown, and a per-command log with durations. Hide pings filters the 30 s keep-alive traffic; Only >100ms isolates slow calls. The Detach button saves all dirty docs and exits the polling loop cleanly.
• Web dashboard — a local browser dashboard at http://127.0.0.1:8766, focused on design review. A Review tab surfaces datasheet / MPN / manufacturer / footprint coverage gauges and an actionable issue queue (missing datasheet, missing MPN, orphan nets, ...); Project, Components, Nets, Libraries and Plan tabs give live structured views. Click any component or net to drill into a detail drawer; one click cross-probes it into Altium. Light / dark theme, server-sent-events live feed. It is auto-started by the MCP server — the Open Dashboard button on the in-Altium status window launches the browser.

How it works

• Altium Designer stays open and in full control of your design
• A DelphiScript polling loop runs inside Altium's scripting engine
• eda-agent (Python, launched by your MCP client) sends commands via file-based IPC
• Altium executes, writes a response, and returns to polling
• You see the changes happen live in Altium

This is not a batch tool that opens a project, runs a script, and exits. It's a live connection for as long as you want it (conversational design review, guided refactoring, ad-hoc BOM queries, "what nets does this resistor connect to?"), all on the project you currently have open.

Features

• 200+ tools across application, project, library, schematic/general, PCB, and design-agent categories
• Generic primitives (query_objects, modify_objects, create_object, delete_objects, run_process) that work on almost any schematic or PCB object type via late-binding, avoiding per-type handler proliferation
• Bulk batch primitives: batch_modify, batch_create, batch_delete, pcb_place_tracks, pcb_move_components, place_wires, place_net_labels, place_power_ports, place_sch_components_from_library, set_sch_components_parameters, get_sch_doc_pins, lib_add_pins, get_connectivity_many, sch_attach_spice_primitives. Collapse N LLM turns + N IPC round-trips into one. Typical wall-time savings: 10 to 100x on multi-item edits
• Design review snapshot: design_review_snapshot bundles 8 to 12 review reads (project info, components, nets, rules, diff, messages, stats, unrouted, BOM) into a single call. One LLM turn instead of a dozen
• Design-lint sweep: design_lint_report runs 31 audit checks in one IPC pass and returns a structured violation list — schematic-side (component-parameter visibility per class, power-port orientation, floating ports, multi-output / no-driver nets, duplicate designators, off-grid components) and PCB-side (DNP variant components, tented-via ratio, near-miss track endpoints, signal vias without nearby return via, via antennas, removed pad shapes, components outside outline, pads too close to board edge, invalid polygon regions, optional DRC). Each check is also exposed as a standalone audit_* MCP tool; the dashboard's Status → Health subtab has a one-click Lint panel that calls /api/lint and groups results by Schematic / PCB
• Datasheet-first discipline: every component-surfacing response (pcb_get_components, get_bom, get_component_info, find_component, lib_search, design_review_snapshot, sch_get_simulation_readiness) carries a _datasheet_guidance block with per-part vendor search queries. attach_to_altium / ping_altium carry a _system_reminder so every MCP client that connects sees the rule at session start. LLM-fabricated datasheet values are forbidden; WebFetch/WebSearch are called out by name
• Sch <-> PCB netlist crossref: crossref_net(net_name) compares the schematic pin list against the PCB pad list for the same net. Catches ECO drift, stale post-fabrication routing, phantom nets from port/sheet-entry rename conflicts. in_sync flag + sch_only / pcb_only diff
• SPICE simulation workflow: sch_get_simulation_readiness audits every component and partitions into ready / needs-primitive / needs-file. sch_attach_spice_primitive(s) sets SpicePrefix + Value on passives. sch_attach_spice_model links a vendor .mdl / .ckt. sim_run dispatches the simulator. Built-in guardrail: never fabricate a SPICE model file, fetch the vendor one
• Focus-independent PCB access: every PCB handler falls back to GetPCBBoardByPath when GetCurrentPCBBoard returns nil (user has a sch tab focused). No more misleading "No PCB document is active" when the PCB is right there
• Fast and compile-cached: persistent polling loop; ~10 ms per call in active mode. SmartCompile caches DM_Compile with a 2 s TTL so a multi-read review pays for one compile instead of a dozen. Explicit force_recompile + get_compile_freshness probes for cases that need a guaranteed-fresh netlist (e.g. after user edits)
• Persistent polling loop: one script start, then ~10 ms per tool call in active mode
• Annotation runs silently: annotate designates components without popping the annotate dialog
• Deferred save for speed: mutations mark documents as modified in memory; disk writes happen on explicit save_all (or automatically on detach_from_altium). Before this, every edit triggered a full project save, which dominated latency
• Two dashboards: an in-Altium floating status window (status, request count, per-command performance, command log, Detach button) and a browser-based web dashboard (127.0.0.1:8766) for design review — datasheet / MPN / footprint coverage gauges, an actionable issue queue, component / net drill-in, one-click cross-probe into Altium, light / dark theme. The whole project view loads in one bundled IPC round-trip (project.dashboard_snapshot); the web dashboard auto-starts with the MCP server
• DelphiScript trap linter: scripts/altium/lint.py (wired into build.py) scans the Pascal sources for known parser hazards — Cardinal() casts, malformed hex literals, empty .Add('') arguments, braces inside comments, fixed-size arrays as function locals, reserved-word identifiers — and fails the build before a bad deploy
• Activity logs: every command is appended to workspace/activity.log (CSV with timestamps, durations, command name, response size). The bridge also writes bridge_trace.log for IPC-level diagnostics
• Bulk-tool nudge: when a singular tool is hit 2 to 3 times in 10 s, the response carries a _hint_bulk field pointing at the batch variant. Clients that missed the bulk tool in the docstring learn about it at runtime
• Design agent surface: six MCP tools (design_get_discipline, design_snapshot_inventory, design_validate_plan, design_execute_plan, design_audit_schematic, design_validate) that let an MCP-client LLM produce a structured DesignPlan JSON, instantiate it on a fresh sheet (parts + wires + labels + rail glyphs), audit the result for layout problems, and validate ERC + connectivity. Datasheet-first, NDA-isolated by construction
• Motif composer + canonical priors + Sugiyama placement: three-layer placement strategy. (1) Sugiyama / force-directed gives every part a baseline position. (2) The motif composer detects canonical sub-circuits in the netlist (bypass cap, voltage divider, fb_divider, lc_output, ...) via VF2 subgraph isomorphism and splats each match into its frozen canonical layout — same data shape, IC-anchored or self-contained. (3) Canonical priors apply per-role-pair nudges (e.g. vcc_decoup sits 400 mils from its IC). A final overlap-shove pass repairs any collisions; sheet-edge clamping keeps every glyph and port within the page boundary. Role-compatibility filter drops false-positive motif matches (a structural rc-lowpass that's actually a decoupling cap stays out of the filter motif). Topology-agnostic — works for a buck, an LDO, an MCU, an audio amp, anything with a clean net graph
• Within-block schematic wiring: stub wires from each pin endpoint outward to the label / port (no more "floating net labels" ERC warnings), Manhattan routing between same-net pins for signal nets, rail consolidation clusters power / ground pins so one VCC bar or GND triangle serves many pins instead of stacking N glyphs. Obstacle-aware: every L-path picks the orientation that crosses fewest component bodies, using real BoundingRectangle data queried from Altium
• Atomic-parts contract: every existing-status Part must carry mpn, footprint, datasheet_url; the inventory snapshot exposes those fields per component; design_validate emits atomic_parts warnings when the contract is missed. Aligns with the KiCad Atomic / Digi-Key Library / atopile / JITX convention
• Schematic audit: design_audit_schematic returns structured {overlaps, wire_crossings, stacked_ports} for the active schematic — pairs of components whose bboxes intersect, wire segments crossing a non-endpoint component body (real Pascal-side Vertex.* + BoundingRectangle.* accessors), and clusters of 3+ rail glyphs of the same net. Each violation carries enough geometry for the planner to compute a corrective move. Programmatic feedback loop without needing a visual snapshot
• Health and doctor preflight: eda-agent health (offline checks: workspace dir, pointer file, bundled scripts) and eda-agent doctor (full preflight talking to Altium: process running, script polling responsive, version match, save_all canary, optional --library lib-path checks). --json for machine-readable output
• pip-installable: no admin, no installer, no touching Altium's config

Requirements

• Windows (Altium Designer is Windows-only)
• Python 3.11+
• Altium Designer (recent versions, AD20+ preferred)

Installation

git clone https://github.com/salitronic/eda-agent
cd eda-agent
pip install -e .

Register the server with your MCP client. The binary is eda-agent and runs on stdio; consult your client's docs for how to add a local stdio-based server.

Claude Code

claude mcp add altium eda-agent

Adds eda-agent as an MCP server named altium to your Claude Code project config. Use -s user to register it at the user level (available across every project):

claude mcp add -s user altium eda-agent

If eda-agent isn't on your PATH, give the full path instead (pip reports it after install, typically %USERPROFILE%\AppData\Roaming\Python\Python312\Scripts\eda-agent.exe on Windows). To verify the connection: /mcp in a Claude Code session should list altium as connected.

Other MCP clients

The server speaks standard MCP over stdio; any client that accepts a local stdio command will work. Invoke eda-agent (or eda-agent serve) as the subprocess.

Altium-side scripts

Drop the Altium script project somewhere you can find it:

eda-agent install-scripts

Default destination: %USERPROFILE%\EDA Agent\scripts\. Use --dest PATH to put it elsewhere.

Register the script as a Global Project in Altium (once):

1. DXP → Preferences → Scripting System → Global Projects → Install from file
2. Select the Altium_API.PrjScr you just installed

From then on, every Altium startup compiles the script project and the polling loop is one click away:

1. File → Run Script...
2. Expand Altium_API → Dispatcher.pas, select StartMCPServer, click Run

The polling loop starts and your MCP client can drive Altium.

If you'd rather not register the script globally, you can also open Altium_API.PrjScr via File > Open... and launch StartMCPServer from the Run Script... dialog the same way; the dialog picks up any loaded script project.

Example use cases

Full-project design review

"Do a design review of the PoE front-end. Pull the snapshot, fetch the TPS2372 and TL072 datasheets, and flag anything that doesn't match."

One design_review_snapshot call gives the AI project info, design stats, components, nets, rules, diff, messages, board stats, and BOM, plus a datasheet-fetch checklist. The AI then grounds every recommendation in the vendor datasheets it actually pulled. 8 to 12 separate queries collapse into one tool call.

Schematic review

The AI reads your schematic live. Ask it anything a reviewer would:

"List every component connected to the 3V3 rail and flag anything whose datasheet limit is below that."

"Find all net labels that appear only once across the whole project. Those are probably typos."

"What's driving the /RESET net? Walk the connectivity and tell me where it resets and how."

"Do any two components share a designator prefix with gaps in numbering (e.g. R1, R2, R4)? Re-annotate or tell me what's missing."

"Compare the focused schematic to the version from 3 weeks ago. What parameter values changed?"

Under the hood, the AI calls tools like query_objects(object_type="eSchComponent", scope="project"), get_connectivity_many(designators=[...]), get_nets(...), modify_objects(...), and so on. You watch Altium repaint as it works.

Sch ↔ PCB drift detection

"Run crossref_net on POE_PG. The PCB seems to have R7 on this net but I'm not sure the schematic still does."

The response shows sch pins, PCB pads, matched count, and the diff in each direction. A non-empty pcb_only list means the board was fabricated from an earlier schematic revision and a later edit broke the post-ECO merge; catch this before the next ECO push rips routed connections. in_sync: false plus the exact diff tells you which port or sheet-entry rename to undo.

SPICE simulation setup

"Set this schematic up for an AC sweep. Attach SPICE primitives to every passive, fetch vendor SPICE models for the op-amps, and tell me if any part can't be simulated."

sch_get_simulation_readiness partitions the design into ready / needs_primitive / needs_file. The AI batches primitives onto every passive in one sch_attach_spice_primitives call, searches vendor sites for the IC models, attaches them with sch_attach_spice_model, and reports any holdouts. It will not fabricate a SPICE model file; the rule is baked into the tool response.

Library hygiene

"Open Resistors.SchLib and report every component missing a Value, ManufacturerPart1, or Description parameter. Fill in the missing Description from the datasheet URL if present."

"Diff our Caps.SchLib against Caps_vendor.SchLib and tell me what's new or changed."

"Create a new 48-pin symbol for STM32F411 with this pinout table."

The last one uses lib_add_pins: one call places the whole pinout in a single transaction instead of 48 LLM turns.

PCB spot-checks

"Any unrouted nets on the board?"

"What's the total trace length for the USB differential pair, split by layer?"

"Show me all vias on the 12V net and their drill sizes."

"Run DRC and summarize the violations by severity."

"What does the Clearance_HV rule actually enforce: clearance value, scope expressions, priority?"

That last one uses pcb_get_rule_properties, which returns the actual numeric gap / widths / impedance targets, not just rule metadata.

Bulk changes

"Every 0402 resistor with value 10k, set its Tolerance parameter to 1% and Voltage to 50V."

"Rename the net OLD_CS to SPI_CS across every sheet in the project."

"Move C1–C20 into this 200-mil grid layout pattern."

Bulk tools like batch_modify, pcb_move_components, and place_sch_components_from_library finish the whole operation in one IPC round-trip.

Known limitations

This tool is experimental. Please read this section before using on a design you haven't backed up.

Altium DelphiScript engine can crash

Some tool paths trigger DelphiScript compile or runtime errors ("Undeclared identifier…", "Could not convert variant of type (Dispatch) into type (OleStr)", etc.). When that happens, the script project halts mid-execution and the polling loop stops responding. You will see one of:

• An Altium error dialog stating the problem
• Your MCP client timing out waiting for a response

Recovery: in Altium Designer, open the script project tab and press the red Stop button in the Script IDE toolbar (equivalently Run > Stop from the menu, or Ctrl+F3; use Ctrl+Pause/Break if the script is stuck in an infinite loop). This stops the halted debugger. Then re-launch the polling loop via File > Run Script... > StartMCPServer > Run.

This is an ongoing reliability effort. Every identified crash is either fixed or guarded. If you hit a new one, the Altium error dialog tells you the exact identifier or line. Opening an issue with that text helps us harden the relevant path.

Altium tool buttons relying on internal scripting pause while the server is running

Altium itself uses DelphiScript internally for many built-in commands (some ribbon buttons, panel actions, menu items). While the eda-agent polling loop is active, those built-in commands may become temporarily unresponsive because Altium's scripting engine is single-threaded and currently owned by our polling loop.

The polling loop owns the scripting engine for as long as it's running. While it runs, Altium's own script-backed buttons sit waiting. The loop exits when either:

• The MCP client calls detach_from_altium (or the dashboard Detach button is clicked); the loop saves all dirty docs, exits within ~500 ms, and Altium becomes fully responsive, OR
• 10 minutes of total silence from the MCP client (no commands AND no keep-alive pings) triggers the built-in auto-shutdown

In practice, while an MCP client is attached and sending keep-alive pings every 30 s, the loop will never time out on its own; you need to either have the AI call detach_from_altium or close the MCP client session entirely. After the client disconnects, expect up to ~10 minutes for the loop to auto-exit unless you use Detach to release it immediately.

ECO (sch → PCB update) is not reliably scriptable

update_pcb wraps RunProcess('PCB:UpdatePCBFromProject'). On some Altium builds this runs silently without applying changes; on others it pops the modal ECO dialog. The Altium Schematic API doesn't expose a fully scripted ECO executor: IECO only records proposed changes, no DM_Execute method is documented, and no factory is exposed for obtaining an IECO instance from a script.

Practical workflow: call update_pcb and check the result's components_added_to_pcb count. If it's zero while in_sync is false, open the PCB in Altium and run Design → Import Changes From … yourself. Once the dialog is dismissed, every other tool (pcb_move_component, pcb_place_track, pcb_run_drc, etc.) works normally.

Tools vary in maturity

Not every one of the 200+ tools has been exercised on every Altium version or design size. The generic primitives and the core application / project tools are the best-tested. Some PCB modify operations (polygon repour, room creation, align-components) are less battle-tested. Queries are generally safer than mutations.

Timeout and server lifecycle

The server has three independent timeout mechanisms:

1. Per-command timeout (Python side)

When the MCP client calls a tool, the Python bridge writes a request file and waits up to 10 seconds by default for a response. Fast queries typically complete in under 100 ms, so a 10 s ceiling surfaces stalls quickly while leaving plenty of margin for real work. Long-running tools that are expected to take longer (save_all, stop_server, pcb_get_unrouted_nets) set their own larger timeouts internally.

Each request is published to its own request_<id>.json file; Altium replies in response_<id>.json with the matching ID. The bridge's keep-alive thread and MCP-client calls each use their own request IDs, so responses never race. The older single-response.json channel was retired in IPC v2.

2. Server auto-shutdown (Altium side)

The DelphiScript polling loop auto-stops after 10 minutes of inactivity (AUTO_SHUTDOWN_MS = 600000). If the MCP client disconnects and the keep-alive pings stop arriving, the server releases Altium's scripting engine after ten minutes and StartMCPServer returns. To resume, re-launch via File → Run Script... → StartMCPServer → Run.

3. Python keep-alive pings

While an MCP client is attached, the Python bridge pings Altium every 30 seconds so the 10-minute auto-shutdown never fires mid-session. The sequence:

• AI issues command A → Altium busy, then idle
• 30 s later, Python pings → Altium responds "pong", idle timer resets
• 10 min later, still no AI activity and no ping → Altium auto-shuts down

In practice: the server stays alive as long as an MCP client is connected, and exits cleanly ~10 minutes after the client fully disconnects. No manual stop needed in the common case. For a hard exit, the AI (or the Detach button on the dashboard window) calls detach_from_altium, which persists any unsaved work via save_all and returns control to Altium within ~500 ms.

Why this matters for Altium UI responsiveness

The polling loop goes into idle mode after ~1 second of no MCP commands. In idle mode it polls every 100 ms with a ProcessMessages yield in between, so Altium's UI stays responsive continuously. In active mode the loop polls every 10 ms (ProcessMessages every 5th tick), giving sub-50 ms round-trip latency for back-to-back commands. For a full release, call detach_from_altium or click Detach on the dashboard.

Tool reference

200+ tools grouped into six categories. The generic primitives are the engine; the rest are convenience wrappers or category-specific operations.

Generic primitives (the core)

These six tools cover most day-to-day work. They accept any object type supported by the bridge.

Tool	Purpose
query_objects	Read properties from schematic or PCB objects, with filter and scope
modify_objects	Set properties on matching objects
create_object	Create and place a new object
delete_objects	Delete matching objects
batch_modify	Apply many modify operations in one IPC round trip
generic_run_process	Execute any Altium process command with keyed parameters

Supported schematic object types: eNetLabel, ePort, ePowerObject, eSchComponent, eWire, eBus, eBusEntry, eParameter, ePin, eLabel, eLine, eRectangle, eSheetSymbol, eSheetEntry, eNoERC, eJunction, eImage.

Supported PCB object types: eTrackObject, eViaObject, ePadObject, eComponentObject, eArcObject, eFillObject, eTextObject, ePolyObject, eRuleObject, plus selection and design-rule classes.

Scope values: active_doc, project, project:<path>, doc:<path>.

Application (15 tools)

Tool	Purpose
get_altium_status	Is Altium running? Version / PID / attached state
attach_to_altium	Verify connection to the running instance
detach_from_altium	Save all dirty docs, signal server shutdown, release scripting engine
save_all	Flush every modified document to disk (explicit checkpoint for the deferred-save model)
ping_altium	Test the polling loop is responsive; reports script version + mismatch with bundled
get_open_documents	List every open document with loaded flag (sch, pcb, lib, outjob…)
get_active_document	Which document currently has focus
set_active_document	Switch focus to an already-loaded document by path
create_document	Create a blank PCB / SCH / library / OutJob document and attach to the focused project
get_altium_version	Build / product version string
get_preferences	Snap grids, unit system, common prefs
execute_menu	Run a menu command by path (e.g., `Tools
get_clipboard_text	Read text from Windows clipboard
diag_workspace	Diagnostic: enumerate the IPC workspace directory and report pending request files. Useful when investigating IPC plumbing
set_intent	Record the current conversation's intent so the web dashboard can display what the agent is working on

Project (51 tools)

Lifecycle, parameters, compilation, analysis, outputs, ECO sync, variants.

Tool	Purpose
create_project / open_project / save_project / close_project	Project lifecycle
save_all / get_focused_project / get_open_projects / get_project_path	Project state
get_project_documents / add_document_to_project / remove_document_from_project / import_document	Document management
load_project_sheets	Force every SCH sheet of the focused project into the editor so scope=project queries hit them
get_project_parameters / set_project_parameter / set_document_parameter	Parameters
project_push_params_to_sheets	Copy all project parameters onto each loaded sheet (title-block fields)
get_project_options	Compiler / variant / channel settings
compile_project / get_messages	Compile and read violations
get_design_stats / get_design_differences / get_board_info	Design analysis
get_bom / get_nets / get_component_info / get_component_info_many / get_connectivity / find_component	Design queries (get_component_info_many is the bulk variant)
cross_probe / lock_designator / annotate	Designator management
compare_sch_pcb / update_pcb / update_schematic	ECO sync (see ECO limitation)
get_connectivity_many	Pin-net connectivity for many designators in one round-trip (bulk)
force_recompile / get_compile_freshness	Explicit SmartCompile cache control: save all dirty docs, invalidate, recompile; report cache age + dirty-in-editor docs
get_variants / get_active_variant / set_active_variant / create_variant	Variant management
export_pdf / export_step / export_dxf / export_image / generate_output	Output generation
get_outjob_containers / run_outjob / run_outjob_all	OutJob execution (run_outjob_all fires every container in one pass)
generate_fab_package	Run every OutJob container (Gerber / NC drill / IPC-356 / P&P / assembly / BOM) and return a consolidated manifest of produced files; optional STEP / DXF

Library (31 tools)

Symbol and footprint creation, linking, batch editing, comparison.

Tool	Purpose
lib_create_symbol / lib_copy_component / lib_set_component_description / lib_set_current_component	Symbol lifecycle. lib_set_current_component switches the SchLib editor's active component so subsequent generic-primitive calls (modify_objects on pins / rect / parameters) target the named symbol rather than whatever was last UI-selected
lib_add_pin / lib_add_pins / lib_get_pin_list	Pins (bulk variant places the whole pinout in one call)
lib_add_symbol_rectangle / lib_add_symbol_line / lib_add_symbol_lines / lib_add_symbol_arc / lib_add_symbol_polygon	Symbol graphics. Coordinates auto-snap to the 100-mil grid. lib_add_symbol_lines does N lines in one IPC round-trip for diode glyphs / op-amp triangles / connector outlines
lib_create_footprint	Footprint creation
lib_add_footprint_pad / lib_add_footprint_track / lib_add_footprint_arc	Footprint primitives
lib_link_footprint / lib_link_3d_model	Link footprint / 3D model to symbol
lib_get_components / lib_get_component_details / lib_search	Browse and search
lib_batch_set_params / lib_batch_rename	Bulk parameter / rename operations
lib_diff_libraries	Compare two libraries
lib_update_footprint_heights_from_3d	Propagate IPCB_ComponentBody.OverallHeight up to Footprint.Height so placement-collision DRC actually fires (libraries from vendors often ship Height=0)

Schematic and general (65 tools)

Schematic-side operations plus viewport and sheet management.

Tool	Purpose
query_objects / modify_objects / create_object / delete_objects / batch_modify	Generic primitives (see above)
select_objects / deselect_all	Selection state
zoom / switch_view / refresh_document	Viewport
highlight_net / clear_highlights	Net highlighting
run_erc / get_unconnected_pins	Electrical rules check
add_sheet / delete_sheet / get_sheet_parameters / get_document_info	Sheet management
place_wire / place_bus / place_net_label / place_port / place_power_port	Schematic placement
place_sheet_symbol / place_sheet_entry / place_bus_entry	Hierarchical sheet primitives
place_sch_component_from_library	Instantiate a component from an SchLib at (x,y) with rotation and designator override
sch_set_sheet_size	Change SheetStyle (A / A0–A4 / Letter / Legal / Custom)
place_no_erc / place_junction / place_image / place_note / place_directive	Markers, annotations, directives
place_rectangle / place_line	Graphical primitives
copy_objects / get_object_count / replace_component	Bulk operations
set_grid / sch_set_units	Change snap / visible grid / UnitSystem (mm ↔ mil)
get_font_spec / get_font_id	Font table lookup
batch_create / batch_delete	Generic bulk create / delete meta-tools
place_wires	Place many wire segments in one IPC round-trip
place_sch_components_from_library	Bulk BOM placement: library_path + lib_ref + x/y/rotation per entry
sch_add_directive / sch_get_directives	Parameter-set directives (diff pair tags, net class, custom rules)
sch_place_harness_connector / sch_place_cross_sheet_connector	Harness bundles + hierarchical off-sheet ports
sch_place_text_frame / sch_increment_designators / sch_toggle_pin_visibility	Multi-line note frames, bulk designator renumber, pin-label visibility
sch_place_probe	SPICE / simulation measurement node
sch_set_component_part_id	Switch active sub-part on a multi-gate symbol (U1A ↔ U1B)
sch_add_datafile_link	Attach IBIS / SPICE model / CSV to a component's implementation
sch_get_constraint_groups	Enumerate DM_ConstraintGroups (FPGA-style pin/timing constraints)
sch_get_simulation_readiness / sch_attach_spice_primitive / sch_attach_spice_primitives / sch_attach_spice_model / sim_run	SPICE workflow: audit, attach, simulate
design_review_snapshot / datasheet_checklist	One-call full-project review + datasheet discipline
design_lint_report	One-call run of all audit_* checks (component params, port direction, designator collisions, off-grid, tented vias, near-miss tracks, via antennas, removed pad shapes, off-board components, edge clearance, single-pin nets, MPN inconsistencies, ...) returned as a grouped violation list
audit_* (32 tools)	Individual design-lint checks; each returns {checked, violations, items[]}. Wired into design_lint_report and the dashboard's Status → Health → Design lint panel via /api/lint
crossref_net	Sch pin list vs PCB pad list for a named net: diff + in_sync flag
generic_run_process	Run any Altium process command

PCB (84 tools)

Queries and modifications on the active PCB document.

Tool	Purpose
pcb_get_nets / pcb_get_net_classes / pcb_create_net_class	Net / net class management
pcb_focus_board	Make a specific .PcbDoc the focused board so all the GetPCBBoardAnywhere-based tools target it (needed when several PcbDocs are open; set_active_document doesn't reliably set the current PCB)
pcb_delete_net	Remove nets — by default only empty ones (cleanup for stray nets left after deleting components); force to delete connected nets too
pcb_get_design_rules / pcb_create_design_rule / pcb_delete_design_rule / pcb_get_diff_pair_rules / pcb_get_room_rules	Design rules. pcb_create_design_rule dispatches to typed IPCB_*Constraint subtypes for clearance / width / via-size with the proper per-layer setters
pcb_get_rule_properties / pcb_set_rule_properties	Read rule metadata + the descriptor string (which carries every constraint value in human-readable form, e.g. Width Constraint (Min=0.102mm) (Max=5.08mm) (Preferred=0.127mm)); set metadata-only (Enabled / Priority / Scope1 / Scope2 / Comment). Constraint values must be set via pcb_create_design_rule or the Altium UI; they live on per-kind subtypes that DelphiScript cannot dispatch to safely from a base IPCB_Rule reference
pcb_set_rules_enabled	Bulk DRC-rule enable/disable by name pattern
pcb_run_drc / pcb_get_clearance_violations	Run DRC and read back enriched violations (each with x/y/layer + primitive1/2 net + type). pcb_get_clearance_violations(net="X") filters to one net
pcb_get_differential_pairs	Enumerate every IPCB_DifferentialPair with both half-lengths + skew_mils. Catch length-mismatch high-speed bugs (USB / HDMI / PCIe transceiver skew limits) pre-fab
pcb_get_components / pcb_move_component / pcb_move_components / pcb_flip_component / pcb_align_components / pcb_snap_to_grid	Component placement (bulk pcb_move_components for N components in one round-trip)
pcb_get_component_pads / pcb_get_pad_properties	Pad inspection
pcb_place_track / pcb_place_tracks / pcb_set_track_width / pcb_get_trace_lengths / pcb_fillet_corners	Track operations (batch variant for whole-net routing; pcb_fillet_corners rounds acute same-net joins with a tangent arc, defaults to dry_run)
pcb_place_via / pcb_place_via_array / pcb_get_vias	Via operations and stitching arrays
pcb_set_via_soldermask_relief	Open soldermask over via barrels (barrel relief)
pcb_place_arc / pcb_place_text / pcb_place_fill / pcb_place_pad	Primitive placement
pcb_place_component / pcb_place_components	Place footprint(s) from a PcbLib directly onto the board — scriptable substitute for ECO/Update-PCB. Synced mode (unique_id + pad_nets) stamps the sch↔pcb link and creates/assigns nets (real connectivity, no dialog); board_path targets a specific board when several are open. Batch variant places N in one transaction
pcb_place_dimension / pcb_place_angular_dimension / pcb_place_radial_dimension	Dimension annotations
pcb_start_polygon_placement / pcb_place_polygon_rect / pcb_place_region / pcb_get_polygons / pcb_modify_polygon / pcb_repour_polygons	Polygons and regions
pcb_calc_polygon_area	Per-polygon copper area in square mm / mil
pcb_place_embedded_board	Panelization: drop an IPCB_EmbeddedBoard grid referencing a child .PcbDoc
pcb_create_diff_pair / pcb_distribute_components / pcb_set_board_shape	Higher-level ops
pcb_plan_placement	Connectivity-driven auto-placement: force-directed global placement + legalization minimizes HPWL while keeping parts on-board and overlap-free, and optimizes part orientation (0/90/180/270) from real pin geometry. Pure-Python solver; dry-run by default, applies via pcb_move_components
pcb_create_room	Room placement
pcb_get_unrouted_nets	Ratsnest / unrouted analysis
pcb_get_layer_stackup / pcb_add_layer / pcb_remove_layer / pcb_modify_layer / pcb_set_layer_visibility	Layer stack: get, add/remove layers, copper thickness + dielectric properties
pcb_get_mech_layer_names	Enabled mechanical layers with their custom names
pcb_get_board_outline / pcb_get_board_statistics / pcb_get_fab_stats	Board-level queries. pcb_get_fab_stats returns the DFM summary fab houses ask for (min annular ring, min track width, via type counts, distinct hole count)
pcb_get_selected_objects	Current selection
pcb_export_coordinates	Pick-and-place export
pcb_delete_object	Delete a specific object
pcb_lock_net_routing	Lock/unlock tracks + arcs + vias by net, optional component lock
pcb_copy_component_placement	Mapping-based clone of layout from src → dst designators
pcb_set_text_visibility	Bulk NameOn/CommentOn toggle, optional designator filter
pcb_clear_source_footprint_library	Clear SourceFootprintLibrary so components re-match by lib-ref name from current Available Libraries (library-consolidation housekeeping)
pcb_place_stitching_vias	Fill a rectangle with via stitching on a target net (collision-checked, defaults to dry_run)
pcb_make_paste_grid	Split a thermal pad's paste opening into a grid (QFN swimming fix)
pcb_add_testpoints_for_net_class	Auto-place SMD or through-hole testpoints above the board for every net in a netclass without existing coverage
pcb_calc_track_current_capacity	IPC-2221 current capacity at multiple ΔT (pure Python, no Altium hit)
pcb_calc_impedance	IPC-2141 microstrip / stripline + Wadell differential variants — pick the right track width for USB/HDMI/PCIe target impedance
pcb_import_placement	Position components from a coordinate list (designator / x / y / rotation / side) — the inverse of pcb_export_coordinates
pcb_autoplace_silkscreen	Reposition component designators to clear pads and other silk (first-fit auto-position sweep); pair with the silk audits and design_visual_review
pcb_panelize	Build a production panel on a blank board: embedded-board array of a source .PcbDoc + rectangular outline + corner tooling holes + fiducials
pcb_add_teardrops / pcb_remove_teardrops	Launch Altium's board-wide Teardrop command (modal, non-suppressible dialog; choose Add/Remove and confirm in Altium)
pcb_tune_length	Add approximate routed length to a net with a square serpentine; reports routed length before/after. Open-loop, not DRC-checked (no scriptable interactive tuner exists)

Design agent (8 tools)

A high-level surface for autonomous schematic creation. The MCP client's LLM is the planner; these tools provide the discipline, the inventory, the placer, and the executor.

Tool	Purpose
design_get_discipline	Returns the design discipline doc (datasheet-first part choice, NDA isolation, user-libraries-are-read-only, top-leftmost pin at (0,0) symbol-authoring convention, 100-mil grid, hide non-essential parameters, functional pin layout, ...) plus the DesignPlan JSON schema the executor enforces. Always call this first when starting a design task
design_snapshot_inventory	Open a list of .SchLib paths and report what components they contain (lib_ref, designator prefix, pin count, description, footprint). The planner uses this to bias its part choices toward existing-lib parts
design_validate_plan	Schema + cross-check on a candidate DesignPlan JSON. No Altium round-trip; cheap pre-flight
design_preview_plan	Run the full pipeline (motif composer + priors + wiring + routing-shorts detector) WITHOUT touching Altium, returning the canvas snapshot + an SVG preview for the planner to inspect before emit
design_execute_plan	Open or create the project, create SchDoc(s) for each plan sheet, place every existing-lib part using the motif composer + canonical priors, route wires between same-block pins, drop labels for cross-block nets, drop power ports for is_power / is_ground nets, stamp Manufacturer / MPN / Datasheet (hidden by default), save. Halts on any needs_creation part with a structured error so the planner can resolve before instantiating. Accepts placement_hints for agent-driven layout refinement
design_audit_schematic	Returns structured {overlaps, wire_crossings, stacked_ports} for the active schematic. Lets the planner read geometric violations and compute corrective placement moves
design_learn_from_layout	After the user drags components in Altium and saves, diffs pre-edit vs post-edit positions and appends per-refdes (part_role, anchor_role, dx, dy, rot_delta) rows to ~/.eda-agent/placement_edits.jsonl. The offline build_placement_priors.py aggregator turns that log into the relative-anchor priors the placement pipeline consumes
design_validate	ERC + get_unconnected_pins + compile messages bundled into a structured ValidationReport(passed, errors[], warnings[], notes[]) so the planner can read failures and revise the plan

Architecture

    +-----------------------------+
    |    MCP-compatible client    |
    +-----------------------------+
            |              ^
            v              |
       tool call       tool result
       (JSON-RPC)      (JSON-RPC)
            |              |
            v              |
    +-----------------------------+
    |     eda-agent (Python)      |
    | application / project / lib |
    | / generic / pcb / design    |
    |              |              |
    |     Altium bridge (IPC)     |
    +-----------------------------+
            |              ^
            v              |
   request_<id>.json   response_<id>.json
            |              |
            v              |
    +-----------------------------+
    |      Altium Designer        |
    |  DelphiScript polling loop  |
    |     (Altium_API.PrjScr)     |
    +-----------------------------+

All intelligence lives in Python. The DelphiScript side is a pass-through layer for object iteration, property access, and process execution.

CLI

Command	Purpose
eda-agent	Start the MCP server on stdio (what the MCP client calls)
eda-agent serve	Explicit form of the above
eda-agent --no-dashboard / eda-agent --headless	MCP server only, no web dashboard. Required by strict-stdio MCP clients (Codex, etc) that can't tolerate the dashboard thread. Also via env var: EDA_AGENT_DISABLE_DASHBOARD=1 or EDA_AGENT_HEADLESS=1.
eda-agent scripts-path	Print path to bundled DelphiScript sources
eda-agent install-scripts [--dest PATH] [--force]	Copy scripts to a directory of your choice
eda-agent health	Fast offline preconditions: workspace dir + writable, pointer file + matches config, bundled scripts findable, bridge constructable. Exit 0 = clean, 1 = critical fail
eda-agent doctor [--library PATH]... [--json]	Full preflight talking to Altium: all health checks plus process running, script polling responsive, script-version matches bundled, save_all canary round-trip, optional --library lib reachability checks (no hardcoded paths; repeat the flag for each lib you want tested)

Configuration

Workspace (used for IPC files between Python and Altium):

• Default: %USERPROFILE%\EDA Agent\workspace\
• Override: set EDA_AGENT_WORKSPACE environment variable
• The DelphiScript side reads the resolved path from C:\ProgramData\eda-agent\workspace-path.txt, which Python writes at startup and on every install-scripts run

Coordinates throughout the API are in mils (1 mil = 0.0254 mm).

Development

pip install -e ".[dev]"
python -m pytest tests/ -q

The test suite includes a Python Altium simulator for end-to-end integration tests, Free Pascal cross-validation that runs the actual DelphiScript functions against Python mirrors, and a regression suite for previously encountered edge cases.

Rebuild the monolithic DelphiScript file after editing sources under scripts/altium/:

cd scripts/altium
python build.py

Project layout

eda-agent/
├── src/eda_agent/          Python package
│   ├── bridge/             Altium communication layer
│   ├── schemas/            Pydantic IPC envelope + per-command schemas
│   ├── tools/              MCP tool implementations (incl. design.py)
│   ├── design/             Design agent: plan / inventory / discipline / executor / validator
│   ├── diag/               Health and doctor checks
│   ├── cli.py              CLI subcommands
│   └── server.py           MCP server entry point
├── scripts/altium/         DelphiScript sources (dev source of truth)
│   ├── Main.pas, Utils.pas, Dispatcher.pas, …
│   └── Altium_API.PrjScr   Altium script project
└── tests/                  Python + Free Pascal test suite

At wheel build time scripts/altium/ is copied into src/eda_agent/scripts/ inside the wheel (via Hatchling force-include), so eda-agent install-scripts always finds the scripts.

Troubleshooting

"Altium Designer is not running": open Altium before invoking MCP tools.

"Script not responding" / MCP tools time out: confirm the script project is loaded and StartMCPServer is running. Re-launch it via File > Run Script... > StartMCPServer > Run. Check %USERPROFILE%\EDA Agent\workspace\ is writable.

Altium error dialog "Undeclared identifier: ..." or "Could not convert variant...": a DelphiScript crash in one of the bridge handlers. In Altium's Script IDE toolbar, press the red Stop button (or Run > Stop / Ctrl+F3; use Ctrl+Pause/Break if the script is stuck in an infinite loop) to halt the debugger. Then re-launch the polling loop via File > Run Script... > StartMCPServer > Run. Report the identifier or error text as an issue.

Some Altium buttons don't respond while the server is running: expected while the AI is actively issuing commands. Built-in Altium functions that depend on DelphiScript wait for the polling loop to yield. The loop enters an idle/yield mode within ~1 s of the last AI command; if a button is still unresponsive after that, call detach_from_altium from the MCP client to fully release the scripting engine.

Command timeouts on very large boards: default is 10 s so stalls surface fast. Tools known to take longer (save_all, pcb_get_unrouted_nets, stop_server) set their own internal timeouts up to 60 s. If you hit a timeout on a custom long-running operation, embed the bridge directly and pass a higher timeout= to send_command_async. The polling loop itself adapts (10 ms active, 100 ms idle) so it doesn't add latency.

License

Apache License 2.0. See LICENSE and NOTICE.

Disclaimer

Use at your own risk. eda-agent drives Altium Designer programmatically and can modify, save, or delete design data. An AI client operating it can issue rapid, irreversible changes. Before using this tool on any design:

• Back up your project. Commit to version control, copy the folder elsewhere, or both. Do not rely solely on Altium's own history.
• Expect the possibility of data loss, corrupted documents, or Altium crashes, especially on large boards, unusual object configurations, or untested API paths.
• Review automated changes before saving. Prefer working on a branch or a copy until you have trust in a given workflow.

This software is provided "as is", without warranty of any kind, express or implied. The authors and contributors are not liable for any damage to your designs, projects, data, or installation.

This project is not affiliated with, endorsed by, or sponsored by Altium Limited. "Altium" and "Altium Designer" are trademarks of Altium Limited. eda-agent is an independent community tool that interoperates with Altium Designer via its published scripting API.
