Dim0 - The Thinking Canvas

An agent-native canvas where notes, documents, code, widgets, and AI work together on one board.

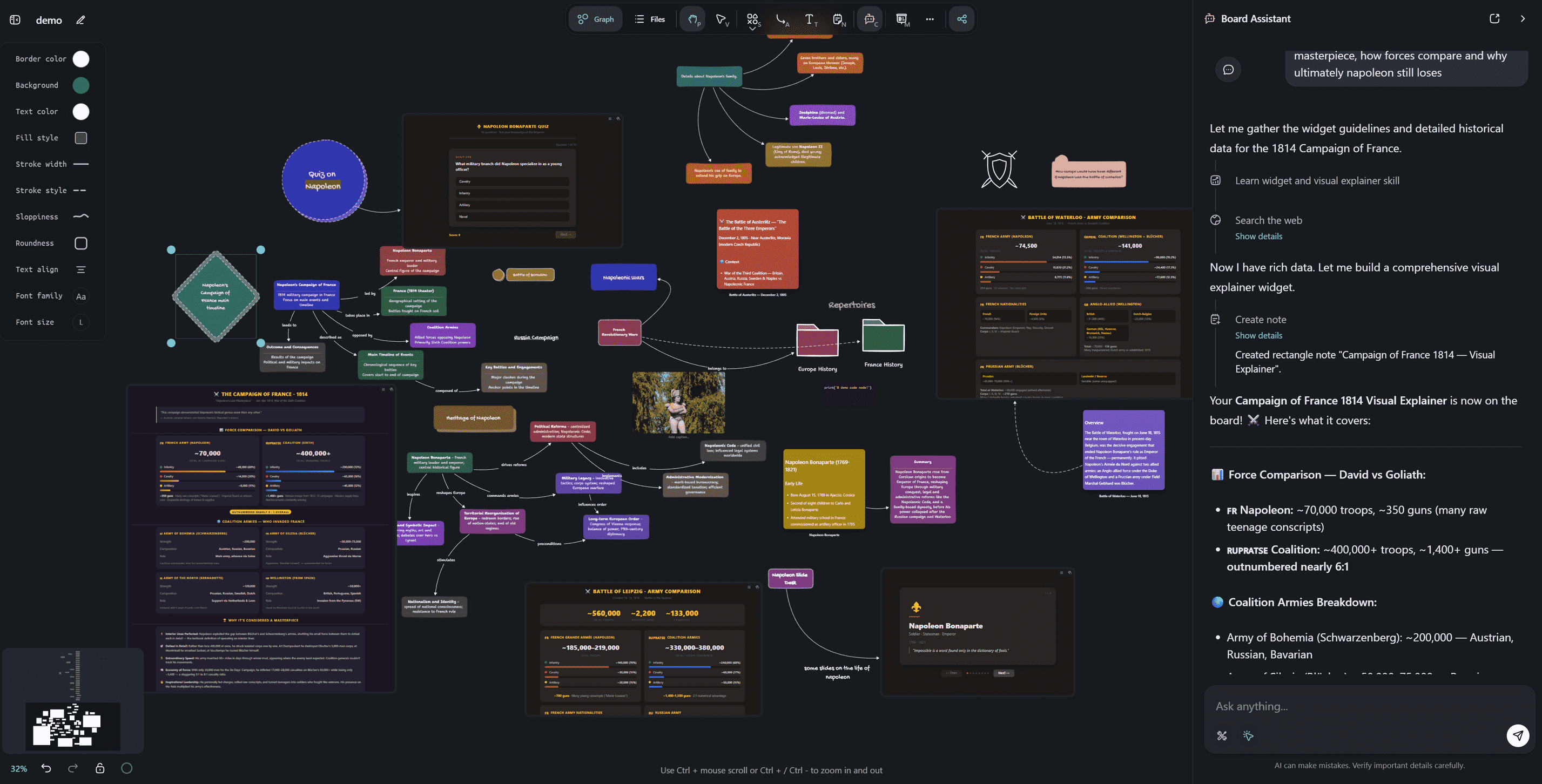

Dim0 app screenshot
Canvas workspace: notes, agent outputs, and structure on the same board.

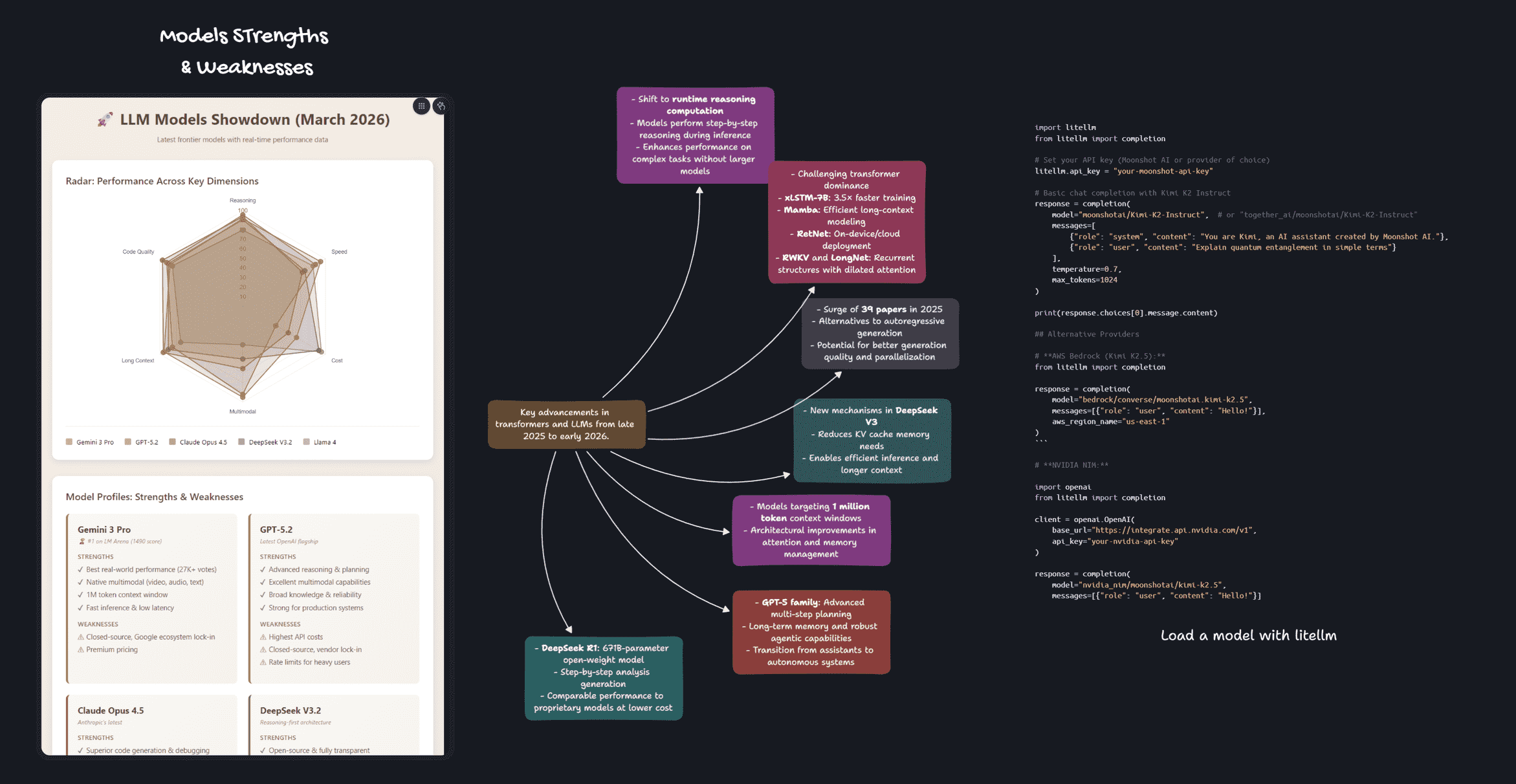

Generated artifacts: code, widgets, and mind maps created directly inside the canvas.

What Dim0 Is

Dim0 is built around one architectural bet: the canvas, not the chat, should be the primary interface for thinking with AI.

Most tools bolt AI onto an existing product as a sidebar. Dim0 is built the other way around: the board is designed for an agent that can read context, use tools, and write results directly back into the workspace.

The agent is not just a chatbot. It can:

Read live board context and selected nodes
Reason across multiple steps with tool use
Search the web and execute code
Create and edit notes directly on the board
Generate widgets and visual outputs inside the canvas

Node Types

Everything on the board is a node. Dim0 supports:

Shape nodes for diagrams and spatial structure
Rich text notes for writing and editing inside the board
Code sandbox nodes for writing and running code
Widget nodes for embedded HTML/JS outputs
Document nodes for uploaded files and retrieval context
Nested boards for hierarchical organization
Frame-based presentation directly from the canvas

Agent Layer

The assistant layer is built on the OpenAI Agents SDK and board-aware tools. It can work with:

Board context from the current graph and selected nodes
Note creation and editing tools
Web search and fetch tools
Code execution via Daytona-backed sandboxes
Widget and visual output generation
Semantic storage and retrieval backed by Qdrant

Model support includes OpenAI, Anthropic, Google Gemini, Mistral, Moonshot, DeepSeek, Qwen, and Z.ai.

Try It

Hosted app: https://app.dim0.net
Website: https://dim0.net
Self-host: follow the setup below

Monorepo Structure

This repository contains the full Dim0 product stack:

backend/: API, agent logic, prompts, model integrations, persistence
webui/: React frontend for the canvas, chat, and board UX
build/: Docker Compose and build-related assets

Getting Started

Prerequisites

Node.js (LTS recommended)
uv for Python dependency management
Docker + Docker Compose (optional, recommended for local services)

Environment Setup

Before running Dim0, create a root .env from .env.sample and review the variables there:

cp .env.sample .env

At minimum, set:

OPENAI_API_KEY
MISTRAL_API_KEY
OPENROUTER_API_KEY
LINKUP_API_KEY

Additional providers and tools can be enabled through the rest of .env.sample.

Important notes:

Both backend and frontend read the root .env
Only variables prefixed with VITE_ are exposed to the frontend

Run Published Images

Pull and start the published stack:

make pull
make run

Open http://localhost:3000.

Stop it:

make down-run

Stop it and remove volumes:

make kill-run

Local Development

If you want to run the source code locally instead of the published images, use the steps below.

Start Local Databases

make up-db

Run the Backend

cd backend
uv sync
uv run python -m topix.api.app

The backend uses API_PORT from .env and defaults to 8081.

Run the Frontend

cd webui
npm install
npm run dev

The frontend uses APP_PORT from .env and defaults to 5175.

Environment Variables

The root .env.sample is the source of truth for available configuration.
It includes app ports and origins, model provider keys, search and image provider keys, local service settings, and backend auth and tracing options.

Use it as a checklist when setting up your local environment.

Docker and Deployment

Deployment and local services are managed through Docker Compose with Makefile shortcuts.

Core Commands

Command	What it does
`make up`	Build if needed and start all services
`make up-build`	Rebuild images, then start all services
`make build`	Build images only
`make rebuild`	Rebuild images without cache
`make down`	Stop and remove containers
`make kill`	Stop and remove containers, images, and volumes

Service and Debug Commands

Command	What it does
`make ps`	Show service status
`make logs`	Tail logs for all services
`make logs-s SERVICE=backend-dev`	Tail logs for one service
`make up-s SERVICE=backend-dev`	Start one service
`make build-s SERVICE=webui-dev`	Build one service
`make restart-s SERVICE=backend-dev`	Rebuild and restart one service
`make exec SERVICE=backend-dev CMD="bash"`	Open a shell in a service

Database Shortcuts

Command	What it does
`make up-db`	Start only database services
`make down-db`	Stop only database services

Useful Overrides

You can override the compose profile and env file at invocation time:

make up PROFILE=local ENVFILE=.env

You can also override ports and origins for quick tests:

make up PROFILE=dev API_PORT=9090 API_HOST_PORT=9090 API_ORIGIN=http://localhost:9090

Docker Images

This repo can publish public Docker Hub images for self-hosting:

winlp4ever/dim0-backend
winlp4ever/dim0-webui

Example:

docker pull winlp4ever/dim0-backend:0.1.5
docker pull winlp4ever/dim0-webui:0.1.5

You can also run the published images locally:

make pull
make run
make down-run
make kill-run

Versioning

Dim0 uses one shared semantic version for the whole product. The source of truth is the repo-root VERSION file, and release tooling syncs that version into:

backend/pyproject.toml
webui/package.json
webui/src-tauri/Cargo.toml

Version bumps use Commitizen with Conventional Commits.

Useful commands:

make version-check
make version-sync
make version-bump

The repository also includes GitHub Actions workflows for version checks, releases, and Docker publishing.

Troubleshooting

If the frontend cannot reach the API, check VITE_API_URL in .env
If ports are already in use, change API_PORT or APP_PORT
If env changes are not applied, restart the backend and frontend after editing .env
Use make config to inspect the fully resolved Compose configuration

License

This repository is available under the MIT License.

If Dim0 is useful to you, a GitHub star helps others find it.
