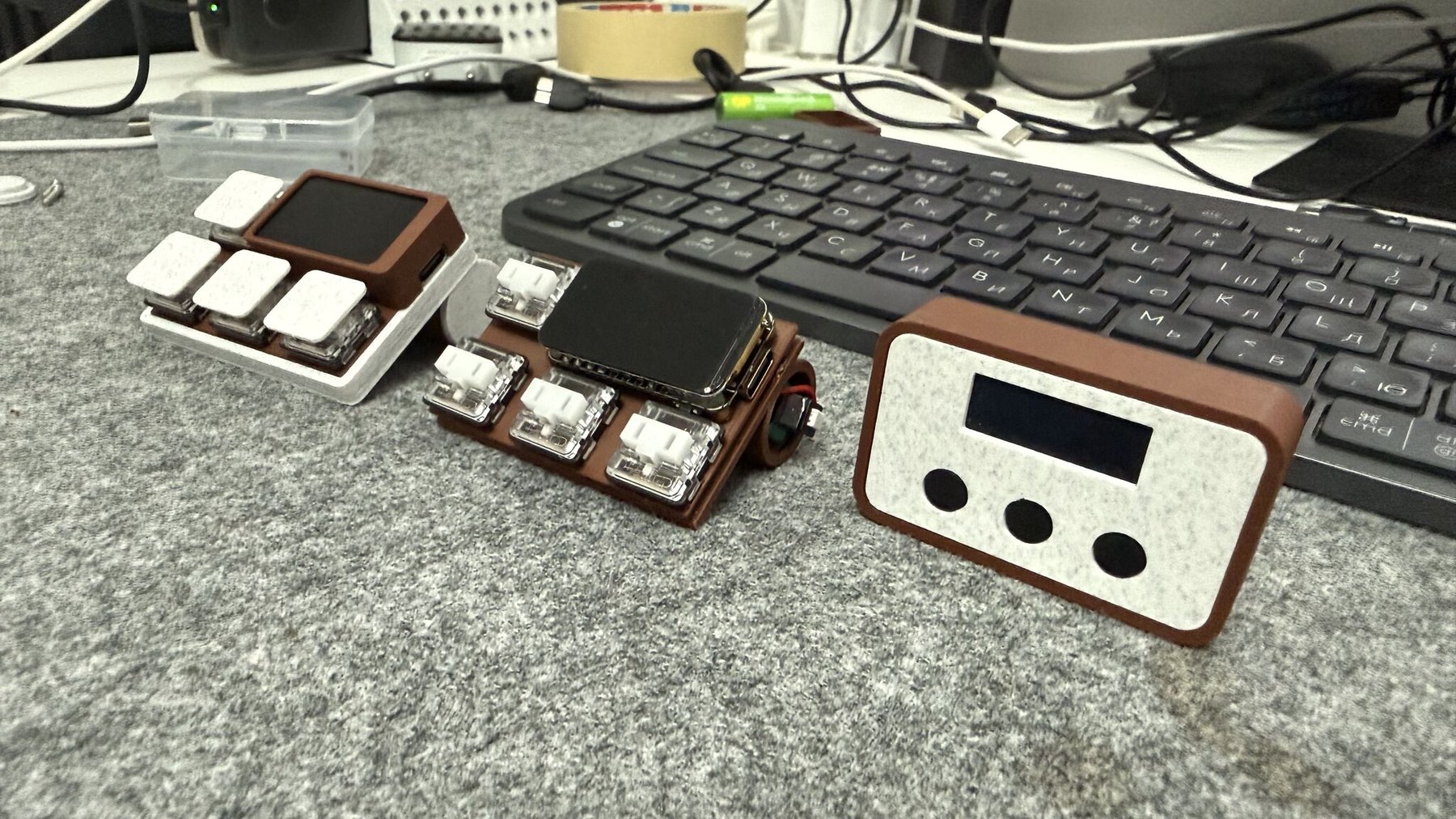

_{Two devices, one protocol. Left and centre: iteration 2, the cordless ESP32-S3 keypad (assembled, and opened around its cell). Right: iteration 1, the USB Arduino Nano box.}

Claude Mate exists to cut the cognitive overload of orchestrating many
AI-agent sessions at once — a wall of Claude Code tabs spread across different
accounts and projects, each finishing, blocking, or erroring on its own
schedule. Instead of scanning every terminal to find the one that stalled, you

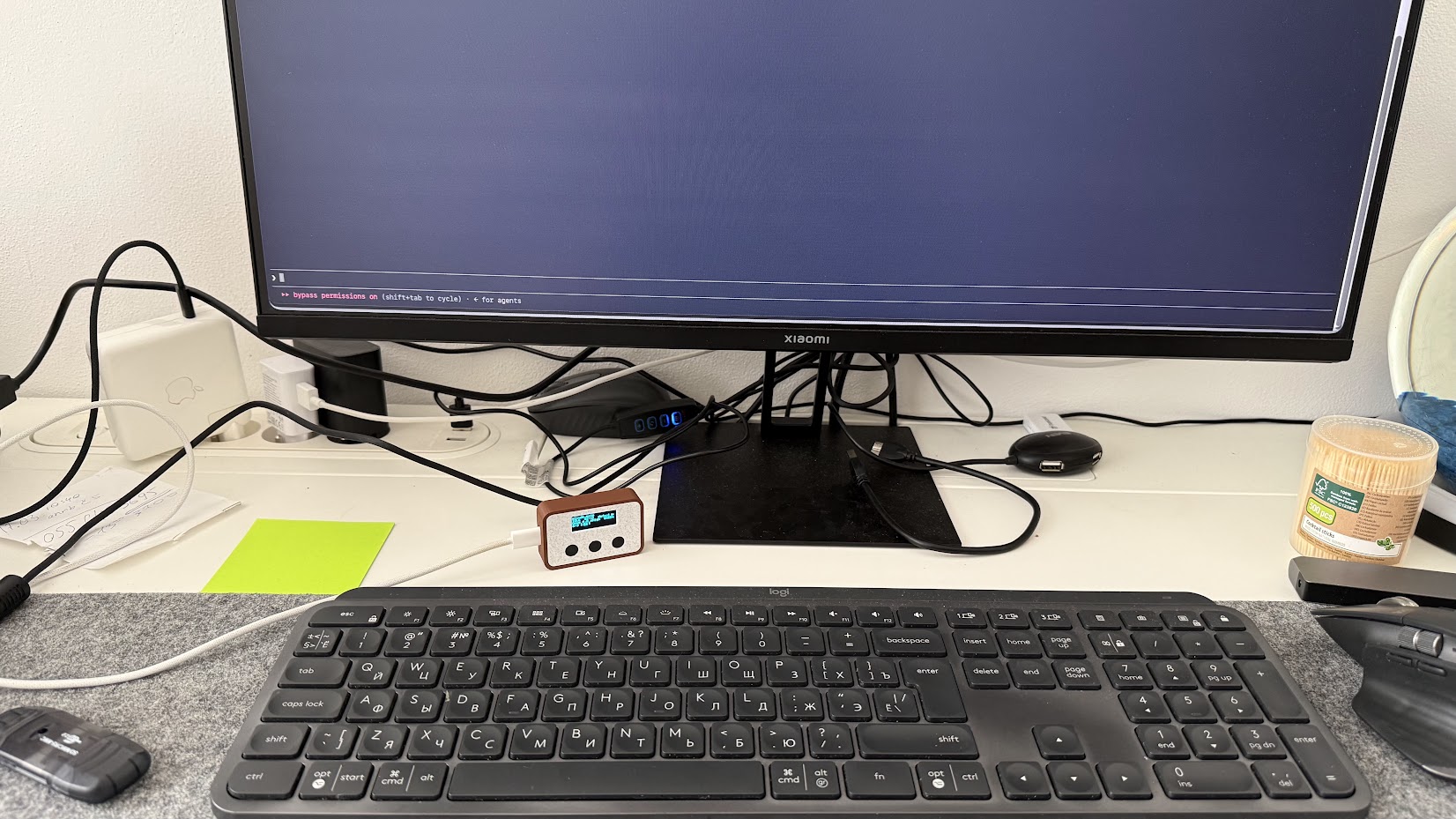

glance at a small desk device: one screen and an indication LED tell you which
session needs you right now, and a single button jumps you straight to it.

There are two devices, speaking one protocol, byte for byte. The original
Arduino Nano over USB, and a cordless ESP32-S3 with a 172×320 colour

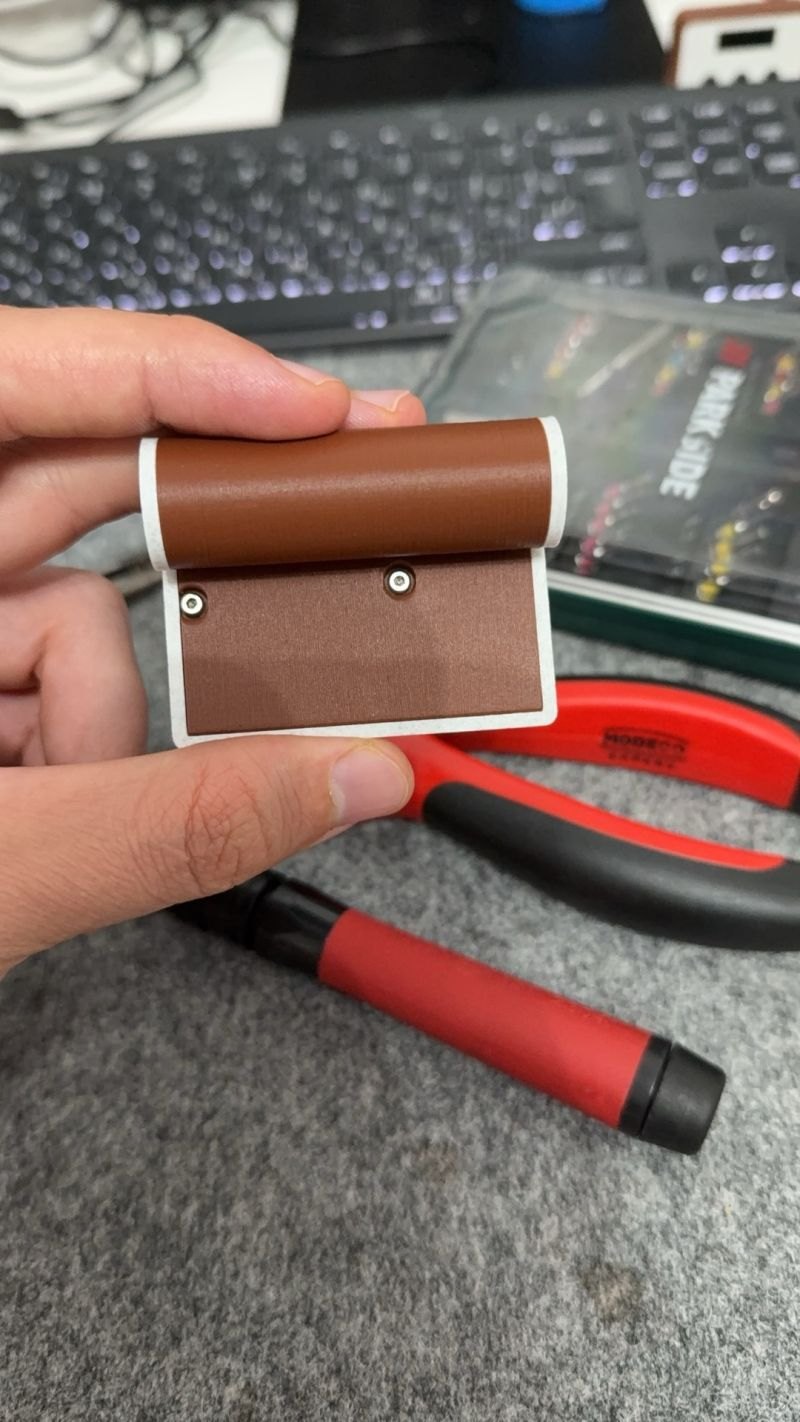

screen that reaches the daemon over Wi-Fi, runs on a 14500 cell, and can open a
live mirror of a session's actual terminal. The daemon cannot tell them
apart: either works on its own, or both at once (see
Bill of Materials, Roadmap and
firmware/README.md).

You feed it from the Claude Code hooks or the PTY wrapper
(claude-mate-wrap); it becomes an ambient, always-on triage pane for every
session you have open — in VS Code, the terminal CLI, iTerm2, tmux, anywhere.

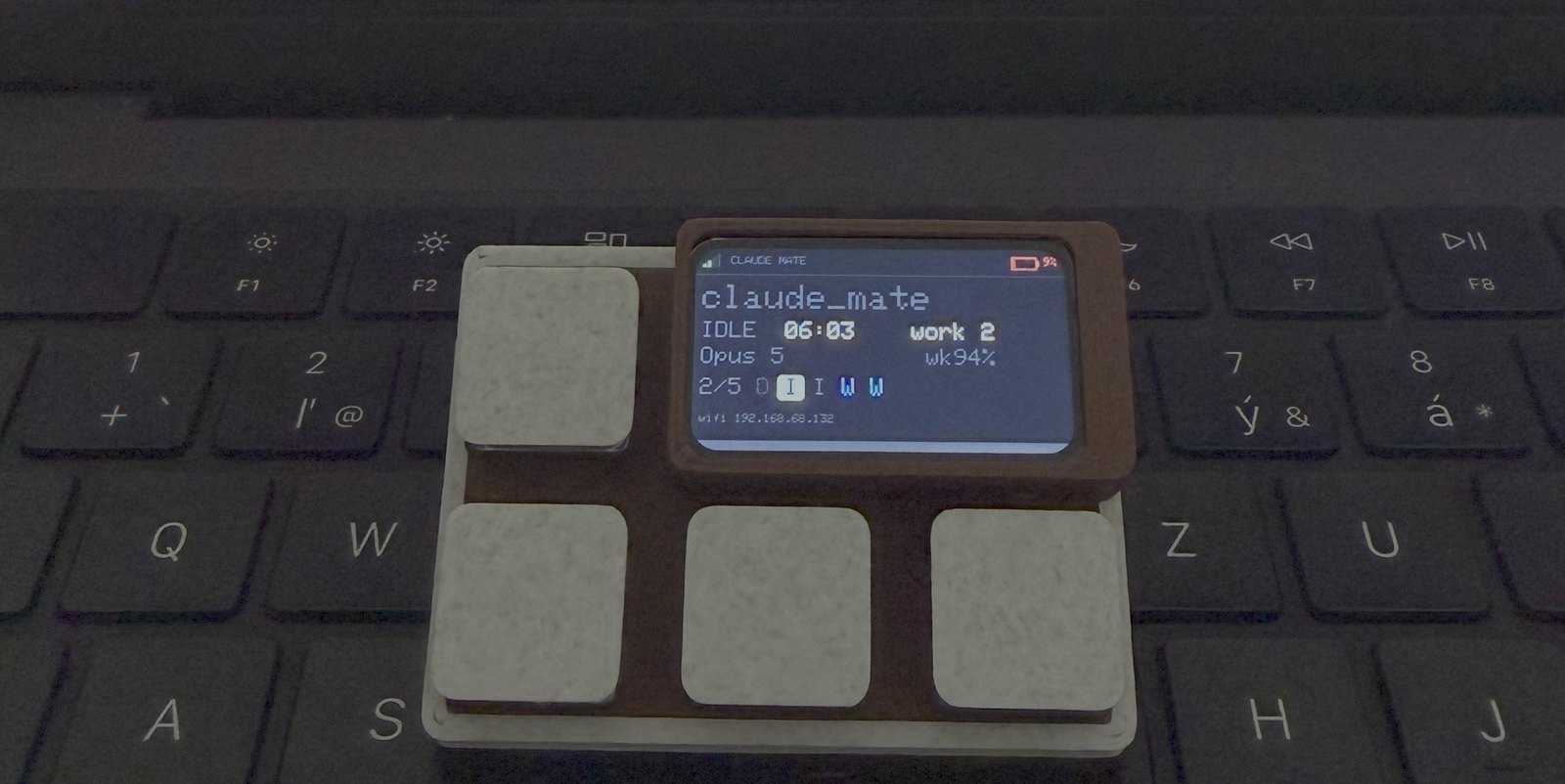

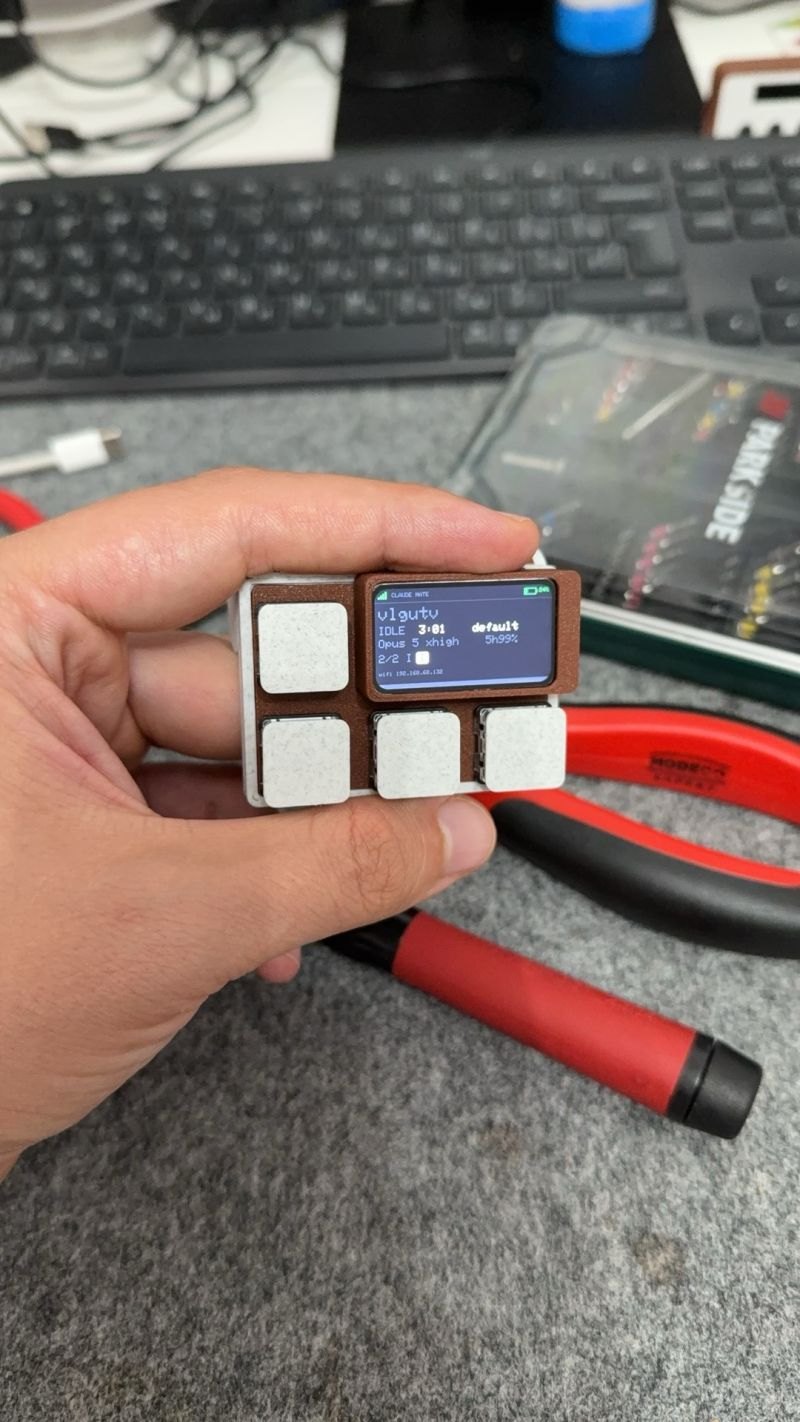

Iteration 2 — ESP32-S3, 172×320 colour IPS, cordless:

        ┌──────────────────────────────────────┐
        │ ▁▄█ CLAUDE MATE              ▮▮▮     │  ← status bar: Wi-Fi link · battery (3 segments)
        ├──────────────────────────────────────┤
        │ api-server                           │  ← r0: session name, in the state's colour
        │ WAIT   0:42                   work   │  ← r1: state · time-in-state · account
        │ Opus 5 xhigh                 5h82%   │  ← r2: model · effort · remaining limit
        │ 2/6  E  B  W  D  I                   │  ← r3: queue position · fleet strip, letter-coloured
        │ wifi 192.168.1.42                    │  ← link detail (firmware-local, never from the daemon)
        │══════════════════════════════════════│  ← accent bar in the selected session's state colour
        └──────────────────────────────────────┘
                  (•) WS2812 — rhythm AND colour
        [ PREV ]  [ GO ]  [ NEXT ]  [ MENU ]       ← a fourth button, with three gestures
   MENU: tap = the selected session's real terminal · double-tap = the on-device menu
         hold 2 s = long sleep (a tap wakes the board)

Iteration 1 — Arduino Nano, 128×32 mono OLED, USB:

        ┌───────────────────────┐
        │ api-server            │   ← r0: session name (flashes while its alert
        │ WAIT  0:42       work │   ← r1: state · time-in-state · account   is unacknowledged)
        │ Opus 5 xhigh    5h82% │   ← r2: model · effort · remaining limit
        │ 2/6 E B W D I         │   ← r3: queue position · whole-fleet letter strip
        └───────────────────────┘       (the active tab's letter sits in a wide centred filled rectangle)
              (•) indication LED               ← blinks per alert class, until you ack
          [ PREV ]   [ GO ]   [ NEXT ]         ← three buttons — same meaning, always
   PREV/NEXT: step the triage queue (hold = auto-repeat)   GO: short = ack + raise · double = FOLLOW · long = ack only

   the flash: name row inverting = unacknowledged (needs you) · steady = seen
   the strip: E error · B waiting · W working · D done · I idle — one letter per session, stable order
              a letter BLINKS while that tab's alert is unacknowledged; it goes steady once you ack it
   the box:   the active tab's letter is a wide centred filled rectangle (letter knocked out) — shows which tab is on screen
   the right edges: which ACCOUNT the session runs as (its wrapper profile) · how much of that account's plan
              limit is LEFT (5h82% = 82% of the 5-hour window · wk31% = 31% of the week — the tighter one shows)
   FOLLOW:    double-click GO → a ► marker appears; PREV/NEXT then also raise the selected terminal (raise only)
   the LED:   START 1 s blink · INPUT even blink · DONE 4-blink cascade · ERROR fast strobe  (loops until you GO/ack)

Contents

• What it is
• The terminal mirror (ESP32-S3)
• Two ways to feed it
• Features
• Architecture
• LED alerts & the acknowledge model

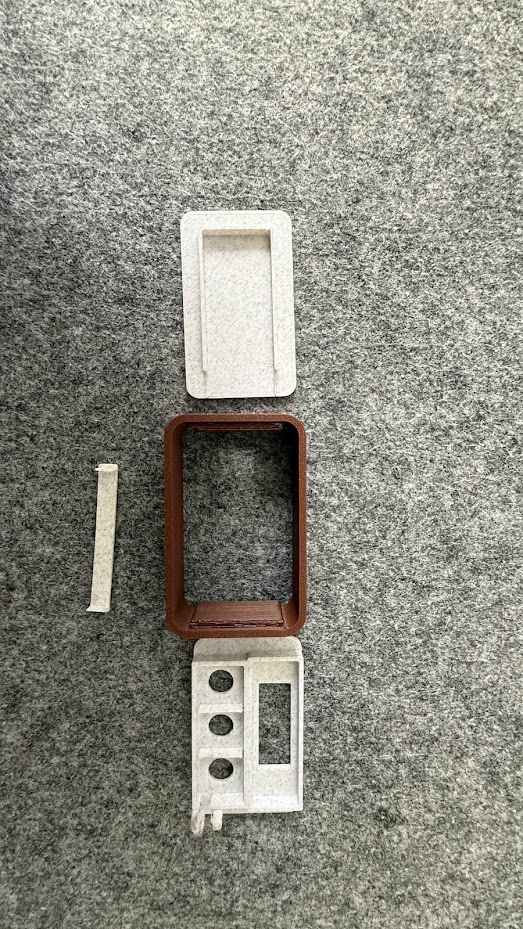

• Bill of Materials · Enclosures & 3D models
• Quick start · Configuration
• How the status maps to your sessions
• Roadmap
• Repository layout
• Limitations
• Changelog
• License

What it is

Claude Mate is a small desk companion paired with a lightweight Python
daemon on your Mac. Build it either way — or both, at the same time:

The daemon keeps ONE stable, alphabetically-ordered triage queue of every
Claude Code session (tabs never shuffle as their states change) and renders ONE
screen: the selected session, over a whole-fleet letter strip. Urgency is
tracked separately — it drives the LED and the blinking fleet letters,
never the tab order or which tab is shown. The LED blinks a status-distinct pattern for the worst
unacknowledged alert — so a single tab finishing, blocking, or erroring is
seen even while the rest of your fleet keeps working. It keeps blinking until
you deal with it. There are no UI modes: the buttons — PREV · GO · NEXT,
and MENU on the S3 — mean the same thing at all times.

The single must-have action is GO: press it and the window for the
displayed session is raised so you can deal with it — the integrated VS Code
panel or the actual terminal that session is running in (matched by TTY).
Raise only: nothing in the system ever collapses or resizes a window.
Retrying or resubmitting a turn is intentionally out of scope (see
Limitations).

The extra pixels on the S3 buy typography, colour and the terminal mirror —
never a different information model. The daemon pre-renders the same four rows
of at most 21 characters for both devices; each just draws what it was sent.

The terminal mirror (ESP32-S3)

Tapping the 4th button opens a live view of the selected session's actual
terminal on the device — 52×17 characters, refreshed about once a second.
PREV/NEXT then scroll it instead of moving the selection, and GO closes
it and raises the real window. Only wrapped sessions can be mirrored: a
hook-only session has no PTY for the daemon to read, and the device says so.

It adds no new channel. The PTY wrapper already mirrored the full TUI into
pyte (it was only being mined for state and
the model/effort strings), and the daemon already held a per-session control
socket to every wrapper for focus. The mirror is one more request/response on
that socket — so polling runs only while the view is open, and an unwatched
fleet costs nothing.

⚠️ The mirror puts raw terminal output on the network. The handshake is
authenticated, but the session itself is plaintext TCP — and terminal
contents can include keys, tokens and file contents, which is a materially
larger exposure than shipping WAIT and a model name. Keep it to networks you
trust. --tcp is opt-in and fails closed without a token.

Two ways to feed it

You can drive the daemon from either or both of these — mix freely:

The wrapper is the more capable feed (true live state, plus terminal focus); the
hooks are the zero-dependency feed. Use whichever fits each session.

Features

• One stable, alphabetically-ordered triage queue — every session in a
  fixed order (alphabetical by name, tiebroken by session key) so tabs never
  shuffle under you as their states change. Urgency is computed
  separately (worst unacknowledged alert: error → waiting → done, oldest
  first) and drives only the LED and the blinking fleet letters — never the
  tab order. PREV / NEXT step the order manually (hold to auto-repeat,
  wrapping at the ends); the screen never changes subject on its own.

• No UI modes — the buttons mean the same thing at all times:
  PREV · GO · NEXT (plus MENU on the S3). A short GO acknowledges
  the shown alert and raises its window; a long-press of GO (~0.5 s)
  acknowledges it without touching any window. Buttons fire instantly
  (edge-accepted ~40 ms debounce), and every accepted press flashes the device
  for ~80 ms — the Nano inverts the whole panel, the S3 turns its accent bar
  white — instant "the device heard you" feedback, well before the daemon
  round-trips a new frame.

• No auto-switch, ever — the selection is sticky: only PREV/NEXT/GO
  move it, and a GO/ACK stays on the tab it acted on. An alert on another tab
  announces itself through the LED and its blinking fleet letter; the view
  stays exactly where you left it until you navigate.

• Navigation never touches windows — the ONLY window operation in the
  whole system is GO, and it only raises/activates; the daemon never
  collapses, resizes, or miniaturizes anything.

• GO is WYSIWYG — GO/ACK act on exactly the session whose name is on the
  glass, never a freshly recomputed most-urgent alert. So a press can only ever
  raise the terminal you are actually looking at.

• Status-distinct LED alerts — the indication LED blinks the pattern of the
  worst unacknowledged alert across the whole fleet:

  • START — a job (re)started → one long 1 s blink (one-shot).
  • INPUT — a session is waiting on you → an aggressive even blink
    (~2.8 Hz), looping until you ack it.
  • DONE — a turn finished → a cascade of 4 quick blinks, then a pause,
    looping until you ack it.
  • ERROR — a turn ended on an API error → a super-aggressive ~7 Hz
    strobe, looping until you ack it.

  The loops run in the firmware until the daemon sends V|OFF (a GO/ACK, or
  the state changes on its own). If the daemon dies mid-alert the firmware
  stops the loop on its own after ~30 s of silence — and shows LINK LOST.

• "Finished but not seen" model — when a turn ends, the session becomes
  done and stays done (name flashing, LED looping) until you acknowledge
  it; later idle keepalives don't silently clear it. GO (or a long-press ACK)
  acknowledges it.

• Flashing name row — while the shown session's alert is unacknowledged,
  the top name row inverts at ~2.5 Hz; once acknowledged it goes steady. At
  a glance you know whether you've seen it.

• Whole-fleet strip — the bottom row shows your queue position
  (pos/total) plus one status letter per session in stable (alphabetical)
  order, space-separated: E error · B waiting · W working · D done ·
  I idle. A letter blinks while that tab's alert is unacknowledged.

• Live time-in-state — the state row counts up how long the session has
  been in its current state: for a working tab that IS the live turn
  runtime; for an alert it is how long it has been waiting on you.

• One-button FOCUS — GO raises the session's window: first the PTY
  wrapper's own terminal (iTerm2 / Terminal.app / VS Code / Ghostty / Warp /
  tmux, matched by TTY), else a VS Code deep link, else the VS Code window
  for the workspace folder. Raise only, always.

• Honest link state — with no daemon frame yet the firmware shows a boot
  splash; after ~30 s of daemon silence it replaces the stale frame with a
  LINK LOST screen (NO LINK / waiting for daemon) instead of freezing,
  and recovers on the next parsed line.

• Hot-reloadable detection — the wrapper's state patterns live in
  patterns.json and reload live (~0.25 s, no restart), so you
  can tune what counts as error/waiting/busy without touching code.

• Robust by design — the daemon keeps the serial port open continuously,
  auto-detects and auto-reconnects to the device, never crashes on a missing
  port; the hooks never block a turn; the wrapper falls back to running claude
  directly if anything is wrong.

• --mock demo mode — run the whole display with fake sessions cycling
  through every state, no Claude and no hardware required.

On the ESP32-S3, additionally:

• Cordless, on a cell — Wi-Fi (TCP) instead of USB, discovered over mDNS
  and authenticated with a nonce/HMAC handshake in which the token never
  crosses the wire. Wi-Fi credentials, daemon address and token live in NVS,
  a separate partition, so they survive a reflash; an unprovisioned board
  raises a setup portal you join from a phone.
• Colour as a second channel — the WS2812 plays the same rhythm and the
  alert class's colour, and every fleet letter is drawn in its own state colour.
  The colours differ in brightness as well as hue, so they stay distinct for
  a red/green-colourblind reader and in direct sunlight.
• A battery indicator that doesn't lie — three segments (3 green, 2
  amber, 1 red), not a percentage. Unplug a full cell and the voltage relaxes
  from 4200 to ~3950 mV in minutes, so a percentage read 100 % then 79 % with
  nothing wrong: 4200 mV is the charger's regulation point, surface charge is
  not consumption, and at ~9 mV per percent the ADC noise is worth whole points.
  Median-of-15 samples, an EMA, 60 mV of hysteresis and a 45-second hold sit
  behind it. The exact number stays in the About page, where diagnosis wants it.
  Charging is inferred in tiers; the board exposes no charge-status line.
• A live terminal mirror — see above.
• An on-device menu — double-tap the 4th button. Four items: the triage view,
  SETTINGS, SHIP IT and long sleep. Settings holds the rest — a game
  controller switch, screen sleep, brightness, alert-LED level including a
  genuine off, Mac sound, flip, the Wi-Fi setup portal, an About readout, and
  factory reset. About and Wi-Fi live there rather than on the top strip because
  neither is a place you go: one is something you read, the other something you
  set. Entirely firmware-local: while it is up PREV/GO/NEXT are handled on
  the device and never emitted, so the queue cannot move while you are aiming at
  a settings row — and there is no protocol change and no daemon change for
  any of it.
• A screen that turns itself off — after 1–30 minutes, and only when nothing
  is waiting on you. What counts as waiting comes from the frame the device
  already has: a flashing name row, any lowercase fleet letter, or a looping
  LED — which the daemon drives from exactly "worst unacknowledged alert", so it
  is the authoritative signal. An alert turns the screen back on by itself. A
  working fleet does not hold it on — an hour of grinding with nothing to
  say is the case this exists for — and neither does NO LINK, because a dead
  daemon must not be able to burn the cell flat. A press on a dark screen only
  wakes, and is swallowed: GO raises a window, and obeying a press aimed at a
  screen you cannot read would sometimes yank you to the wrong session.
• Long sleep — hold the 4th button for 2 s for deep sleep, tap to wake.
  Roughly a month of standby on a 14500; the WS2812 has no shutdown pin, so a
  switch in the battery lead is the only true zero.

Architecture

   Claude Code session
   ├─ (a) hooks ─ ~/.claude/hooks/claude-status.sh
   │                 "<state>|<sid>|<name>\n"
   │
   └─ (b) PTY wrapper ─ bin/claude-mate-wrap  (alias claude=claude-mate-wrap)
                     "<state>|<sid>|<name>|<ctrl_sock>|<model>|<effort>\n"   + screen-scrapes the live TUI
                            │
                            ▼
              Unix domain socket  /tmp/claude-mate.sock
                            │
                            ▼
   ┌──────────────────────────────────────────────┐
   │   Python daemon (Mac)                        │
   │   • ONE triage queue + "done-until-acked"    │   (STABLE alphabetical order —
   │   • ONE pre-rendered screen                  │    tabs never shuffle; urgency separate)
   │       F|<flags>|<sel>|<r0>|<r1>|<r2>|<r3>          │
   │   • LED policy  V|<START/INPUT/DONE/ERR/OFF> │   worst unacked class, loops until ack
   │   • GO: raise the session's window — RAISE   │
   │     ONLY (wrapper ctrl-sock → VS Code link)  │
   │   • MIRROR: pull the session's live screen   │
   │     from its wrapper → M| lines (S3 only)    │
   └──────────────────────────────────────────────┘
             │                              │
   USB serial 115200 8N1        TCP :8787 (opt-in --tcp), mDNS-discovered,
   "|"-delimited ASCII          nonce/HMAC handshake — the token never
             │                  crosses the wire · SAME "|" lines
             ▼                              ▼
   ┌────────────────────────────┐  ┌──────────────────────────────────┐
   │  Arduino Nano (ATmega328P) │  │  ESP32-S3 (Waveshare -LCD-1.47B) │
   │  • SSD1306 128x32 OLED —   │  │  • ST7789 172x320 colour IPS —   │
   │    draws the one frame it  │  │    same four rows, + status bar  │
   │    was last sent (dumb)    │  │    and the M| terminal mirror    │
   │  • LED (D8) plays V|<KIND> │  │  • WS2812 plays V|<KIND> in the  │
   │  • PREV/GO/NEXT buttons    │  │    alert class's colour          │
   │    → B|P B|N B|G B|K       │  │  • + MENU button → B|M           │
   └────────────────────────────┘  │  • battery gauge, Wi-Fi config   │
             │                     │    in NVS, deep-sleep power-off  │
             │                     │  • its OWN menu + screen sleep,  │
             │                     │    which the daemon never sees   │
             │                     └──────────────────────────────────┘
             │  H (hello on boot), B|<x> (buttons)        │
             └───────────────► back to the daemon ◄───────┘
                    (both may be connected at the same time)

Two control flows worth calling out:

• FOCUS round-trip. Each wrapped session opens a per-session control socket
  (/tmp/claude-mate-ctrl-<id>.sock) and tells the daemon about it. On a GO
  press the daemon connects to that socket and sends the single verb focus;
  the wrapper raises its own terminal window using the right method for
  $TERM_PROGRAM (iTerm2 and Terminal.app match the exact tab by TTY), replying
  go on receipt and ok when the window op completed — so consecutive GO
  presses raise windows in press order. Hook-only sessions fall back to a
  VS Code deep link / window raise.
• Reset recovery. Opening the USB serial port resets the Nano (~1.5 s). On
  boot the Arduino emits H; the daemon responds by re-sending the full current
  state (the current frame + re-arming the LED loop), so the display recovers
  cleanly after any reconnect. A wireless device gets the same treatment when it
  (re)connects.
• The wireless handshake. The device dials the daemon, not the other way
  round — so it works from any address the Mac never has to know. It finds the
  listener via the _claudemate._tcp mDNS advertisement, then proves it knows
  the shared token against a server-issued nonce: the token itself never
  crosses the wire. --tcp is off unless asked for, and refuses to start
  without a token rather than serving an unauthenticated listener.

The triage queue is a stable, alphabetically-ordered list of sessions —
tabs never reorder as their states change. Urgency (worst unacknowledged
error > waiting > done, oldest first) is tracked separately and drives
only the LED and the blinking fleet letters, never the tab order or the shown
tab (the selection is sticky). The top row is the selected session's name;
its state (ERR/WAIT/DONE/WORK/IDLE) leads the second row.

LED alerts & the acknowledge model

The LED is driven entirely by the daemon via V|<KIND> lines — the
firmware just plays the pattern (on D8 on the Nano, on the WS2812 on the S3);
the screen never blinks the LED on its own. The pattern is always the class of
the worst unacknowledged alert across all sessions (ERROR > INPUT >
DONE), so the LED loops exactly while something needs you:

| Event | V| kind | LED pattern | S3 colour | Repeat until acked |
|-------|-----------|-------------|-----------|--------------------|
| Job (re)started (nothing else pending) | START | one long 1 s blink, then dark | white | — (one-shot) |
| Waiting on you | INPUT | aggressive even blink (~2.8 Hz) | amber | loops continuously |
| Turn finished | DONE | cascade — 4 quick blinks, then a pause | green | loops continuously |
| Error / retry | ERROR | super-aggressive fast strobe (~7 Hz) | red | loops continuously |

The rhythm is the primary channel and is identical on both devices — colour
is redundant reinforcement on the S3, never the only thing carrying the message.

The loops run in the firmware until the daemon sends V|OFF. A turn ending
becomes done and keeps looping until you acknowledge the session — raising
it (GO short-press) or silencing it in place (GO long-press, no window
op) acknowledges it: a done tab becomes idle; a waiting/error tab goes quiet
but keeps its state until it changes. An alert can also die by
auto-resolving (the session leaves the alert class on its own — you
answered in the terminal) or by TTL pruning; nothing else removes one. A
session re-entering the same alert class within ~5 s of being acknowledged
stays acknowledged, so a bouncing detector can't re-fire the LED you just
silenced. The flashing name row mirrors the ack state: inverting while
unacknowledged, steady once seen. If the daemon ever dies mid-alert, the
firmware stops the loop on its own after ~30 s of serial silence and shows the
LINK LOST screen.

Bill of Materials

Iteration 2 — ESP32-S3, cordless

⚠️ The cell must be 3.7 V Li-ion. The board's onboard charger is a 4.2 V
Li-ion charger and the firmware's gauge curve and charge detection are
calibrated for that chemistry (CHARGE_FULL_MV 4150, BATT_MIN_MV 3000 in
board_s3.h). A 3.2 V LiFePO4 cell would
be over-charged by it and read as flat.

Pinout summary (full details in firmware/README.md):

Iteration 1 — Arduino Nano, USB

The indication LED is the sole alert output: wire it on D8 through a
~220 Ω–1 kΩ series resistor to GND so the pin isn't over-driven, and keep
all grounds common. See docs/WIRING.md.

Pinout summary (full details in docs/WIRING.md):

Buttons on both builds use INPUT_PULLUP (other leg to GND; pressed = LOW),
laid out left→right as PREV | GO | NEXT.

Enclosures & 3D models

Both devices are 3D-printed in the same two-material look — a terracotta body
with a felt-textured faceplate. Print either for personal use under the
project's non-commercial license.

Open either in Bambu Studio, PrusaSlicer, or Cura. The felt look is the 1 mm
faceplate printed in a second filament; print it in one colour and it still
assembles the same.

Iteration 2:

On the keyboard	Assembled	Back, with the cell tube

Iteration 1:

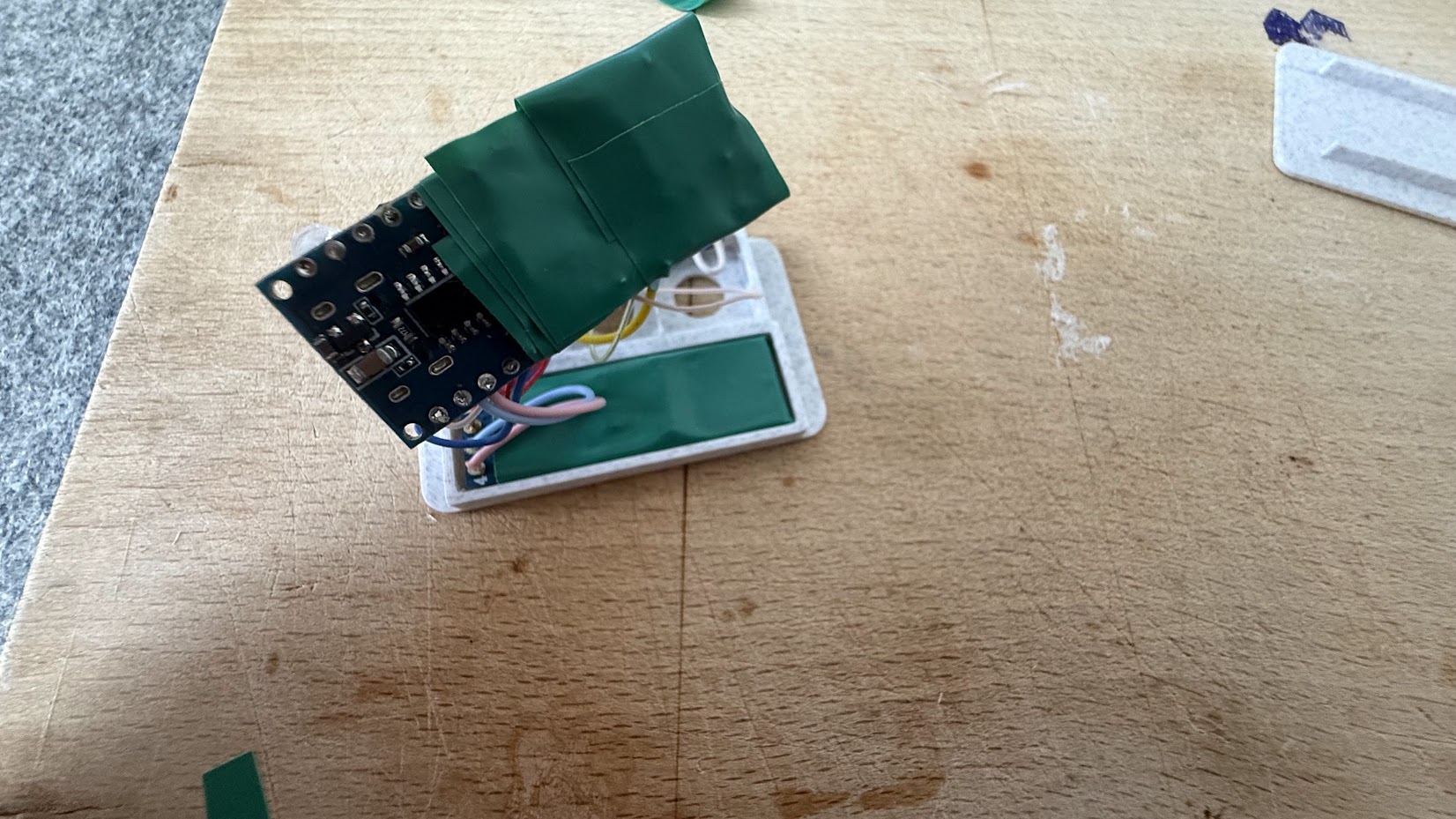

On the desk	Printed enclosure	Inside

More build photos are in assets/photos/.

Quick start

1. Build & flash the firmware — pick your device (or do both; they coexist):

   • Arduino Nano (firmware/claude_mate/claude_mate.ino). Install
     Adafruit GFX via the Arduino Library Manager — it is the only external
     library needed (the SSD1306 itself is driven by the bundled
     softssd1306.h, a software-I2C Adafruit_GFX subclass).

     arduino-cli upload -b arduino:avr:nano:cpu=atmega328 -p /dev/cu.usbserial-XXXX \
                        firmware/claude_mate


   • ESP32-S3 (firmware/claude_mate_s3/). Install GFX Library for
     Arduino (Arduino_GFX), then use the bundled script — arduino-cli upload cannot flash this board, and firmware/README.md explains the
     three reasons why:

     ./firmware/flash_s3.sh


     On first boot an unprovisioned board raises a Wi-Fi setup portal
     (Claude-Mate-XXXX); join it from a phone and point it at your Mac.

2. Run the daemon on your Mac:

   python3 daemon/claude_mate_daemon.py


   Try it with no hardware/Claude first:

   python3 daemon/claude_mate_daemon.py --mock


   For a wireless device, opt into the TCP listener. It generates a shared
   token on first run and prints it — type that into the device's setup portal:

   python3 daemon/claude_mate_daemon.py --tcp        # port 8787, advertised over mDNS


   Add --sound to also play a macOS alert sound when the worst unacknowledged
   alert class changes. The device has no speaker of its own — the ESP32-S3 has
   no DAC and the board's rail is a linear LDO, so there is no switching node a
   firmware trick could make audible.

3. Feed it. Pick either (or both):

   • Hooks: install the Claude Code hooks so session events reach the daemon.
   • PTY wrapper: pip install pyte, then run Claude through the wrapper:

     alias claude="$PWD/bin/claude-mate-wrap"
     claude            # use Claude exactly as normal — now with live state + FOCUS


     The wrapper is safe to install as a global claude shim: non-interactive
     (claude -p …, pipes, CI) execs the real binary, and it locates the real
     claude even when every claude on PATH is your own shim.

Step-by-step guides:

• 📦 Install — docs/INSTALL.md
• 🔌 Wiring (Nano) — docs/WIRING.md
• 📶 Both firmwares, flashing & provisioning — firmware/README.md
• 📡 Line protocol — docs/PROTOCOL.md
• ✅ Testing — docs/TESTING.md

Configuration

Daemon environment variables (all optional):

The listener is advertised as _claudemate._tcp over mDNS, so a device with no
host configured finds the daemon on its own.

PTY wrapper environment variables:

Account profiles — Claude Code holds one login per config dir, so the
wrapper can run different terminals under different accounts by pointing each
session at its own CLAUDE_CONFIG_DIR. Every subdirectory of
~/.claude-accounts is a profile; create one with mkdir -p ~/.claude-accounts/work (or by typing a new name at the picker). Once at
least one profile exists, every interactive start shows a picker listing each
profile with the email logged into it — press Enter for your default
~/.claude login, or pick a number. claude --account work … (the flag is
consumed by the wrapper, never passed to claude) or CLAUDE_MATE_ACCOUNT=work
selects a profile non-interactively, and an already-exported
CLAUDE_CONFIG_DIR always wins. A fresh profile starts logged out — claude
prompts /login there on first run — and keeps its own settings, history, and
MCP config. With no profile dirs, nothing changes.

Hit the limit? Carry the conversation across — claude-mate-switch
continues this terminal's conversation on another account. An account is a
config dir read once at startup, so nothing can change account in place; and
each profile keeps its own projects/ tree, so a new account cannot see the
old one's transcripts. The switch closes that gap: a transcript is just a file,
so copying it into the target profile's tree makes claude --resume find it.

claude-mate-switch                 # accounts, remaining limits, and what would move
claude-mate-switch work2           # copy the conversation there and resume
claude-mate-switch --best          # whichever account has the most headroom left
claude-mate-switch --dry-run work2 # show the move, touch nothing

It works because the wrapper publishes a small context file per terminal
under $TMPDIR — which transcript is in flight, under which account, in which
directory, with which flags, and how depleted that account is. Temp and
per-terminal on purpose: it describes a running process, is worthless once that
process exits (and is unlinked then), and two terminals in the same directory
are two different conversations that must not carry each other off. A context
not refreshed for 15 minutes is treated as dead rather than resumed.

Which transcript is this terminal's is asked, not guessed: the wrapper
mints the conversation id and hands it to claude (--session-id), so the file
is the one with that name wherever Claude Code's undocumented directory
mangling puts it. The earlier version looked at the newest .jsonl under the
config dir and picked wrong in the field — a terminal in one project offering
to carry off another terminal's conversation from another project. Sessions
that name their own conversation (--resume, --continue) fall back to a
search that now verifies the directory recorded inside each transcript.

One caution. The copy puts one account's conversation into another
account's local store, and resuming replays it to that account's API. The
tool never switches without being told where, prints both logins side by
side, and says so plainly when their email domains differ — but it does not
stop. It used to: a differing domain was read as "another organisation" and
refused. Every account it can reach is one you installed and logged into
yourself, so on a real three-account fleet spread across three domains that
rule refused every possible switch, and said so only in a log file — breaking
the exact case the feature exists for (this account is out of limit,
continue on another). Announce, don't block.

When a press declines, the device says why. Any of these can fail for an
ordinary reason — already on that account, nothing said yet worth carrying, not
a wrapped session — and the wrapper answers each in words. Those words go on
the glass for about four seconds, across the middle two rows, keeping the
session name above them. A press that silently does nothing is indistinguishable
from a broken button, and the cure for "I pressed it and nothing happened" is
not to press harder.

Account + remaining limit on the device — each wrapped session reports
which account it runs as (the profile name, or default), shown right-aligned
on the state row, and how much of that account's plan limit is left, shown as
a chip on the model+effort row: 5h82% = 82% of the 5-hour window remaining,
wk31% = 31% of the week — whichever window is more depleted. The wrapper
reads the session's own OAuth token (from <config-dir>/.credentials.json, or
the macOS Keychain where Claude Code keeps it) and polls Anthropic's usage
endpoint every CLAUDE_MATE_USAGE_POLL_S seconds (default 120; <= 0
disables). Read-only: the wrapper never refreshes or rewrites credentials —
that stays claude's job.

Detection tuning lives in patterns.json — case-insensitive
substrings matched against the rendered TUI, grouped as error / waiting /
waiting_footer / busy (precedence: error > waiting > waiting_footer > busy >
idle). Matching is scoped to Claude's live status region (the bottom ~20
non-empty lines) for error/waiting/busy, and to the footer (~4 lines) for the
generic picker phrases — so the same keywords in scrollback, logs, code, or
conversation above don't false-trigger. The footer phrases are limited to
to select / to navigate (a real question picker), and a footer-only waiting
must persist a couple of seconds before it reports — so a config dialog you
open and dismiss (the /effort or /model slider, whose footer is
… · Esc to cancel) no longer alerts the instant you open it.

Background work is not tunable there — and deliberately so. A turn can end
while a dynamic workflow, background agents, a backgrounded shell, a monitor or
an MCP task keep going, and the session must stay working until they finish
(otherwise the device buzzes DONE mid-flight and then shows IDLE for work that
is still running). Claude renders four tells for it, and the wrapper matches
them with structural regexes in code, because a substring loose enough to
catch them would fire on ordinary prose:

The first three are transcript text, so they expire. Claude prints them
once and never rewrites them — a recap still reads "1 shell still running"
long after that shell exited, and nothing scrolls it away while you are away
from the keyboard, which is exactly when the device is all you can see. So each
counts only while it is still Claude's last word: the moment Claude prints
anything that supersedes it (⏺ Background command … completed (exit code 0),
⏺ Agent … finished · 9s, or simply the next reply), the tell goes quiet. The
chip needs no such gate — it lives in Claude's live chrome and disappears on its
own. Verified against two 200-second recordings of real sessions, one per tell;
the frames are the fixtures in tools/test_detect.py.

Three guards come with it. A to-do left in progress in the task panel is
not counted — it is a plan item, not a running task, and keying off it would
mean the device could never report DONE again. A finished subagent's row in
the agents panel keeps its final 9s · ↓ 7.5k tokens on display, which is
textually a live activity meter — so the meter is read only above the prompt
box, never from that panel. And background work never masks
needs-your-input: only the foreground spinner vetoes a question picker, so a
session that keeps a shell or a workflow running still alerts when it asks you
something.

How the status maps to your sessions

The daemon keeps one record per session (keyed by session_id, or by name if no
id is provided). Each session is in one of these states:

The daemon keeps the triage queue in a stable, alphabetical order (tabs
never shuffle as their states change) and computes urgency separately:

tab order:  STABLE — alphabetical by name (tiebreak: session key)
urgency:    worst UNACKNOWLEDGED alert (error > waiting > done, oldest first)
            → drives the LED loop + the blinking fleet letters only,
              never the order and never the shown tab

Urgency is the priority model for two things only: what the LED blinks
about, and which fleet letters blink on the strip. The shown tab is sticky:
the screen never switches on its own — you navigate with PREV/NEXT. The LED
pattern is always the class of the worst unacknowledged alert (ERROR >
INPUT > DONE), dropping to V|OFF when nothing needs you. GO/ACK act on the
session currently shown (WYSIWYG) and never move the tab order. With zero
sessions the device shows MATE / no sessions.

Roadmap

Claude Mate is built in iterations, each removing more friction than the last.

• Iteration 1 — Arduino + macOS (this repo). An Arduino Nano drives the
  OLED, the three buttons, and the indication LED over USB serial; a Python
  daemon on the Mac keeps the triage queue, renders the screen, and raises
  windows. Tethered by USB to the machine it watches.
• Iteration 2 — ESP32-S3 Wi-Fi remote (here, shipped). A Waveshare
  ESP32-S3-LCD-1.47B talks to the daemon over Wi-Fi instead of USB — a
  genuinely wireless desk remote you can put anywhere, running on a 14500
  Li-ion cell with an on-screen battery gauge and a deep-sleep power-off. Same
  triage model, same line protocol; the transport became the network. The
  172×320 colour LCD adds a fourth Kailh Choc key that opens a live
  mirror of a session's actual terminal, and the follow-ons that iteration 1
  could only hint at — colour-coded alerts, on-battery operation — are in.
  Iteration 1 is unchanged and still supported: both devices speak the
  identical protocol and can be connected at the same time. See
  firmware/README.md.

The goal stays fixed across every iteration: one calm surface that tells you
which agent needs you, so running many of them in parallel stops taxing your
attention.

Repository layout

claude_mate/
├── README.md
├── LICENSE · CONTRIBUTING.md · CODE_OF_CONDUCT.md · SECURITY.md
├── patterns.json                  # hot-reloadable state-detection tuning
├── assets/                       # device photos + printable 3D enclosures (.3mf, .stl)
├── bin/
│   └── claude-mate-wrap           # PTY wrapper: live state + terminal FOCUS (pyte)
├── daemon/
│   └── claude_mate_daemon.py      # Python daemon (pyserial; --tcp adds the wireless link)
├── firmware/
│   ├── README.md                  # both builds: options, wiring, flashing, provisioning
│   ├── claude_mate/               # Arduino sketch (one-frame OLED renderer + LED)
│   ├── claude_mate_s3/            # ESP32-S3 sketch (colour UI, Wi-Fi, mirror, battery)
│   ├── flash_s3.sh                # the only way to flash the S3 board
│   └── selftest/                  # hardware self-test sketch
├── hooks/
│   ├── claude-status.sh           # installed to ~/.claude/hooks/
│   └── settings.snippet.json      # the four hook wirings
├── install/                       # install.sh / uninstall.sh / LaunchAgent plist
├── packaging/                     # notarizable macOS .pkg installer
├── tools/                         # feed.sh + e2e / wrapper / settings-merge tests
└── docs/
    ├── INSTALL.md · WIRING.md · PROTOCOL.md · TESTING.md · ARCHITECTURE.md

Limitations

• Retry/resubmit is out of scope. When a turn ends on an error, Claude Mate
  shows it (a flashing ERR frame + the looping ~7 Hz LED strobe until you ack
  it) but does not offer a "retry" action. Reliably resubmitting a turn from outside the
  GUI is not feasible, so GO — taking you to the session — is the intended
  response.
• Model/effort strings are best-effort. The model/effort row (e.g.
  Opus 4.8 xhigh) is scraped from the live TUI by the PTY wrapper and
  stays empty for hook-only sessions or until scraped. Claude Mate never
  fabricates it; treat this as an extension point.
• The remaining-limit chip is best-effort too. It comes from Anthropic's
  OAuth usage endpoint (an undocumented interface that may change), polled with
  the session's own token. Offline / expired-token / console-account sessions
  simply show no chip (or keep the last known value until a poll succeeds).
• FOCUS targets the wrapper's terminal first, then VS Code. A wrapped session
  raises its own terminal window (matched by TTY) using the terminal app's own
  scripting — it selects the session's tab and brings that window to the front.
  No special permission is required (macOS Automation, granted once on first
  use — not Accessibility). Raise is the only window operation; nothing is ever
  collapsed or resized. Hook-only sessions fall back to a VS Code deep link, then
  to raising the VS Code window for the workspace folder — the exact deep-link URI
  lives behind a single config constant so it is trivial to update.
• Detection is screen-scrape-based (wrapper). State is inferred from the
  rendered TUI using patterns.json. It is scoped to the live status region to
  avoid false positives, but unusual terminal themes/locales may need a pattern
  tweak — which you can do live, no restart.
• The wireless link is authenticated, not encrypted. The handshake is
  nonce/HMAC and the token never crosses the wire, but the session itself is
  plaintext TCP — so session names, states and, with the mirror open, raw
  terminal contents are readable by anyone on the same network. --tcp is
  opt-in and refuses to start without a token; treat it as a trusted-LAN
  feature.
• arduino-cli upload cannot flash the ESP32-S3 board. Its download mode
  ignores the DTR/RTS straps, the USB link stalls partway through any large
  transfer, and --after hard-reset lands back in the bootloader looking
  exactly like a bricked board. Use firmware/flash_s3.sh, which works around
  all three and verifies every 32 KB piece with a device-side hash.
• The S3's charge detection is inferred, not read. The board exposes no
  charge-status line, so charging is deduced from the cell's own voltage —
  which is calibrated for a 14500-class Li-ion cell. A much larger cell creeps
  too slowly for the trend fallback; the "at the regulation point" tier still
  catches it.
• macOS-focused. The daemon and wrapper target a Mac (serial device naming,
  open, AppleScript focus). Other platforms would need port/focus adjustments.

Changelog

Dated release notes live in CHANGELOG.md — the from-zero
interface rewrite, account profiles, the on-device account + remaining-limit
chip, and the move to a fully sticky selection.

License

Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) —
see LICENSE. This covers the whole repo: the software, both
firmwares, the hardware design, the 3D-printable enclosures, the photos, and the
documentation.

• ✅ Personal, non-commercial use — build one for yourself, modify it, share
  it, and contribute changes back, with attribution.
• ❌ No commercial use — you may not sell the device, the models, or a
  service built on this work, or otherwise use it for commercial advantage.

Because of the non-commercial restriction this is source-available rather
than an OSI-approved "open-source" license — but the source is fully open for
personal use and contributions. © 2026 Volodymyr Gutorov and the Claude Mate
contributors.
