slide-forge

Claude-first, agent-driven Google Slides deck generation with the same shared
skills available to Codex and Antigravity through thin host adapters: twenty-five
generation/support skills plus one end-to-end workflow on a shared Python
engine. Claude Code's plugin commands and the shared skills/ are the behavior
source of truth; host files do not duplicate workflow logic. It covers corporate-template decks, from-scratch architecture
diagrams, template creation from a design spec, validation before generation,
optional thumbnail-based visual QA (on by default), PowerPoint (.pptx)
export, and line-item spreadsheets (Excel / Google Spreadsheet) for estimates
and BOMs.

intake → author (spec JSON or Python) → validate (offline, free) → generate → visual QA (opt-in, default on) → cleanup → PPTX export (opt-in)
                                            ↑____________fix_____________________|

Contents

• Set up a machine — Requirements · Setup · Install as a Claude Code plugin · Use with Codex
• Make a deck — Quick start: template-driven · code-first · slide templates · End-to-end workflow
• Choose what to build — Skills · Slide pattern catalog · Examples
• How it behaves — Text fitting · Repository layout · License

New here? Setup first — or paste the
guided setup prompt into an agent session
and answer its four questions.

Two pages sit outside this file:
references/commands.md for the /forge, /account
and /visit commands, and references/README.md, the
index of all 48 reference documents.

Skills

Twenty-five skills. Each one's full contract — inputs, rules and guardrails —
is in skills/<name>/SKILL.md; the rows below say what it is for and what
makes it different.

Generating decks

Skill	What it does
google-slides-template	Generate a deck from a registered Google Slides master: intake, template analysis and registration (template.json), spec authoring with --dry-run validation, page-fragment authoring for large decks, generation. The main workflow.
google-slides	Decks without a corporate master — the spec path (templates/blank-16x9.json, same engine) or the code-first path (deckkit.py plus offline layout validation for connector-heavy diagrams).
nexus-report-slides	Turn a nexus-architect project's reports and UI mocks into an explanation deck, including while the pipeline is unfinished. Structure diagrams via mermaid, UI mocks via headless Chrome. Reads the project, never writes to it.
scalar-product-slides	Scalar Inc. company / product / feature decks on the scalar-2026 templates.
scalar-proposal-slides	Customer-specific Scalar solution proposals driven by the customer's challenges: hearing checklist, challenge → product mapping, and a problem-solving structure with a rewritable worked example.

Templates and frameworks

Skill	What it does
template-forge	Create and register a new template (master) from a design spec — brand colours, fonts, logo, footer. The Slides API cannot create masters, so a base is copied and restyled; the result lands in templates/<id>.json. Ships 3 design presets.
slide-template-creator	Create and register reusable single-slide content templates with semantic input slots, examples, offline validation and catalog previews. These live under slide-templates/ and are independent of Slides masters.
current-state-analysis	Run current-state and problem-identification frameworks on supplied material: PEST, Five Forces, process pain-points, logic and KPI trees, why-why, fishbone, Pareto, As-Is/To-Be gap analysis, impact-effort matrix. Facts go in the figure, interpretation in the insight, and sources are mandatory.
pricing-strategy	Recommend a price with the numbers behind it, following Nagle & Müller's value-based method: economic value by segment, breakeven of a price change, price structure across customer sizes, competitor response, and give–get discount policy. Bundled calculators (scripts/pricing/) also write slot data for the pricing template pack, including optional calculation-logic slides.
analysis-template-creator	Build and maintain the analysis-framework templates themselves (slide-templates/analysis/) and their drawing primitives — one question per template, fact/interpretation slot split, required sources, misuse guardrails.
calendar-slides	Turn dated tasks and events into calendar slides, and maintain the slide-templates/calendar/ pack: month grid, day gantt, day agenda, week timetable, sprint calendar, year at a glance, deadline countdown, daily heatmap, shift roster. Japanese national holidays ship with the repo; long periods split across pages. Not for month-level plans (planning/gantt-schedule) or milestone timelines.

Sales workflows (internal)

Skill	What it does
b2b-account-maps	The two maps a B2B software deal turns on: an influence map of the buying committee (influence × for/against) and a discovery map colouring each MEDDPICC item confirmed / partly known / still assumed, plus the committee table, approval path, pain chain and gaps. Internal working artifacts, not customer-facing.
scalar-account-plan	Keep one sales ledger per customer — facts labelled said / observed / assumed, the buying committee, MEDDPICC, the pain chain, stage exit criteria with customer-side evidence — and render it as a nine-page activity plan whose URL never changes. Unanswered review questions become dated actions.
scalar-account-planning-session	The annual Account Planning Session decks for an account the ledger already covers: a full plan document and a nine-page executive review, from one aps.json. Ties each proposal to the customer's own mid-term plan and works out who to meet next.
scalar-ae-materials	Build one visit's materials, routed by deal phase (0–6) × audience × purpose, so the customer-facing one-pager, the internal visit plan, the win plan and the approval packet are never the same file. Includes a pre-generation check that nothing unconfirmed reaches a customer-facing page.
scalar-deal-intake	Turn raw deal material — minutes, email, Slack, CRM exports — into per-stage records (0–6), a hearing sheet and a deal log. Every fact carries a source and a confidence; a gate passes only on customer-side evidence. Markdown only: it generates no slides.
scalar-nurture-intake	Turn pre-deal signals — webinars, inbound enquiries, downloads, event notes — into segment definitions, five-stage nurture tracks and a content ledger. Works on segment types: no personal or company names ever enter these files. Markdown only.
hearing-sheet	The hearing sheet as data: one JSON of record rendered to Markdown, Excel and Google Spreadsheet, each readable back through a stable question ID. Reads answers back with conflict detection rather than a silent overwrite, and lists what is still unconfirmed.
hearing-slides	Slides whose job is to collect information rather than deliver it, built from the gaps in a hearing sheet: the agenda, our understanding put up to be corrected, a fill-in sheet, a poll, and where to send answers. A page with no material refuses to build. Customer-facing only.

Figures, QA and delivery

Skill	What it does
drawio-diagrams	Dense cloud architecture / data-flow / network diagrams authored as draw.io files, exported to PNG headlessly, QA'd, and inserted into decks. The editable .drawio is archived beside the deck.
image-slots	Fill an existing deck's empty picture frames with AI-generated images. Finds frames the same three ways template registration does, and works on any deck URL — including decks slide-forge did not generate.
slide-qa	Thumbnail-based visual QA of a generated deck: inspect every page against a defect checklist, drive the fix-and-regenerate loop, then delete the local QA files. The first pass is delegated in 6–8-slide ranges that return findings as text, so the page images stay out of the main context.
pptx-export	Export a generated deck to PowerPoint as a delivery format, with automatic fallback past Drive's 10MB export limit. From-scratch PPTX authoring stays with document-skills:pptx.
spreadsheets	Line-item estimates, BOMs and cost breakdowns as Excel and/or Google Spreadsheet from one JSON spec: typed columns, real formulas, --dry-run validation, and in-place updates that keep the URL stable.
settings	Read and change the two toolkit switches in config/settings.json through a multiple-choice dialogue: whether Gemini generates images at all, and whether the deliverable is Drive / Slides or a local .pptx. Never touches credentials.

End-to-end workflow

The forge workflow runs the whole pipeline as one continuous flow: route to
the right generation skill → interactive intake (including visual-QA and
output-format choices) → outline approval → spec + offline validation →
generation → visual QA via slide-qa (when chosen) → QA-file cleanup → PPTX
export via pptx-export (when chosen) → final report.

• Codex: invoke the forge skill by name.
• Claude Code: use /forge or /slide-forge:forge.
• Antigravity: use the matching shared skill through .agents/skills/.

All three hosts follow references/workflow-contract.md. They load one selected
generation skill completely, then only the reference sections activated by the
task.

Validate the shared prompt contracts after changing a host adapter, command,
skill, or workflow reference:

.venv/bin/python scripts/validate_agent_contracts.py

To regenerate only selected pages of an existing slide-forge deck, keep the
complete spec as the source of truth and run strict dry-run before the live call:

.venv/bin/python scripts/build_deck.py --template templates/<id>.json \
  --spec out/<deck>/deck.json --into <deck-url> --update-slides 3,7 \
  --dry-run --strict

Snapshot the deck before removing --dry-run. Unselected pages, the deck URL,
title, and Drive folder stay unchanged. Replaced pages receive new slide IDs,
so their comments and links to the old IDs are not preserved. Bare --into
remains the explicitly approved full-deck replacement mode.

Account Executive workflow

Two more commands cover the sales side, where the deliverable is not a deck but
the AE's next action:

• /account <customer name> — create or update a customer's activity plan. Reads the
  ledger, records what came out of the last meeting, checks the playbook's ten
  review questions, turns the unanswered ones into dated actions, and replaces
  the contents of the same activity-plan deck (the shared link keeps working).
• /visit <customer name> — prepare one visit. Routes phase × audience to the right
  material type, keeps customer-facing and internal artifacts in separate
  files and folders, generates and files them, then writes the visit back to
  the ledger and refreshes the activity plan.

Both keep the source of truth in accounts/<AE name>/<customer name>/account.json
(git-ignored) and file the output under <Drive root>/<AE name>/<customer name>/.
The Drive root is asked once and remembered in config/sales.json. The phases,
gate IDs, five material types and ten checkpoints all live in
references/scalar/sales-playbook.md.

Scalar product facts and prices — capability, edition, version, release status,
billing model, list price, Pod counting — come from the OKF bundle
(OKF-ScalarDB-ScalarDL), not
from memory or a web search. references/scalar/okf-bundle.md says where to find
it and how to cite it; the bundle is public, so its list prices are citable as 定価
(tax-excluded) reference-estimate material — never as a confirmed price, and never
for the items it marks 非公開.

Quick start (template-driven)

.venv/bin/python scripts/list_templates.py                 # registered templates
.venv/bin/python scripts/build_deck.py \
    --template templates/scalar-2026.json --spec deck.json --dry-run --strict
.venv/bin/python scripts/build_deck.py \
    --template templates/scalar-2026.json --spec deck.json
.venv/bin/python scripts/fetch_thumbnails.py <URL> --out out/qa   # visual QA (slide-qa skill)
.venv/bin/python scripts/cleanup_qa.py                            # delete QA files when done
.venv/bin/python scripts/export_pptx.py <URL> --folder <FOLDER>   # optional PPTX delivery (pptx-export skill)

A clean --dry-run prints a three-line summary. Add --verbose when you need
the per-slide layout list or every auto-fitted text; on failure, problems that
differ only by their slide index are reported once with the slides named.

Register a new master: scripts/inspect_template.py <URL> --emit templates/<id>.json --name <id>,
then review the guessed roles by hand (see the google-slides-template skill).

Quick start (code-first)

A deck is one Python module; a function is one slide. See
examples/pattern-gallery/deck.py and references/diagram-cookbook.md.

.venv/bin/python scripts/validate_layout.py mydeck.py --quiet   # offline checks, no API calls
.venv/bin/python scripts/render_deck.py     mydeck.py           # validates, then generates

With --quiet a clean deck prints nothing at all; drop the flag to see which
text was auto-fitted. Either way the exit code is 1 when problems are found,
and the problems themselves always print.

validate_layout.py catches footer intrusion, off-slide geometry, title
wrapping, floating/buried connector endpoints, text hidden behind
later-drawn shapes, and text overflow — before any API call. What it cannot
judge (arrow routing, contrast, whether the figure communicates) is what the
thumbnail QA of the slide-qa skill is for: see references/validation.md.

Quick start (slide templates)

slide-templates/ holds 116 ready-made one-page templates in fifteen packs. A
template takes semantic input slots (not coordinates) and renders one slide
into a deck spec, so it works with any registered master.

.venv/bin/python scripts/list_slide_templates.py --pack analysis   # what's registered
.venv/bin/python scripts/validate_slide_templates.py --pack analysis   # offline validation
.venv/bin/python scripts/render_slide_template.py \
    --template swot-analysis --data my-swot.json --out out/swot.json \
    --density print                                # print handout / presentation slide

--density applies to templates that declare $density variants (the
read-alone and business-plan packs); others ignore it. Every template is
catalogued with a rendered image in
references/slide-template-catalog.md.

Name a template from a deck spec. Write $template on a slide and that
template expands into one slide. The keys under data are the slot names from
the template's Inputs table in the catalog, which also gives each slot's
type, whether it is required, and its limits.

{
  "slides": [
    {
      "$template": "swot-analysis",
      "data": {
        "title": "Our strategic position",
        "quadrants": ["Strength: …", "Weakness: …", "Opportunity: …", "Threat: …"],
        "insight": "…",
        "source": "Board meeting, March 2026"
      },
      "notes": "Speaker notes (optional)"
    }
  ]
}

Keys other than $template / data / density / lang are merged over the
rendered slide, so a spec can attach notes or retarget layout. Density comes
from the slide, then the spec, then the template's own default. Expansion runs
before validation, generation and --into alike, so --dry-run --strict checks
the inputs and fails before anything is created.

lang picks the language of the words the slide prints for itself. Table
headers, axis ends and furniture like Source: come from
slide-templates/i18n/<lang>.json. What you wrote under data is never
translated — your copy is printed as given.

{ "lang": "en", "slides": [{ "$template": "gap-analysis", "data": { … } }] }

lang can sit on a slide or on the spec (slide, then spec, then the ja
default). The drawing primitives read the same resource — source_note's
Source, the calendar weekday heads — so a template and the figures around it
cannot end up in different languages on one page. A key with no translation is
printed in the default language, so a gap shows up as a Japanese word rather
than a blank. For a single slide, render_slide_template.py --lang en.

Install as a Claude Code plugin

The repo doubles as a plugin marketplace (.claude-plugin/marketplace.json,
one plugin bundling all twenty-five skills):

/plugin marketplace add wfukatsu/slide-forge
/plugin install slide-forge@slide-forge

Skills become available as slide-forge:<skill-name>, and the pipeline
command as /slide-forge:forge. After installing,
run the Setup below inside the plugin root (${CLAUDE_PLUGIN_ROOT}) — the
venv, OAuth credentials, and cloud icons are machine-local and not bundled.
The guided setup prompt walks through it
interactively.
Alternatively, clone the repo and symlink skills/* into ~/.claude/skills/
(the layout used during development); pick one of the two, not both, or the
skills will be listed twice.

Use with Codex

Codex uses the same skills and Python engine. In a repository clone, the
.agents/skills/ entries expose all twenty-five generation/support skills plus the
end-to-end forge skill. Start Codex from the repository root and invoke
forge by name; the Claude-specific /slide-forge:forge command and plugin
marketplace manifest are not required.

Project-wide Codex instructions live in AGENTS.md. Host-tool mappings,
sequential fallback for environments where agent delegation is unavailable,
and setup details are documented in
references/codex-compatibility.md.

The .agents/skills/* symlinks point back to skills/*, so Codex and Claude
Code read the same skill definitions rather than maintaining two copies.

Verify discovery from the repository root by asking Codex to list or use the
forge, google-slides, and slide-qa skills. No Claude plugin installation
is needed for Codex.

Requirements

• Python 3.10+ (macOS / Linux)
• A Google account that can create Google Slides / Drive files
• draw.io desktop — only for the drawio-diagrams skill:
  brew install --cask drawio (the export script also finds the app-bundle
  binary at /Applications/draw.io.app)
• mermaid CLI — only for the nexus-report-slides skill, to render a
  report's structure diagrams: npm i -g @mermaid-js/mermaid-cli (needs
  Node.js; the export script looks for mmdc on PATH)
• Google Chrome — only for the nexus-report-slides skill, to screenshot
  product UI mocks: any of google-chrome / chromium / chrome on PATH,
  /Applications/Google Chrome.app on macOS, or $CHROME_BINARY
• A Gemini API key — only for optional AI image generation

Setup

All commands run from the slide-forge root: the clone directory for Codex or a
local Claude setup, and ${CLAUDE_PLUGIN_ROOT} for a Claude plugin install.

Some things are generated on your machine rather than committed — the
vendor cloud icons and the slide masters. They are large (a master is 6–8MB),
machine-specific, or not ours to redistribute, so the repository ships the
means to produce them instead of the files. A clone is not fully usable until
you have run the steps below that you need.

Generated here	Why not committed	Step
assets/cloud-icons/	AWS / Google Cloud / Azure do not permit redistribution	4
templates/masters/*.pptx	6–8MB each; the master has to live in your Drive to be copied	5

Guided setup — copy this prompt

Steps 1–8 below are the reference. If you would rather be walked through them,
start an agent session (Claude Code, Codex, …) with the slide-forge root as the
working directory and paste this prompt. It asks what you actually intend to
use, runs only the steps that follow from your answers, and hands the browser
work back to you.

Set up slide-forge on this machine for the first time.

Work from the slide-forge root — the clone directory, or ${CLAUDE_PLUGIN_ROOT}
for a Claude plugin install — and read the "Setup" section of README.md there.
Steps 1-8 are the source of truth: follow them, don't improvise. If you cannot
find README.md, ask me for the path before doing anything else.

First, ask me with AskUserQuestion — one call, all four questions, your
recommended option first; if your host has no such tool, ask the same four as
a numbered list and wait for my answers:
1. What I plan to use, so you know which optional steps apply — multi-select,
   with a "just the basics" option: decks from a corporate template (needs a
   slide master — an existing one, or one you build for me),
   cloud architecture diagrams (vendor icons + draw.io),
   nexus-architect explanation decks (mermaid CLI + Chrome), AI-generated
   images (Gemini API key).
2. Where the deliverable should go — Google Drive / Slides, or a local .pptx.
3. Whether Gemini image generation is allowed at all.
4. Whether CLI messages should be English or Japanese (GSLIDES_LANG).

Then work in this order, skipping whatever my answers made unnecessary:
- Step 1, Python environment: create .venv and install requirements.txt. If
  .venv already exists, verify it rather than recreating it.
- Step 2, OAuth client: mine to do in the browser. Do NOT try to automate the
  Google Cloud Console. Check whether config/credentials.json is already
  there; if not, print the numbered console steps from the README, wait until
  I have saved the file, then continue.
- Step 3, verify: run scripts/list_templates.py and let me complete the
  consent screen. A printed template list means auth works.
- Step 8, settings: apply my answers via scripts/settings.py, then --show the
  result. Tell me how to set GSLIDES_LANG if I chose Japanese.
- Step 5, slide master — only if I said I want decks from a corporate
  template. Start with scripts/check_template_access.py: it reports which
  registered masters this account can actually copy. Templates it marks OK
  need nothing further. For the rest, do not assume I have access to a master
  someone else owns — ask which of these three fits, offering (a) first:
  a. I have no master to point at — build one from my own brand with the
     template-forge skill (scripts/build_template.py). This route needs
     nobody else's permission, and it ends with the template registered.
  b. I can open a master in Drive — I give you the URL, you register it with
     scripts/inspect_template.py --emit templates/<id>.json --name <id>.
  c. Someone handed me a .pptx — I save it to templates/masters/<id>.pptx,
     you run scripts/import_template_master.py --id <id>.
  Re-run check_template_access.py afterwards to show what changed. Leaving a
  master unreachable is an acceptable outcome: say which templates stay
  blocked, and that blank-16x9 works without one.
- Steps 4 and 7, only for what I selected: cloud icons, a Gemini key. The
  pattern-catalog images (step 6) are committed — that step is for
  regenerating them, not for setup, so skip it.

Rules:
- Check before you install. Report what is already in place and leave it be.
- Never print, echo, or cat anything under config/ — credentials, tokens, API
  keys. Report only whether a file exists.
- Anything that needs my browser or my account — Google Cloud Console, the
  consent screen, the Gemini key, uploading a master to Drive — stops and asks
  me. Never create accounts or enter credentials on my behalf.
- A failing step doesn't end the run: finish the independent ones, then say
  what is left.

Finish with a short table — each step done / skipped (why) / waiting on me —
plus one command I can run to prove it works, and which skills are usable now
versus still blocked.

1. Python environment

The repo expects .venv at its root. A local environment is the simplest
cross-host setup:

python3 -m venv .venv
.venv/bin/pip install -r requirements.txt

For Claude plugin installations that can be replaced during upgrades, keeping
the real environment outside the plugin root is useful. Create a shared venv
and point .venv at it with an absolute symlink. The historical
~/.claude/venvs/gslides location remains supported but is not required by
Codex or by the engine.

2. Google Cloud OAuth client (one-time)

The engine calls the Slides + Drive APIs as you, via an OAuth desktop
client (scopes: auth/presentations, auth/drive). In
Google Cloud Console:

1. Create (or pick) a project.
2. APIs & Services → Library — enable Google Slides API and
   Google Drive API.
3. APIs & Services → OAuth consent screen — configure the app
   (Internal for a Workspace org; External works too — add yourself as a
   test user while the app is in Testing).
4. APIs & Services → Credentials → Create credentials → OAuth client ID →
   Desktop app — download the JSON and save it as config/credentials.json
   (chmod 600). Override the directory with $GSLIDES_CONFIG_DIR if you
   keep credentials elsewhere.

3. First run / verify

.venv/bin/python scripts/list_templates.py

CLI messages are English by default; set GSLIDES_LANG=ja for Japanese
(export GSLIDES_LANG=ja, or per command). This affects only the scripts'
terminal output — never the generated deck or spreadsheet content.

The first call opens a browser consent screen and writes config/token.json
(refreshed automatically afterwards). If a template list prints, auth works.

4. Cloud vendor icons (only for cloud architecture figures)

AWS / Google Cloud / Azure icon sets are vendor assets and are not
committed; fetch them once:

.venv/bin/python scripts/fetch_cloud_icons.py

5. Slide masters (for the copy-mode templates)

scalar-2026, scalar-2026-boilerplate, corporate and aixdevops are
generationMode: copy templates: generating duplicates a real Google Slides
presentation. templates/<id>.json only points at one, so on a fresh clone
those templates cannot work until the master exists in your own Drive.

The masters themselves are not committed — 6–8MB each, and a master is only
useful once it lives in your own Drive. Access to someone else's master is not
a prerequisite: route (a) below builds one for you, and it is the whole of
this step if you have nothing to start from.

Ask first which of the registered templates this account can actually copy
(needs step 2's credentials; --json for the machine-readable form, exit code 1
when something is unusable):

.venv/bin/python scripts/check_template_access.py

Anything it marks OK already generates. For each one it does not — the master
belongs to an organization you are not in, was never shared with you, or was
deleted — pick a route:

a. No master to point at? Build your own. The template-forge skill creates
a new master from a design spec — brand colours, fonts, logo, footer — and
registers it, ready for google-slides-template. Nothing and nobody else is
needed; this is the path if you are not working with an existing corporate deck,
or if the corporate one is out of reach.

.venv/bin/python scripts/build_template.py --help

b. Can you open a master in Drive? Register it — analyse it once and review
the guessed roles by hand:

.venv/bin/python scripts/inspect_template.py <URL> --emit templates/<id>.json --name <id>

c. Were you handed a .pptx of a master? Save it as
templates/masters/<id>.pptx, then upload and re-register it in one step:

.venv/bin/python scripts/import_template_master.py --all
# or one at a time
.venv/bin/python scripts/import_template_master.py --id scalar-2026

Importing a .pptx makes Slides mint new object IDs for every layout, master
and decoration, so the script re-runs inspect_template.py over the imported
presentation and writes the result over templates/<id>.json. The
human-verified role assignment is preserved — only the identifiers move.
Expect templates/*.json to show as locally modified afterwards; that is your
machine's copy of the registration and is not meant to be committed back.

If you have edit access to a master already, write it out for a teammate with
scripts/export_template_master.py --all. Drive refuses to export a
Docs-editors file over 10MB (exportSizeLimitExceeded), so larger masters have
to be downloaded by hand from the Slides UI (File > Download > Microsoft
PowerPoint). Do not delete slides to get under the limit: Slides drops any
layout that no slide uses — aixdevops loses three registered layouts that way
— and the bundled slides listed in existingSlideIds are part of what those
templates offer. See templates/masters/README.md.

Whichever route you took, re-run scripts/check_template_access.py to confirm
the registration now points at something you can copy.

blank-16x9 is generationMode: create and needs no master, so the
google-slides spec path and every --dry-run validation work on a bare clone.
Leaving the out-of-reach templates unusable is a legitimate end state — nothing
else in the repository depends on them.

6. Slide pattern catalog images

references/slide-pattern-catalog.md
shows all 52 page patterns as rendered images. Both the text and the images
(~2MB, under references/images/slide-patterns/) are committed, so a bare
clone reads with pictures. When a pattern is added or its rendering changes,
regenerate the catalog and commit the images with it:

.venv/bin/python scripts/build_deck.py \
    --template templates/scalar-2026.json --spec examples/slide-pattern-index.json
.venv/bin/python scripts/fetch_thumbnails.py <URL printed above> --out out/patterns --size MEDIUM
.venv/bin/python scripts/build_pattern_catalog.py --thumbs out/patterns

Regeneration needs a working scalar-2026 master (step 5) and, for the three
cloud-architecture patterns, the vendor icons (step 4).

Both catalog generators are bilingual: one run writes the English document at
the original path and the Japanese one at its .ja.md sibling. Japanese text
comes from the source data (the pattern spec / each template.json); English
text comes from the sidecars under references/i18n/. A new pattern or
template with no sidecar entry falls back to Japanese with a warning, so add
its English strings there when you add one.

The slide-template catalog
(references/slide-template-catalog.md,
images under references/images/slide-templates/, also committed) works the
same way: build each pack's catalog spec with
scripts/build_slide_template_catalog.py, generate the deck, fetch
thumbnails, and run scripts/build_template_catalog_doc.py — the regeneration
commands are at the top of that document.

7. Optional: AI image generation

For scripts/images.py, set GEMINI_API_KEY or save the key to
config/gemini_api_key (gitignored, like the OAuth files). The key must
belong to a billed project — the image model has zero free-tier quota.

8. Settings — image generation and where the deliverable goes

Two switches, set once in config/settings.json (gitignored; copy
config/settings.example.json to start) and applied to every run. Ask the
settings skill (/slide-forge:settings) to change them through a
multiple-choice dialogue, or run the commands directly:

.venv/bin/python scripts/settings.py --show                  # current values

.venv/bin/python scripts/settings.py --image-generation off  # no Gemini images at all
.venv/bin/python scripts/settings.py --output local          # deliverable = local .pptx
.venv/bin/python scripts/settings.py --output google         # deliverable = Drive / Slides (default)

Key	Values	Effect
imageGeneration	true / false	false refuses aiImage figures, images.py, and fill_image_slots.py — offline, before anything is spent
output	"google" / "local"	local exports the generated deck to .pptx under localOutputDir (default out/pptx) after generation

The defaults match the behaviour from before this file existed, so an absent
settings.json changes nothing. GSLIDES_IMAGE_GENERATION / GSLIDES_OUTPUT /
GSLIDES_LOCAL_DIR override it for one run, and build_deck.py --output for one
command. output: local still builds through the Slides API — it changes the
deliverable, not the build — and the generated deck is left in Drive as the
editable source. Details: references/settings.md.

What each skill needs

Skill	venv + OAuth	Slide master	Cloud icons	External CLI	Gemini key
google-slides-template	✔	✔ for the copy-mode templates	when drawing cloud diagrams	—	optional
google-slides	✔	— (blank-16x9 needs none)	when drawing cloud diagrams	—	optional
scalar-product-slides	✔	✔ scalar-2026	when drawing cloud diagrams	—	—
scalar-proposal-slides	✔	✔ scalar-2026	—	draw.io, to edit the bundled environment diagram	—
drawio-diagrams	✔ (for deck insertion)	—	—	draw.io	—
slide-qa	✔	—	—	—	—
pptx-export	✔	—	—	—	—
spreadsheets	✔ (OAuth only for Google Spreadsheet output)	—	—	—	—
settings	— (reads/writes a local JSON file)	—	—	—	—
nexus-report-slides	✔	— (blank-16x9 needs none)	—	mermaid (mmdc) for structure diagrams, Chrome for UI mocks	—
template-forge	✔	base master, if copying one	—	—	—
slide-template-creator	✔ (to render catalog previews)	—	—	—	—
current-state-analysis	✔	✔ for the copy-mode templates	—	—	—
pricing-strategy	venv always; OAuth only to generate slides	—	—	—	—
analysis-template-creator	✔ (to render catalog previews)	—	—	—	—
calendar-slides	✔ (to generate decks and render catalog previews)	—	—	—	—
b2b-account-maps	✔	✔ for the copy-mode templates	—	to edit the exported maps	—
scalar-account-plan	✔	✔ scalar-2026	—	—	—
scalar-account-planning-session	✔	✔ scalar-2026	—	—	—
scalar-ae-materials	✔	✔ scalar-2026	—	—	—
scalar-deal-intake	— (only to read Drive / Gmail sources)	—	—	—	—
scalar-nurture-intake	— (only to read Drive / Gmail sources)	—	—	—	—
hearing-sheet	✔ (OAuth only for Google Spreadsheet output)	—	—	—	—
hearing-slides	✔	✔ for the copy-mode templates	—	—	—
image-slots	✔	— (works on any deck URL)	—	—	✔

"✔ for the copy-mode templates" in the Slide master column is satisfied by
any master you can copy, including one template-forge builds for your own
brand — see step 5a, and run
scripts/check_template_access.py to see where you stand. The rows naming
scalar-2026 are the exception: those skills carry Scalar-specific content and
assume that master.

Secrets hygiene: config/ (credentials, tokens, API keys), out/, cache/,
and assets/cloud-icons/ are gitignored — nothing machine-local is ever
committed. Keep Drive sharing on your master decks restricted; their file IDs appear in
templates/*.json. Masters are not committed either: templates/masters/ is gitignored, so a
master .pptx you drop there stays local. Review what a master contains before
sharing one — scalar-2026-boilerplate carries company and customer-facing
slides.

Repository layout

.agents/      Codex skill discovery links and the Codex-native forge skill
AGENTS.md     Codex project rules and host-tool compatibility mappings
skills/       shared SKILL.md definitions used by Codex and Claude Code
commands/     Claude Code slash commands (/forge, /account, /visit)
accounts/     per-customer sales ledgers (git-ignored; never committed)
scripts/      shared engine — one importable package
  _auth.py        OAuth helper (Slides + Drive)
  settings.py     image-generation and output switches (config/settings.json)
  build_deck.py   template-driven generator (TemplateDeck); --dry-run validation
  diagrams.py     Canvas drawing hub (aggregates the mixins below)
  charts.py illustrations.py patterns.py pages.py events.py calendars.py   figure libraries
  icons.py cloud_icons.py images.py                 pictograms, vendor icons, AI images
  inspect_template.py assemble_spec.py layout_sample.py list_templates.py
  build_template.py               design spec -> new master (template-forge)
  slide_templates.py render_slide_template.py list_slide_templates.py validate_slide_templates.py
                                  slide-templates/ pack engine, renderer, registry, offline validation
  build_slide_template_catalog.py build_pattern_catalog.py build_template_catalog_doc.py
                                  catalog specs and the generated catalog docs
  fill_image_slots.py             fill an existing deck's empty picture frames (image-slots)
  nexus/collect.py nexus/build_nexus_deck.py   nexus-architect coverage + deck spine
  html_shot.py mermaid_export.py  HTML / mermaid -> PNG for slide insertion
  validate_agent_contracts.py     shared prompt-contract eval for hosts/commands/skills
  account_graph.py build_account_graph.py   influence / discovery graphs -> .drawio
  scalar/account_ledger.py       per-customer sales ledger: validate, gaps, slot data
  scalar/account_workspace.py    Drive tree <root>/<AE>/<customer>/… (idempotent)
  scalar/build_account_plan.py   ledger -> activity-plan deck (same URL on update)
  scalar/build_account_planning.py   aps.json -> Account Planning Session decks
  scalar/export_ledger_md.py     ledger -> Markdown for the CRM
  hearing/hearing_sheet.py hearing/model.py   hearing sheet of record <-> Markdown / xlsx / Google Spreadsheet
  hearing/hearing_slots.py hearing/qr.py      gaps -> collection-slide slots, answer-destination QR
  export_template_master.py import_template_master.py   bundled masters <-> Drive
  fetch_thumbnails.py cleanup_qa.py fetch_cloud_icons.py export_pptx.py
  build_sheet.py  line-item spreadsheets (xlsx + Google Spreadsheet)
  build_model.py  planning-model spreadsheets (inputs, scenarios, charts) a deck links to
  sheets_link.py  {{sheet:NAME}} bound numbers and the sheetsChart figure
  sync_deck.py    refresh a deck's linked charts and bound numbers from its sheet
  deckkit.py render_deck.py validate_layout.py      code-first path (offline checks)
  drawio_export.py drive_folder.py snapshot_version.py   draw.io export, Drive folders, version snapshots
  scalar/         Scalar deck builders
templates/    registered masters (scalar-2026*, aixdevops, corporate) + blank-16x9 + themes/ + presets/ (template-forge design presets)
  masters/        drop a master .pptx here and import it (gitignored; see its README)
  sales/ nurture/ marketing/   Markdown forms: stage records and hearing sheet, nurture tracks and segments, content brief and event plan (each has its own README; these are forms, not slide templates)
slide-templates/ reusable single-slide content templates + registry (116 in 15 packs; manifest.json)
assets/       scalar/ (brand: pictograms, logos, product-logos), holidays/ (Japanese national holidays CSV), cloud-icons/ (gitignored)
references/   engine, workflow, and host compatibility documentation
  images/slide-patterns/  pattern catalog images (committed; regenerate via Setup 6)
  i18n/           English sidecar strings for the two generated catalogs
examples/     runnable spec catalogs and code-first example decks
config/       credentials.json + token.json (gitignored, 0600) + settings.json (switches)
cache/ out/   transient render cache and QA output (gitignored)

Text fitting

The Slides API cannot switch on Slides' own "shrink text on overflow"
(autofitType accepts only NONE), and text that overflows is drawn outside
its box — over the element below it or off the page. slide-forge therefore
fits text before sending the requests: it tightens the inner margin on the
side the text is not aligned to, then shrinks the font in 0.5pt steps down to
70% of its size (never below 8pt). Text that already fits is drawn exactly as
written.

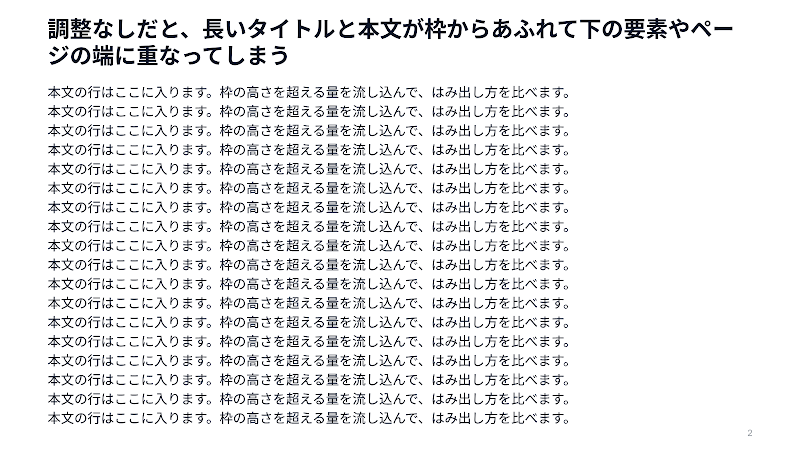

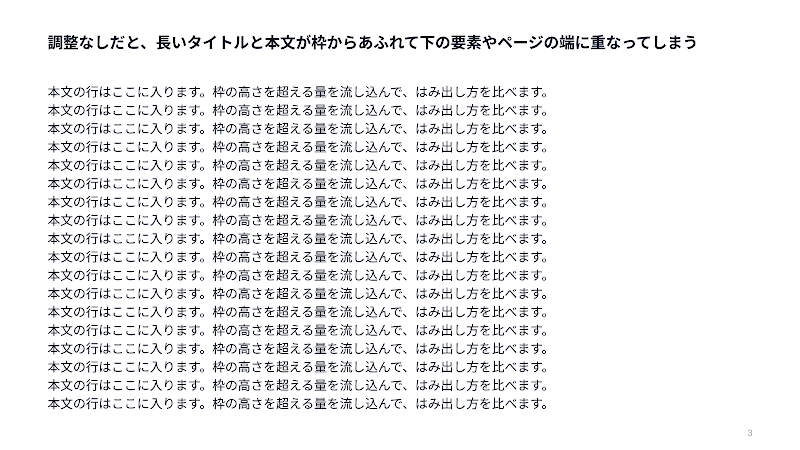

Without fitting ("textFit": "none")	With fitting (the default)

• Title, subtitle and body slots and every figure shape are fitted. Table
  cells are not; their rows grow on their own.

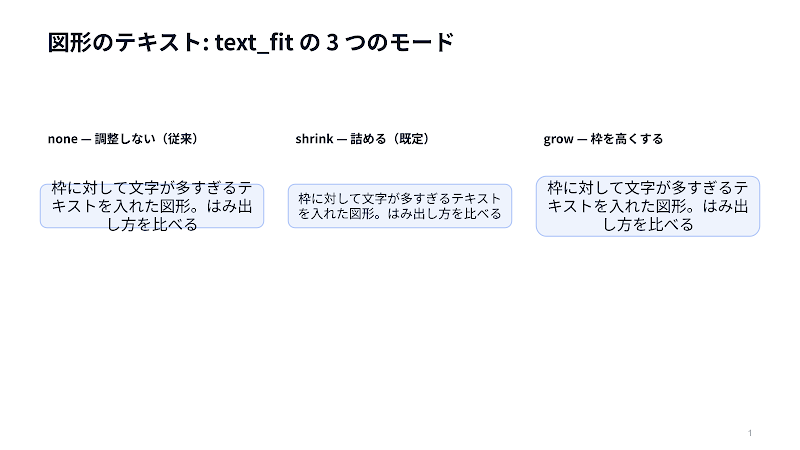

• textFit (shrink / grow / none) and minFontSize go on a slide or in
  defaults. A "density": "print" deck may shrink text down to 8pt, since
  8–10pt reads fine on paper.
• --dry-run and generation print every adjustment as fit:. Text that
  still overflows at the floor is a finding, so --strict fails on it.

Details: references/api-notes.md §14b and
references/validation.md.

Slide pattern catalog

Which page shapes can this build? See
references/slide-pattern-catalog.md —
52 patterns in 9 groups, each with a rendered image, when to use it, and the
figures type names to write in the spec. The layout rules behind them are in
references/slide-patterns.md.

Group	Patterns	Picks
Skeletons (6 types)	6	How the page itself is laid out
Scaffolding pages	4	Deck scaffolding — summary, agenda, storyline, ghost
Quantitative pages	7	Arguing with numbers
Comparison/evaluation pages	6	Putting options side by side
Structure/logic pages	7	Making a relationship visible
Planning/org pages	5	Time and people
Calendar pages	9	Dates — a month, days, a week, sprints, a year, a deadline, daily volume, a roster
Qualitative/technical pages	5	Everything that isn't a number
Closing/appendix pages	3	The decision and what follows

Beyond these page patterns, slide-templates/ registers 116 ready-made
one-page templates in fifteen packs (marketing-analysis, b2b-sales, scalar-ae,
planning, calendar, analysis, read-alone, business-plan, nexus, hearing, case-studies,
proposal, marketing, partner, pricing). Each is catalogued with a rendered image, the
question it answers, and its guardrails in
references/slide-template-catalog.md.
The read-alone and business-plan packs' templates carry $density variants: the same template
renders as a dense handout (print) or a sparse stage slide (presentation),
chosen by the intake's Purpose question or render_slide_template.py --density.

Examples

Every spec under examples/ is authored against templates/scalar-2026.json
and validates cleanly against it. They are not portable to
templates/blank-16x9.json — that template has no TITLE placeholder and
declares no CLOSING role, so the same spec reports dozens of findings.
corporate and aixdevops accept some of them; scalar-2026 accepts all.

.venv/bin/python scripts/build_deck.py \
    --template templates/scalar-2026.json --spec examples/<name>.json --dry-run --strict

Example	Slides	Shows
charts-demo.json	5	Tables and graphs — the charts.py catalog
patterns-demo.json	7	Layout patterns from patterns.py
illustration-gallery.json	13	Concept figures from illustrations.py
icon-gallery.json	10	The pictogram library (icons.py)
code-blocks-demo.json	2	Syntax-highlighted code blocks
event-announcement.json	4	Seminar / conference announcement parts
read-alone-guide.json	30	Density patterns for print / read-alone decks
design-catalog.json	49	The full design-pattern catalog †
slide-pattern-index.json	71	One page per pattern — 52 are patterns, the rest are cover, section and divider pages †
cloud-architecture.json	6	Cloud architecture figures †
b2b-account-review.json	13	A worked account review built from all eight b2b-sales templates — cover, exec summary, both maps in their two-axis/MEDDPICC and structural forms, and their supporting pages
estimate-sample.json	2 sheets	Line-item estimate for the spreadsheets skill ‡

† Draws cloud_icon* / cloud_zone figures, so it needs the vendor icons
first — they are excluded from the repository because AWS, Google Cloud and
Azure do not permit redistribution. Without them --dry-run reports
Cloud icons have not been fetched yet; run
.venv/bin/python scripts/fetch_cloud_icons.py once (see
assets/cloud-icons/README.md). Every other
example above validates on a bare clone.

‡ A spreadsheet, not a deck — run it through build_sheet.py instead:
.venv/bin/python scripts/build_sheet.py --dry-run examples/estimate-sample.json

Code-first decks are Python modules rather than specs, and generate against
scalar-2026 directly:

Example	Shows
examples/scalardb-architecture.py	ScalarDB architecture — cloud icons, pictograms, brand logos and connectors on one slide †
examples/scalardl-architecture.py	ScalarDL architecture, same mix †
examples/pattern-gallery/deck.py	The deckkit.py code-first path
examples/scalardb-scalardl/	A 55-slide product walkthrough, one feature per page — the largest worked example

License

MIT. Cloud vendor icons remain the property of their vendors and are fetched
locally under their respective terms (see references/cloud-icons.md).
