DesignMD

Production-grade design context for AI coding workflows.

Extract a real design system from any production URL — colors, typography, spacing, breakpoints, motion, interaction states — and stream it as a portable DESIGN.md your coding agent can actually read.

Web · Benchmarks · CLI on npm · Examples · Roadmap

Quick start

npx @designmdcc/cli stripe.com > DESIGN.md

That's the whole flow. No account, no config, no API key. The command streams a measured DESIGN.md spec for stripe.com to stdout; redirect it into a file and hand it to your AI coding agent.

For repeat use, install globally:

npm install -g @designmdcc/cli
dmd stripe.com > DESIGN.md

Requires Node 18+.

What it does

URL  →  Live browser measurement  →  Structured tokens  →  DESIGN.md  →  Your AI agent

DesignMD opens the URL in a headless browser, measures the real visual system — colors from computed styles, typography from the cascade, breakpoints from live @media rules, hover/focus states from the CSSOM — and synthesizes a portable specification.

The output is the kind of file a senior engineer would actually use to rebuild the brand. Drop it into Cursor, Claude Code, Windsurf, Aider, Copilot, or paste it into any LLM chat. The model gets ground truth instead of guesses.

Terminal usage

dmd <url>                  # stream DESIGN.md to stdout
dmd <url> --out=PATH       # write to a file
dmd <url> --json           # extract tokens only (no LLM call — instant, no quota)
dmd <url> --force          # bypass cache, re-extract from live page
dmd <url> --quiet          # suppress progress messages on stderr
dmd --help
dmd --version

Common patterns

# Pipe into a project file
dmd stripe.com > ./design/stripe.md

# Send to clipboard
dmd https://linear.app | pbcopy

# Token-only extraction (machine-readable, free, instant)
dmd vercel.com --json | jq '.colors'

# Self-hosting / regional endpoint
DESIGNMD_API=https://my-designmd.internal dmd notion.so

stdout always carries the markdown (or JSON). Progress lines go to stderr, so pipes stay clean.

AI workflow integration

The generated DESIGN.md is purpose-built for LLM context windows. Drop it in once; reference it from your agent's rules file.

Claude Code

Add to your project's CLAUDE.md:

When building any UI in this project, read @DESIGN.md before generating code.
Use the colors, typography, and spacing from that file exactly — do not invent
brand values.

Cursor

Add to .cursor/rules (or .cursorrules):

Read DESIGN.md before writing UI code. Use its color palette, type scale,
and spacing values exactly. Every brand value should trace back to the file.

Windsurf · Aider · Cline · Continue

Same pattern — every modern coding agent supports a project-root rules file. Reference DESIGN.md from it.

Full integration guide: docs/using-with-ai-tools.md.

Sample output

A snippet from examples/DESIGN-stripe.md:

## Color Palette & Roles

### Primary
- **Brand Indigo (#0a2540)** — Hero typography, primary footer surface
- **Stripe Purple (#635bff)** — Primary buttons, focus rings, link accents

### Surface
- **Pure White (#ffffff)** — Page background, card surface
- **Cool Mist (#f6f9fc)** — Secondary surface, alternating sections

### Typography
| Role    | Font      | Size | Weight | Line Height |
|---------|-----------|------|--------|-------------|
| Display | Sohne Var | 64px | 600    | 1.05        |
| H1      | Sohne Var | 40px | 600    | 1.15        |
| Body    | Sohne Var | 18px | 400    | 1.6         |
| Code    | Sohne Mono| 14px | 400    | 1.5         |

### Breakpoints (measured live)
- 480px · 600px · 768px · 880px · 1024px · 1200px · 1440px

Full file: DESIGN-stripe.md · Live page

More examples

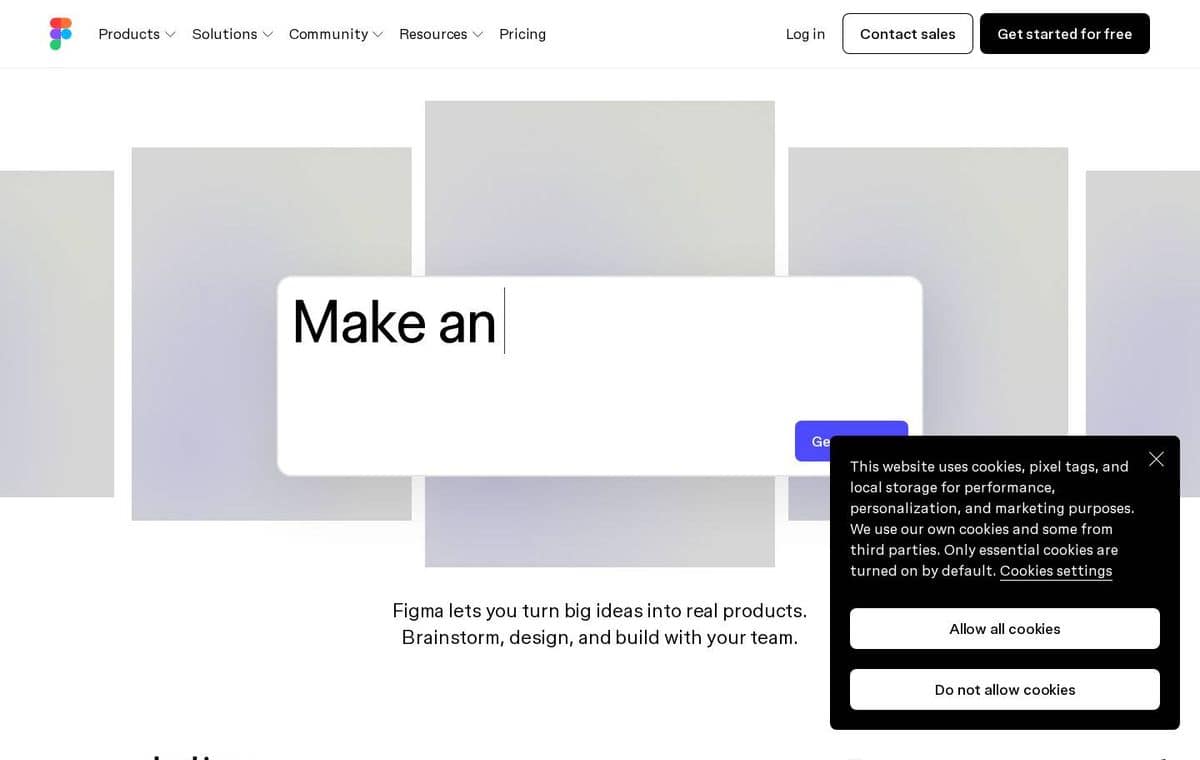

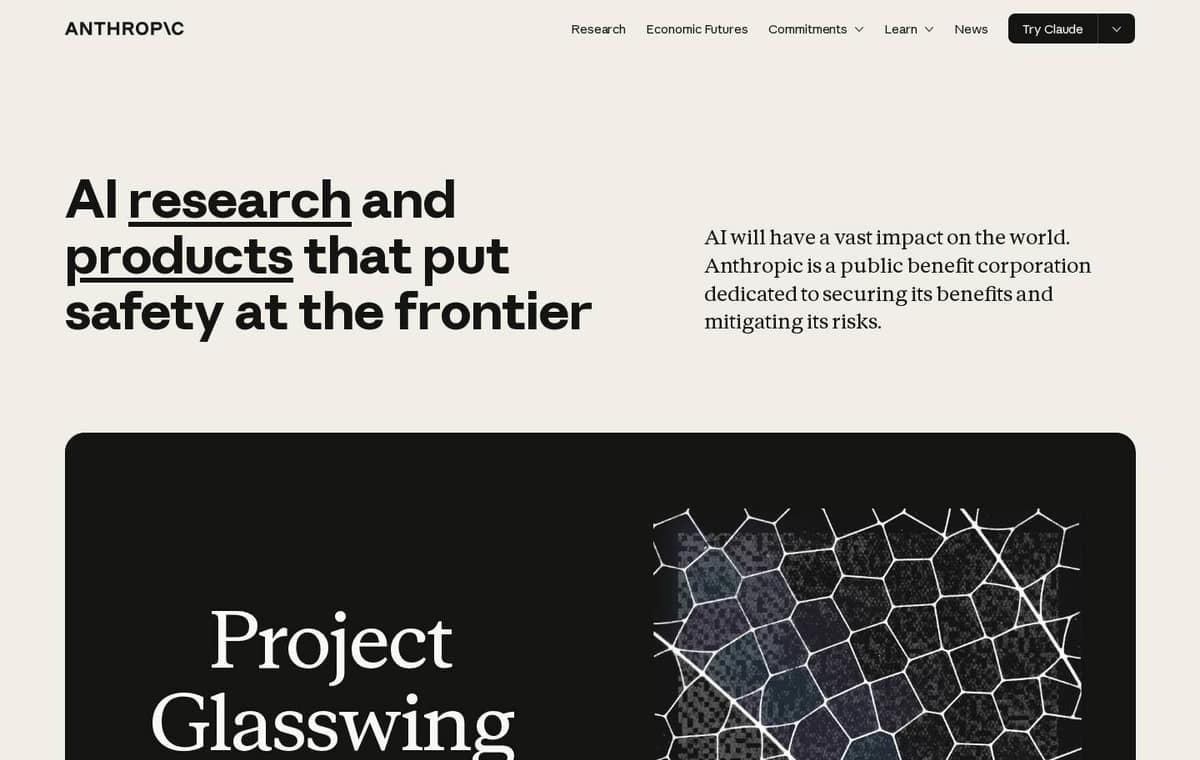

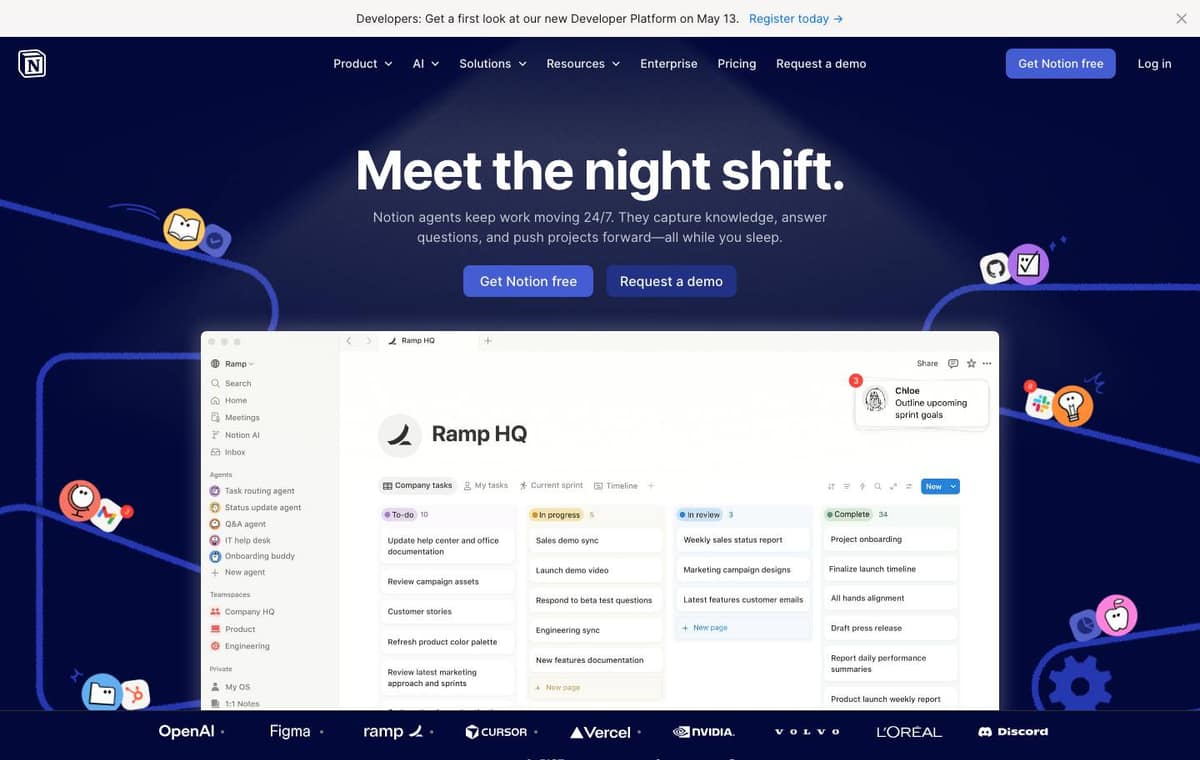

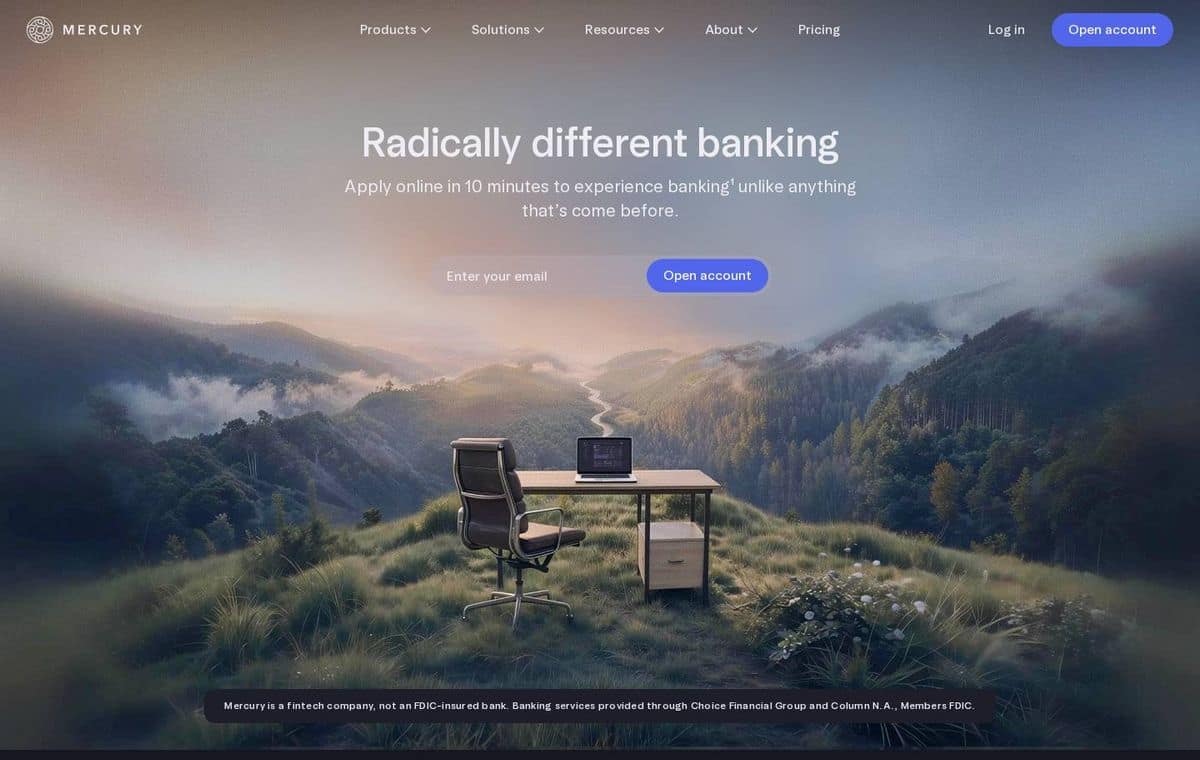

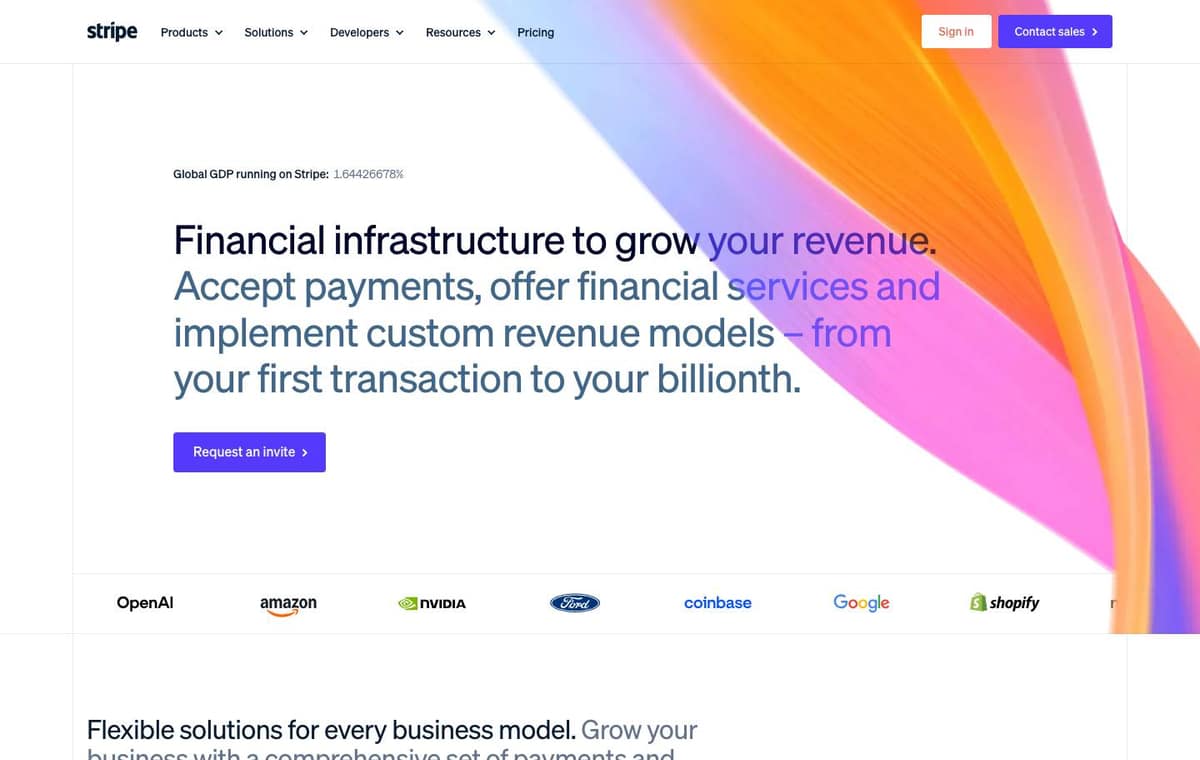

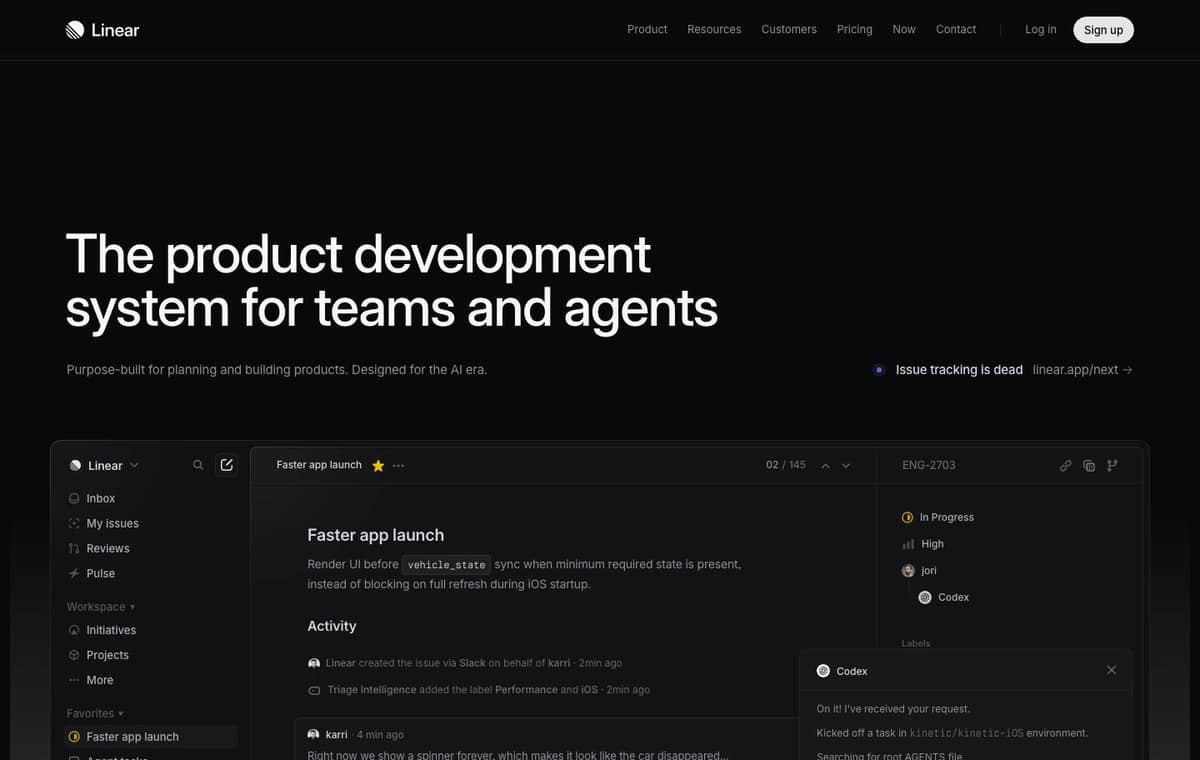

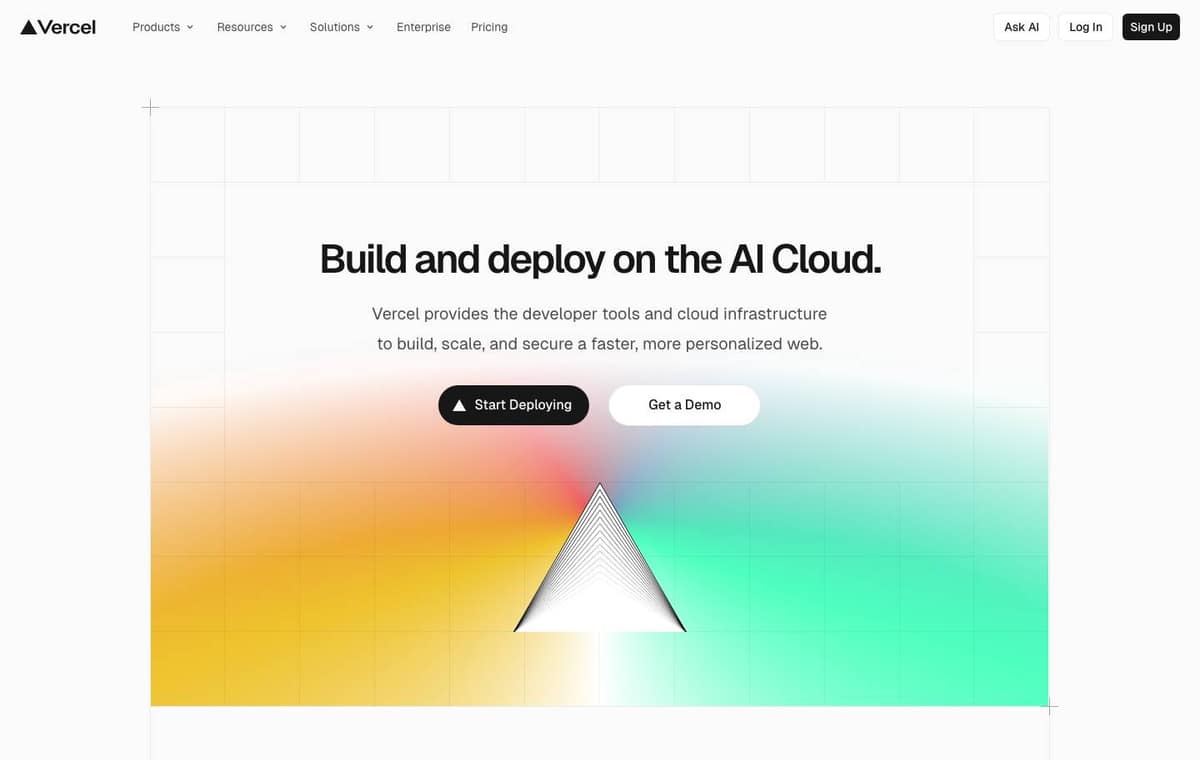

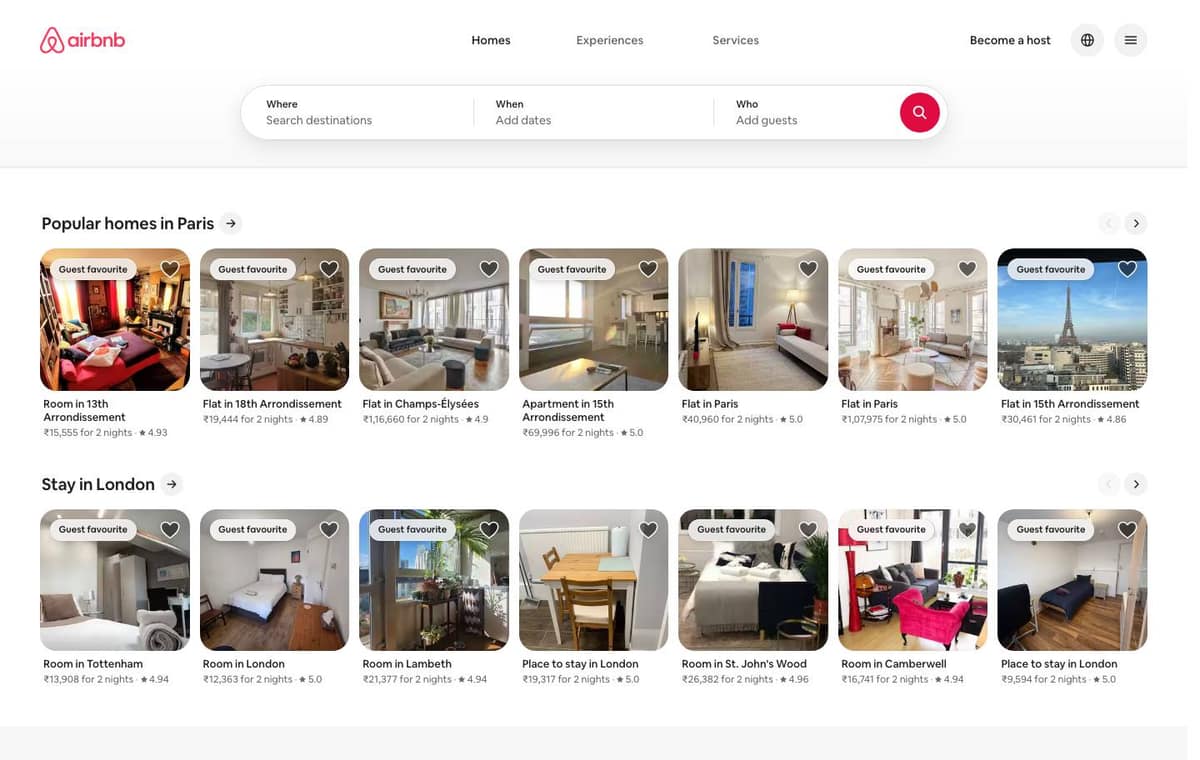

Eight production sites, each measured live. Click a card for the full DESIGN.md.

Stripe	Linear	Vercel	Notion
Anthropic	Mercury	Figma	Airbnb

A larger reference catalog — 56 measured sites across 13 categories — is live at designmd.cc/benchmarks.

Why DESIGN.md

DesignMD measures live, then formalizes the measurement as a markdown spec that survives the round-trip into an LLM context window. The file is portable, diff-able, and re-generable when the source site evolves.

Exit codes

The CLI uses distinct exit codes so scripts and agents can react correctly:

Rate limits

Anonymous use: 5 generations per day per IP-bucket. The --json flag does not count against this — it skips the LLM step entirely and returns the raw token extraction.

Per-user API keys with higher quotas arrive when account auth ships. See the roadmap.

Roadmap

See docs/roadmap.md for the full plan.

• 56-site benchmark catalog
• AI-ready DESIGN.md exports (markdown + JSON + thumbnail)
• CLI client — @designmdcc/cli shipped
• MCP server — @designmdcc/mcp for native Claude Desktop / Cursor / Windsurf tool calls — next
• 300-site catalog expansion
• Comparison pages — /benchmarks/compare/<a>-vs-<b>
• Structured search API — query benchmarks by palette / font / breakpoint
• Per-user accounts + higher quotas
• Token diff over time

Proprietary boundary

This repository is the public developer surface. It contains:

• Sample DESIGN.md outputs from the live catalog (examples/)
• High-level architecture and product positioning (docs/)
• UI screenshots (screenshots/)
• The CLI's published documentation (this README)

It does not contain:

• The extraction pipeline or browser instrumentation
• LLM prompts and synthesis logic
• Server source, rate-limiting, caching, or auth internals
• Schema definitions or operator tooling

For commercial licensing or production-access inquiries, reach out — adityaraj.info.

Environment

Contributing

This is a curated developer surface, not a fully open-source project. We welcome:

• Bug reports on designmd.cc — open an issue here
• Benchmark suggestions — open an issue with a URL you want measured
• Documentation improvements in docs/
• Better sample examples — PRs against examples/ welcome

For larger changes, open an issue first to discuss. See CONTRIBUTING.md.

License

MIT — covers the materials in this repository: the CLI source, sample DESIGN.md outputs, documentation, screenshots, and example thumbnails.

The MIT license does not extend to:

• The DesignMD production source code, automation, or infrastructure
• The token-extraction pipeline and prompts
• The DesignMD name, logo, and brand identity

Acknowledgments

Built by Aditya Raj. Thanks to the designers and engineers behind the modern web whose publicly accessible visual systems make benchmarking and design research possible.
