What it does

• Generates .tldr JSON files from natural language descriptions
• Exports diagrams to PNG or SVG using @kitschpatrol/tldraw-cli
• 6 diagram type presets: Architecture, Flowchart, Sequence, ML/Deep Learning, ERD, UML — with preset shape vocabulary and layout conventions
• Self-check loop — uses vision to read the exported PNG and auto-fix overlaps, clipped labels, and missing arrows before showing you
• Iterative review loop — collect feedback, apply targeted JSON edits, re-export until approved (5-round safety valve)
• Complexity-scaled layout — spacing automatically grows with node count to prevent overlaps
• Auto-update — pulls the latest skill version once per 24h
• Custom output directory — ask for any output path (e.g. ./artifacts/) and the skill will mkdir -p and export there
• Triggers automatically when diagrams would help explain complex systems
• Hand-drawn whiteboard aesthetic by default; switchable to clean fonts

Multi-Platform Support

Works with all major AI coding agents that support the Agent Skills format:

Comparison

vs Native Agent (no skill)

vs Other Diagram Skills

Supported diagram types

• Architecture: microservices, cloud, deployment — with tier-based color coding and hub placement
• Flowcharts: business processes, decision trees, state machines — with semantic shape types
• Sequence: actor-message flows approximated with rectangles + horizontal arrows
• ML / Deep Learning: layer-type color coding, tensor shape annotations
• ERD: entities as multi-line text rectangles with cardinality on arrows
• UML Class: classes as multi-line text rectangles with relationship arrows

Prerequisites

# Install tldraw-cli
npm install -g @kitschpatrol/tldraw-cli

# Verify
tldraw --version

Requires Node.js (npm). Works identically on macOS, Windows, and Linux — no extra setup required, no browser automation.

Skill Installation

Claude Code

# Global install (available in all projects)
git clone https://github.com/Agents365-ai/tldraw-skill.git ~/.claude/skills/tldraw-skill

# Project-level install
git clone https://github.com/Agents365-ai/tldraw-skill.git .claude/skills/tldraw-skill

Opencode

# Global install (Opencode-native path)
git clone https://github.com/Agents365-ai/tldraw-skill.git ~/.config/opencode/skills/tldraw-skill

# Project-level install
git clone https://github.com/Agents365-ai/tldraw-skill.git .opencode/skills/tldraw-skill

Opencode also reads ~/.claude/skills/ and .claude/skills/, so an existing Claude Code install is automatically picked up — no second clone needed.

OpenClaw / ClawHub

# Via ClawHub CLI (recommended)
clawhub install tldraw-pro-skill

# Manual install
git clone https://github.com/Agents365-ai/tldraw-skill.git ~/.openclaw/skills/tldraw-skill

# Project-level install
git clone https://github.com/Agents365-ai/tldraw-skill.git skills/tldraw-skill

Hermes Agent

git clone https://github.com/Agents365-ai/tldraw-skill.git ~/.hermes/skills/design/tldraw-skill

OpenAI Codex

git clone https://github.com/Agents365-ai/tldraw-skill.git ~/.agents/skills/tldraw-skill
# or project-level
git clone https://github.com/Agents365-ai/tldraw-skill.git .agents/skills/tldraw-skill

Installation paths summary

Updates

The skill auto-checks for updates once per 24 hours on first use in a conversation (a single git pull --ff-only). The check is silent when up to date, offline, or not a git install — it won't block or slow the workflow.

To update manually:

cd <your-install-path>/tldraw-skill && git pull

Package-manager installs handle updates themselves:

# ClawHub
clawhub update tldraw-pro-skill

Usage

Just describe what you want:

Create a microservices e-commerce architecture with API Gateway, auth/user/order/product/payment services,
Kafka message queue, notification service, and separate databases for each service

The agent will plan the layout, generate the .tldr JSON, export to PNG, self-check, and let you iterate.

Example

Prompt:

Create a microservices e-commerce architecture with Mobile/Web/Admin clients, API Gateway,
User/Order/Product/Payment services, Kafka event bus, Notification service,
and User DB / Order DB / Product DB / Redis Cache / Stripe API

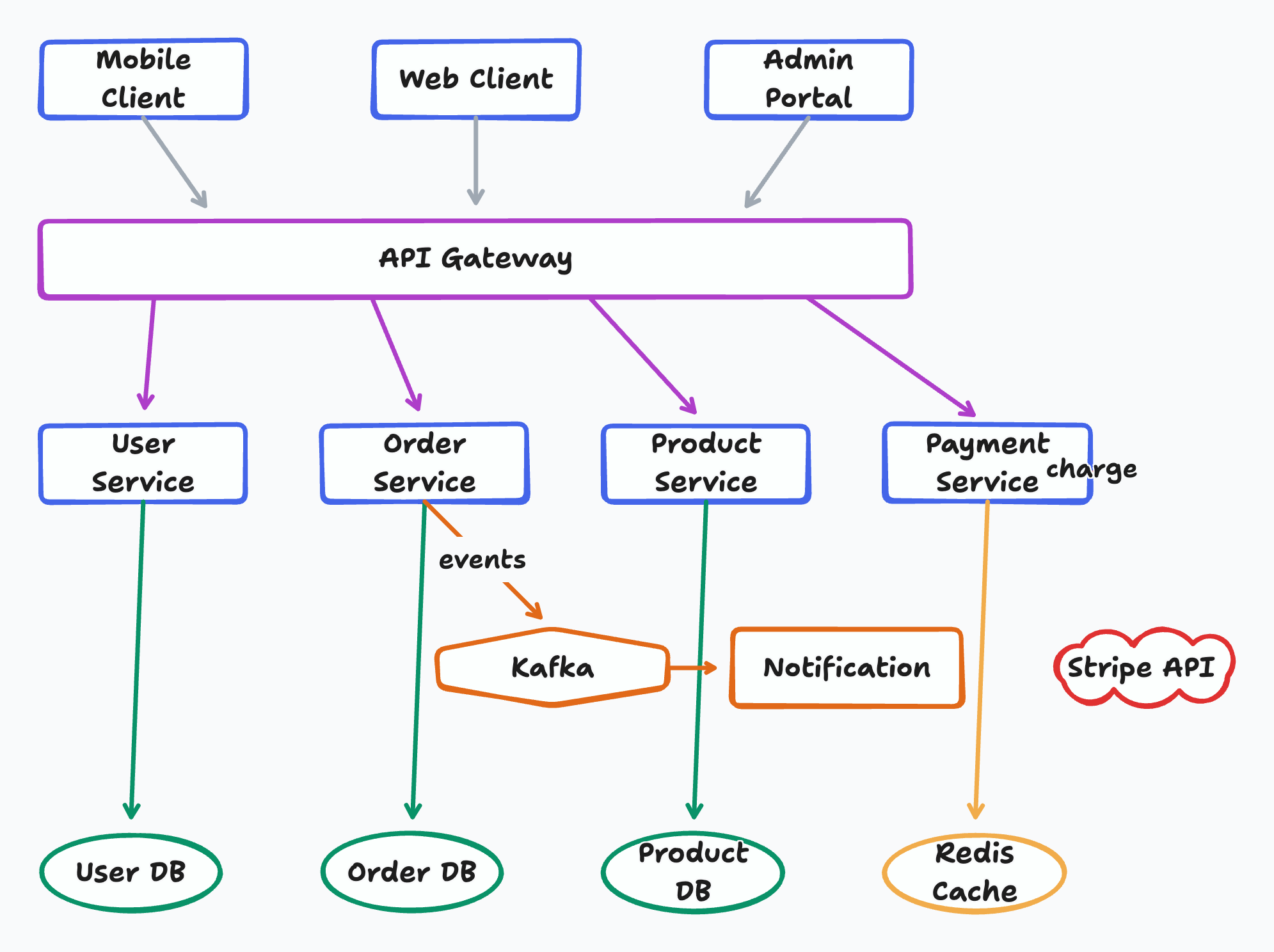

Output:

Files

• SKILL.md — the only required file. Loaded by all platforms as the skill instructions.
• README.md — this file (English, displayed on GitHub homepage)
• README_CN.md — Chinese documentation
• assets/ — example diagrams (safe to delete to save space)

All example diagrams were generated by Claude with this skill.

Known Limitations

• Native UML notation: tldraw arrowheads are limited (no hollow triangles for inheritance). Use drawio-skill for strict UML/ERD figures intended for academic papers
• No native containers/swimlanes: tldraw's grouping model differs from drawio. Use color and spacing for visual grouping instead
• PDF export not supported: tldraw-cli supports PNG and SVG only. Convert SVG to PDF post-hoc if needed (e.g. rsvg-convert)
• Self-check requires vision: The auto-fix step reads exported PNGs using the model's vision capability. Models without vision support skip this step
