C4 Diagram Skill for Claude Code

Generate C4 Container diagrams (Simon Brown's standard) as editable .drawio files directly from Claude Code conversations.

What It Does

• Generates C4 Container-level architecture diagrams
• Outputs editable .drawio XML (opens in draw.io desktop or web)
• Follows the official C4 color scheme and notation
• Strict layered layout: Person → System Boundary → External Systems
• Every element gets explicit coordinates (no auto-layout drift)
• Legend included on every diagram
• Solid arrows = synchronous, dashed = asynchronous

Example

Ask Claude Code:

/c4-diagram

Draw a C4 container diagram for an e-commerce system with:
- Web app (React), mobile app (Flutter)
- API gateway (Node.js)
- Order service, payment service (Python)
- PostgreSQL database, Redis cache
- External: Stripe payments, SendGrid email

Claude generates a .drawio file you can open and edit in draw.io:

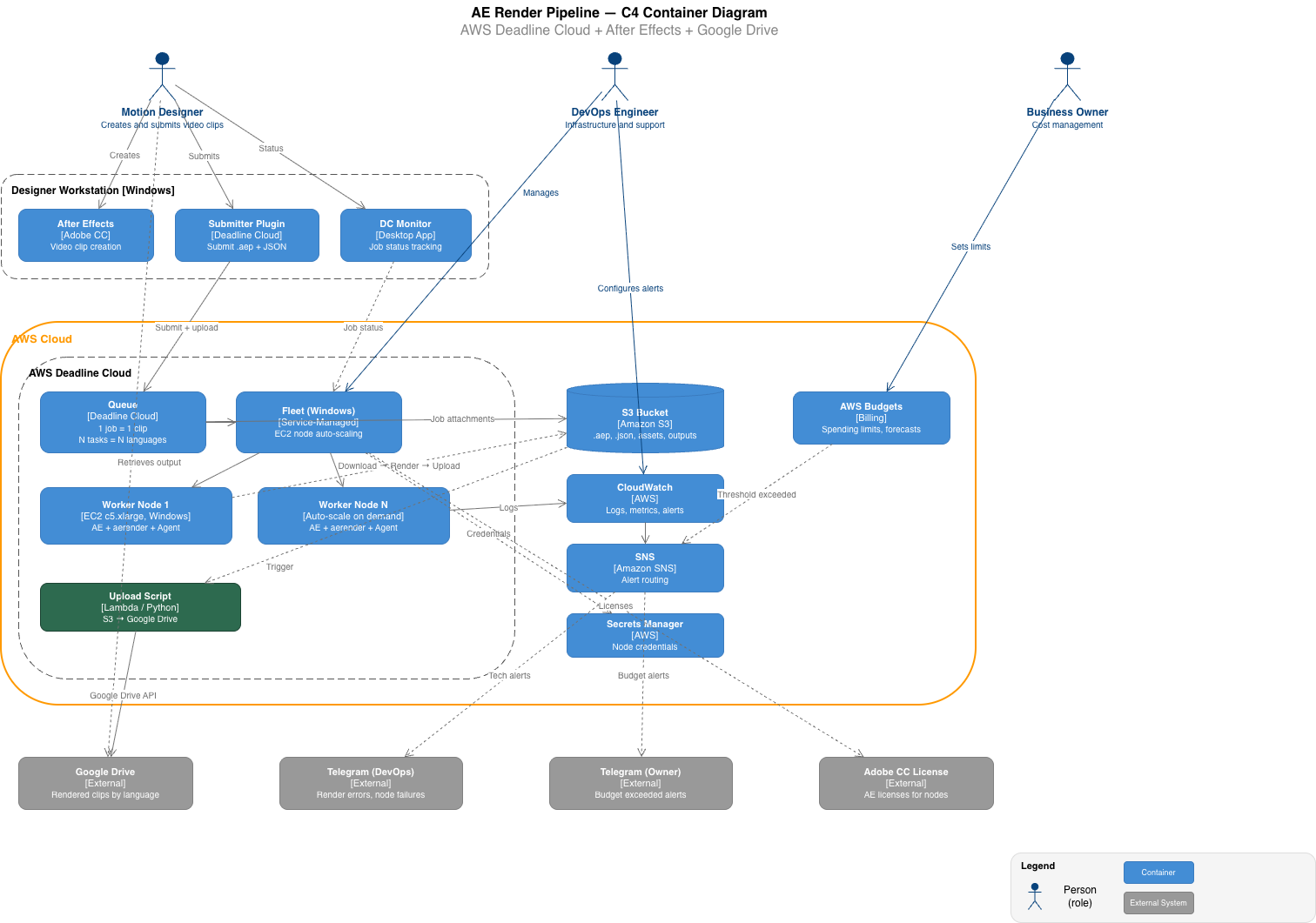

Real output: AWS Deadline Cloud render pipeline with 3 persons, 2 system boundaries, 14 containers, 4 external systems.

Installation

Option 1 — install as a plugin (recommended)

Type these inside Claude Code:

/plugin marketplace add aleksnikolaev/c4-diagram-skill
/plugin install c4-diagram@c4-diagram-skill

The owner/repo shorthand clones over SSH. If you don't have SSH keys set up on GitHub, use the full HTTPS URL instead:

/plugin marketplace add https://github.com/aleksnikolaev/c4-diagram-skill.git

To pull updates later: /plugin marketplace update c4-diagram-skill

Option 2 — copy the skill by hand

The skill lives in skills/c4-diagram/. Copy that directory, not the repository root — SKILL.md has to sit directly inside the skill folder.

Personal install, available in all your projects:

git clone https://github.com/aleksnikolaev/c4-diagram-skill.git
mkdir -p ~/.claude/skills
cp -r c4-diagram-skill/skills/c4-diagram ~/.claude/skills/c4-diagram

Single project only:

git clone https://github.com/aleksnikolaev/c4-diagram-skill.git
mkdir -p .claude/skills
cp -r c4-diagram-skill/skills/c4-diagram .claude/skills/c4-diagram

Either way you should end up with SKILL.md at ~/.claude/skills/c4-diagram/SKILL.md (or .claude/skills/c4-diagram/SKILL.md).

Using it

Run /c4-diagram in Claude Code, or just describe your system — Claude loads the skill on its own when a diagram would help.

File Structure

c4-diagram-skill/
├── .claude-plugin/
│   ├── marketplace.json            # Marketplace catalog entry
│   └── plugin.json                 # Plugin manifest
├── skills/
│   └── c4-diagram/
│       ├── SKILL.md                # Main skill definition
│       └── references/
│           ├── element-templates.md    # XML templates for each C4 element
│           ├── drawio-template.md      # Base .drawio file structure
│           └── legend-template.md      # Legend XML template
├── examples/
│   ├── ecommerce-example.drawio    # Example output
│   └── ae-pipeline-c4-en.png       # Rendered example
├── LICENSE
└── README.md

C4 Elements Supported

Connection Types

Every connection is labeled with an action and protocol.

Why .drawio?

• Editable: modify the diagram after generation (move elements, change labels, add notes)
• Universal: opens in draw.io desktop (free), web app, VS Code extension, Confluence, Notion
• Version control friendly: XML diffs are readable
• Export: PNG, SVG, PDF from draw.io with one click

C4 Model Reference

This skill generates Container diagrams (Level 2 in the C4 model):

For the full C4 model specification, see c4model.com.

License

MIT
