Eleven Meter - Game built on AK Embedded Base Kit

Gameplay Demo

Documentation

Introduction

Eleven Meter is a five-kick penalty shootout built on the AK Embedded Base Kit. Choose a shooting direction with three buttons, beat the goalkeeper, and score at least three goals to win. The project demonstrates event-driven embedded game design through:

• System design: Gameplay is split into objects with clear responsibilities.
• Process management: AK tasks run cooperatively without blocking delays.
• Communication: Signals and messages carry input, commands, results, and display snapshots.
• Control logic: State machines coordinate kick selection, animation, round results, and the final score.

I. Hardware

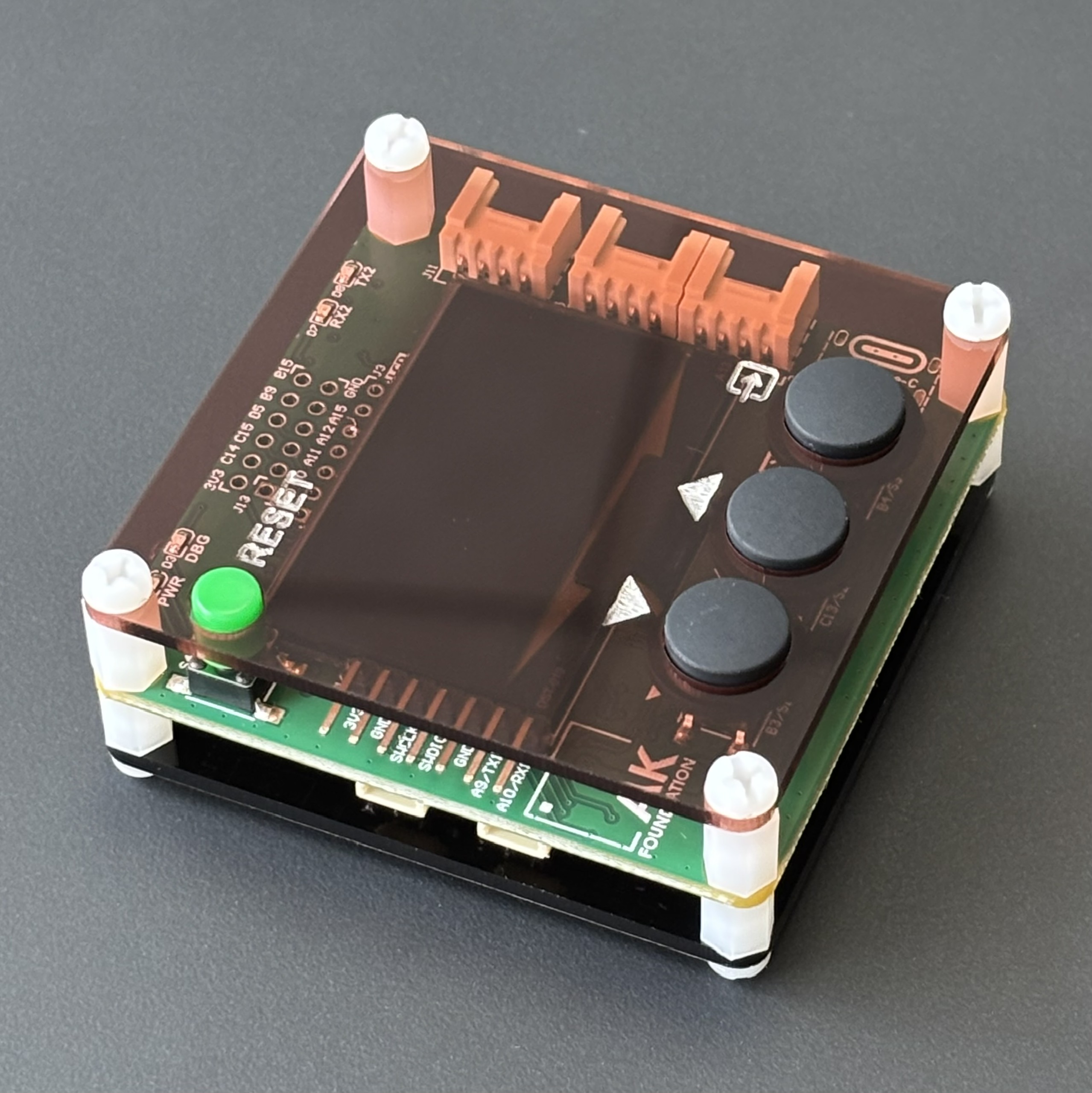

Figure 1: AK Embedded Base Kit - STM32L151

The AK Embedded Base Kit is an evaluation board for intermediate and advanced embedded programming.

Its 1.54-inch OLED, three push buttons, and buzzer provide the display, controls, and sound for a compact handheld game. RS485, Qwiic, and Grove connections are also available for other firmware experiments.

MCU Overview:

SoC Name : STM32L151CBT6
RAM      : 16 KB

Flash Partitions Layout
-----------------------
[ 0x08000000 - 0x08001FFF ] : Bootloader Partition (8 KB)
=> AK Bootloader

[ 0x08002000 - 0x08002FFF ] : BSF Shared Partition (4 KB)
=> Data shared between Bootloader and Application

[ 0x08003000 - 0x0801FFFF ] : Application Partition (116 KB)
=> Eleven Meter firmware

MCU Naming Convention:

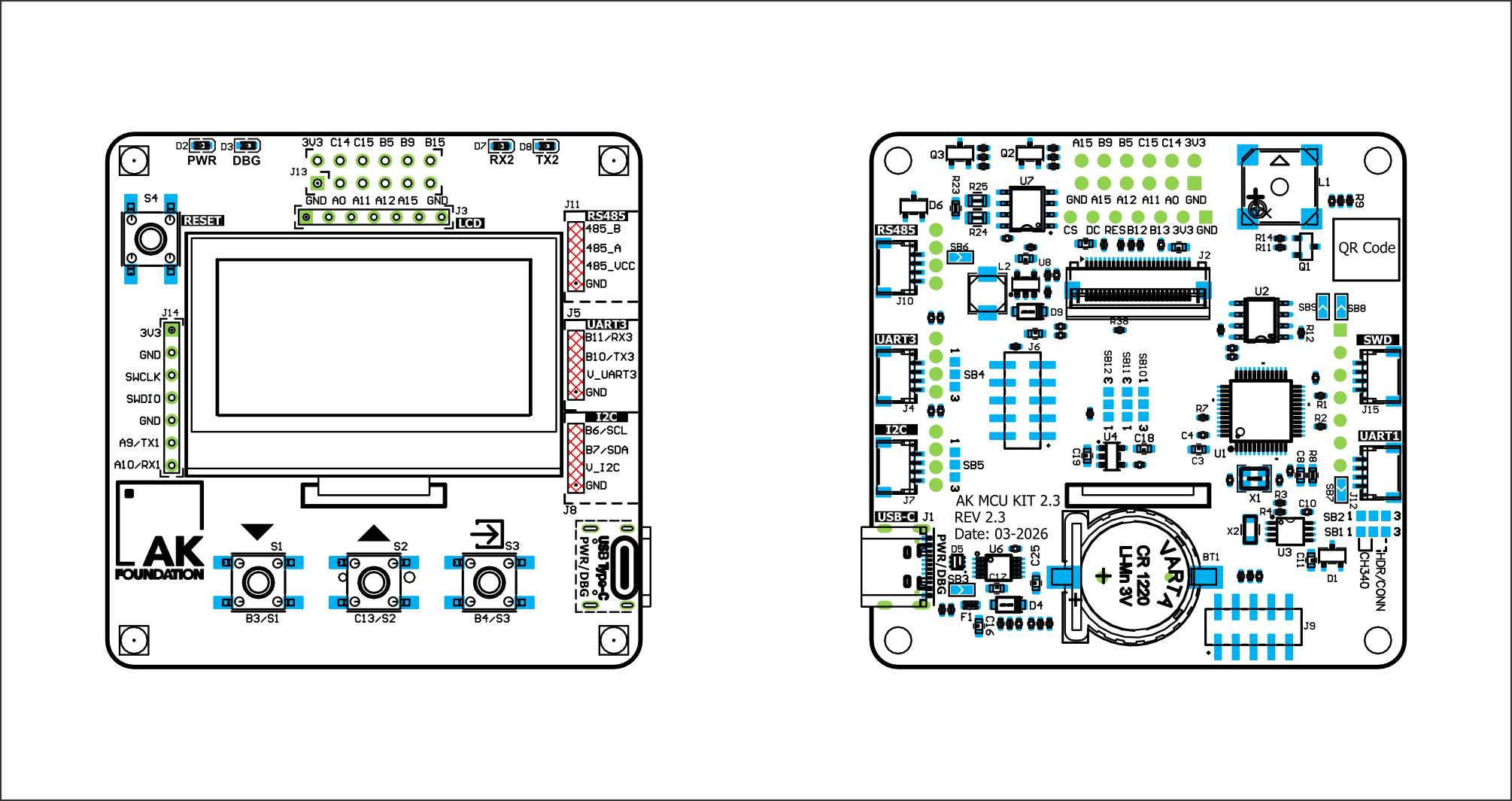

Figure 2: Board view Top + Bottom

II. Game Description and Objects

This section describes the gameplay, screens, and objects of Eleven Meter.

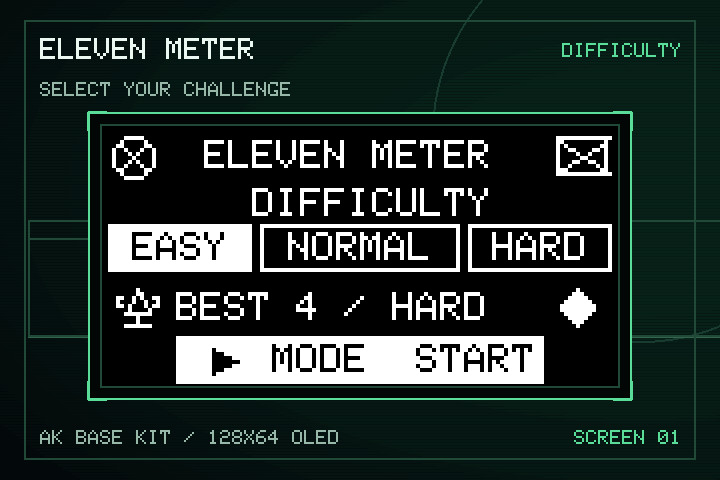

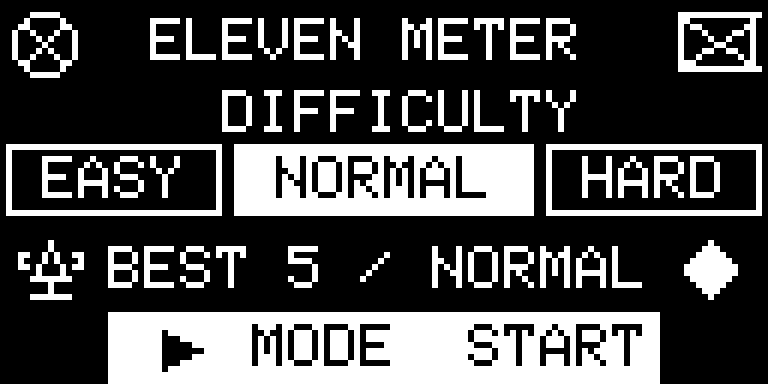

Figure 3: Menu screen

The game opens on the difficulty menu, which provides:

• Easy: The best chance of beating the goalkeeper.
• Normal: A balanced goalkeeper response.
• Hard: A higher chance that the goalkeeper matches the shot direction.
• BEST: The saved goal record and its difficulty.
• Start: Press [Mode] to begin a five-kick match with the selected difficulty.

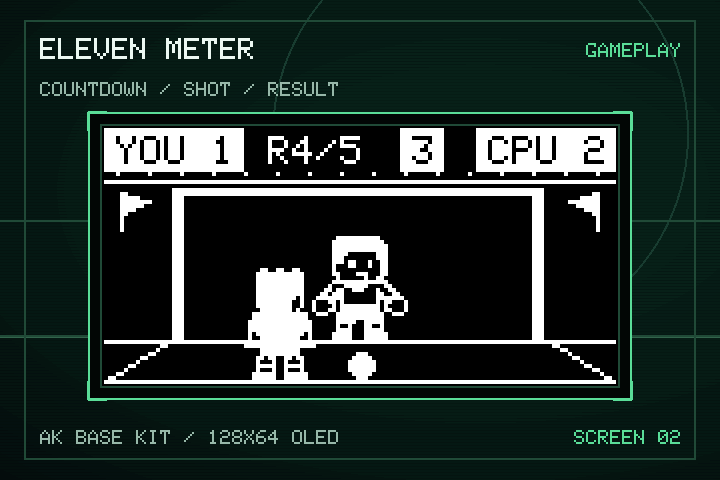

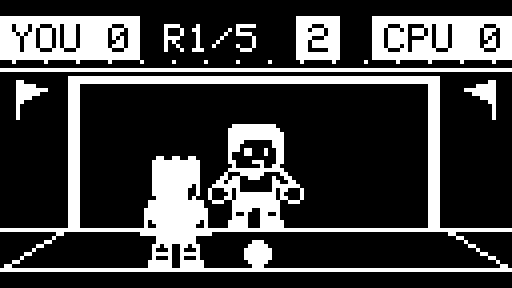

Figure 4: Gameplay screen

Objects in the Game:

Bitmap	Object Name	Description
	Match	Coordinates the menu, round setup, countdown, accepted input, result phase, and screen transitions.

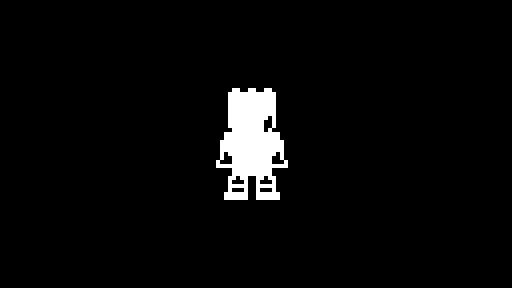

	Shooter	Owns kick selection and a short two-pixel step using the original standing bitmap.

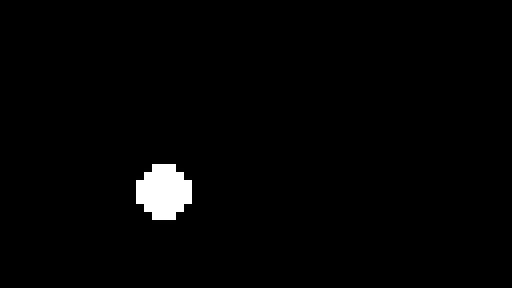

	Ball	Moves from the penalty spot toward the chosen target. A rushed kick may travel wide.

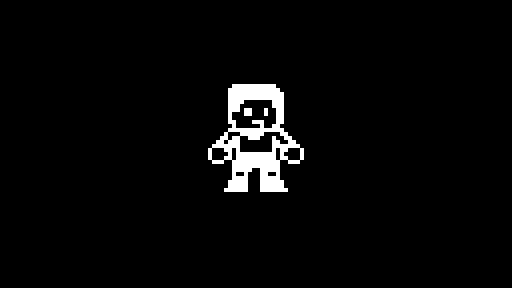

	Keeper	Chooses a dive from the shot direction and current difficulty, then animates the save attempt.
	Goal	Waits for the Ball and Keeper reports, then resolves the kick as a goal, save, or miss.
	Scoreboard	Tracks five rounds, all kick results, and the final winner.

Note: For detailed object flows, see Game Object Sequences.

III. How to Play:

• On the menu, press [Up] or [Down] to choose Easy, Normal, or Hard.
• Press [Mode] to start the shootout.
• During a round, use the buttons from left to right as you face the OLED: [Down] → left, [Up] → center, [Mode] → right. Menu and Game Over controls remain unchanged.
• Choose before the three-second countdown ends. If time runs out, the shot goes to the center.

Game Mechanics:

• Five kicks: Every match contains five penalty attempts.

• Winning: Score at least three goals out of five. Saves and misses both count toward the CPU score.

• Three results: A kick ends as a goal, save, or miss.

• Reaction pressure: Shooting too quickly increases the chance of missing the target.

• Difficulty: The selected level changes how often the goalkeeper matches the shot direction.

• Score: The HUD shows the player score, CPU score, round number, and selection countdown.

• Best result: The highest goal count is stored together with its difficulty. An equal goal count on a harder difficulty replaces the previous record.

• Animation: The original standing shooter takes a two-pixel step, the ball follows the shot, and the goalkeeper animates the response.

• Game Over: After the fifth result, a short Full Time transition leads to the final score, with two actions:

  • Retry: Press [Mode] to play another match.
  • Home: Press [Up] to return to the difficulty menu.

Note: Try to improve BEST, or match it at a harder difficulty.

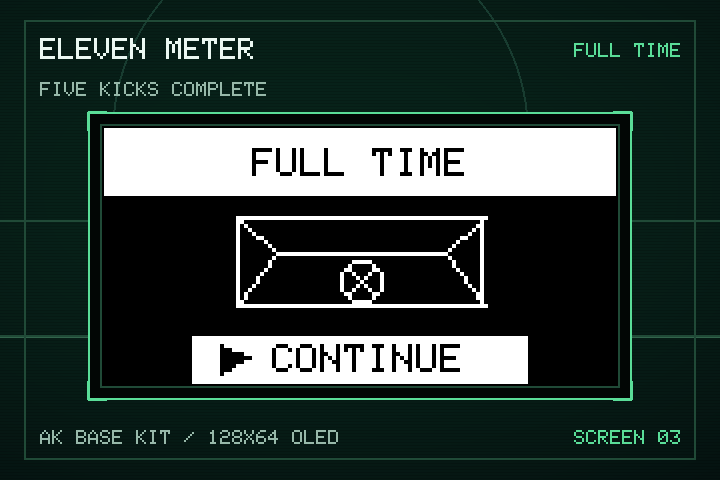

Figure 5: Full Time transition screen

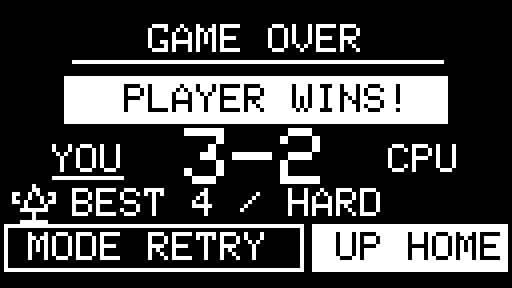

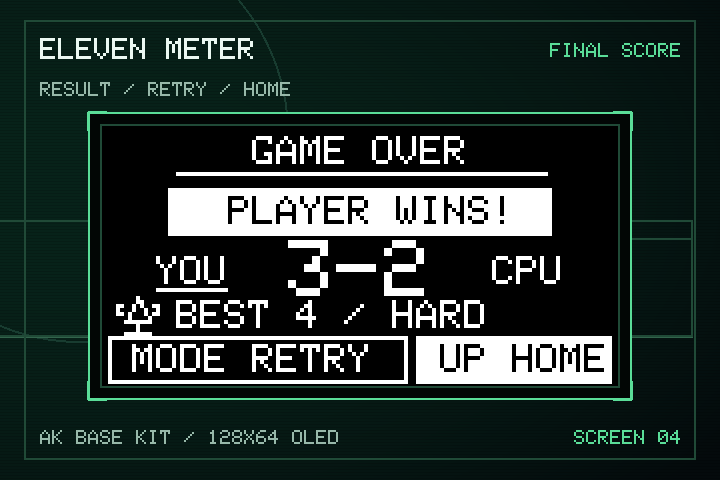

Figure 6: Game Over screen

IV. Basic Game Sequence Logic

Note: For the complete signal flow, see Runtime Signal Processing.

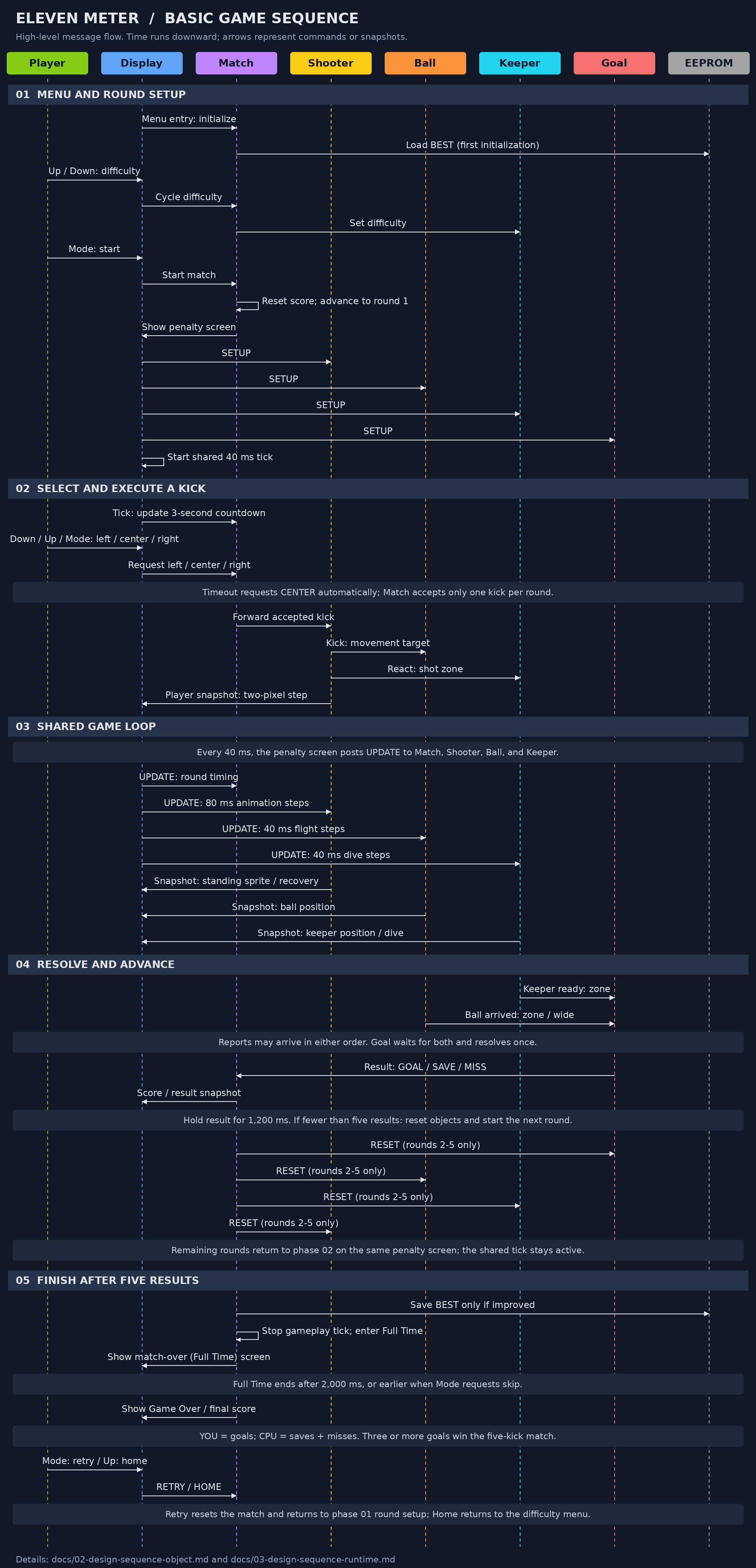

Figure 7: Game sequence logic
