Serpentine3D

An open-source NURBS surface modeller for Linux, with native AI integration via MCP.

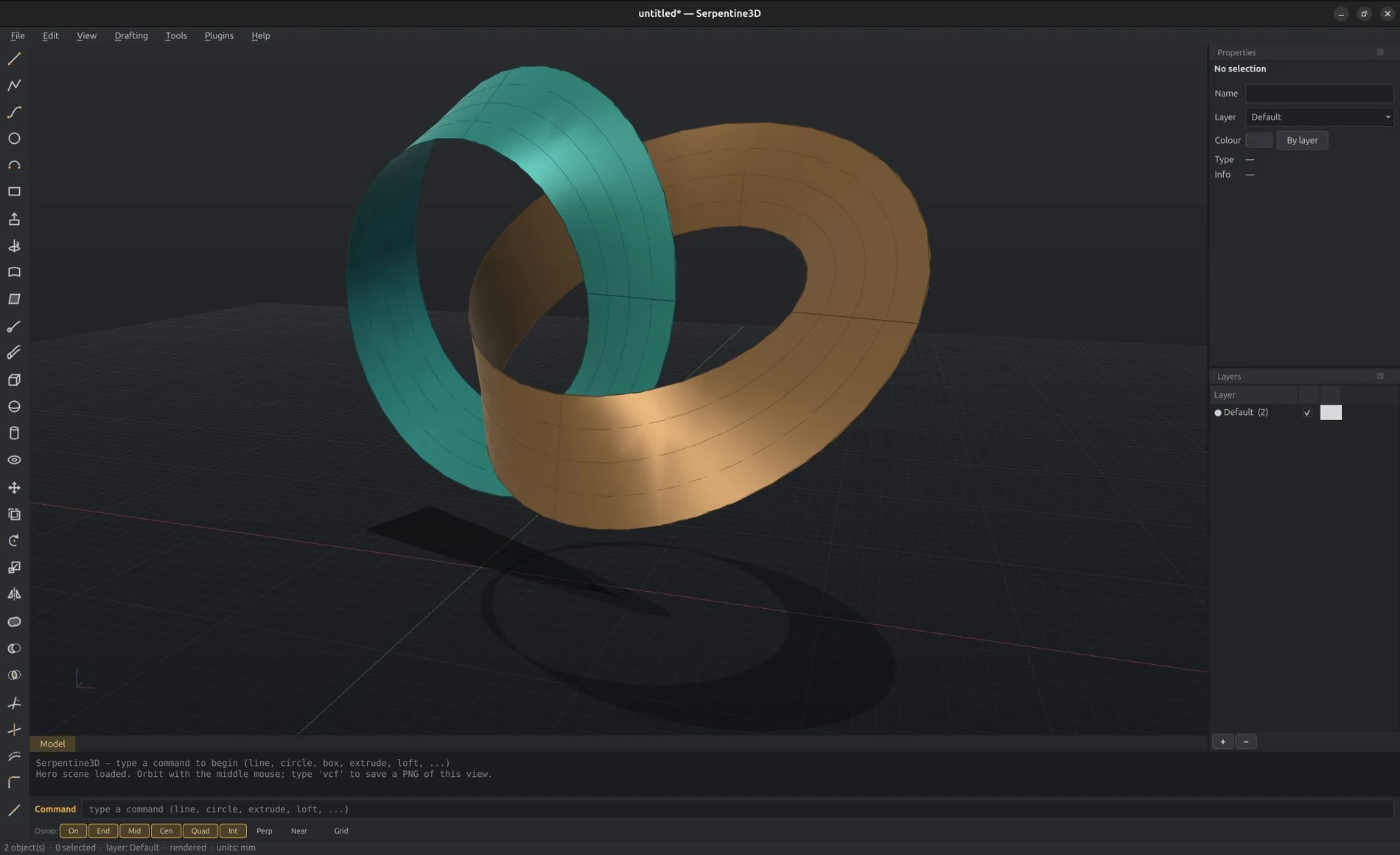

Serpentine3D (serp3d) is a freeform surface modeller in the spirit of Rhinoceros 3D —
BREP/NURBS geometry on the OpenCASCADE kernel, not meshes. It is built for set
designers, architects, and industrial designers who want a genuine Rhino-style
workflow on Linux: a command line that prompts for input, layers, object snaps to
a construction plane, STEP/OBJ interchange, and a dark, focused interface.

Named for the serpentine stone of Zimbabwean Shona sculpture, and for the
S-curve at the heart of NURBS geometry.

Why

• No genuine open-source NURBS modeller exists for Linux. FreeCAD is
  parametric CAD; Blender is mesh-based. Serpentine3D fills the freeform
  surface-modelling gap.
• First CAD tool with native AI integration. The bundled MCP server lets
  Claude (or any MCP client) see your viewport, create geometry, run any
  command, and manage the scene.

Install

Requires Python 3.10+ on Linux with OpenGL 3.3.

git clone <this-repo> && cd Serpentine3D
python3 -m venv .venv
.venv/bin/pip install -e .
.venv/bin/serp3d        # launch

The OpenCASCADE kernel ships as pip wheels (cadquery-ocp) — no conda, no
system packages.

Windows (experimental): the same pip install works on Windows —
every dependency has prebuilt wheels, and the full test suite passes on
Windows 10 (Python 3.12). The GUI needs a GPU with OpenGL 3.3 drivers,
which any normal desktop has; GPU-less VMs and remote-desktop sessions
only expose Windows' built-in OpenGL 1.1 and get a clear error message
instead of a viewport. Headless use (serp3d-batch, MCP server, file
conversion) works everywhere. macOS is untested — reports welcome.

The command line

Everything works Rhino-style: type a command, answer its prompts. Prompts accept
typed coordinates (10,5,0, relative @5,0,0) or viewport clicks on the
construction plane. Tab completes command names, Up/Down recall history,
Enter on an empty line repeats the last command, Escape cancels.

Most commands have Rhino-compatible aliases (l, pl, c, m, co, mi, ...).
Command options appear as clickable chips under the prompt
(Cap=Yes, BothSides=No, Style=Normal) and can be typed
Rhino-style (cap=n) at any moment without losing your place; numeric
prompts show a live gold ghost preview of the result while you
type. help (or F1) opens a searchable command reference. Arrow keys
nudge the selection along the CPlane (Shift ×10, Ctrl ×0.1).

Navigation & shortcuts

• Middle mouse orbit · Shift+Middle pan · Scroll zoom
• F1–F4 top/front/right/perspective · Ctrl+E zoom extents · F7 grid
• Ctrl+Z / Ctrl+Y undo/redo · Ctrl+A select all · Delete delete selection
• Ctrl+S / Ctrl+O / Ctrl+N save/open/new
• Click to select (Shift-click adds, Ctrl-click removes), click empty space
  to deselect
• Box selection: drag left-to-right for a window (fully enclosed,
  gold box), right-to-left for a crossing (anything touched, white box);
  Shift adds, Ctrl removes
• Control points: pointson (F10) shows CVs on curves — drag a CV to
  edit the curve live; pointsoff (F11) hides them
• Object snaps — end, mid, center, quadrant, intersection,
  perpendicular, and nearest-point, each with a distinct cursor marker.
  Toggle types on the osnap bar under the command line, or in
  Settings. gridsnap snaps picked points to the grid
• Launch with a file: serp3d model.serp (or any importable format)

Drafting & documentation

Serpentine3D has a full two-space drafting workflow — model in 3D, document
in 2D, print to PDF — without leaving the app:

• Layouts (layout): paper-space sheets (A4–A0, Letter, Tabloid or
  custom) with tabs at the bottom of the viewport: [Model] [Sheet 1] …
• Detail views (detail): live windows into the model placed on the
  sheet — pick two corners, a view direction (top/front/right/…/perspective)
  and a scale (1:10, 1:50, …). Double-click a detail to enter it,
  then pan (nav-button drag) and zoom (wheel changes the scale); click
  outside to exit. detailscale, detailmode, detaillock,
  detailborder, detaildelete manage the active detail.
• Hidden-line rendering: each detail can be technical (hidden lines
  removed), hidden (dashed hidden lines), wireframe or shaded —
  powered by OCCT's HLR engine, isolated in a worker process so degenerate
  geometry can never crash the app. The same engine drives the model-space
  technical display mode.
• make2d: project the current view (or a selection) into real,
  editable 2D curves on Make2D visible / Make2D hidden layers.
• Annotations: multiline text, leader, dim / dimradius /
  dimdiameter / dimangle, hatch (pick corners or Mode=Region
  to click inside detail linework), scalebar, titleblock,
  sheetindex and per-sheet revision tables. Everything on a sheet
  is selectable — drag to move, grips resize detail frames, Delete
  removes, annotedit edits — and dimensions picked inside a detail
  are associative: they re-project when the detail pans or
  rescales. dimstyle manages named text/arrow styles.
• exportpdf (Ctrl+P): true vector PDF — linework stays crisp at any
  zoom; shaded details are embedded as rendered images. Layouts save/load
  with the .serp file.

The gumball

Select anything and a gumball appears: drag the arrows to move along
an axis, the pads to move in a plane, the circles to rotate (Shift snaps
to 15°), the square knobs to scale along an axis (Shift = uniform).
Alt-drag moves a copy. Escape cancels a drag. gumball toggles it.

Ctrl+Shift-click a face of a solid and the gumball becomes a push/pull
handle along the face normal — drag it, or type a distance, to extrude the
face outward or carve it inward; the solid rebuilds live and the handle
stays on the moved face for repeated pulls. A curved face (a cylinder
or cone wall, a sphere) offsets instead — push it to grow or shrink the
radius, adjacent faces extending to meet it. Select several faces and
one handle offsets them all together, each along its own normal — inflate a
shape, or grow a slab from both sides at once.

Ctrl+Shift-click one or more edges and the gumball becomes a fillet
handle — drag it outward, or type a radius, to round the edges; every
selected edge fillets together at that radius, previewing live. Hold
Alt while dragging to chamfer instead of fillet.

Units

units sets the document units (mm/cm/m/in/feet-and-inches) with an
optional model rescale. Every prompt then accepts unit input — 3'6",
2' 4 1/2", 30cm, 1.5in — and coordinates support polar entry
(10<45) and Shift-ortho constraint while picking.

Scripting & automation

• Python console (Tools menu, Ctrl+`): the live scene, geometry
  builders and the full API in an interactive session.
• serpentine3d.scripting.Document: the same power headless —
  doc.add(geo.make_box(...)), doc.run("filletedge", [...]),
  doc.export("part.step").
• serp3d-batch script.py: run scripts from the command line / CI
  with doc, geo and args predefined. No display needed.
• Autosave & crash recovery: every 5 minutes (configurable); on
  launch after a crash Serpentine3D offers to restore the autosave.
• Drop a ~/.config/serpentine3d/template.serp to start every new
  document from your own template (units, layers, title blocks).

Settings

Tools → Settings (Ctrl+,) — five flat pages, changes apply instantly:

• Mouse — orbit with the middle or right mouse button, scroll
  direction, orbit/zoom speed
• Keyboard — bind any key to any command; import from a text file
  (F5 zoomextents per line) or JSON
• Aliases — custom command aliases; imports Rhino alias exports
  (Options → Aliases → Export) and maps known commands automatically
• Object Snaps and Display (grid size)

Settings live in ~/.config/serpentine3d/settings.json.

File formats

The assistant (AI modelling)

Serpentine3D has a built-in AI assistant: open it from the View menu (or
type ai, or Ctrl+Shift+A), describe what you want, and it builds real
BREP geometry in your live scene —

a spiral staircase, 3 m tall, 14 steps, 900 mm radius
fillet every edge of the box 2 mm
what's the volume of the hull?

It works with the full command set (the same commands you type), can
measure and inspect the scene, and can look at the viewport — it
takes a screenshot, checks its own work, and fixes mistakes before
answering. Everything it does streams into the panel as it happens, and
everything is undoable.

Bring your own Anthropic API key (Settings → Assistant, or the
ANTHROPIC_API_KEY environment variable — get one at
console.anthropic.com). Usage is billed
to your Anthropic account; the assistant never phones home anywhere
else, and the key never leaves your machine except to call the API.

MCP server (AI integration)

Prefer driving Serpentine3D from an external agent (Claude Code, Claude
Desktop)? The same modelling surface is exposed as MCP tools. Start the
app, then register the server with your MCP client:

claude mcp add serpentine3d -- /path/to/.venv/bin/serp3d-mcp

Tools: serp_scene_info, serp_screenshot (returns an image of the viewport),
serp_create_curve, serp_create_surface, serp_boolean, serp_transform,
serp_select, serp_command (run any command with its interactive inputs),
serp_layers, serp_import, serp_export, serp_measure, serp_undo,
serp_viewport.

The combination of serp_screenshot and serp_command means an AI assistant
can model alongside you: it sees what you see and can operate every tool the
command line offers. The bridge is a localhost-only JSON-RPC socket
(~/.serpentine3d/rpc.port); set SERP3D_NO_RPC=1 to disable it.

Architecture

serpentine3d/
├── core/          # kernel layer: geometry builders, tessellation,
│                  #   scene graph, layers, selection, undo history
├── commands/      # generator-based interactive commands (Rhino-style
│                  #   prompt protocol, shared by GUI + MCP)
├── ui/            # Qt: GL viewport, command line, panels, dark theme
├── fileio/        # .serp / STEP / OBJ
├── mcp_server/    # stdio MCP server -> RPC bridge
├── api.py         # programmatic API over a running session
└── rpc.py         # localhost JSON-RPC bridge

Geometry is exact BREP on OpenCASCADE 7.9 (via the OCP pybind11 bindings);
the viewport tessellates on demand with trim-aware isocurve display. Commands
are Python generators that yield typed input requests — the same command code
serves typed input, viewport clicks, and MCP calls.

Plugins

Drop a .py file into ~/.serpentine3d/plugins/ defining
serpentine3d_plugin(ctx), or ship a package with a
serpentine3d.plugins entry point — plugins register first-class
commands (with prompts, osnaps, undo and MCP support for free) and
menu items. See docs/scripting.md.

Development

.venv/bin/pip install -e ".[dev]"
.venv/bin/pytest            # unit tests (geometry, scene, commands, file I/O)

License

MIT
