⚡ KubeBolt

Instant Kubernetes Monitoring & Management

Full cluster visibility in under 2 minutes. No agents, no configuration, no Prometheus required. Connect your kubeconfig and go.

Why KubeBolt?

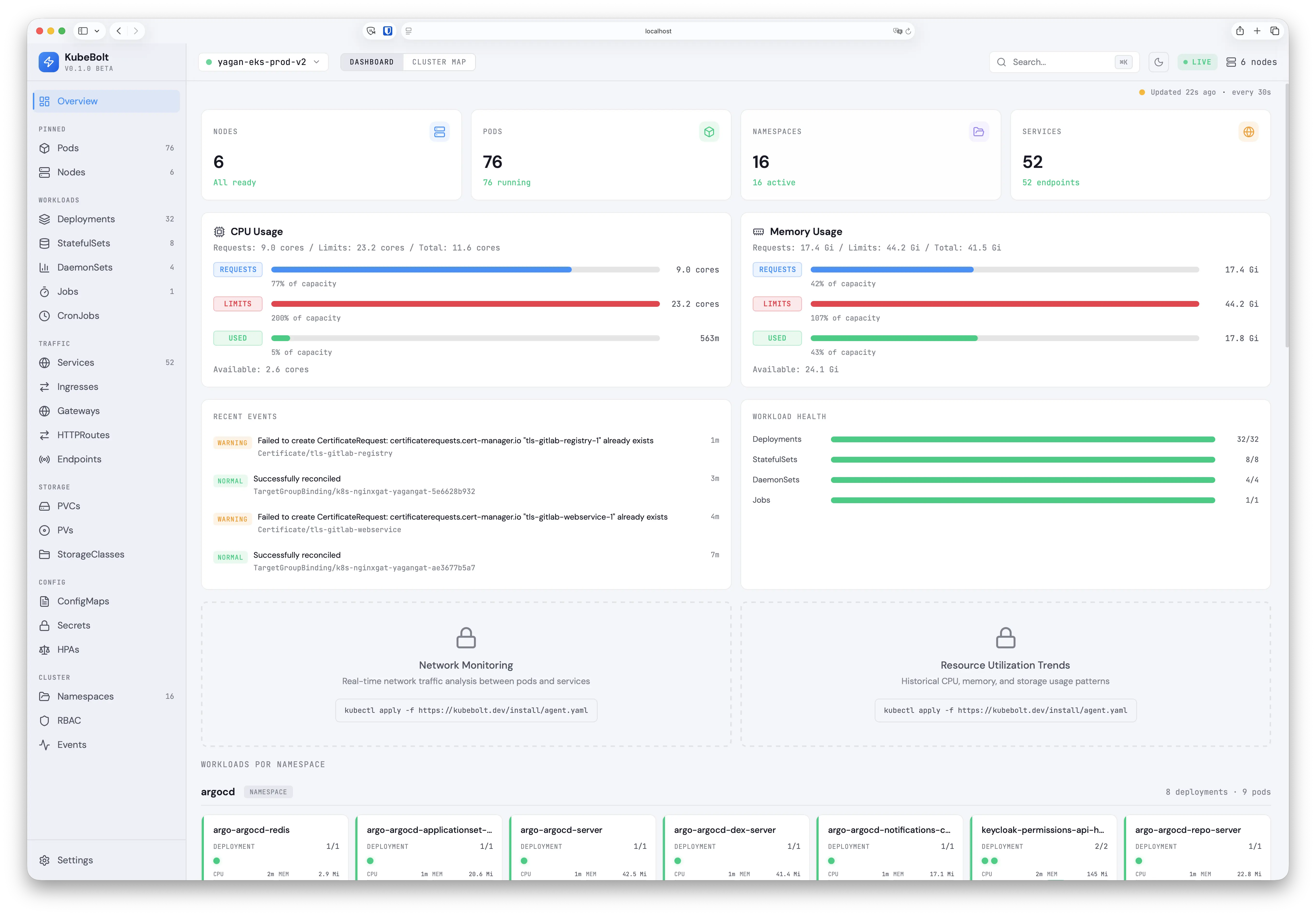

Dashboard Overview

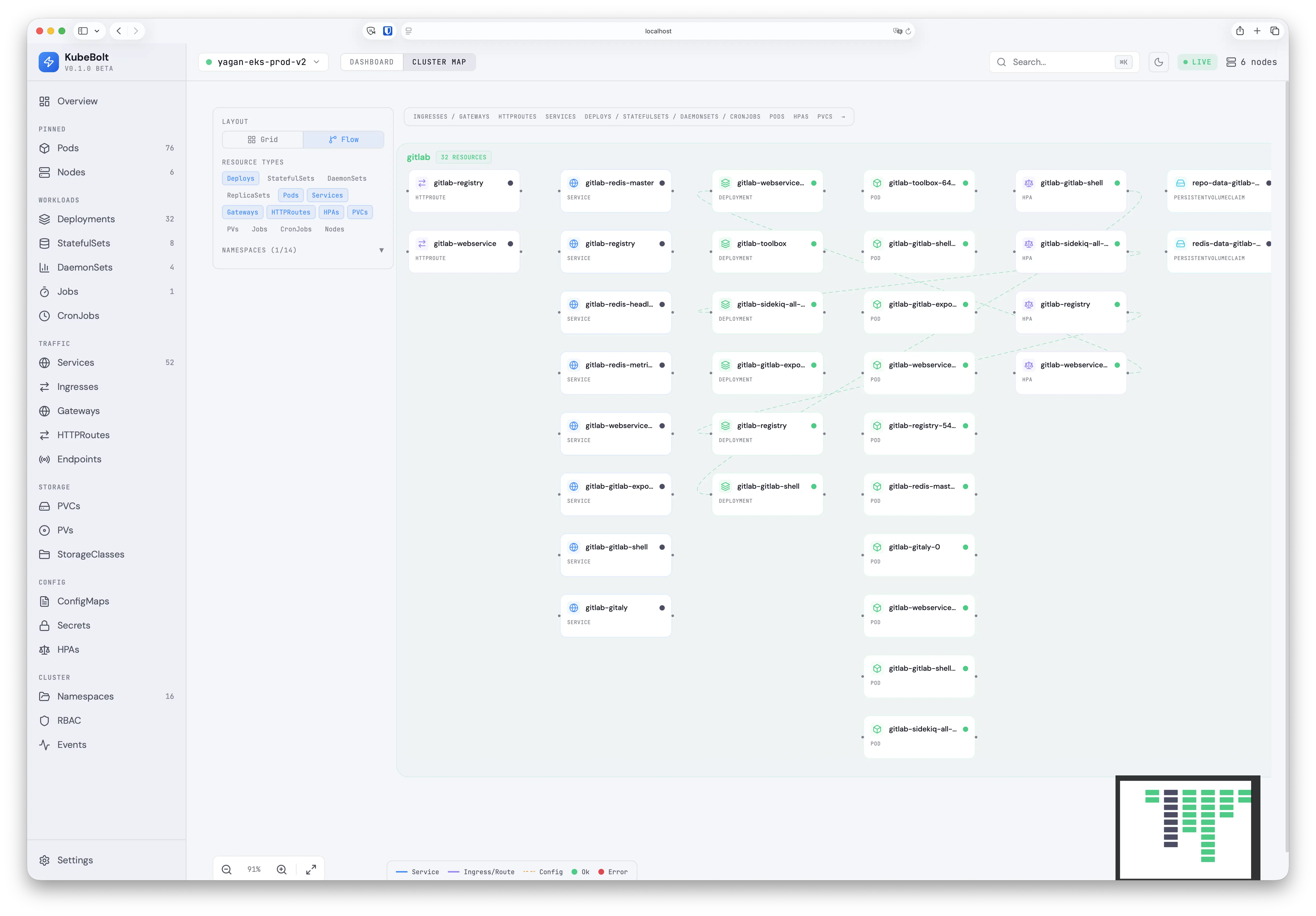

Cluster Topology Map

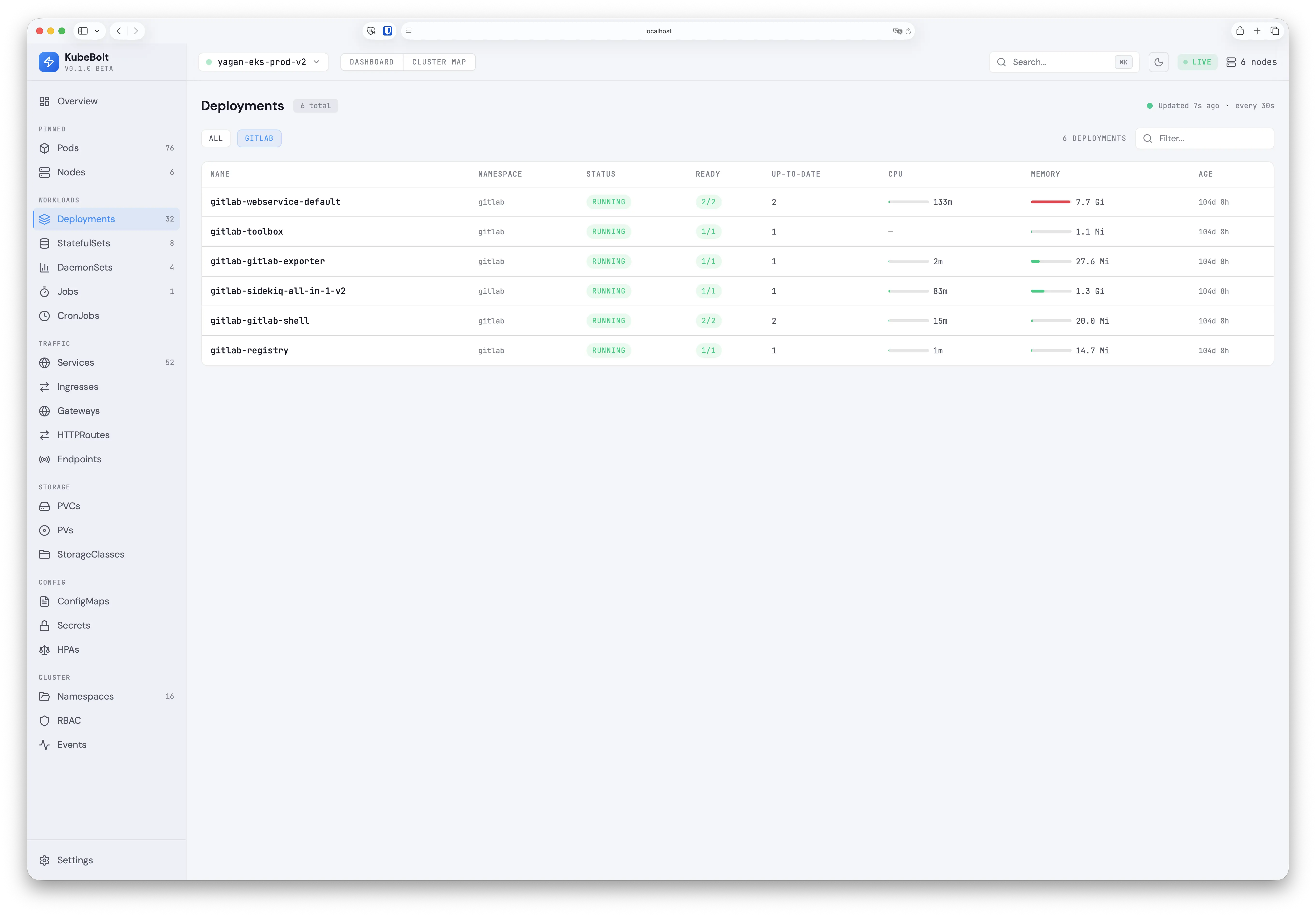

Resource Views with Live Metrics

Quick Start

Option 1: Docker Compose (recommended)

Runs the full stack (Go API + React frontend via nginx) in containers.

Prerequisites: Docker Desktop with a reachable Kubernetes cluster.

Remote clusters (EKS, GKE, AKS, etc.)

If your kubeconfig points to remote cluster endpoints, it works directly:

# Set your kubectl context to the desired cluster
kubectl config use-context my-cluster

# Start the stack
cd deploy
docker compose up -d

EKS note: The API container needs the AWS CLI to obtain tokens. The Dockerfile already includes aws-cli, and the compose file mounts ~/.aws for credentials. Make sure your AWS profile/SSO session is active before starting.

Docker Desktop Kubernetes

Docker Desktop's built-in K8s uses 127.0.0.1:6443 as the API server address, which doesn't work from inside a container. A helper script rewrites the kubeconfig to use kubernetes.docker.internal instead:

# 1. Enable Kubernetes in Docker Desktop (Settings > Kubernetes > Enable)
# 2. Switch to the docker-desktop context
kubectl config use-context docker-desktop

# 3. Generate a container-compatible kubeconfig
./deploy/docker-kubeconfig.sh

# 4. Start the stack
cd deploy
docker compose up -d

Open http://localhost:3000 — the nginx frontend proxies API and WebSocket requests to the backend.

To stop: docker compose down

To rebuild after code changes: docker compose up -d --build

Option 2: Local development (no Docker)

Requires Go 1.25+ and Node 20+.

# Start the backend
cd apps/api
go run cmd/server/main.go --kubeconfig ~/.kube/config

# Start the frontend (separate terminal)
cd apps/web
npm install && npm run dev

Open http://localhost:5173 — Vite proxies /api and /ws to the backend on port 8080.

Features

Monitoring & Observability

• 23 resource views — Pods, Deployments, Services, Ingresses, Gateways, HTTPRoutes, Nodes, and more
• Cluster Map — Interactive topology with Grid and Flow layouts, namespace grouping, resource type filters
• Live metrics — CPU/Memory usage bars with request/limit markers and hover tooltips
• Insights Engine — 12 built-in rules: crash loops, OOM kills, CPU throttling, HPA saturation, pending PVCs
• Real-time updates — WebSocket-powered live updates via K8s shared informers
• Configurable refresh — Choose refresh interval from 5s to 2m, persisted across sessions

Cluster Management

• Pod Terminal — Interactive shell access from the browser (xterm.js + SPDY exec). Auto-detects bash/sh. Multi-container support.
• Port Forwarding — Forward pod ports with one click. Active forwards shown in Topbar with Open/Stop controls.
• Multi-cluster — All kubeconfig contexts auto-discovered, switch clusters in one click with connection overlay

Security & RBAC

• RBAC-aware — Auto-detects permissions at connect time via SelfSubjectAccessReview
• Namespace-scoped SAs — Works with RoleBinding-only ServiceAccounts using per-namespace informers
• Sensitive data redaction — Secret values always redacted. ConfigMap values with sensitive keys (passwords, tokens, API keys) auto-redacted in YAML view.
• Graceful degradation — Restricted resources dimmed in sidebar, "Access Restricted" pages, "No access" indicators on dashboard cards

Developer Experience

• Gateway API — Native support for gateway.networking.k8s.io Gateways and HTTPRoutes
• YAML viewer — Syntax highlighted with theme-aware colors, works in light and dark mode
• Search & filter — Debounced search across resources with namespace filtering
• Dark/Light mode — Full theme support with CSS custom properties

Architecture

┌─────────────────────────────────┐
│      Kubernetes Cluster(s)      │
│   API Server + Metrics Server   │
└───────────────┬─────────────────┘
                │ kubeconfig (all contexts)
┌───────────────▼─────────────────┐
│   KubeBolt Backend (Go)         │
│   ├─ Permission Probe (SSAR)    │
│   ├─ Shared Informers (gated)   │
│   ├─ Dynamic Client (GW API)    │
│   ├─ Metrics Collector          │
│   ├─ Insights Engine (12 rules) │
│   ├─ SPDY Exec Bridge           │
│   └─ Port Forward Manager       │
└───────────────┬─────────────────┘
                │ REST API + WebSocket
┌───────────────▼─────────────────┐
│   KubeBolt Frontend (React)     │
│   ├─ Dashboard Overview         │
│   ├─ Cluster Map (Grid/Flow)    │
│   ├─ 23 Resource Views          │
│   ├─ Pod Terminal (xterm.js)    │
│   └─ Port Forward UI            │
└─────────────────────────────────┘

RBAC & Permissions

KubeBolt works with any level of Kubernetes access — from full cluster-admin to namespace-scoped read-only ServiceAccounts.

At connection time, KubeBolt probes permissions via SelfSubjectAccessReview and adapts:

• Informers only start for accessible resources (no 403 errors in logs)
• Namespace-scoped SAs get per-namespace informer factories with merged results
• UI shows a "Limited access" banner, dims restricted sidebar items, and displays clear "Access Restricted" pages

Tech Stack

Performance

Roadmap

See docs/SPEC.md for the detailed technical specification and roadmap.

Coming next:

• Restart/Scale deployments from the UI
• In-place YAML editing with diff preview
• Resource deletion with confirmation
• Global search (Cmd+K)
• Helm chart for easy distribution
• File browser for pod containers

License

MIT License — see LICENSE for details.
