realvirtual MCP Server (Python)

Python MCP bridge that connects AI agents to any Unity project - including digital twins, robotics, and industrial automation.

This server bridges AI agents (Claude Desktop, Claude Code, Cursor, etc.) with the Unity Editor via WebSocket. Unity defines MCP tools in C# using [McpTool] attributes. This server discovers them automatically and exposes them as standard MCP tools.

Works with any Unity project out of the box. When combined with realvirtual (Unity Asset Store), additional tools for industrial digital twins and virtual commissioning are available - motor drives, conveyor control, industrial sensors, PLC signal I/O, and robot inverse kinematics.

You Never Need to Touch This Code

Unlike other MCP servers where you edit Python to add tools, this server is a transparent bridge. All tools are defined in C# inside Unity using simple attributes:

[McpTool("Spawn an enemy")]
public static string SpawnEnemy([McpParam("Prefab name")] string prefab) { ... }

The Python server discovers new tools automatically after Unity recompiles. No Python changes, no server restart, no registration. See the Unity MCP package for how to create custom tools.

AI Agent (Claude Desktop / Claude Code / Cursor)
    |
    | MCP Protocol (stdio or SSE)
    v
This Python Server (FastMCP)
    |
    | WebSocket (JSON, Port 18711)
    v
Unity Editor (C# Package)  -->  github.com/game4automation/io.realvirtual.mcp

Self-Contained

This repository ships with an embedded Python 3.12 runtime and all dependencies pre-installed. No system Python required.

python/              Embedded Python 3.12 (Windows x64)
Lib/                 Pre-installed packages (mcp, websockets, etc.)
unity_mcp_server.py  The MCP server
start.bat            One-click launcher
requirements.txt     Dependency list (for reference)

Quick Start

Automated Setup (via Unity — recommended)

The Unity MCP package can clone and configure this server automatically:

1. Install the Unity package via Package Manager (git URL: https://github.com/game4automation/io.realvirtual.mcp.git)

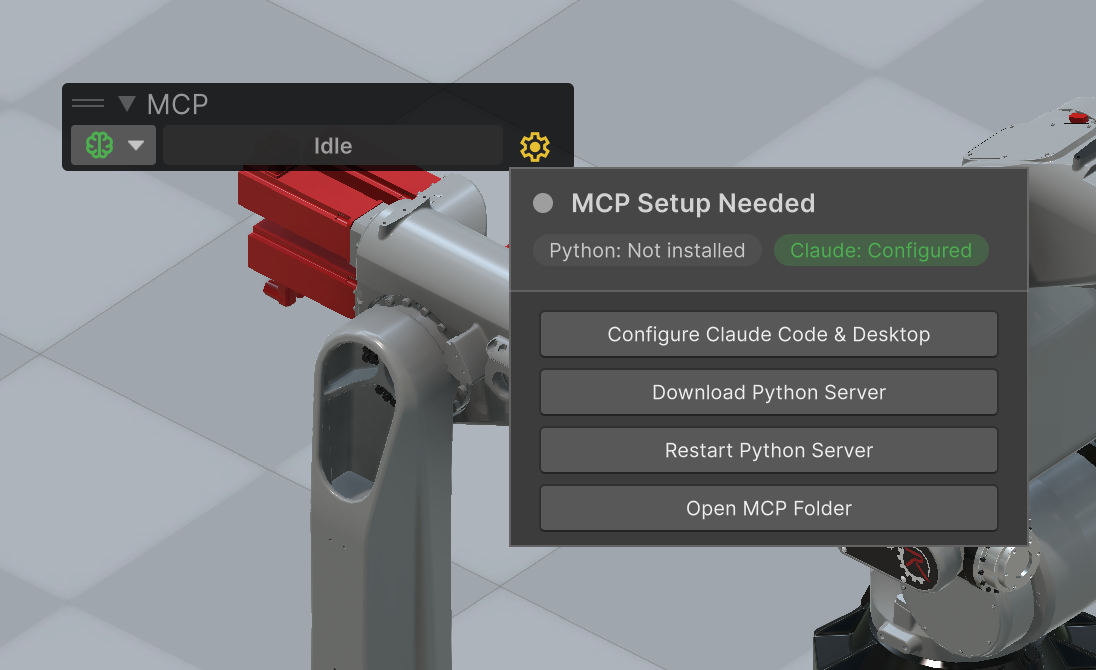

2. Click the gear icon in the Unity MCP toolbar
3. Click Clone Python Server — this runs git clone into Assets/StreamingAssets/realvirtual-MCP/
4. Click Configure Claude — writes the MCP configuration to Claude Desktop and/or Claude Code

To update later, click Update Python Server (git pull) in the same popup.

Requirements

• git must be installed and available in PATH — git-scm.com

Manual Setup

Clone the repository into your Unity project's StreamingAssets folder:

cd <your-project>/Assets/StreamingAssets
git clone https://github.com/game4automation/realvirtual-MCP.git

To update later:

cd <your-project>/Assets/StreamingAssets/realvirtual-MCP
git pull

Manual Configuration

Claude Desktop (%APPDATA%/Claude/claude_desktop_config.json):

{
  "mcpServers": {
    "UnityMCP": {
      "command": "C:/.../python/python.exe",
      "args": ["C:/.../unity_mcp_server.py"],
      "env": { "PYTHONPATH": "C:/.../Lib" }
    }
  }
}

Claude Code (.mcp.json in project root):

{
  "mcpServers": {
    "UnityMCP": {
      "command": "C:/.../python/python.exe",
      "args": ["C:/.../unity_mcp_server.py"],
      "env": { "PYTHONPATH": "C:/.../Lib" }
    }
  }
}

Replace C:/... with the actual path to your StreamingAssets/realvirtual-MCP/ directory.

Run Manually

start.bat

Or with explicit options:

python/python.exe unity_mcp_server.py --mode stdio
python/python.exe unity_mcp_server.py --mode sse --http-port 8080
python/python.exe unity_mcp_server.py --ws-port 18712

Command Line Options

--mode stdio|sse       Server mode (default: stdio)
--ws-port PORT         Unity WebSocket port (default: auto-discover)
--http-port PORT       HTTP port for SSE mode (default: 8080)
--project-path PATH    Connect to specific Unity instance
--verbose              Enable verbose logging

How It Works

Connection Lifecycle

1. Startup - Loads tool schemas from cache for instant availability
2. Discovery - Connects to Unity via WebSocket, sends __discover__ to get all tools
3. Registration - Creates FastMCP tool handlers for each discovered Unity tool
4. Forwarding - Routes MCP tool calls to Unity via __call__ commands
5. Watchdog - Background task monitors connection, auto-reconnects after Unity domain reloads

State Machine

During RELOADING and RECONNECTING, tool calls are buffered and replayed after reconnection (up to 30s TTL, 100 message limit).

Multi-Instance Support

When multiple Unity instances are running, the server discovers them via status files in ~/.unity-mcp/. Use --project-path to target a specific instance.

Unity Window Wake-Up

Unity throttles EditorApplication.update to ~2Hz when not focused. The server uses PostMessageW(WM_NULL) to wake Unity's message loop before each tool call, ensuring responsive execution without stealing focus.

WebSocket Protocol

The server communicates with Unity on ws://127.0.0.1:18711/mcp.

Discovery:

{"command": "__discover__"}
// Response: {"tools": [...], "schema_version": "1.0.0"}

Tool Call:

{"command": "__call__", "tool": "sim_play", "arguments": {}}
// Response: {"result": {"status": "playing"}}

Heartbeat:

{"command": "__heartbeat__"}
// Response: {"status": "ok", "tools_count": 65}

Authentication (optional):

{"command": "__auth__", "token": "..."}
// Response: {"status": "ok"}

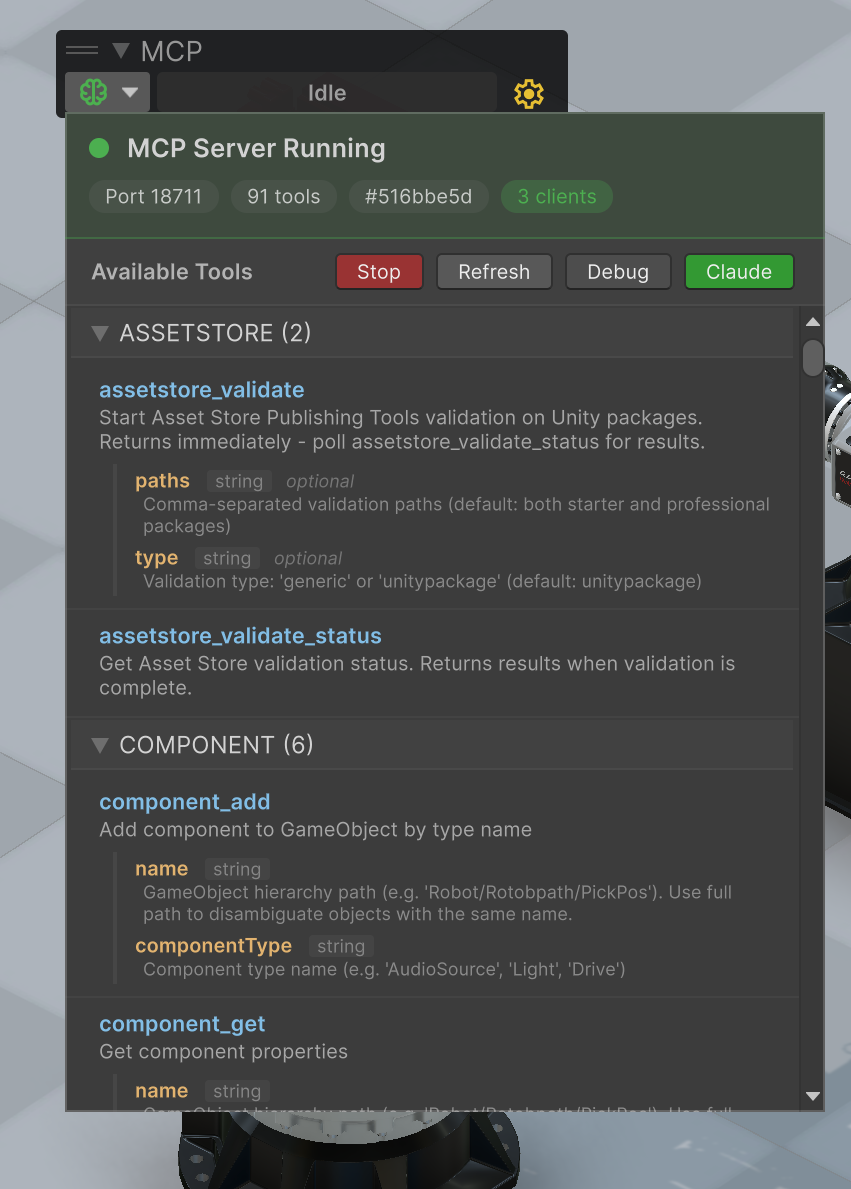

Available Tools

Tools are auto-discovered from Unity. The exact set depends on which Unity packages are installed:

*Requires the realvirtual Unity framework.

Two built-in management tools are always available:

• unity_status - Connection status and tool count
• unity_reconnect - Force reconnect and re-discover tools

Using Your Own Python

If you prefer your system Python instead of the embedded one:

pip install -r requirements.txt
python unity_mcp_server.py --mode stdio

Requirements: Python 3.10+, websockets>=12.0, mcp>=1.8.0

Troubleshooting

Server can't connect to Unity

• Ensure Unity Editor is running with the MCP package installed
• Check that port 18711 is not blocked by firewall
• Verify the MCP WebSocket server is running (brain icon in Unity toolbar)

"python.exe blocked by antivirus"

• Add an exception for the embedded python/python.exe in your antivirus
• Or use your system Python installation instead

No tools discovered

• Check Unity Console for compile errors
• Use unity_reconnect to force re-discovery

Debug logging

• Run with --verbose flag for detailed console output
• Debug logs are always written to %TEMP%/realvirtual-mcp/mcp_debug.log

Unity Package

The C# Unity side of this integration:

github.com/game4automation/io.realvirtual.mcp

Install via Unity Package Manager > Add package from git URL.

Support

This server is provided as-is with no support or service included.

For commercial customers of realvirtual, we offer professional services for digital twin development, virtual commissioning, and LLM/AI agent integration. Contact us at https://realvirtual.io for details.

License

MIT License - Copyright (c) 2026 realvirtual GmbH

See LICENSE for full text.
