💪 Integrate the Azure Bicep MCP server with Claude, Codex, LM Studio, GitHub Copilot App, and more.

README.md

Azure Bicep MCP Server Integrations with other AI services

This guide explains how to run the Azure Bicep MCP server locally for Claude Desktop and Code, OpenAI Codex CLI and for LMStudio where you can use it with various models.

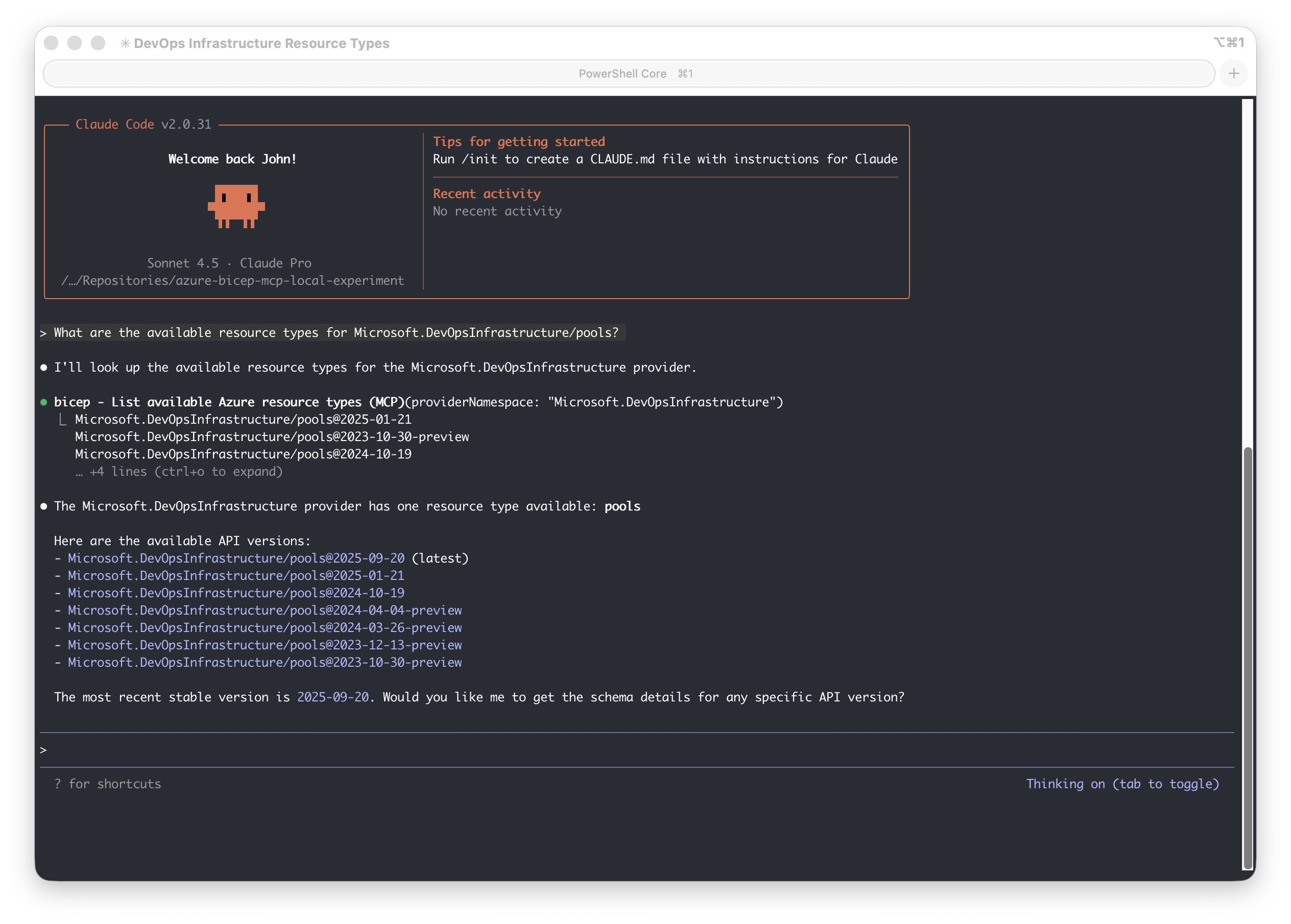

See the Claude Code example:

Claude Code Calling Bicep MCP Server

Overview

The Bicep MCP (Model Context Protocol) server provides AI agents with tools to help generate high-quality Bicep code. It exposes the following tools:

  • list_az_resource_types_for_provider - Lists all Azure resource types for a specific provider (e.g., Microsoft.Storage)
  • get_az_resource_type_schema - Gets the schema for a specific Azure resource type and API version
  • get_bicep_best_practices - Returns Bicep coding best practices and guidelines
  • decompile_arm_parameters_file - Converts ARM template parameter JSON files into Bicep parameters format (.bicepparam).
  • decompile_arm_template_file - Converts ARM template JSON files into Bicep syntax (.bicep).
  • format_bicep_file - Applies consistent formatting (indentation, spacing, line breaks) to Bicep files.
  • get_bicep_file_diagnostics - Analyzes a Bicep file and returns all compilation diagnostics.
  • get_file_references - Analyzes a Bicep file and returns a list of all referenced files including modules, parameter files, and other dependencies.
  • get_deployment_snapshot - Creates a snapshot from a .bicepparam file to preview resources and compare Bicep implementations.
  • list_avm_metadata - Lists metadata for all Azure Verified Modules (AVM)

Checkout the Bicep MCP Server Documentation for more information.

Prerequisites

  • .NET 10.0 SDK or later (tested with .NET 10.0)
  • Git (for cloning the repository)

Options

There are two options to get the Bicep MCP server DLL:

  • Option 1: Use dnx to run the Azure Bicep MCP NuGet package (recommended approach)
  • Option 2: Build from source (more control, easier to update)
  • Option 3: Extract from VS Code extension

Option 1: Use dnx to run the Azure Bicep MCP NuGet package (recommended approach)

With .NET 10 you can use dnx to run the Bicep MCP server directly from the NuGet package without needing to build it yourself.

Using the command dnx Azure.Bicep.McpServer --yes will run the latest version of the Bicep MCP server. To run it in a specific client see: Client Setup Guides.

Option 2: Build from Source

This approach clones the Bicep repository and builds the MCP server. Updates are as simple as git pull and rebuild.

Initial Setup

# Clone and build the Bicep repository
./scripts/Setup-BicepMCP.ps1

Running the Server

You can run the MCP server directly from the extension path. However it is not required to run it separately since clients will launch it as needed. To run it in a specific client see: Client Setup Guides. To run it locally see:

# Find the DLL
find bicep/src/Bicep.McpServer/bin/Release -name "Azure.Bicep.McpServer.dll"

# Run it
dotnet ./bicep/src/Bicep.McpServer/bin/Release/net10.0/Azure.Bicep.McpServer.dll

Updating

# Pull latest changes and rebuild the project
./scripts/Update-BicepRepo.ps1

Option 3: Extract from VS Code Extension

If you already have the Bicep VS Code extension installed, you can use the MCP server DLL directly from it.

Locate the Extension

The extension is typically installed at:

  • macOS: ~/.vscode/extensions/ms-azuretools.vscode-bicep-<version>/
  • Linux: ~/.vscode/extensions/ms-azuretools.vscode-bicep-<version>/
  • Windows: %USERPROFILE%\.vscode\extensions\ms-azuretools.vscode-bicep-<version>\

The MCP server is located at: bicepMcpServer/Azure.Bicep.McpServer.dll

Running from Extension

You can run the MCP server directly from the extension path. However it is not required to run it separately since clients will launch it as needed. To run it in a specific client see: Client Setup Guides. To run it locally see:

# Find your extension version
ls ~/.vscode/extensions/ | grep vscode-bicep

# Run the MCP server (replace <version> with your actual version)
dotnet ~/.vscode/extensions/ms-azuretools.vscode-bicep-<version>/bicepMcpServer/Azure.Bicep.McpServer.dll

Helper Scripts

The following PowerShell scripts are provided to simplify setup and maintenance:

Script Description
Setup-BicepMCP.ps1 Clones the Bicep repository (if not already present) and builds the MCP server. Outputs configuration instructions for Claude Desktop and Claude Code.
Update-BicepRepo.ps1 Pulls the latest changes from the Bicep repository and rebuilds the MCP server.
Run-BicepMCP.ps1 Starts the Bicep MCP server using stdio transport.

Troubleshooting

  • On Windows make sure to escape backslashes in paths (e.g., C:\\path\\to\\Azure.Bicep.McpServer.dll)

Client Setup Guides

How It Works

The Bicep MCP server:

  1. Uses the Model Context Protocol for AI agent integrations
  2. Communicates via stdio (standard input/output)
  3. Provides tools for Azure resource type information and Bicep best practices
  4. Is built on .NET 10.0 using Microsoft's MCP SDK

References

Learn More

Read my blog posts on Azure Bicep MCP integration use-cases:
