Hand-drawn diagram skill for Claude Code and Codex. Generates monochrome architecture, workflow, and UX blueprint diagrams as PNGs.

README.md

hand-drawn-diagrams

AI skill for turning ideas, notes, systems, and flows into hand-drawn diagrams — with a hosted edit URL, animated video, and PNG, all from a single prompt.

Jump to: What this is · Output · Quick start · Credits

Demo

Example output

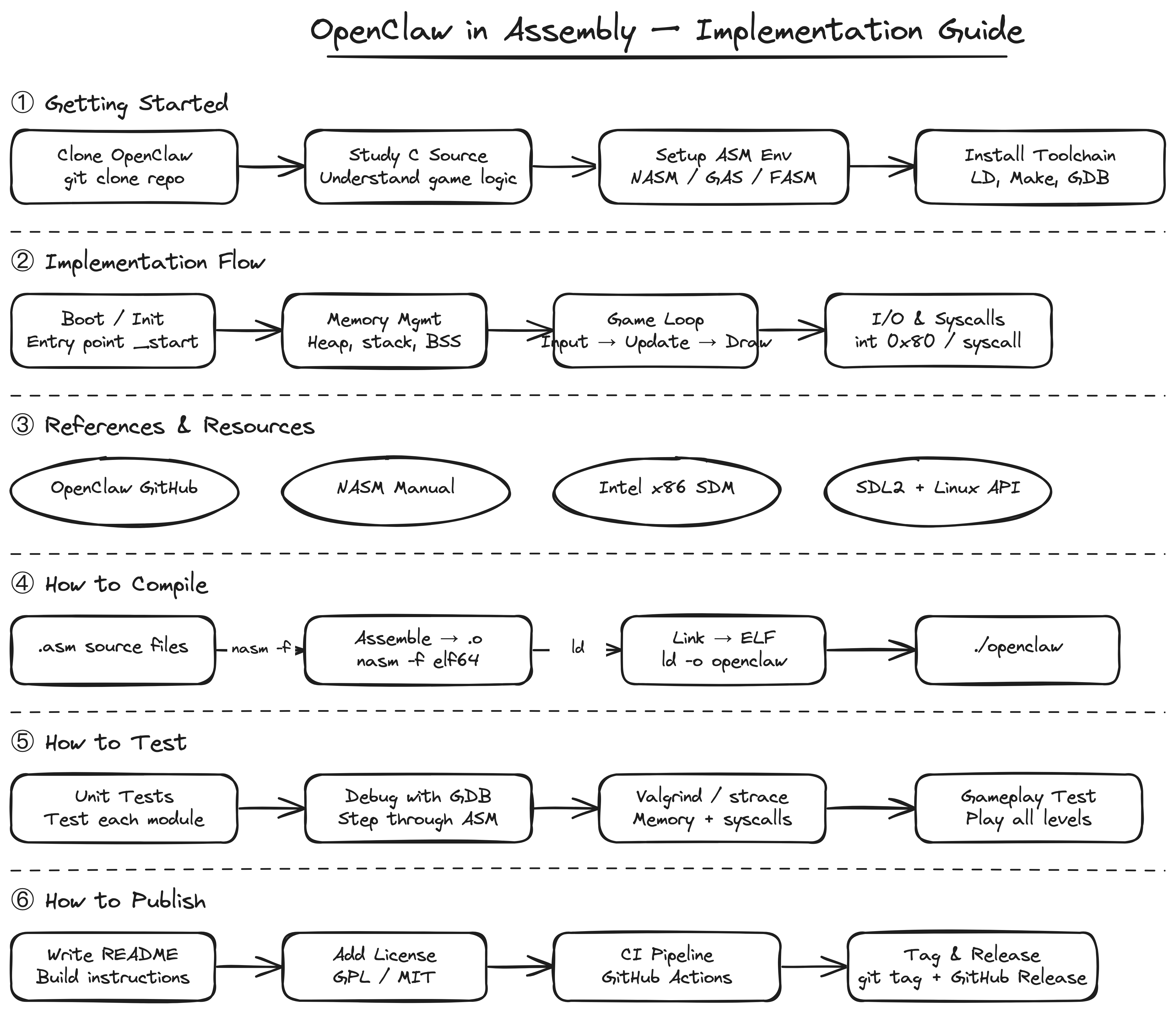

Static PNG — exported on request:

Example diagram

Animated SVG — draws itself stroke by stroke (view):

Exam revision diagram

What this is

hand-drawn-diagrams is an AI skill (for Claude Code, Codex CLI, and compatible agents) that takes a natural language prompt and produces a hand-drawn diagram you can edit, animate, and share — without opening any app.

You describe what you want. The AI picks the right diagram type, draws it in Excalidraw's sketch style, validates the layout, and hands you a live hosted URL. From there you can edit it in a browser, watch it animate, download the source, or export a PNG.

How it's different from using Excalidraw directly

Excalidraw hand-drawn-diagrams
Starting point Blank canvas, you draw Natural language prompt
Diagram type You decide AI picks the right route (teaching, UX, architecture, funnel…)
Layout You position everything AI assigns non-overlapping coordinates
Animation Manual or none Auto-generated animation spec, renders in browser
Output File on disk Hosted edit URL + animated SVG + PNG on request
Workspace You open the app Files stay in /tmp/ by default — workspace stays clean

This skill is not a replacement for Excalidraw — it sits on top of it. Every diagram it produces is a standard .excalidraw file you can open, edit, and own.

Best for

  • students: study notes and exam revision maps
  • teachers: lesson explainers and concept breakdowns
  • architects: system and API flow diagrams
  • builders: sequence diagrams and integration maps
  • designers: UX flows and wireframes
  • product: idea maps and feature flows
  • sales: funnel and conversion visuals
  • doctors: process and patient-facing explainers

Output

The agent infers what you want from your prompt and routes to the right output automatically:

What you ask for What you get
"create a diagram" / default Browser opens to hosted Excalidraw editor — edit, tweak, download
"open the animation" Browser opens animated view — diagram draws itself stroke by stroke
"save as excalidraw" .excalidraw source file saved to your project
"save the animation" .animated.svg saved to your project — plays in any browser
"save image" .png saved to your project
"show image" .png rendered and opened with your system viewer

Source files go to /tmp/hand-drawn-diagrams/ by default — your workspace stays clean.

Quick start

npx skills add muthuishere/hand-drawn-diagrams

Works for Claude Code, Codex, OpenCode, Windsurf, GitHub Copilot, Cursor, Gemini CLI, and 40+ more agents. Detects which agents you have installed automatically.

For all install options, global vs project scope, and uninstall — see INSTALL.md.

Credits and acknowledgements

This skill stands on the shoulders of excellent open-source work:

  • Excalidraw — the open-source virtual whiteboard that powers the hand-drawn visual style and the hosted editor. All diagrams produced by this skill are standard Excalidraw files.
    GitHub: excalidraw/excalidraw

  • excalidraw-animate by @dai-shi — the animation library that renders Excalidraw diagrams as SVGs that draw themselves stroke by stroke. The animated SVG output in this skill is powered by this library.

License

MIT — see LICENSE.
