🏗️ Local AI CAD Agent

A local-first, self-hosted web application that lets you create and refine parametric 3D CAD models through natural language conversations with an AI agent.

Built with OpenSCAD for solid geometry, Three.js for in-browser 3D inspection, and Bubblewrap for isolated code execution. Run completely offline with local models via Ollama, or connect to cloud models through OpenRouter or OpenAI.

⚠️ Project Status: This project is under active development and is currently a hobby project. It excels at functional mechanical parts, enclosures, brackets, adapters, and simple-to-intermediate 3D-printable models. Highly intricate, organic, or sculptural geometry is outside its current scope.

✨ Highlights & Features

• 💬 Chat-Driven Parametric CAD — Describe components, dimensions, tolerances, and design intent in plain English. The agent authors and edits clean, parametric OpenSCAD scripts (model.scad).
• 🧠 Live Streaming & Reasoning — Watch the model's chain-of-thought and tool invocations stream in real time via Server-Sent Events (SSE).
• 🦙 100% Local or Cloud LLMs — Full support for Ollama (offline, private, no API keys), alongside OpenRouter and OpenAI, with optional automatic secondary fallback.
• 🛡️ Sandboxed Code Execution — OpenSCAD runs inside a hardened Bubblewrap sandbox with dropped network privileges, clean environment variables, isolated tmpfs, and strict resource limits (prlimit).
• 🔍 Rigorous Build & Solid Verification — Each generation validates manifold geometry, volume, bounding box dimensions, and parametric uppercase constants before marking a build successful.
• 📸 Multi-View Visual Evidence — Automatic parallel rendering of 8 canonical camera views (Isometric ±, X±, Y±, Z±) plus an assembled contact sheet for visual inspection.
• 👁️ Visual Memory (get_view_images) — The agent can retrieve rendered canonical views or zoom into cropped regions of the part to visually inspect geometry and correct defects.
• ❓ Interactive Clarification Dialogs — When critical dimensions or mounting specs are missing, the agent presents structured UI forms (text, numbers, single-choice, or multi-select) before continuing.

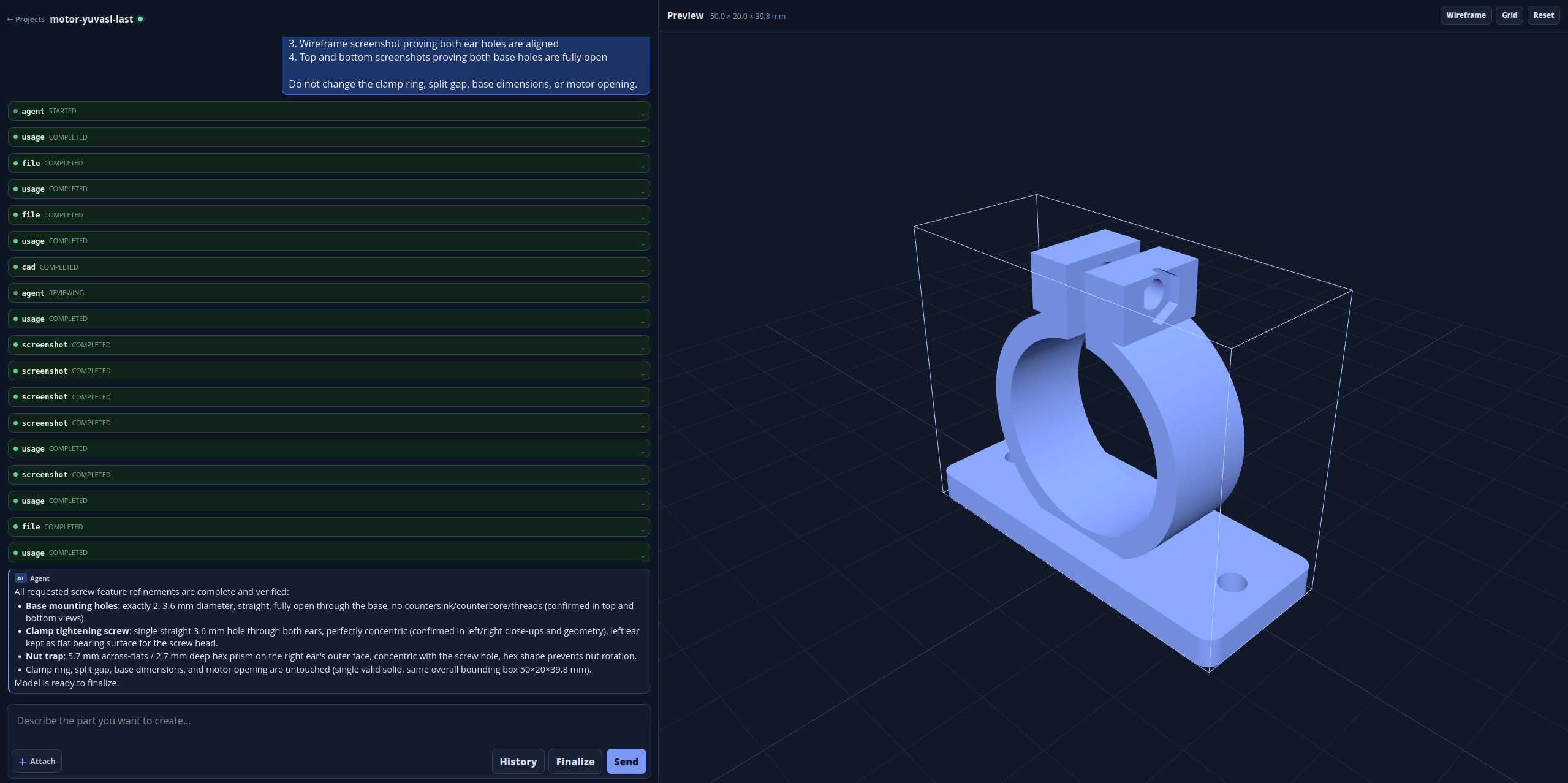

• 🧊 Interactive 3D Viewport — Real-time Three.js viewer with orbit controls, standard view presets (Isometric, Front, Top, Right), wireframe toggle, configurable ground grid, and dimension warnings.
• 📦 Multi-Format Mesh & CAD Export — Export models with one click from the UI to STL, OpenSCAD, 3MF, Wavefront OBJ, AMF, OFF, or CSG with SHA-256 caching.
• 📜 Immutable Revision History — Compare source diffs across every successful build, inspect previous states, and instantly revert to any past revision.
• 📁 Project Management — Create, rename, delete, and switch between isolated projects with fully persisted chat logs and artifacts.
• 🖼️ Multimodal Reference Inputs — Upload up to 5 reference images (PNG, JPEG, WebP, max 10 MB each) to guide the agent visually.
• 🔌 Zero External CDN Dependencies — All frontend assets (Three.js, Marked, Highlight.js) are bundled locally in static/vendor/ for air-gapped usability.

📋 Prerequisites & Requirements

• Operating System: Linux (Ubuntu/Debian, Fedora, Arch, etc. with user namespaces enabled)
• Python: 3.10 or newer (tested with 3.10 – 3.12)
• System Packages:
  • bubblewrap (bwrap)
  • libseccomp2
  • openscad
  • xvfb (xvfb-run for headless rendering)
• LLM Provider (choose at least one):
  • Local: Ollama (e.g. qwen2.5-coder:14b-16k)
  • Cloud: OpenRouter or OpenAI

🚀 Quick Start

1. Clone and Install Dependencies

git clone https://github.com/neuronaline/local-ai-cad-agent.git
cd local-ai-cad-agent

# Runs system package checks, creates .venv, and installs Python packages
./install.sh

Note: On Debian/Ubuntu systems, install.sh will offer to install missing system packages via apt-get. If system openscad is unavailable, install.sh can automatically download and extract a standalone OpenSCAD AppImage into .venv.

2. Configure Your LLM Provider

Copy the default configuration files:

cp config.example.yaml config.yaml
cp .env.example .env

Choose your preferred provider below:

Option A: Local LLM with Ollama (100% Offline & Free)

1. Ensure Ollama is running (ollama serve).

2. Run our setup helper to pull and configure a model with a 16k context window (standard 2k context is too small for CAD agent loops):

   ./setup_ollama.sh qwen2.5-coder:14b


   (This creates a custom model variant named qwen2.5-coder:14b-16k via Modelfile.example.)

3. In config.yaml, set:

   llm:
     provider: ollama

   ollama:
     base_url: http://localhost:11434/v1
     model: qwen2.5-coder:14b-16k
     timeout_seconds: 120


   (No .env API keys needed for Ollama!)

Option B: Cloud with OpenRouter (Default)

1. In .env, add your API key:

   OPENROUTER_API_KEY=sk-or-v1-...


2. In config.yaml, ensure llm.provider: openrouter and specify your desired model:

   llm:
     provider: openrouter

   openrouter:
     model: anthropic/claude-3.7-sonnet # or your preferred model
     reasoning_effort: medium


Option C: Cloud with Direct OpenAI

1. In .env, add your OpenAI API key:

   OPENAI_API_KEY=sk-proj-...


2. In config.yaml, set:

   llm:
     provider: openai

   openai:
     model: gpt-4o # or gpt-4o-mini


3. Launch the Application

./run.sh

Open your browser at http://127.0.0.1:8000 (or your configured server.host/server.port).

🧭 How to Use the App

1. Create a Project: In the top navigation or projects drawer, click New Project (names accept lowercase letters, numbers, and hyphens, e.g., spool-holder-v1).
2. Describe Your Model: Provide clear functional requirements, physical dimensions (in mm), wall thicknesses, mounting holes, or mating part specifications. Attach up to 5 reference images if you have sketches or sample parts.
3. Answer Clarifications: If any critical dimensions or design details are ambiguous, the agent will present interactive questions. Fill in the fields and submit.
4. Inspect in 3D:
   • As the agent works, watch its live reasoning stream.
   • Upon successful build, the Three.js viewport automatically loads the model.
   • Orbit, pan, and zoom, or click preset buttons: Isometric (◈), Front (F), Top (T), Right (R).
   • Toggle Wireframe or Grid to inspect geometry against the build plate.
5. Review Multi-View Evidence: Expand the Multi-view review section to inspect canonical orthographic/isometric renders and the contact sheet.
6. Iterate & Refine: Continue chatting to make adjustments (e.g., "Make the base 5mm thicker and fillet the inner edge").
7. Version History & Rollback: Open the History drawer to inspect line-by-line code diffs or revert to any prior build.
8. Export: Choose your format from the export dropdown in the preview toolbar and click Download.

📐 Supported Export Formats

Local AI CAD Agent provides direct in-browser export into 7 industry-standard formats:

All exports are cached on disk by model SHA-256 inside <project>/.cad-agent/exports/ for instantaneous subsequent downloads.

🛠️ Agent Tools Architecture

The agent interacts with the CAD workspace through strict, structured function contracts:

flowchart TD
    User([User Prompt / Reference Images]) --> AgentRunner[Agent Loop / LLM]
    AgentRunner --> ToolDispatch{Tool Dispatch}

    ToolDispatch -->|read_file| ReadSCAD[Read model.scad with line paging]
    ToolDispatch -->|write_file| WriteSCAD[Initialize / Overwrite model.scad]
    ToolDispatch -->|edit_file| EditSCAD[Atomic exact string replacements]
    ToolDispatch -->|cad_build_and_verify| Sandbox[Bubblewrap Sandbox Execution]
    ToolDispatch -->|get_view_images| VisualMem[Inspect canonical renders or crop areas]
    ToolDispatch -->|question| UserForm[Prompt user with structured form]

    Sandbox --> OpenSCAD[OpenSCAD compilation]
    OpenSCAD --> Verification[Validate manifold geometry, volume, dimensions]
    Verification --> MultiView[Render 8 canonical views + review sheet]
    MultiView --> Artifacts[preview.stl + render.png + manifests]

    Artifacts --> UI3D[Three.js 3D Viewport & History]

• read_file — Inspect existing model.scad content with optional offset/limit paging.
• write_file — Perform initial file creation or deliberate full rewrites.
• edit_file — Apply single or atomic batch (up to 16) exact replacements to preserve parametric structure.
• cad_build_and_verify — Runs OpenSCAD in the Bubblewrap sandbox, verifies manifold geometry and dimensions, extracts uppercase constants, builds preview.stl, and produces 8 canonical views.
• get_view_images — Fetches rendered views or normalized crops (X±, Y±, Z±, Isometric±) as visual memory to evaluate geometry.
• question — Halts execution to present structured input fields to the user for clarification.

⚙️ Configuration Reference

Settings are loaded from config.yaml (git-ignored) at startup. Copy config.example.yaml to create yours.

General & Agent Settings

LLM Provider Settings

OpenRouter Settings

OpenAI Settings

Ollama Settings (Local)

Server & UI Settings

📂 Project Directory Structure

When a project is created, its directory is initialized under workspace_root:

~/CAD-Agent-Projects/<project_name>/
├── model.scad                         # Current parametric OpenSCAD source
├── preview.stl                        # Latest verified solid mesh
├── render.png                         # Latest primary rendered preview
├── conversation.jsonl                 # Persisted conversation and tool history
├── inputs/                            # Uploaded and normalized reference images
└── .cad-agent/
    ├── exports/                       # Cached exports (SHA256.stl, SHA256.obj, etc.)
    ├── history/                       # Immutable revision manifests & source blobs
    ├── reviews/<model_sha>/           # 8 canonical views + review-sheet.png
    └── activity.jsonl                 # Optional tool-level debug trace

🔒 Security & Sandbox Isolation

Running arbitrary code written by an LLM requires strict isolation:

• Bubblewrap Isolation: All OpenSCAD invocations run in a non-root unprivileged container using bwrap.
• Network Isolation: Network syscalls are completely detached (--unshare-net) to prevent any external outbound or inbound traffic.
• Filesystem Security: The host filesystem is mounted read-only (/usr, /bin, /lib), with ephemeral isolated tmpfs mounts for temporary scratch files.
• Resource Constraints: prlimit enforces maximum memory and CPU bounds to protect against accidental infinite loops or memory explosions.
• Local Application: Designed specifically as a local workstation tool. Do not expose the HTTP port to the public internet without an authenticating reverse proxy.

🧪 Development & Testing

Set up development tools and run test suites:

# Install development dependencies
.venv/bin/pip install -r requirements-dev.txt

# Run pytest suite
.venv/bin/python -m pytest -q

# Run Ruff linter
.venv/bin/python -m ruff check .

# Check dependencies
.venv/bin/python -m pip check

Frontend Dependencies

Frontend libraries are pinned and checked in under static/vendor/ to allow completely offline operation:

• Three.js (including OrbitControls and STLLoader)
• Marked (Markdown rendering)
• Highlight.js (Code syntax highlighting)

To update vendor dependencies, see THIRD_PARTY_LICENSES.md.

📄 License

This project is licensed under the MIT License.
