ClaudeWatch — Complete Documentation

Real-time monitoring for Claude Code CLI instances. Desktop app built with Electron + React + TypeScript.

---

Table of Contents

1. Overview
   • Screenshots
2. Prerequisites
3. Quick Start
4. Development Setup
5. Architecture
6. Main Process
7. Renderer (UI)
8. IPC Communication
9. Platform Detection
10. Configuration & Settings
11. Tray & Popover
12. Notifications
13. Testing
14. Building for Production
15. Project Structure
16. Design System
17. Troubleshooting
18. Roadmap

---

Overview

ClaudeWatch is a cross-platform desktop application that detects and monitors running Claude Code CLI instances on your system. It provides:

• Real-time process detection via platform-specific system commands (ps/lsof on macOS, tasklist/wmic on Windows)
• Live dashboard with CPU, memory, elapsed time, and status per instance
• Menu bar tray icon with hover popover for quick glances
• Session history tracking completed Claude sessions
• Configurable notifications for idle and exited instances
• Dark-themed UI built with Tailwind CSS and Lucide icons

Screenshots

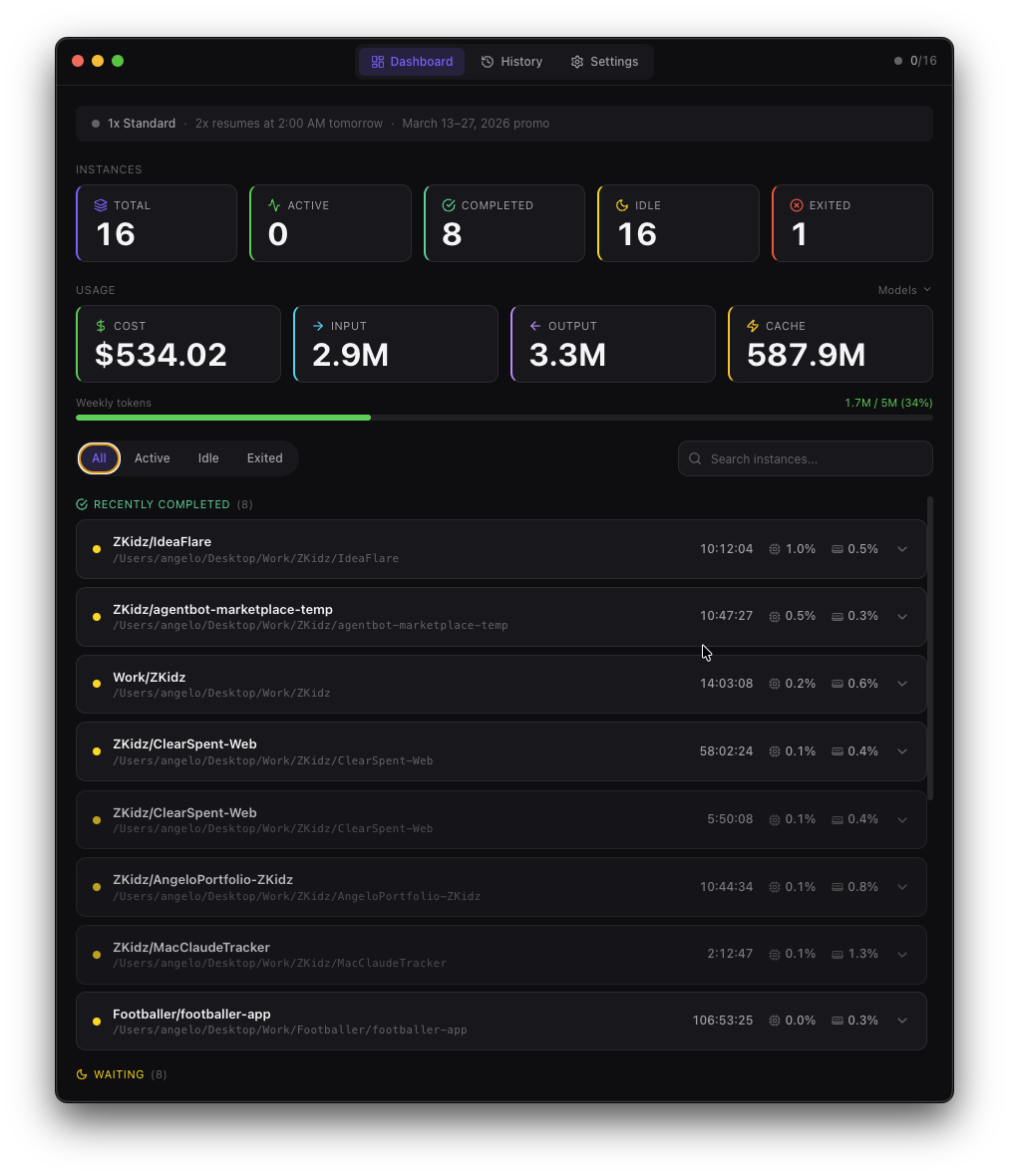

Dashboard — Live stats, usage metrics, and instance list with filters:

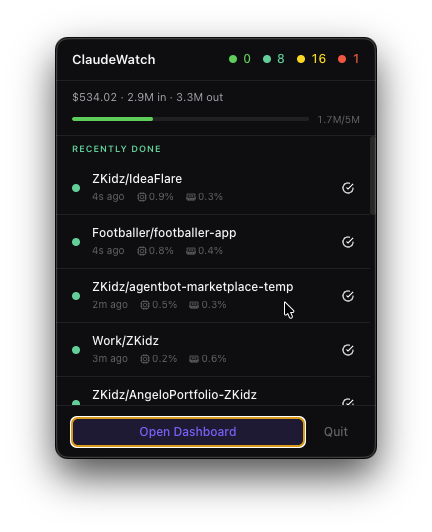

Tray Popover — Compact menu bar view with recent sessions:

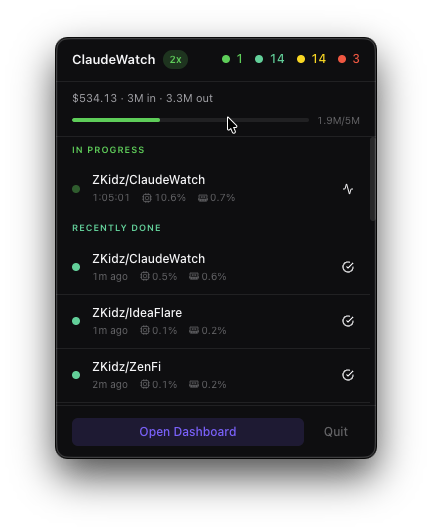

2x Indicator — Tray popover showing Claude promo status:

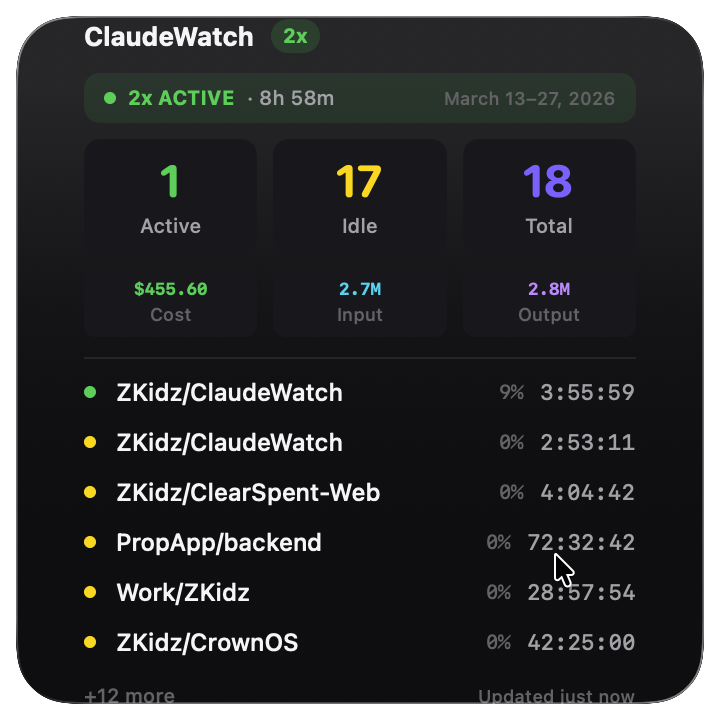

macOS Widget — Large widget showing live session stats, usage costs, and instance list:

How It Works

┌──────────────────────────────────────────────────────────────┐
│ System (macOS / Windows / Linux)                             │
│  └── Claude CLI processes (claude --resume, claude -m, etc.) │
└────────────────────┬─────────────────────────────────────────┘
                     │ ps / lsof / tasklist
                     ▼
┌──────────────────────────────────────────────────────────────┐
│ Main Process (Electron)                                      │
│  ├── ProcessMonitor  → polls system every N seconds          │
│  ├── SessionTracker  → detects new/changed/exited instances  │
│  ├── SettingsStore   → persists user preferences             │
│  ├── NotificationManager → native macOS/Windows alerts       │
│  └── TrayManager     → menu bar icon + popover window        │
└────────────────────┬─────────────────────────────────────────┘
                     │ IPC (contextBridge)
                     ▼
┌──────────────────────────────────────────────────────────────┐
│ Renderer (React 19)                                          │
│  ├── Dashboard      → stats cards, filters, instance list    │
│  ├── Header         → nav pills + live status indicator      │
│  ├── PopoverView    → compact tray popover UI                │
│  ├── SessionHistory → past session log                       │
│  └── Settings       → polling, notifications, appearance     │
└──────────────────────────────────────────────────────────────┘

---

Prerequisites

Tool	Version	Purpose
Node.js	>= 18.0	Runtime
pnpm (recommended) or npm	>= 8.0	Package manager
Git	Any	Version control
Xcode Command Line Tools (macOS)	Latest	Native compilation
Visual Studio Build Tools (Windows)	2019+	Native compilation

Verify Prerequisites

node --version    # v18.0.0 or higher
pnpm --version    # 8.0.0 or higher (or use npm)
git --version     # any version

On macOS, install Xcode CLI tools if not present:

xcode-select --install

---

Quick Start

# 1. Clone the repository
git clone <repo-url> ClaudeWatch
cd ClaudeWatch

# 2. Install dependencies
pnpm install

# 3. Run in development mode
pnpm dev

# 4. The app opens automatically — look for the tray icon (● 0) in your menu bar

The app starts hidden in the system tray. Click the tray icon to open the popover, or right-click for the context menu and select "Open Dashboard."

---

Development Setup

Install Dependencies

pnpm install

This also runs electron-builder install-app-deps as a postinstall hook to compile native Node modules for Electron's version of Node.

Development Server

pnpm dev

This starts electron-vite dev which:

1. Builds the main process and preload scripts
2. Starts a Vite dev server for the renderer (with HMR)
3. Launches the Electron app connected to the dev server

Hot Module Replacement (HMR): Changes to renderer files (React components, styles, hooks) reload instantly. Changes to main process files trigger a full restart.

Available Scripts

Script	Command	Description
pnpm dev	electron-vite dev	Development mode with HMR
pnpm build	electron-vite build	Build all processes for production
pnpm preview	electron-vite preview	Preview production build locally
pnpm test	vitest run	Run all tests once
pnpm test:watch	vitest	Run tests in watch mode
pnpm typecheck	tsc --noEmit	TypeScript type checking
pnpm lint	eslint . --ext .ts,.tsx	Lint all TypeScript files
pnpm format	prettier --write "src/**/*"	Format all source files
pnpm build:mac	Build + electron-builder --mac	Create macOS DMG
pnpm build:win	Build + electron-builder --win	Create Windows installer
pnpm build:linux	Build + electron-builder --linux	Create Linux AppImage
npm run release:patch	npm version patch && git push --follow-tags	Bump patch version and trigger CI release
npm run release:minor	npm version minor && git push --follow-tags	Bump minor version and trigger CI release
npm run release:major	npm version major && git push --follow-tags	Bump major version and trigger CI release

Verify Everything Works

# Run all checks in sequence
pnpm typecheck && pnpm test && pnpm lint

---

Architecture

Three-Process Model

Electron apps run three separate processes, each with its own entry point:

electron.vite.config.ts
├── main      → src/main/index.ts         (Node.js — full system access)
├── preload   → src/preload/index.ts      (Bridge — limited, secure)
└── renderer  → src/renderer/main.tsx     (Browser — React UI)

Process	Runtime	Access	Entry Point
Main	Node.js	Full system (filesystem, processes, notifications)	src/main/index.ts
Preload	Node.js (sandboxed)	Bridge between main & renderer	src/preload/index.ts
Renderer	Chromium	Browser APIs + exposed IPC methods	src/renderer/main.tsx

Key Design Decisions

1. Context Isolation — The renderer cannot access Node.js APIs directly. All system operations go through the preload bridge (window.api).

2. Event-Driven Updates — The SessionTracker emits lifecycle events (update, instance-appeared, instance-exited). Multiple consumers (dashboard, popover, tray, notifications) subscribe independently.

3. Platform Abstraction — Process detection is abstracted behind the PlatformDetector interface. macOS uses ps + lsof, Windows uses tasklist + wmic.

4. Multi-Window — Both the main dashboard and the tray popover are separate BrowserWindow instances loading the same renderer bundle (differentiated by URL hash #popover).

---

Main Process

ProcessMonitor (src/main/process-monitor.ts)

Detects Claude CLI processes running on the system.

Poll cycle:

1. Calls platform-specific detector (DarwinDetector or Win32Detector)
2. Gets raw process info (PID, CPU, memory, command line, TTY)
3. Resolves working directory via lsof (macOS) or wmic (Windows)
4. Parses CLI flags (--resume, --model, --mcp-config, etc.)
5. Extracts session ID from --resume flag
6. Determines status: active (CPU > threshold) or idle (CPU <= threshold)
7. Returns enriched ClaudeInstance[]

Configuration:

• cpuIdleThreshold (default: 3.0%) — CPU below this = idle

SessionTracker (src/main/session-tracker.ts)

Tracks instance lifecycles across polling cycles.

State management:

• Maintains a Map<pid, ClaudeInstance> of currently known instances
• Compares each poll result against previous state
• Detects: new appearances, status changes, and exits

Events emitted:

Event	Payload	When
instance-appeared	ClaudeInstance	New PID detected
instance-status-changed	{ instance, previousStatus }	active ↔ idle
instance-exited	SessionHistoryEntry	PID no longer found
update	{ instances: [], stats: {} }	Every poll cycle

SettingsStore (src/main/store.ts)

Persistent settings and session history using electron-store.

Storage location:

• macOS: ~/Library/Application Support/claudewatch/config.json
• Windows: %APPDATA%/claudewatch/config.json
• Linux: ~/.config/claudewatch/config.json

NotificationManager (src/main/notifications.ts)

Sends native OS notifications for instance events.

Notifications:

• Instance went idle — when CPU drops below threshold
• Instance exited — when a Claude session ends

Respects user settings: onIdle, onExited, sound, doNotDisturb.

---

Renderer (UI)

Component Hierarchy

App.tsx
├── [#popover] PopoverView
│   ├── Stats header (active/idle/exited counts)
│   ├── Instance rows (sorted, compact)
│   └── Actions (Open Dashboard, Quit)
│
└── [default] Main App
    ├── Header (nav pills + live indicator)
    └── <main>
        ├── Dashboard
        │   ├── Stat cards (4-column grid)
        │   ├── Filter bar + search
        │   └── InstanceList
        │       └── InstanceCard (expandable)
        │           ├── StatusBadge
        │           ├── Metrics (time, CPU, MEM)
        │           └── [expanded] Details + Open in Terminal
        ├── SessionHistory
        │   └── History entries with time-ago
        └── Settings
            ├── Monitoring (polling, threshold)
            ├── Notifications (toggles)
            ├── Appearance (theme)
            ├── System (launch at login)
            └── Updates (check, download, install)

Hooks

useInstances() — Manages all instance state:

• Fetches initial data on mount
• Subscribes to real-time IPC updates
• Provides filter (all/active/idle/exited) and search
• Returns sorted, filtered instances via useMemo

useSettings() — Manages app settings:

• Loads settings on mount
• Sends updates to main process for validation and persistence

useUpdater() — Manages auto-update state:

• Subscribes to updater:status IPC events on mount
• Tracks status, update info, download progress, and errors
• Exposes checkForUpdates, downloadUpdate, installUpdate actions

Key UI Patterns

Real-time elapsed counter:
Each InstanceCard runs its own setInterval that increments the elapsed time every second while the instance is active or idle. This avoids re-rendering the entire list.

Popover routing:
App.tsx checks window.location.hash === '#popover' at module load time. The tray popover window loads the same renderer bundle but with #popover appended to the URL.

macOS drag region:
The entire body is set as a drag region (-webkit-app-region: drag) so the frameless window is draggable. Interactive elements (buttons, inputs) opt out with -webkit-app-region: no-drag.

---

IPC Communication

Renderer → Main (invoke/handle)

Channel	Direction	Input	Output
instances:get	Request	—	{ instances, stats }
settings:get	Request	—	AppSettings
settings:set	Request	Partial<AppSettings>	AppSettings
history:get	Request	—	SessionHistoryEntry[]
history:clear	Request	—	{ success: boolean }
app:open-dashboard	Action	—	{ success: boolean }
app:quit	Action	—	void
terminal:open	Action	projectPath, terminalType?	{ success: boolean }
updater:check	Action	—	void
updater:download	Action	—	void
updater:install	Action	—	void

Main → Renderer (send/on)

Channel	Direction	Payload
instances:update	Push	{ instances, stats }
updater:status	Push	{ status: UpdateStatus, data?: UpdateInfo | UpdateProgress | string }

Preload Bridge

The preload script (src/preload/index.ts) exposes window.api via contextBridge:

window.api = {
  getInstances()                    // → ipcRenderer.invoke('instances:get')
  getSettings()                     // → ipcRenderer.invoke('settings:get')
  setSettings(settings)             // → ipcRenderer.invoke('settings:set', settings)
  getHistory()                      // → ipcRenderer.invoke('history:get')
  clearHistory()                    // → ipcRenderer.invoke('history:clear')
  openDashboard()                   // → ipcRenderer.invoke('app:open-dashboard')
  quit()                            // → ipcRenderer.invoke('app:quit')
  openTerminal(path, terminalType?) // → ipcRenderer.invoke('terminal:open', path, terminalType)
  onInstancesUpdate(callback)       // → ipcRenderer.on('instances:update', ...)
  checkForUpdates()                 // → ipcRenderer.invoke('updater:check')
  downloadUpdate()                  // → ipcRenderer.invoke('updater:download')
  installUpdate()                   // → ipcRenderer.invoke('updater:install')
  onUpdaterStatus(callback)         // → ipcRenderer.on('updater:status', ...)
}

---

Platform Detection

macOS (src/main/platform/darwin.ts)

Process discovery:

ps -eo pid,stat,%cpu,%mem,etime,tty,command

Filters output for lines matching the Claude CLI pattern (excludes Claude.app GUI and Electron helpers).

Working directory:

lsof -a -p <pid> -d cwd -Fn

Extracts the current working directory from lsof output.

Claude CLI identification:

• Must match /claude\s/ regex (bare claude command or full path ending in claude)
• Excludes: Claude.app, Electron Helper, node processes

Windows (src/main/platform/win32.ts)

Process discovery:

tasklist /FI "IMAGENAME eq claude.exe" /FO CSV /NH

Then for each PID:

wmic process where ProcessId=<pid> get CommandLine,ExecutablePath

Working directory:
Extracted from the executable path via wmic.

Adding a New Platform

1. Create src/main/platform/<platform>.ts
2. Implement the PlatformDetector interface:

   interface PlatformDetector {
     getClaudeProcesses(): Promise<RawProcessInfo[]>
     getWorkingDirectory(pid: number): Promise<string>
   }


3. Register in getPlatformDetector() in process-monitor.ts

---

Configuration & Settings

Default Settings

{
  pollingIntervalMs: 3000,       // How often to scan for processes
  cpuIdleThreshold: 3.0,         // CPU % below which = idle
  launchAtLogin: false,          // Start with macOS/Windows
  notifications: {
    onIdle: true,                // Notify when instance goes idle
    onExited: true,              // Notify when instance exits
    onError: true,               // Notify on errors
    sound: true,                 // Play notification sound
    doNotDisturb: false          // Suppress all notifications
  },
  theme: 'dark',                 // 'dark' | 'light' | 'system'
  maxHistoryEntries: 100         // Max stored history items
}

Validation Ranges

Setting	Min	Max	Default
pollingIntervalMs	500	60000	3000
cpuIdleThreshold	0.1	100	3.0
maxHistoryEntries	1	10000	100

Validation happens server-side in ipc-handlers.ts before persisting.

---

Tray & Popover

Tray Icon

The app lives primarily in the system tray (menu bar on macOS, system tray on Windows/Linux).

Tray title: ● <active_count> — shows how many Claude instances are currently active.

Interactions:

Action	Result
Hover	Opens popover window
Left click	Toggles popover
Right click	Shows context menu

Popover Window

A small (320x420) frameless window anchored below the tray icon:

• Transparent with macOS vibrancy (popover material)
• Auto-hides on blur (click outside)
• Shows compact instance list with live metrics
• "Open Dashboard" and "Quit" buttons

Context Menu (right-click)

ClaudeWatch — 5 instances
─────────────────────────────
🟢 MyProject — 00:05:32
🟢 OtherProject — 00:12:01
🟡 IdleProject — 01:23:45
🔴 FinishedProject — 00:30:00
─────────────────────────────
Open Dashboard
Check for Updates
─────────────────────────────
Quit

---

Notifications

Types

Event	Title	Body	Setting
Instance idle	"Claude went idle"	Project name	notifications.onIdle
Instance exited	"Claude session ended"	Project name + duration	notifications.onExited

Controls

• Sound — toggle notification sound on/off
• Do Not Disturb — suppresses all notifications while enabled
• Individual toggles for each notification type

---

Auto-Updates

ClaudeWatch supports automatic updates via GitHub Releases using electron-updater.

How It Works

1. On startup (after 10s delay), the app checks GitHub Releases for a newer version
2. Checks repeat every 4 hours automatically
3. Users can also trigger a check manually from Settings or the tray context menu
4. When an update is found, the user chooses whether to download it
5. After download completes, the user can install and restart with one click

Architecture

AutoUpdaterManager (src/main/auto-updater.ts)
├── Wraps electron-updater's autoUpdater
├── Sends status events to all renderer windows via 'updater:status' IPC
├── Dev mode: all operations are no-ops (electron-updater requires packaged app)
└── Configurable auto-check interval (default: 4 hours)

useUpdater hook (src/renderer/hooks/useUpdater.ts)
├── Subscribes to 'updater:status' events
├── Manages state: status, updateInfo, progress, error
└── Exposes actions: checkForUpdates, downloadUpdate, installUpdate

Update States

Status	Description	UI
idle	No check performed yet	"Check" button
checking	Querying GitHub Releases	Spinner
available	New version found	"Download" button + version badge
not-available	Already on latest	"Check" button
downloading	Downloading update	Progress bar with percentage
downloaded	Ready to install	"Install & Restart" button
error	Check or download failed	Error message + "Check" button

Settings UI

The Updates section appears at the bottom of the Settings panel with:

• Current update status text
• Version badge when an update is available
• Progress bar during download
• Action buttons for each state

Tray Integration

Right-clicking the tray icon shows a "Check for Updates" option above the Quit separator.

Configuration

Auto-update is configured in electron-builder.yml:

publish:
  provider: github
  owner: theangeloumali
  repo: ClaudeWatch

This tells electron-updater where to check for releases. The latest-mac.yml / latest.yml files generated during the build are uploaded alongside the installers.

Development Notes

• Auto-update is completely disabled in dev mode (is.dev guard) since electron-updater requires a packaged app with app-update.yml
• autoDownload is set to false — users must explicitly choose to download
• autoInstallOnAppQuit is true — if an update is downloaded but not installed, it installs on next quit

---

Testing

Test Framework

• Runner: Vitest 3.x
• DOM environment: jsdom (renderer tests)
• Node environment: Node (main process tests)
• Assertion libraries: @testing-library/react, @testing-library/jest-dom
• Coverage: V8 provider

Running Tests

# Run all tests once
pnpm test

# Run tests in watch mode
pnpm test:watch

# Run with coverage
npx vitest run --coverage

# Run specific test file
npx vitest run src/main/ipc-handlers.test.ts

Test Structure

src/
├── main/
│   ├── auto-updater.test.ts       # Auto-update manager tests (18 tests)
│   ├── ipc-handlers.test.ts       # IPC handler tests (12 tests)
│   ├── process-monitor.test.ts    # Process detection tests (15 tests)
│   ├── session-tracker.test.ts    # Lifecycle tracking tests (17 tests)
│   ├── store.test.ts              # Settings persistence tests (11 tests)
│   ├── notifications.test.ts      # Notification tests (14 tests)
│   ├── widget-stats-writer.test.ts # Widget stats tests (10 tests)
│   └── bugfix-issues.test.ts      # Regression tests (21 tests)
└── renderer/
    └── __tests__/
        ├── setup.ts               # Test setup (mocks window.api)
        ├── components.test.tsx     # Component render tests (8 tests)
        ├── useInstances.test.ts    # Hook tests (8 tests)
        ├── useSettings.test.ts    # Hook tests (4 tests)
        └── useUpdater.test.ts     # Auto-update hook tests (14 tests)

Total: 152 tests across 12 test files.

Writing New Tests

Main process tests use the Node environment:

import { describe, it, expect, vi } from 'vitest'
import { validateSettings } from './ipc-handlers'

describe('validateSettings', () => {
  it('clamps pollingIntervalMs to valid range', () => {
    expect(validateSettings({ pollingIntervalMs: 100 })).toEqual({
      pollingIntervalMs: 500
    })
  })
})

Renderer tests use jsdom with React Testing Library:

import { render, screen } from '@testing-library/react'
import { Dashboard } from '../components/Dashboard'

it('renders stat cards', () => {
  render(<Dashboard />)
  expect(screen.getByText('Total')).toBeInTheDocument()
})

---

Building for Production

Step 1: Build the Application

pnpm build

This runs electron-vite build which compiles:

• Main process → out/main/index.js
• Preload script → out/preload/index.js
• Renderer → out/renderer/index.html + assets

Step 2: Create Platform Installer

macOS (DMG)

pnpm build:mac

Output: dist/claudewatch-1.0.0-universal.dmg

• Universal binary (Intel + Apple Silicon)
• DMG with drag-to-Applications layout
• Requires macOS entitlements (build/entitlements.mac.plist)

Note: For distribution outside the Mac App Store, you need an Apple Developer certificate for code signing. Unsigned builds will show a Gatekeeper warning.

Windows (NSIS Installer)

pnpm build:win

Output: dist/claudewatch-1.0.0-setup.exe

• NSIS installer with custom install directory option
• x64 architecture

Linux (AppImage)

pnpm build:linux

Output: dist/claudewatch-1.0.0-x86_64.AppImage

• Self-contained AppImage (no system dependencies)
• Category: Utility

Build Configuration

Build settings are in electron-builder.yml:

appId: com.zkidz.claudewatch
productName: ClaudeWatch
directories:
  buildResources: build # Icons, entitlements, etc.
  output: dist # Built installers go here

Build Output Structure

dist/
├── claudewatch-1.0.0-universal.dmg   # macOS
├── claudewatch-1.0.0-setup.exe       # Windows
├── claudewatch-1.0.0-x86_64.AppImage # Linux
├── mac-universal/                       # Unpacked macOS app
│   └── ClaudeWatch.app/
└── builder-effective-config.yaml        # Resolved build config

Build Resources

Place build resources in the build/ directory:

build/
├── icon.icns              # macOS app icon (512x512)
├── icon.ico               # Windows app icon
├── icon.png               # Linux app icon (256x256+)
├── entitlements.mac.plist # macOS sandbox entitlements
└── background.png         # DMG background (optional)

Pre-Build Checklist

# 1. Verify types
pnpm typecheck

# 2. Run all tests
pnpm test

# 3. Lint
pnpm lint

# 4. Build
pnpm build

# 5. Preview locally (test production build without packaging)
pnpm preview

# 6. Package for your platform
pnpm build:mac   # or build:win or build:linux

---

Releasing

Creating a Release

ClaudeWatch uses GitHub Actions to automatically build and publish releases when a version tag is pushed.

Quick Release

# Bump version, create git tag, push — triggers CI build + GitHub Release
npm run release:patch   # 1.0.0 → 1.0.1
npm run release:minor   # 1.0.0 → 1.1.0
npm run release:major   # 1.0.0 → 2.0.0

This runs npm version <type> which:

1. Updates version in package.json
2. Creates a git commit with message v1.0.1
3. Creates a git tag v1.0.1
4. Pushes the commit and tag to the remote

CI/CD Pipeline (.github/workflows/release.yml)

When a v* tag is pushed, two jobs run in parallel:

Job	Runner	Output
build-mac	macos-latest	Universal DMG + latest-mac.yml
build-win	windows-latest	NSIS installer + latest.yml

Both jobs publish artifacts directly to the GitHub Release using --publish always.

Authentication: Uses the automatic GITHUB_TOKEN — no additional secrets needed.

Widget build: The macOS job runs npm run build:widget (requires Xcode/Swift) with continue-on-error: true so the release still succeeds if the widget build fails.

Manual Release

If you need to build and publish manually:

# 1. Bump version
npm version patch

# 2. Build
npm run build

# 3. Package and publish to GitHub Releases
GH_TOKEN=<your-token> npx electron-builder --mac --publish always
GH_TOKEN=<your-token> npx electron-builder --win --publish always

Code Signing

Currently, builds are unsigned. This means:

• macOS: Gatekeeper shows a warning on first launch ("unidentified developer"). Users bypass via right-click → Open.
• Windows: SmartScreen may warn on first run.

Auto-update still works without code signing. To add signing later, set these GitHub Actions secrets:

• CSC_LINK — Base64-encoded .p12 certificate
• CSC_KEY_PASSWORD — Certificate password

How Users Get Updates

1. User runs an older version of ClaudeWatch
2. App checks GitHub Releases (automatically every 4h, or manually via Settings/tray)
3. If a newer version exists, the app shows "Update available v1.0.1"
4. User clicks "Download" → progress bar shows download progress
5. User clicks "Install & Restart" → app quits, installs, and relaunches

---

Project Structure

ClaudeWatch/
├── build/                          # Build resources (icons, entitlements)
├── dist/                           # Built installers (git-ignored)
├── out/                            # Compiled output (git-ignored)
├── plans/                          # Feature plans and roadmaps
├── docs/                           # Documentation
│
├── src/
│   ├── main/                       # Electron main process
│   │   ├── index.ts                # App entry point, lifecycle
│   │   ├── process-monitor.ts      # Claude process detection
│   │   ├── session-tracker.ts      # Instance lifecycle tracking
│   │   ├── store.ts                # Persistent settings (electron-store)
│   │   ├── tray.ts                 # Tray icon + popover window
│   │   ├── notifications.ts        # Native OS notifications
│   │   ├── auto-updater.ts         # Auto-update manager (electron-updater)
│   │   ├── ipc-handlers.ts         # IPC request handlers
│   │   ├── terminal-resolver.ts    # Detect parent terminal from process tree
│   │   ├── terminal-opener.ts      # Open project in detected terminal
│   │   ├── widget-stats-writer.ts  # Write stats.json for macOS widget
│   │   ├── widget-sync.ts          # Coordinate widget data updates
│   │   ├── format-utils.ts         # Duration formatting
│   │   └── platform/
│   │       ├── darwin.ts           # macOS process detection (ps/lsof)
│   │       ├── win32.ts            # Windows process detection (tasklist/wmic)
│   │       └── exec.ts             # execFile promise wrapper
│   │
│   ├── preload/                    # Context bridge
│   │   ├── index.ts                # Exposes window.api
│   │   └── index.d.ts             # Type declarations
│   │
│   └── renderer/                   # React UI
│       ├── main.tsx                # React entry point
│       ├── App.tsx                 # Root component + popover routing
│       ├── index.html              # HTML shell
│       ├── env.d.ts                # Global type augmentation
│       ├── components/
│       │   ├── Header.tsx          # Navigation + live indicator
│       │   ├── Dashboard.tsx       # Stats + filters + instance list
│       │   ├── InstanceList.tsx    # Instance card container
│       │   ├── InstanceCard.tsx    # Expandable instance row
│       │   ├── StatusBadge.tsx     # Colored status dot + label
│       │   ├── PopoverView.tsx     # Compact tray popover UI
│       │   ├── SessionHistory.tsx  # Past sessions view
│       │   ├── Settings.tsx        # Preferences view
│       │   └── ProjectTag.tsx      # Project name display
│       ├── hooks/
│       │   ├── useInstances.ts     # Instance state + filtering
│       │   ├── useSettings.ts      # Settings state management
│       │   └── useUpdater.ts       # Auto-update state + actions
│       ├── lib/
│       │   ├── types.ts            # Shared TypeScript types
│       │   └── utils.ts            # Formatting utilities
│       ├── styles/
│       │   └── globals.css         # Tailwind base + component utilities
│       └── __tests__/
│           ├── setup.ts            # Test environment setup
│           ├── components.test.tsx  # Component tests
│           ├── useInstances.test.ts # Hook tests
│           ├── useSettings.test.ts  # Hook tests
│           └── useUpdater.test.ts   # Auto-update hook tests
│
├── .github/
│   └── workflows/
│       └── release.yml             # CI/CD: build + publish on tag push
├── electron.vite.config.ts         # Vite config (main/preload/renderer)
├── electron-builder.yml            # Build/packaging config
├── tailwind.config.ts              # Tailwind theme + design tokens
├── postcss.config.js               # PostCSS (tailwindcss + autoprefixer)
├── tsconfig.json                   # Base TypeScript config
├── tsconfig.node.json              # Main process TS config
├── tsconfig.web.json               # Renderer TS config
├── vitest.config.ts                # Test configuration
├── package.json                    # Dependencies and scripts
└── .prettierrc                     # Code formatting rules

---

Design System

Color Palette

Token	Value	Usage
surface	rgb(14, 14, 16)	App background
surface-raised	rgb(24, 24, 28)	Cards, inputs, elevated surfaces
surface-hover	rgb(32, 32, 38)	Hover states
accent	#7C5CFC	Primary purple accent
accent-hover	#6B4FE0	Accent hover state
status-active	#30D158	Active instances (green)
status-idle	#FFD60A	Idle instances (yellow)
status-exited	#FF453A	Exited instances (red)
status-finished	#64D2FF	Finished instances (cyan)
text-primary	#F5F5F7	Main text
text-secondary	#A1A1A6	Secondary text
text-tertiary	#636366	Subtle text, icons
border	rgba(255,255,255,0.08)	Default borders
border-hover	rgba(255,255,255,0.15)	Hover borders

Typography Scale

Token	Size	Weight	Usage
text-stat	2rem	700	Large stat numbers
text-heading	0.8125rem	600	Section headings, labels
text-body	0.8125rem	400	Body text
text-caption	0.6875rem	400	Small labels, captions
text-mono-sm	0.75rem	500	Monospace metrics

Font Stack

• Sans: -apple-system, BlinkMacSystemFont, SF Pro Text, system-ui
• Mono: SF Mono, Menlo, Monaco, Consolas

Component Utilities (CSS)

Class	Description
.card	Base card: rounded-10px, border, surface-raised bg
.card-interactive	Card + hover effects (border-hover, surface-hover)
.stat-card	Stat display: card + flex-col + padding
.filter-btn	Inactive filter pill
.filter-btn-active	Active filter pill (accent bg)
.no-drag	Opt out of macOS window drag region

Animations

Name	Duration	Effect
fade-in	200ms ease-out	translateY(4px) → 0, opacity 0 → 1
pulse-dot	2s ease-in-out infinite	Opacity oscillates 1 → 0.4 → 1

List items get staggered animation delays (30ms per item, up to 10 items).

---

Troubleshooting

Tailwind styles not rendering

Cause: The css.postcss.plugins block in electron.vite.config.ts overrides postcss.config.js.

Fix: Ensure electron.vite.config.ts does NOT have a css block in the renderer config. Vite should discover postcss.config.js automatically.

Instance cards not clickable / not expanding

Cause: macOS Electron drag region (-webkit-app-region: drag) on body intercepts clicks on child elements inside buttons.

Fix: Add the no-drag class to interactive container elements (e.g., .card-interactive).

"Open in Terminal" opens the wrong app

ClaudeWatch detects the terminal each session runs in and tries to open the correct app. If the detected terminal has no dedicated opener (e.g., Alacritty, Hyper), it falls back to Terminal.app. Supported dedicated openers: Warp, iTerm2, Terminal.app, Kitty, WezTerm, Ghostty, VS Code, Cursor.

No instances detected

1. Verify Claude CLI is actually running: ps aux | grep claude
2. Check that the Claude process matches the detection pattern (must be claude command, not Claude.app)
3. Try lowering the polling interval in Settings (e.g., 1 second)
4. Check Console.app for any permission errors with ps or lsof

Notifications not appearing

1. Check System Preferences → Notifications → ClaudeWatch is enabled
2. Verify Do Not Disturb is not enabled in app settings
3. Verify individual notification toggles are on in Settings

Build fails on macOS

# Install Xcode CLI tools
xcode-select --install

# Clear node_modules and reinstall
rm -rf node_modules out dist
pnpm install

Build fails on Windows

Ensure Visual Studio Build Tools 2019+ are installed with the "Desktop development with C++" workload.

---

Roadmap

Completed

• Process detection (macOS + Windows)
• Live dashboard with stats, filters, search
• Dark-themed UI with Tailwind design system
• System tray with context menu
• Menu bar popover (hover/click)
• Session history tracking
• Configurable notifications
• Settings persistence
• Multi-terminal detection and opening (Warp, iTerm2, Terminal.app, Kitty, WezTerm, Ghostty, VS Code, Cursor)
• Session type detection (CLI, VS Code, subagent)
• Auto-updater integration (electron-updater + GitHub Releases CI/CD)
• macOS Widgets (WidgetKit) — Small/Medium/Large widgets with live stats, usage costs, and instance list

Planned

• Linux process detection (/proc filesystem)
• Export session history (CSV/JSON)
• Custom alert rules (e.g., "notify if idle for > 5 minutes")

---

Dependencies

Runtime

Package	Version	Purpose
@electron-toolkit/preload	^3.0	Preload utilities
@electron-toolkit/utils	^3.0	Electron helpers (is.dev, etc.)
electron-store	^10.0	Persistent JSON storage
electron-updater	^6.0	Auto-update support
lucide-react	^0.400	Icon library

Development

Package	Version	Purpose
electron	^34.0	Desktop framework
electron-builder	^25.0	Native packaging
electron-vite	^3.0	Vite integration for Electron
react / react-dom	^19.0	UI framework
typescript	^5.7	Type safety
tailwindcss	^3.4	Utility-first CSS
vitest	^3.0	Test runner
@testing-library/react	^16.3	Component testing
@vitejs/plugin-react	^4.0	React Fast Refresh
eslint	^9.0	Linting
prettier	^3.0	Code formatting

---

Last updated: 2026-03-19
