Smart Drawio Next

中文文档

Create editable Draw.io diagrams from natural language or reference images, for research, documentation, and presentations.

Skill & MCP 0.1.0: GitHub release · MCP on npm · Official MCP Registry

Live Demo

• Demo: https://smart-drawio-next.vercel.app/
• Note: the hosted version requires your own API key

Gallery

Home	Transformer

Swin-Transformer	CLIP

ProSST

Overview

smart-drawio-next is a diagram generation tool built with Next.js 16, embedded Draw.io, and streaming LLM APIs. It helps you:

• Generate structured diagrams from natural language prompts
• Upload reference images and convert them into editable diagram content
• Fine-tune XML / JSON in Monaco Editor
• Sync output directly into an embedded Draw.io canvas
• Use post-processing tools to improve layout, connectors, styles, and annotations

The project includes multi-model configuration, workspace recovery, generation history, and notifications. It can be deployed as a personal tool or an internal team service.

Core Features

• Streaming generation with support for continuing truncated outputs
• Multimodal input with both text and image-based workflows
• Code + canvas workflow for editing XML and previewing the result side by side
• Post-processing toolchain for structure, text, connector, and style refinement
• Multi-provider config management for OpenAI / Anthropic-compatible APIs
• Local history with replay support for recent generations

Agent Skill and MCP

Version 0.1.0 is published. Choose the entry point that fits your workflow:

Install the Skill

Install the fixed release:

npx skills add https://github.com/yunshenwuchuxun/smart-drawio-next/tree/tools-v0.1.0/skills/smart-drawio

The Skill is distributed as GitHub files, with no separate npm package. npx skills runs the general Skills CLI, which downloads the Skill from the repository. Its Python 3 validator works offline without third-party dependencies; MCP is optional.

Example agent request:

Use $smart-drawio to create an original encoder–decoder Transformer diagram, save it as transformer.drawio, and check its connectors and labels.

Configure the MCP server

Use Node.js 20.9 or later and a client that supports local stdio MCP. For clients using mcpServers JSON:

{
  "mcpServers": {
    "smart-drawio": {
      "command": "npx",
      "args": ["-y", "@yunshenwuchuxun/[email protected]"]
    }
  }
}

The client starts the server and communicates over stdin/stdout. Configure SMART_DRAWIO_PROVIDER, SMART_DRAWIO_BASE_URL, SMART_DRAWIO_API_KEY and SMART_DRAWIO_MODEL in the MCP process environment to enable generation through your OpenAI/Anthropic-compatible provider.

The MCP server returns uncompressed XML for the client to save. PNG/SVG/PDF previews and exports need an available Draw.io renderer or editor. Version 0.1.0 provides local stdio tools; the Registry link is installation metadata, and the Vercel URL is the website. This package has no remote HTTP MCP endpoint or live canvas session control.

Generated examples

Both examples below were rendered using the official Draw.io viewer and are available as editable files:

Skill workflow	MCP generation workflow
Editable .drawio	Editable .drawio

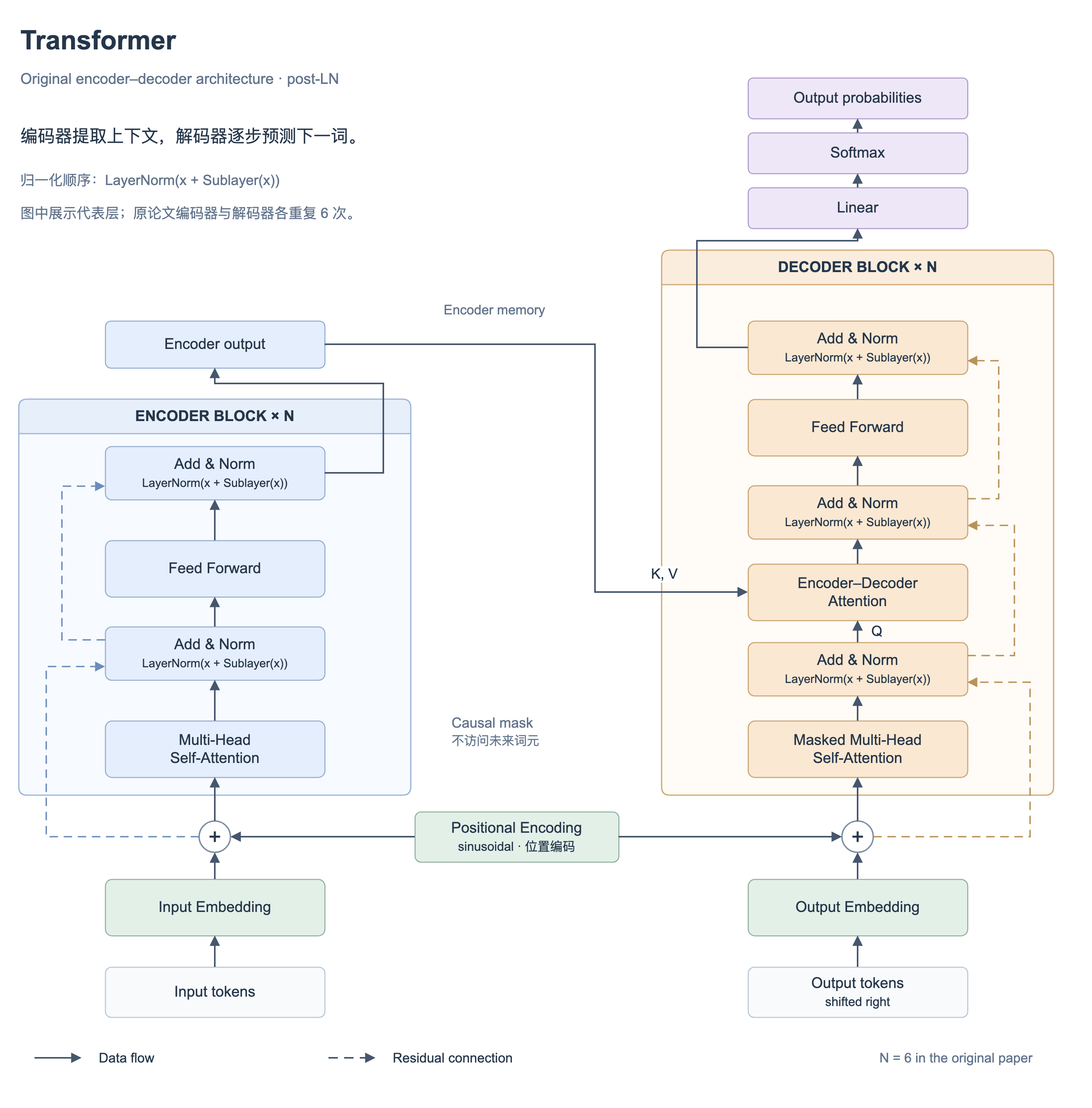

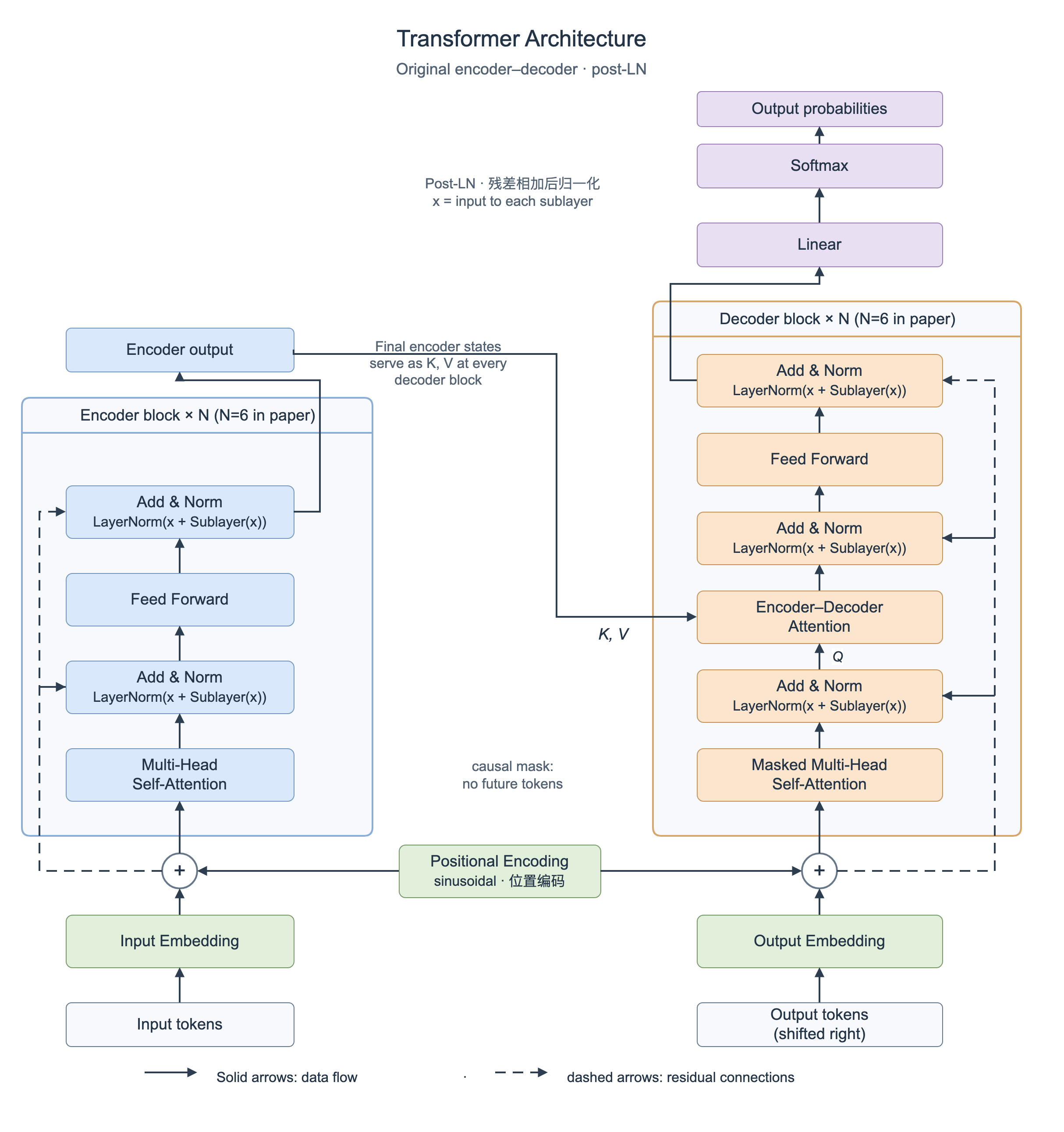

The Skill example used the agent's own model. The MCP example used a real OpenAI-compatible API request for codex/gpt-6.1-sol, then MCP validation and Draw.io rendering. The original MCP output includes one annotation crossed by a connector; the examples retain their actual outputs.

Release CI passed 291 JavaScript tests, 11 Python tests and 8 browser tests, plus lint, production build and isolated package installation. Public Skill installation and npm MCP handshake/tool calls were also verified.

See MCP setup, Skill installation, and version downloads. The Next.js application remains independently deployable to Vercel.

Supported Diagram Types

The app supports 20+ diagram types. You can choose one explicitly or let the model decide:

• Flowchart
• Mind Map
• Org Chart
• Sequence Diagram
• UML Class Diagram
• ER Diagram
• Gantt Chart
• Timeline
• Tree
• Network Topology
• Architecture Diagram
• Data Flow Diagram
• State Diagram
• Swimlane Diagram
• Concept Map
• Fishbone Diagram
• SWOT Analysis
• Pyramid Diagram
• Funnel Diagram
• Venn Diagram
• Matrix Diagram
• Infographic

Built-in Themes

10 built-in color themes are available:

• Research
• Business
• Warm
• Cool
• Dark
• Contrast
• Pastel
• Forest
• Violet
• Neutral

Tools System

After generation, you can continue refining the diagram in the sidebar tools panel. All operations are XML-based transforms.

Drawing Tricks

Used for bulk layout and connector refinement:

• Grid Snap
• Orthogonal Routing
• Curved Routing
• Label Background
• Consistent Spacing
• Jump Crossings
• Rounded Edges
• Normalize Arrows
• Remove Waypoints

Style Presets

Used for stackable visual effects:

• Shadow
• Gradient
• Rounded
• Glass
• Sketch
• Comic
• Dashed
• Transparent
• Bold Stroke
• No Stroke
• Absolute Arc
• Cross-Hatch
• Dot Fill
• Zigzag Fill
• Semi-Opaque
• Fade Stroke
• Fixed Dash
• Open Arrow

Style Packs

Used for one-click full visual styles:

• Research Clean
• Presentation Cards
• Business Clean
• Flat Minimal
• Wireframe
• Comic Whiteboard
• Watercolor Sketch
• Minimal Outline
• Sticky Notes
• Blueprint Tech

Text Tools

Used for batch text formatting:

• Wrap Labels
• Center Text
• Text Panels
• Bold Text
• Compact Text
• Text Padding

Tools System Examples

Baseline: no style	Preset: comic + cross-hatch

Style pack: blueprint tech	Style pack: business clean

UI Structure

1. Input Area (Chat + ImageUpload)

   • Enter prompts
   • Upload reference images
   • Stop or continue generation

2. Code Editor

   • View and edit XML / JSON
   • Run clear, optimize, advanced optimize, and apply actions

3. Canvas

   • Render the generated result
   • Continue editing visually in Draw.io

4. Support Modals

   • ConfigManager
   • HistoryModal
   • OptimizationPanel
   • Other supporting panels

Developing the Tools

The website and tools share the drawing core. To build and verify the packages from a source checkout:

pnpm build:mcp
pnpm test:tools
pnpm test:skill
pnpm verify:mcp
pnpm pack:tools

See packaging and publication for release checks. Publish only packages/mcp; the website's root package remains private.

Tech Stack

• Framework: Next.js 16 (App Router) + React 19
• Canvas: Draw.io embed
• Editor: @monaco-editor/react
• Styling: Tailwind CSS v4
• LLM Integration: OpenAI / Anthropic-compatible APIs with SSE streaming
• Persistence: localStorage

Getting Started

Requirements

• Node.js >= 20.9 (Node.js 24 LTS recommended)
• pnpm >= 8
• An available OpenAI / Anthropic-compatible API key

Install and Run

git clone https://github.com/yunshenwuchuxun/smart-drawio-next.git
cd smart-drawio-next
pnpm install
pnpm dev

Then open: http://localhost:3000

Common Commands

Docker Deployment

Requirements

• Docker >= 20.10
• Docker Compose V2

Quick Start

docker compose up -d --build

Then open: http://localhost:3000

The image uses a multi-stage build and Next.js standalone output for deployment-friendly packaging.

LLM Configuration

Configure the provider, base URL, API key and model in the browser settings.
The current release uses the user's configuration for each generation request.
ACCESS_PASSWORD and SERVER_LLM_* are not implemented server-side configuration options.

Proxy and Local Model Setup

If Docker needs a proxy or access to a model running on the host machine:

cp docker-compose.override.example.yml docker-compose.override.yml

Edit it for your environment, then restart:

docker compose up -d --build

Typical use cases:

• Routing traffic through a host proxy
• Accessing host-local Ollama or LM Studio
• Mounting a custom CA certificate for enterprise proxies

Common Docker Commands

docker compose logs -f app
docker compose down
docker compose up -d --build
docker compose ps

LLM Configuration

Client-Side Config Mode

By default, users configure these in the UI:

• Provider
• Base URL
• API Key
• Model

Saved configurations persist in browser localStorage. Generation sends the active model configuration and input to the application's API route, which calls the selected model provider.

Workspace Recovery and Request Limits

The applied diagram, unapplied code draft, text input, theme and presets are saved locally after changes and restored on reload. The header reports whether the draft was saved. Workspace snapshots exclude provider credentials and uploaded image data; images must be uploaded again after a reload.

Generation accepts requests up to 4 MiB and images up to 2 MiB to leave room for base64 encoding on Vercel. Model requests have a 240-second total deadline and a 60-second idle deadline. Stopping generation cancels pending retries and continuation requests as well as the upstream model request.

XML validation runs in browsers and Node.js. Each uncompressed page is checked independently for malformed XML, duplicate IDs, invalid parent chains and missing references. Compressed .drawio pages are not supported in this phase. Truncated output stays in the editor; explicitly applying it can repair missing closing tags and reports any discarded tail.

Legacy JSON input rejects unsupported or invalid elements without replacing the current diagram or draft. Explicitly applying [] creates an empty diagram and can be undone.

FAQ

Where does my API key go?

The saved configuration is stored locally in your browser. Each generation request sends the selected configuration, including the API key, to the application's server; the server uses that key to authenticate with your selected model provider. MCP generation uses the credentials configured in its process environment. The Skill can generate XML with the agent's own model without a separate diagram-generation API configuration.

What if the output is truncated?

The UI provides a continue-generation action automatically when needed.

What if image recognition fails?

Use a vision-capable model and make sure the image format and size are valid.

Will history grow without limit?

No. The app keeps only the most recent 20 entries by default.
