openclaw-kasmvnc

One-click deployment for OpenClaw + KasmVNC (Windows / macOS / Linux).

🇨🇳 中文版 / Chinese version: README-zh.md

Key Advantages

🔧 Full Lifecycle Management Inside Container

Solves the core limitation of official OpenClaw Docker deployment:

In the official OpenClaw Docker setup, the Gateway runs on the host machine, and containers lack systemd, causing:

• ❌ Cannot run openclaw gateway restart inside container
• ❌ Cannot run npm install -g openclaw@latest for hot updates inside container
• ❌ Must manually restart container after config changes

This project solves it with systemctl shim:

• ✅ Supports openclaw gateway restart inside container
• ✅ Supports upgrade command for hot updates (no image rebuild needed)
• ✅ Complete install / upgrade / restart / uninstall lifecycle management

👁️ Visual Desktop Environment

Solves the visibility problem of cloud vendor one-click deployments:

Cloud vendor OpenClaw deployments typically only provide CLI, making it impossible to:

• ❌ Watch OpenClaw operate the browser in real-time
• ❌ Observe Agent task execution with visual feedback
• ❌ Debug desktop application issues

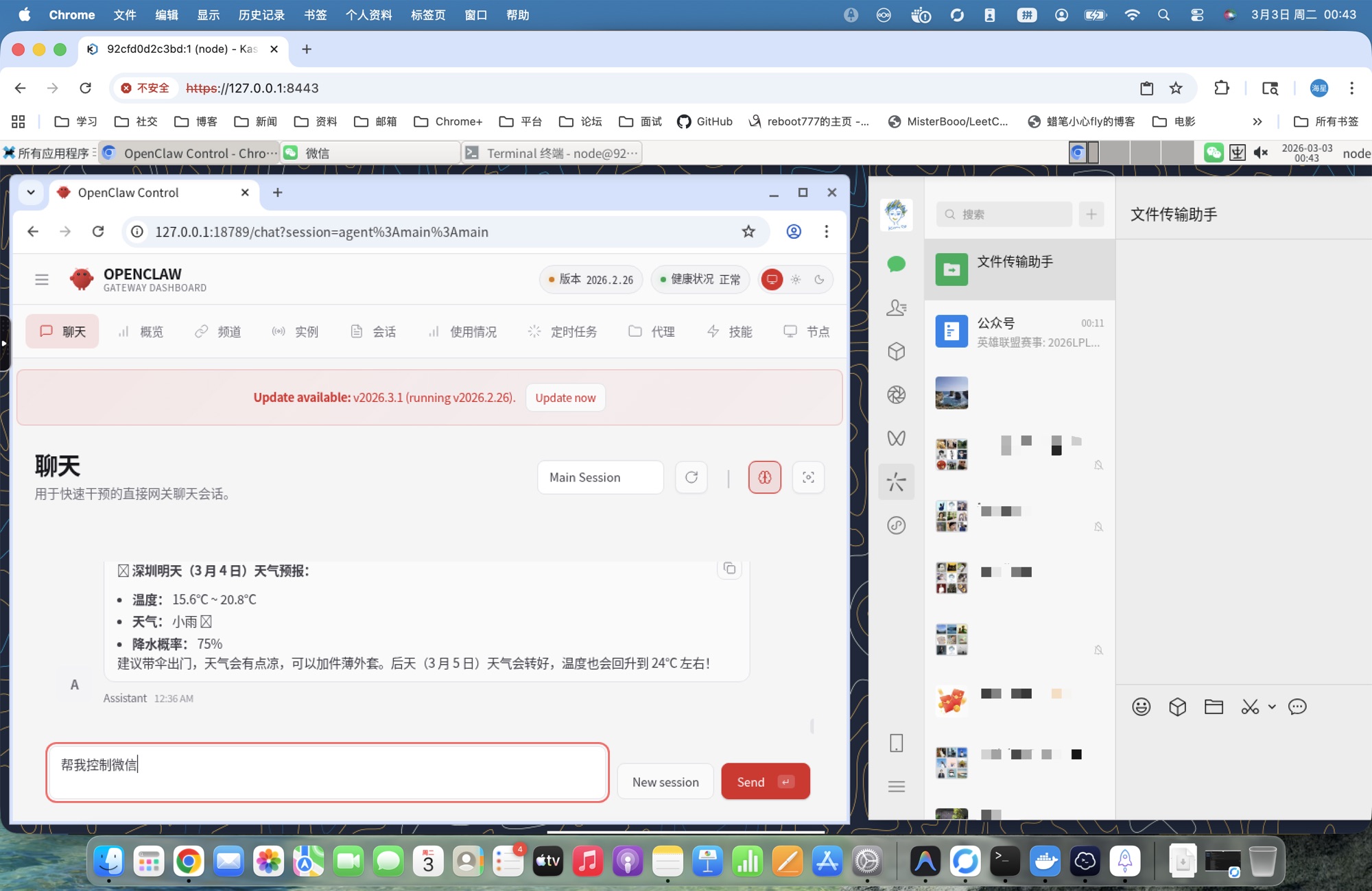

This project provides a complete desktop environment:

• ✅ Browser-based XFCE desktop (KasmVNC)
• ✅ Watch OpenClaw operate Chromium in real-time
• ✅ Full Linux desktop experience

Quick Start

Option 1: Docker Image (Recommended)

docker run -d \
  --name openclaw-kasmvnc \
  --privileged \
  --shm-size=2g \
  -p 18789:18789 \
  -p 8443:8444 \
  -e OPENCLAW_GATEWAY_TOKEN=your-token-here \
  -e OPENCLAW_KASMVNC_PASSWORD=your-password-here \
  -v ~/openclaw-data:/home/node \
  ddong8/openclaw-kasmvnc:latest-intl

Data Persistence: Mounting ~/openclaw-data:/home/node persists all user data including OpenClaw configs, VS Code settings, Git credentials, and desktop files.

📖 Full documentation: DOCKER-en.md

Option 2: One-Click Script

Windows:

irm https://raw.githubusercontent.com/ddong8/openclaw-kasmvnc/main/openclaw-kasmvnc.ps1 | iex

macOS / Linux:

curl -fsSL https://raw.githubusercontent.com/ddong8/openclaw-kasmvnc/main/openclaw-kasmvnc.sh | bash -s -- install

Access Services

Token and password are auto-generated on first install. Save them somewhere safe.

Other Features

• Environment isolation -- OpenClaw, desktop, and all dependencies live inside the container
• One-click deploy -- install, upgrade, and restart via a single script + Compose
• Cross-platform -- identical container behavior on Windows, macOS, and Linux
• Docker-in-Docker -- built-in dockerd lets OpenClaw create and manage child containers
• GPU auto-detect -- automatically enables nvidia runtime when a host GPU is present
• Mass deployment -- standardized container approach enables large-scale lobster deployments

Prerequisites

• Docker (with Docker Compose v2)
• Windows: PowerShell 5+ / 7+
• macOS / Linux: Bash

Common Commands

# Install
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command install

# Uninstall (stop services only)
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command uninstall

# Uninstall and remove install directory
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command uninstall -Purge

# Restart
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command restart

# Upgrade
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command upgrade

# Status / Logs
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command status
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command logs -Tail 200

chmod +x ./openclaw-kasmvnc.sh

./openclaw-kasmvnc.sh install              # Install
./openclaw-kasmvnc.sh uninstall            # Uninstall (stop services only)
./openclaw-kasmvnc.sh uninstall --purge    # Uninstall and remove install directory
./openclaw-kasmvnc.sh restart              # Restart
./openclaw-kasmvnc.sh upgrade              # Upgrade
./openclaw-kasmvnc.sh status               # Status
./openclaw-kasmvnc.sh logs --tail 200      # Logs

Optional Parameters

The script fetches the latest OpenClaw version via npm. Run upgrade to update.

# Windows
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 `
  -Command install `
  -InstallDir "D:\openclaw-deploy" `
  -GatewayPort "18789" `
  -HttpsPort "8443"

# macOS/Linux
./openclaw-kasmvnc.sh install \
  --install-dir "$HOME/openclaw-deploy" \
  --gateway-port 18789 \
  --https-port 8443

Pass --proxy at install time to route all container HTTP/HTTPS traffic through a proxy:

# Linux/macOS
./openclaw-kasmvnc.sh install --proxy http://192.168.1.131:10808

# Windows
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command install -Proxy "http://192.168.1.131:10808"

You can also edit .env after install and restart to apply:

OPENCLAW_HTTP_PROXY=http://192.168.1.131:10808

By default, the container installs Docker CE and runs in privileged mode to support Docker-in-Docker. If you don't need OpenClaw to manage child containers, you can disable DinD for better security:

# Linux/macOS
./openclaw-kasmvnc.sh install --no-dind

# Windows
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command install -NoDinD

When --no-dind is enabled:

• Docker CE is not installed in the container
• Container runs without privileged: true (more secure)
• OpenClaw cannot create or manage child containers

Default is KasmVNC 1.3.0. Override via environment variable:

# Linux/macOS
OPENCLAW_KASMVNC_VERSION=1.4.0 ./openclaw-kasmvnc.sh install

# Windows
$env:OPENCLAW_KASMVNC_VERSION="1.4.0"
powershell -ExecutionPolicy Bypass -File .\openclaw-kasmvnc.ps1 -Command install

Project Structure

• openclaw-kasmvnc.sh -- macOS/Linux script (international)
• openclaw-kasmvnc.ps1 -- Windows script (international)
• openclaw-kasmvnc-zh.sh -- macOS/Linux script (Chinese, with China-optimized mirrors)
• openclaw-kasmvnc-zh.ps1 -- Windows script (Chinese, with China-optimized mirrors)

After running, the install directory contains:

<install-dir>/
├── .env                              # Environment config (token, password, ports)
├── .openclaw/                        # OpenClaw persistent config and workspace
├── docker-compose.yml                # Compose service definition
├── Dockerfile.kasmvnc                # Image build (node:22 + KasmVNC + XFCE)
└── scripts/docker/
    ├── kasmvnc-startup.sh            # Container entrypoint (VNC → desktop → gateway)
    └── systemctl-shim.sh             # systemctl shim (translates systemd calls to signals)

Built-in Features

• UTC timezone, en_US locale -- TZ=UTC, LANG=en_US.UTF-8, Noto fonts pre-installed
• Gateway auto-restart -- supervisor loop restarts the gateway on crash; VNC session stays connected
• X11 cleanup -- entrypoint clears stale X11 lock files and VNC processes to prevent black screens
• systemctl shim -- no systemd in the container; the shim makes openclaw gateway restart/stop/start work
• Clipboard safety -- removes the default chromium/x-web-custom-data MIME type so pkill -f chromium won't kill VNC

Open a terminal in the VNC desktop and use standard OpenClaw commands:

openclaw gateway restart          # Restart (reload latest code)
openclaw gateway stop             # Stop
openclaw gateway status --probe   # Check status

These commands work via the built-in systemctl shim -- no real systemd required.

Pre-installed Tools

The desktop environment comes with these development tools pre-installed:

• Chromium - Web browser (desktop icon)
• Visual Studio Code - Code editor (desktop icon)
• vim - Terminal text editor
• Git - Version control system
• Node.js 22 - JavaScript runtime
• npm - Package manager
• Docker CE - Container engine (DinD variants only)

Desktop icons are located in /home/node/Desktop and can be launched with a double-click.

Configuration Changes

Config files: <install-dir>/.env, <install-dir>/.openclaw/openclaw.json

1. Edit the config file
2. Run restart
3. Verify with status and logs --tail 200

If you changed image-level config (Dockerfile, system packages), run upgrade instead of restart.

Known Issues

VNC flicker during openclaw update

npm install causes high CPU/IO, which may trigger KasmVNC WebSocket heartbeat timeouts. This is temporary resource contention -- the session recovers automatically. Run upgrade when the host has spare resources.

FAQ

1. Build fails with package installation errors?

If you encounter errors during the Docker build process (e.g., apt-get failures), try rebuilding without cache:

# Windows
.\openclaw-kasmvnc.ps1 install -NoCache

# macOS/Linux
./openclaw-kasmvnc.sh install --no-cache

This forces Docker to re-download all packages and can resolve transient network or repository issues.

2. Port conflict

Change ports at install time: Windows -GatewayPort 28789 -HttpsPort 9443, macOS/Linux --gateway-port 28789 --https-port 9443, then re-run install.

3. HTTPS certificate warning

KasmVNC uses a self-signed certificate by default. Click through the browser warning, or set up a reverse proxy (Nginx / Caddy) with a real cert.

4. Black screen after entering desktop

Try in order: restart → status → logs --tail 200 → upgrade.

5. Container restart loop

Common causes: missing .env parameters, directory permission issues, port conflicts. Re-run install or change ports.

6. macOS chown: Operation not permitted

This warning may appear on Apple Silicon Macs for certain mount paths. If the container runs fine, it can be safely ignored.

7. Why Chromium instead of Chrome?

1. Multi-arch -- Google does not ship ARM64 Chrome; Chromium supports both x86_64 and arm64
2. License -- Chrome includes proprietary components (DRM, etc.) unsuitable for public images
3. Clean dependencies -- apt install chromium integrates cleanly with system libraries

8. Too many logs

Use logs --tail 200 for recent output, logs --tail 50 to quickly spot errors.

Star History

License

MIT
