MCP Auth Adapter

An OAuth/OIDC authentication adapter for Model Context Protocol (MCP) clients. It sits in front of any OAuth 2.0 / OIDC upstream IdP - such as Keycloak, Auth0, Okta, Azure AD, Google Identity, or any provider serving standard OAuth 2.0 / OIDC discovery metadata - and provides functionality required by the MCP Authorization specification for the most common MCP clients (Claude Code/Desktop, Cursor IDE, ChatGPT, Gemini CLI, VS Code, ...) and their known problematic behaviours.

MCP servers announce this adapter as their authorization server. MCP clients discover it via .well-known and interact with its endpoints. Authentication itself and token issuing are performed by the upstream IdP - this adapter is only a very thin, transparent, stateless facade.

MCP Spec Compatibility

• MCP Authorization Specification 2025-11-25 — v1.0 fully compatible
• MCP Authorization Specification 2026-07-28 RC — v2.0 fully compatible (adds mandatory RFC 9207 iss parameter validation)
• MCP OAuth Client Credentials extension — supported in v2.1 (passthrough to upstream IdP)
• MCP Enterprise-Managed Authorization extension — supported in v2.1 (passthrough to upstream IdP)

Features

• Well-known discovery - filtered, MCP-focused view of the upstream IdP metadata with injected adapter endpoints and tailored configurations. See Upstream Well-Known Handling.
• Open Dynamic Client Registration (DCR) (optional) - returns a pre-configured fixed client_id for all registering MCP clients per RFC 7591. See Open DCR and its Security Limitations.
• Scope filtering (optional) - intercepts authorization requests to modify scopes before redirecting to the upstream IdP.
• RFC 9207 iss parameter validation - mandatory authorization response issuer verification preventing OAuth mix-up attacks per the MCP Auth Spec. See RFC 9207 iss parameter validation.
• Resource parameter validation (optional) - validates the RFC 8707 resource parameter required by the MCP specification, with configurable enforcement, format checking, and allowlist filtering. See Resource Parameter Validation (RFC 8707).
• Client Credentials passthrough - transparently proxies client_credentials and JWT bearer grants to the upstream IdP per the MCP OAuth Client Credentials extension. See Client Credentials Passthrough.
• CIMD adapter (EXPERIMENTAL, optional) - accepts Client ID Metadata Document style client_id URLs, validates metadata documents, and maps them to upstream IdP client_ids. See CIMD Adapter.

See Flow Diagrams to understand functionality better.

Container Image

Pre-built container images are published to GitHub Container Registry on every release. This is the recommended way to deploy in production - no Node.js installation required.

Prerequisites: Docker or Podman

Pull and run

Podman is used in examples, but you can use docker command instead:

podman run -d --name mcp-auth-adapter \
  -p 3000:3000 \
  -e MCP_BASE_URL=https://mcp-auth.example.com \
  -e MCP_UPSTREAM_SSO_URL=https://sso.example.com/auth/realms/external \
  -e MCP_PROXY_DCR_CLIENT_ID=mcp-client \
  ghcr.io/velias/mcp-auth-adapter:latest

Or use an env file for all configuration (see Configuration below):

podman run -d -p 3000:3000 --env-file .env ghcr.io/velias/mcp-auth-adapter:latest

Available tags

Each release vX.Y.Z produces the following image tags:

• X.Y.Z - exact version (recommended for production)
• X.Y - latest patch within a minor version
• X - latest minor within a major version
• latest - most recent release

To build the image locally from source, see CONTRIBUTING.md.

npm Package

The adapter is published on npm and can be run directly with npx — no cloning or building required.

Prerequisites: Node.js >= 20.x, npx or npm

npx mcp-auth-adapter

Or install globally with npm install -g mcp-auth-adapter and run as mcp-auth-adapter.

Or install it into your Node.js project with npm install mcp-auth-adapter to use it.

Build from Source

Prerequisites: Node.js >= 20.x (uses native fetch), npm

npm install
npm run build

# Create .env from the template and edit it
cp .env.example .env

npm start

Configuration

Environment variables are used. All variables are prefixed with MCP_. A .env file in the project root is loaded automatically, explicit environment variables take precedence.

Variable	Required	Default	Description
			Core
MCP_BASE_URL	Yes	--	Public base URL of this adapter. Used as issuer (RFC 8414 §3.3) and to construct endpoint URLs. Must be http or https; trailing slashes are stripped automatically. Must exactly match what MCP servers advertise in their Protected Resource Metadata authorization_servers array.
MCP_UPSTREAM_SSO_URL	Yes	--	Base URL (issuer) of the upstream IdP. Must be http or https; trailing slashes are stripped automatically. Works with any OAuth 2.0 / OIDC provider. Discovery is attempted via /.well-known/openid-configuration, then /.well-known/oauth-authorization-server (RFC 8414); on failure, fallback endpoints are derived using Keycloak URL conventions (see below).
MCP_PORT	No	3000	Port this app listens on.
MCP_SHUTDOWN_TIMEOUT_SECONDS	No	30	Maximum seconds to wait for in-flight requests to drain after SIGTERM/SIGINT before force-exiting.
			Dynamic Client Registration
MCP_PROXY_DCR_CLIENT_ID	No	--	Fixed client_id returned by POST /register. Setting this enables the DCR proxy. Must be pre-registered at the upstream IdP as a public client. If omitted, the upstream IdP's registration endpoint is announced directly.
			RFC 9207 iss interception (auto-enables /authorize + /token proxy)
MCP_PROXY_AUTH_STATE_SECRET	Conditional	--	Hex-encoded HMAC secret for signing state blobs (min 32 bytes = 64 hex chars). Required when the /authorize proxy is active (scope filtering, CIMD, or standalone). Generate with openssl rand -hex 32. Must be identical across all pods.
MCP_PROXY_AUTH_STATE_SECRET_PREVIOUS	No	--	Previous HMAC secret for zero-downtime key rotation (same format). Set to the old key during rotation; remove after TTL has elapsed.
MCP_PROXY_AUTH_STATE_TTL_MINUTES	No	30	How long (minutes) the signed state blob remains valid. Must cover full user interaction at the upstream IdP (login + registration + MFA + consent).
MCP_PROXY_AUTH_ALLOWED_REDIRECT_URIS	Conditional	--	Comma-separated allowed redirect URI patterns. Trailing * = prefix match, no * = exact match. Required when /authorize proxy is active (unless CIMD-only). See known MCP client patterns for common values.
			Scope filtering (auto-enables /authorize proxy)
MCP_PROXY_AUTH_SCOPES_REMOVED	No	--	Comma-separated scopes to strip from /authorize requests (e.g. offline_access). Ignored if MCP_PROXY_AUTH_SCOPES_PRESERVED is also set.
MCP_PROXY_AUTH_SCOPES_PRESERVED	No	--	Comma-separated scopes to keep in /authorize requests; all others are stripped. Takes precedence over MCP_PROXY_AUTH_SCOPES_REMOVED.
			Well-known discovery
MCP_WELL_KNOWN_SCOPES_SUPPORTED	No	--	Comma-separated scopes to announce in scopes_supported. If empty, the field is omitted. Note: some MCP clients request all announced scopes -- this controls announced scopes, not forwarded scopes.
MCP_WELL_KNOWN_REFRESH_MINUTES	No	60	How often (in minutes) to re-fetch the upstream well-known document.
			CIMD adapter (EXPERIMENTAL, auto-enables /authorize proxy + /token proxy)
MCP_PROXY_CIMD_MAP	No	--	JSON object mapping CIMD URLs to upstream IdP client_ids. Format: {"<cimd_url>":"<upstream_client_id>", ...}. N:1 mapping supported. CIMD auto-enables when this is non-empty or MCP_PROXY_CIMD_DEFAULT_CLIENT_ID is set.
MCP_PROXY_CIMD_DEFAULT_CLIENT_ID	No	--	Fallback upstream client_id for CIMD URLs not in the map. If unset, unknown CIMD URLs are rejected with 403 (strict allowlist).
MCP_PROXY_CIMD_CACHE_MINUTES	No	30	Cache TTL (in minutes) for validated CIMD metadata documents.
			Resource Parameter Validation (RFC 8707)
MCP_PROXY_AUTH_REQUIRE_RESOURCE	No	false	Reject /authorize and /token requests missing the RFC 8707 resource parameter. Enable for strict MCP spec compliance; leave disabled if MCP clients don't yet include it.
MCP_PROXY_AUTH_ALLOWED_RESOURCES	No	--	Comma-separated allowed resource URI patterns. Trailing * = prefix match, *.domain.com = domain wildcard (matches domain and all subdomains), no * = exact match. When set, resource must match a pattern; unmatched values are rejected with 400.
			Observability
MCP_ACCESS_LOG	No	true	Emit per-request access logs at info level with client identification (User-Agent, method, path, IP, plus route-specific fields). Set to false to disable.
MCP_METRICS_ENABLED	No	true	Enable Prometheus metrics endpoint (GET /metrics) and request instrumentation. Set to false to disable (zero overhead).
MCP_DEBUG	No	false	Emit structured debug logs for every request.

Open DCR and its Security Limitations

MCP Clients need a way to get client_id necessary to login through the upstream IdP.
You can use Open DCR functionality of this adapter if your IdP does not provide it, or if you do not want to use it.

The Open DCR endpoint returns a fixed public client_id (token_endpoint_auth_method: none) to be used by MCP Clients.
But as many MCP Clients are local apps, any local application can obtain this client_id and start an OAuth flow.
IdP do not know who is asking for the client_id. Two emerging standards address this:

• DCR with Software Statement Assertion (SSA) - cryptographically proves client identity via signed JWTs (RFC 7591 §2.3). No major MCP client currently includes Software Statements in DCR requests.
• Client ID Metadata Documents (CIMD) - the client_id is an HTTPS URL pointing to a metadata document. Default mechanism in the MCP Auth Spec (2025-11-25), not yet universally adopted. This adapter includes experimental CIMD support - see CIMD Adapter.

Until "DCR with SSA" or CIMD is widely supported, user consent during login at the upstream IdP is the last line of defense. This is an accepted limitation of the MCP auth ecosystem.

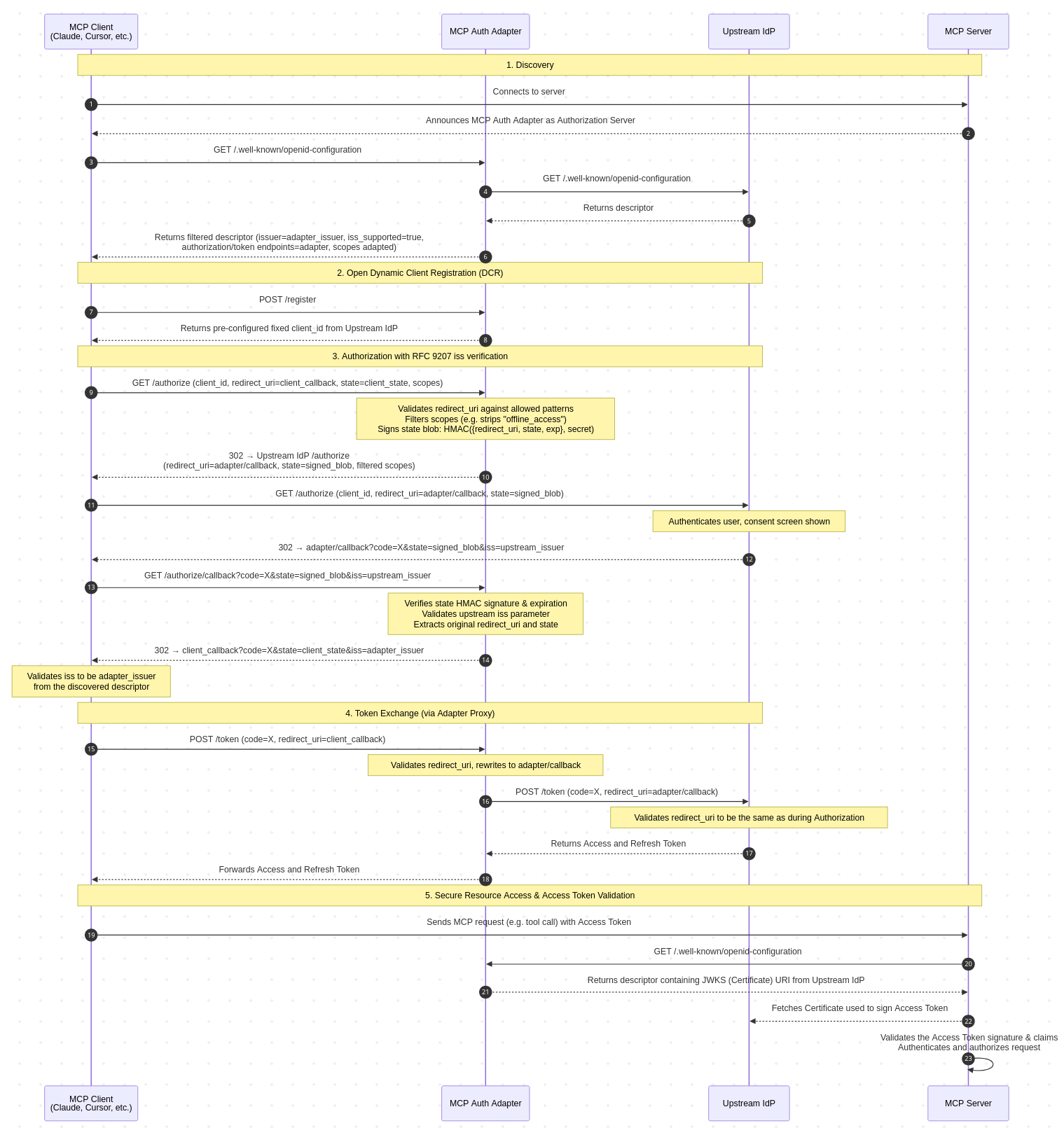

RFC 9207 iss parameter validation

The MCP Auth Spec (2026-07-28 RC) mandates iss parameter validation in authorization responses per RFC 9207. Without authorization callback interception, MCP clients would reject the upstream IdP's iss value because it doesn't match the adapter's well-known issuer.

This adapter solves the problem in v2.0 by intercepting the authorization response:

1. GET /authorize — validates the client's redirect_uri against configured patterns, wraps the original redirect_uri and state into an HMAC-signed state blob, replaces redirect_uri with the adapter's callback URL, and redirects to the upstream IdP with own state.
2. GET /authorize/callback — receives the upstream IdP's redirect, verifies the state blob (HMAC + expiry), validates the upstream iss parameter, then redirects to the original MCP client redirect_uri with the adapter's iss value.
3. POST /token — proxies token requests, validating and rewriting redirect_uri to maintain consistency with what the upstream IdP expects by the OAuth specification.

Minimal configuration:

MCP_BASE_URL=https://mcp-auth.example.com
MCP_UPSTREAM_SSO_URL=https://sso.example.com/auth/realms/external
MCP_PROXY_AUTH_STATE_SECRET=$(openssl rand -hex 32)
MCP_PROXY_AUTH_ALLOWED_REDIRECT_URIS=http://localhost:*,http://127.0.0.1:*

Key rotation — to rotate the HMAC secret without downtime:

1. Set MCP_PROXY_AUTH_STATE_SECRET_PREVIOUS to the current key
2. Set MCP_PROXY_AUTH_STATE_SECRET to the new key
3. Wait at least MCP_PROXY_AUTH_STATE_TTL_MINUTES (default 30 min)
4. Remove MCP_PROXY_AUTH_STATE_SECRET_PREVIOUS

Security properties:

• Signed state prevents forging the original redirect_uri; MCP_PROXY_AUTH_ALLOWED_REDIRECT_URIS validates destinations before the flow begins
• Client's original state is preserved inside the blob — tampering is detected via HMAC (crypto.timingSafeEqual)
• Configurable TTL prevents reuse of stale authorization responses
• Two-tier upstream iss validation — strict when upstream advertises RFC 9207 support, defensive (validate if present) when it doesn't
• Callback only forwards a whitelist of OAuth-defined parameters — arbitrary upstream parameters cannot reach the client
• redirect_uri values with fragments, userinfo, or control characters are rejected
• Callback sets Cache-Control: no-store and Referrer-Policy: no-referrer
• Authorization code is never logged (only code_present: true/false)
• State blob is signed, not encrypted — contains redirect_uri and original state (both non-secret); confidentiality relies on TLS and short TTL

Resource Parameter Validation (RFC 8707)

RFC 8707 defines the resource parameter for OAuth 2.0, binding tokens to a specific resource server audience. The MCP specification (2025-06-18+) mandates that clients include resource in both /authorize and /token requests to prevent confused deputy attacks.

Validation layers

1. Debug logging (always active) — resource value (or MISSING) appears in per-request debug logs. Enable with MCP_DEBUG=true; grep for resource=MISSING to find non-compliant clients.

2. Format validation (always active when parameter present) — resource must be a valid absolute URI with http or https scheme and no fragment per RFC 8707 §2. Malformed values are rejected with 400 invalid_request.

3. Optional strict enforcement:

   • MCP_PROXY_AUTH_REQUIRE_RESOURCE=true — rejects requests missing resource
   • MCP_PROXY_AUTH_ALLOWED_RESOURCES — comma-separated URI patterns (trailing * = prefix match) restricting which MCP servers can authenticate through the adapter

Configuration examples:

# Permissive (default) — format validation only, log missing values
MCP_DEBUG=true

# Strict — require resource parameter and restrict to known MCP servers
MCP_PROXY_AUTH_REQUIRE_RESOURCE=true
MCP_PROXY_AUTH_ALLOWED_RESOURCES=https://mcp-tools.example.com/*,https://mcp-data.example.com/mcp

# Domain wildcard — match a domain and all its subdomains
MCP_PROXY_AUTH_ALLOWED_RESOURCES=https://*.corp.example.com/*,https://mcp-data.example.com/mcp

Notes

• Client support: MCP client support for resource varies (Claude Code/Desktop, VS Code, Cursor IDE, SDKs are at different stages of adoption). Recommendation: start with MCP_PROXY_AUTH_REQUIRE_RESOURCE=false and monitor logs before enabling enforcement.

• Upstream IdP compatibility: The adapter validates resource locally and passes it through to upstream IdP. Whether the IdP actually binds the token audience depends on its RFC 8707 support: Keycloak has experimental support since v26.6.0 (requires per-client configuration); Auth0, Okta, and Microsoft Entra ID silently ignore it as of mid-2026. Token audience validation remains the MCP server's responsibility and must be implemented accordingly.

• refresh_token exemption: The adapter skips resource validation for refresh_token grants per RFC 8707 §2.2 — the original token's audience binding still applies.

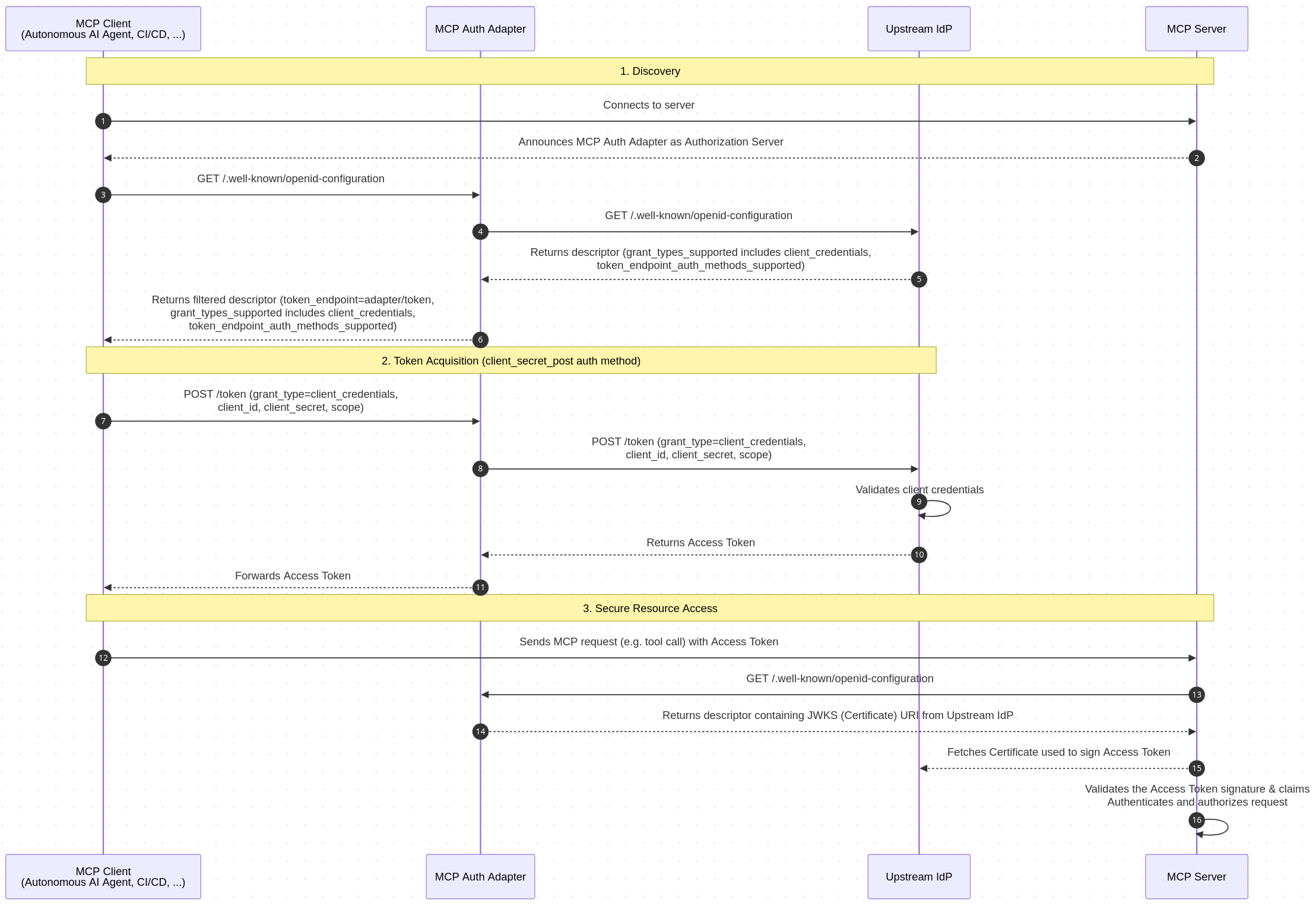

Client Credentials Passthrough

The adapter transparently proxies OAuth 2.0 client credentials requests to the upstream IdP, supporting the MCP OAuth Client Credentials extension. This enables machine-to-machine authentication for MCP without interactive user authorization.

Supported credential formats

• Client Secrets (grant_type=client_credentials) — supports both client_secret_post (credentials in the request body) and client_secret_basic (credentials in the Authorization: Basic header per RFC 6749 §2.3.1).
• JWT Bearer Assertions (grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer) — forwards the assertion parameter and any client_assertion/client_assertion_type parameters to the upstream IdP.

How it works

The token proxy forwards all request parameters to the upstream IdP without modification. No redirect_uri validation or rewriting is applied (those only affect authorization_code grants). The Authorization header is forwarded for non-CIMD requests.

Discovery

The adapter includes client_credentials in grant_types_supported in its well-known metadata (both in the fallback document and as a default when the upstream omits the field). The token_endpoint_auth_methods_supported field passes through from the upstream IdP — if the upstream advertises client_secret_post, client_secret_basic, or private_key_jwt, clients will discover them. The fallback document (used when the upstream cannot be reached) includes client_secret_basic, client_secret_post, and none.

JWT Bearer Assertion aud Caveat

When using JWT bearer assertions (RFC 7523), the client constructs a signed JWT with an aud (audience) claim set to the authorization server's token endpoint URL. Since MCP clients discover this adapter as the authorization server, they set aud to {MCP_BASE_URL}/token.

When the adapter proxies this assertion to the upstream IdP, the upstream validates aud against its own token endpoint URL. This mismatch causes the upstream to reject the assertion.

Workaround 1 (recommended): Configure the upstream IdP to accept the adapter's token endpoint URL ({MCP_BASE_URL}/token) as a valid audience for JWT client assertions. In Keycloak, this can be configured per-client under "Credentials > Client Authenticator > Signed JWT > Valid Audiences". Other IdPs have similar settings. This is transparent to clients — no client-side changes required.

Workaround 2: Configure the client to use the upstream IdP's token endpoint URL directly as the aud claim, rather than deriving it from discovery. This is valid per RFC 7523 — the upstream IdP is the real authorization server, the adapter is just a proxy. Limitations:

• Requires the client to have out-of-band knowledge of the upstream IdP's token endpoint URL
• Standard MCP SDK implementations (e.g. PrivateKeyJwtProvider) typically derive aud from the discovered token_endpoint automatically — overriding this requires using lower level client code
• Couples the client to the deployment's internal architecture

This limitation is inherent to proxying JWT assertions and does not affect the client secrets flow.

Enterprise-Managed Authorization Passthrough

The adapter is compatible with the Enterprise-Managed Authorization extension (io.modelcontextprotocol/enterprise-managed-authorization). This extension uses the urn:ietf:params:oauth:grant-type:jwt-bearer grant type with an ID-JAG (Identity Assertion JWT Authorization Grant) assertion, which the token proxy already forwards transparently to the upstream IdP.

The adapter does not validate or inspect ID-JAG assertions — that is the upstream authorization server's responsibility.

Requirements: The upstream IdP must support JWT bearer assertions (RFC 7523) and be configured to validate ID-JAG tokens from the enterprise IdP. No adapter-specific configuration is needed.

CIMD Adapter (EXPERIMENTAL)

Status: Based on draft-ietf-oauth-client-id-metadata-document-01 (March 2026), an IETF Internet-Draft not yet at RFC status. This implementation may change as the spec evolves.

When configured, the adapter bridges MCP clients using CIMD-style client_id (HTTPS URLs) to upstream IdPs that don't support CIMD natively:

1. Validates CIMD URL syntax per the spec (Section 3)
2. Checks if the client is allowed in the configuration (map lookup + optional default) - rejects unknown clients before any I/O
3. Fetches and validates the CIMD metadata document (with SSRF protections and caching)
4. Validates redirect_uri against the document's redirect_uris (exact match per RFC 9700)
5. Substitutes the CIMD client_id with a pre-registered upstream IdP client_id
6. Forwards the request to the upstream IdP

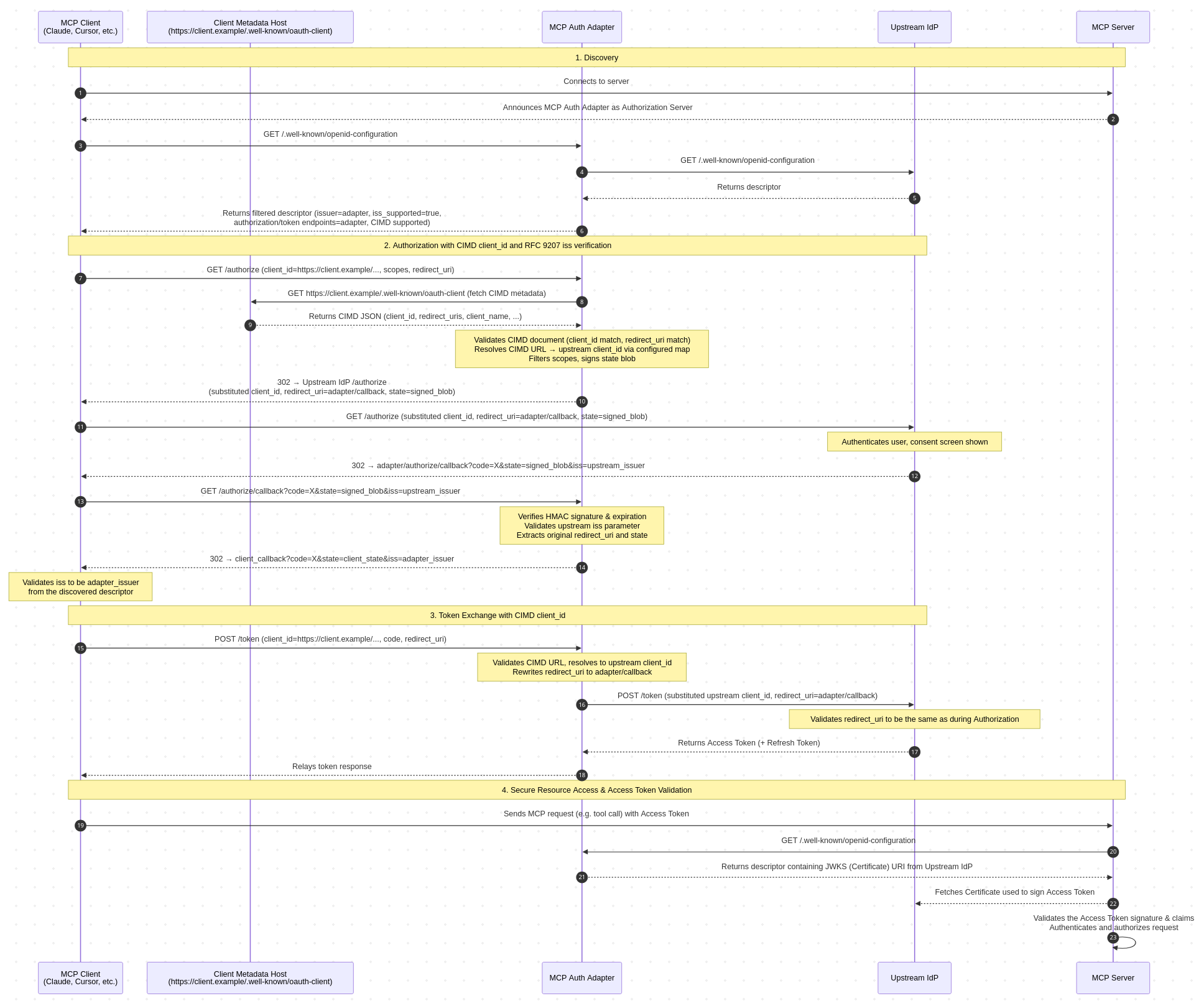

See flow diagram.

Configuration example:

MCP_PROXY_CIMD_MAP='{"https://cursor.com/.well-known/oauth-client.json":"cursor-sso-client","https://claude.ai/.well-known/oauth-client.json":"claude-sso-client"}'
MCP_PROXY_CIMD_DEFAULT_CLIENT_ID=generic-mcp-client

When CIMD is enabled, the well-known document is modified to:

• Advertise client_id_metadata_document_supported: true
• Rewrite token_endpoint to this adapter's /token proxy
• Ensure token_endpoint_auth_methods_supported includes "none"

Upstream IdP client registration: Each upstream client_id in MCP_PROXY_CIMD_MAP must be pre-registered at the upstream IdP as a public client (token_endpoint_auth_method: none). For redirect URI configuration, see Redirect URIs at the upstream IdP.

Why configure separate upstream clients per MCP client? Dedicated upstream clients per CIMD URL enable distinct consent screens (e.g. "Cursor IDE" vs "Claude Code"), letting users make informed decisions and administrators revoke access per MCP client independently.

CIMD Security Considerations

• Token azp mismatch: Issued tokens contain the upstream client_id in the azp claim, not the CIMD URL the MCP client sent. This works only if MCP client validates azp against its own client_id. If a future client does, tokens would appear invalid - an inherent limitation of client_id substitution that requires native IdP CIMD support to resolve.
• SSRF protection: DNS resolution checks (rejects private/loopback/link-local IPs including IPv6-mapped IPv4), no redirect following, 5KB response size limit, 5-second timeout.
• DNS rebinding caveat: A TOCTOU gap exists between the DNS check and the actual fetch connection. The cache mitigates this by limiting repeated fetches.
• Cache isolation: Configured (mapped) clients are pinned in cache and cannot be evicted by an attacker flooding unknown CIMD URLs. Unpinned cache is capped at 1000 entries.
• Allowlist-first: When MCP_PROXY_CIMD_DEFAULT_CLIENT_ID is not set, only mapped CIMD URLs are allowed; unknown URLs are rejected without any outbound fetch.
• Token proxy: Relays token requests to the upstream IdP with client_id substitution, body size limits, timeouts, response size limits, and header whitelisting.

Token Issuer Validation

Note: The RFC 9207 iss parameter in authorization responses is handled correctly. The caveat below applies to JWT iss claims inside tokens, which is a separate concern.

This adapter rewrites issuer in well-known discovery metadata to its own MCP_BASE_URL, but tokens are issued by the upstream IdP — they are signed by upstream IdP signature, and their JWT iss claim (if upstream IdP issues JWT tokens) contains the upstream IdP issuer.

MCP servers and clients must not validate the access token JWT iss claim against this adapter's discovery issuer.

In practice this is not a problem. Most OAuth libraries primarily validate tokens via JWKS signature verification, not by comparing the JWT iss claim against discovery metadata.

All major MCP clients we tested work correctly.

Token validation in the MCP Server:

1. JWKS signature verification — the adapter's discovery metadata jwks_uri points to the upstream IdP's JWKS, so signature verification cryptographically proves the token's origin correctly. Discovery metadata can, and should, be used here to get jwks_uri. This is OAuth compliant token origin verification behaviour.
2. Validate iss claim against the upstream IdP URL — JWT iss claim validation is required by the OIDC spec. If you want this behaviour, explicitly configure the MCP server with upstream IdP issuer and validate against this configuration, do not validate against issuer from the discovery metadata.

Known MCP Client Behaviors

MCP clients interact with OAuth/OIDC in ways that can cause issues with upstream IdPs not specifically designed for MCP. This adapter addresses the most common known problems.

Clients request all announced scopes

MCP clients read scopes_supported from the IdP well-known document and include all of them in the /authorize request. When an upstream IdP announces dozens of scopes, the authorization request balloons with scopes the MCP server doesn't need — confusing users on the consent screen or causing outright rejection by the upstream IdP if some scopes require pre-approval for clients.

Mitigation 1 — control what's announced:

# Only announce scopes your MCP servers actually need
MCP_WELL_KNOWN_SCOPES_SUPPORTED=openid,api.read,api.write

This replaces the upstream scopes_supported in discovery, so greedy clients only see (and request) what you intend.

Mitigation 2 — filter scopes at the authorize proxy:

Even if you cannot control what's announced (e.g. you need scopes_supported to reflect the full upstream list for other consumers), the authorize proxy can strip unwanted scopes before forwarding to the upstream IdP:

# Remove specific problematic scopes from authorize requests
MCP_PROXY_AUTH_SCOPES_REMOVED=roles,web-origins,microprofile-jwt

# Or use an allowlist — only these scopes reach the upstream IdP
MCP_PROXY_AUTH_SCOPES_PRESERVED=openid,api.read,api.write

This catches scopes regardless of whether the client added them from the discovery document or hardcoded them.

Clients always request offline_access scope

Some MCP clients (e.g. Claude Code, Cursor IDE) unconditionally add offline_access to every authorization request to obtain refresh tokens. This can be problematic if the upstream IdP requires admin consent for offline tokens, rejects unknown scopes, or your policy restricts long-lived refresh tokens. Use MCP_PROXY_AUTH_SCOPES_REMOVED=offline_access to strip it before forwarding.

Combining both controls

MCP_WELL_KNOWN_SCOPES_SUPPORTED controls the demand side (what clients see and request), while MCP_PROXY_AUTH_SCOPES_REMOVED / MCP_PROXY_AUTH_SCOPES_PRESERVED controls the supply side (what actually reaches the upstream IdP). Using both provides defense in depth.

Deployment Notes

Upstream IdP Client Registration

Every client_id used by this adapter (both the DCR client and each CIMD-mapped client) must be pre-registered at the upstream IdP with the following settings:

Setting	Value	Reason
Client type	Public	MCP clients cannot hold secrets (token_endpoint_auth_method: none)
Consent	Enabled (required)	User consent is the primary security control -- it lets users see which application is requesting access and decide whether to grant it
Standard flow	Enabled	Authorization code flow is the only flow used by MCP clients
Allowed scopes		Must cover all the scopes required by MCP servers using this adapter, mainly those requiring pre-approval

Note on Client Credentials: The table above applies to interactive MCP clients (authorization code flow). For machine-to-machine access via the Client Credentials passthrough, separate confidential clients must be registered at the upstream IdP — one per calling system — with client_credentials grant enabled. Each system receives its own client_id and client_secret (or key pair for private_key_jwt). These clients are managed entirely outside the adapter — the adapter simply proxies token requests to the upstream IdP.

Redirect URIs at the upstream IdP

With iss interception active (v2.0+, recommended), the adapter intercepts all authorization responses. The upstream IdP only ever sees a single redirect URI — the adapter's callback. This greatly simplifies IdP configuration.

What to register at the upstream IdP:

Deployment mode	Allowed redirect URI at upstream IdP
Any mode with iss interception (v2.0+)	{MCP_BASE_URL}/authorize/callback (single value, applies to all client_ids)
Legacy (pre-v2.0, no iss interception)	All MCP client patterns from the table below

How MCP client redirect URIs are validated (v2.0+):

The adapter validates the MCP client's redirect_uri before the user ever reaches the upstream IdP:

Client type	Validated against	Configuration
DCR clients (non-CIMD)	MCP_PROXY_AUTH_ALLOWED_REDIRECT_URIS patterns	Set to known MCP client patterns below
CIMD clients	redirect_uris field in the client's CIMD metadata document	Automatic, no adapter config needed

Known MCP client redirect URI patterns

Common MCP client redirect URIs — non-authoritative hints, please verify at deployment time:

Pattern	MCP Clients
http://localhost:*	Claude Code, Claude Desktop, Gemini CLI, Codex CLI, Codex App, Goose, Windsurf, Zed, Warp (CLI agents), Amazon Q CLI, MCP Inspector
http://127.0.0.1:*	VS Code
https://claude.ai/api/mcp/auth_callback	Claude.ai (web)
https://claude.com/api/mcp/auth_callback	Claude.com (web)
https://chatgpt.com/connector_platform_oauth_redirect	ChatGPT (web)
https://chatgpt.com/connector/oauth/*	ChatGPT (web)
cursor://anysphere.cursor-mcp/*	Cursor IDE
https://insiders.vscode.dev/*	VS Code Insiders (web)
https://vscode.dev/*	VS Code (web)
warp://mcp/*	Warp
vscode://saoudrizwan.claude-dev/*	Cline

Note: MCP clients on localhost/127.0.0.1 use ephemeral ports and varying paths, so your IdP must allow any port and any path for these origins (i.e. use wildcard or prefix matching).

Horizontal Scaling / Multi-Pod

The adapter is fully stateless - the only shared secret is MCP_PROXY_AUTH_STATE_SECRET (and optionally MCP_PROXY_AUTH_STATE_SECRET_PREVIOUS), which must be identical across all replicas.

Authorization State blob verification uses absolute timestamps, so pod clocks must be reasonably synchronized (NTP is sufficient; a few seconds of drift is tolerable within the TTL window).

TLS

RFC 7591 §5 requires TLS for the DCR registration endpoint. With iss interception enabled, authorization codes transit through the adapter (in the /authorize/callback redirect) - https is critical to prevent codes from being exposed on the wire. In production, TLS should be terminated at the reverse proxy / load balancer in front of this application and
MCP_BASE_URL should be always https://!

Caching

Well-known endpoints return Cache-Control: public, max-age=<seconds> (half of MCP_WELL_KNOWN_REFRESH_MINUTES). DCR, /authorize/callback, and /token return Cache-Control: no-store. CDNs must honor origin cache headers to ensure clients receive up-to-date discovery documents and never cache authorization responses or tokens.

Rate Limiting

Publicly accessible endpoints that should be rate-limited: POST /register (open DCR, RFC 7591 §3), GET /authorize, GET /authorize/callback, and POST /token. This adapter does not implement app-level rate limiting - use an external WAF or reverse proxy (e.g. nginx, Cloudflare, Akamai).

CORS

This adapter intentionally does not set CORS headers. All endpoints are designed for server-to-server or redirect-based flows — none require browser XMLHttpRequest/fetch access from a different origin. The absence of CORS headers also provides a CSRF defense layer for the DCR endpoint. If your deployment requires browser-based access, configure CORS at the reverse proxy layer.

Exposed Endpoints

The adapter serves the following paths. Your reverse proxy (Ingress, nginx, HAProxy, etc.) must route public paths to the adapter and block internal paths from external access:

Path	Exposure	Notes
/.well-known/openid-configuration	Public	Discovery
/.well-known/oauth-authorization-server	Public	Discovery (RFC 8414)
/register	Public	DCR (if enabled)
/authorize	Public	Authorization proxy
/authorize/callback	Public	ISS interception callback (v2.0+)
/token	Public	Token proxy (v2.0+)
/health/live, /health/ready	Internal only	Kubernetes probes
/metrics	Internal only	Prometheus scraping (if enabled)

Internal endpoints are unauthenticated — keep them behind cluster-internal networking, not on public ingress. They expose only operational data (no tokens, client_ids, or user data).

Upstream IdP Compatibility

Review startup logs for warnings prefixed with Upstream IdP compatibility: — these indicate the upstream IdP may not fully support MCP requirements. See Upstream Well-Known Handling for details on fallback behavior and compatibility validation.

Health Probes

Endpoint	Purpose	Response
GET /health/live	Liveness - process is running, HTTP listener responsive	200 always
GET /health/ready	Readiness - application initialized, ready to serve	200 normally, 503 during graceful shutdown

Both are mounted before body-parsing middleware. Neither checks upstream IdP availability - the adapter is functional even with fallback defaults.

Graceful Shutdown

On SIGTERM or SIGINT the adapter:

1. Marks itself not-ready (/health/ready returns 503) so the load balancer stops sending new traffic.
2. Stops accepting new connections.
3. Drains in-flight requests until complete (or MCP_SHUTDOWN_TIMEOUT_SECONDS elapses, default 30 s, then force-exits).
4. Clears the periodic well-known refresh timer.

Logging

Application logs

The adapter emits structured logs to stdout (info, debug) and stderr (warn, error) in a machine-parseable key=value format. All values are consistently double-quoted for uniform parsing (any " within a value is replaced with '):

ts="2025-06-01T12:00:00.000Z" level="info" msg="MCP Auth Adapter started" port="3000" baseUrl="http://localhost:3000"

Level	Output	When
info	stdout	Startup, upstream refresh success, shutdown lifecycle, per-request access logs (when MCP_ACCESS_LOG=true)
warn	stderr	Upstream fetch failures (fallback kept), config conflicts, IdP compatibility issues
error	stderr	Unhandled request errors, upstream request failures, fatal startup errors
debug	stdout	Detailed per-request internals (rejection reasons, redirect targets, scope mutations), discovery fetch attempts — only when MCP_DEBUG=true

All levels except debug are always active. Set MCP_DEBUG=true to enable verbose per-request logging — useful for development and troubleshooting but noisy for production.

No log aggregation agent or format is assumed — the structured key=value lines with consistent double-quoting are compatible with most log collectors (Fluentd, Promtail, Vector, CloudWatch, etc.) and can be parsed with standard key=value splitters (e.g. Splunk kvextract).

Access logs

Per-request access logs are emitted at info level when MCP_ACCESS_LOG=true (default). Each functional route logs one line per request after the response is sent, with client identification, route-specific fields, and the HTTP response status code:

ts="2026-07-02T14:05:00.000Z" level="info" msg="authorize request" method="GET" path="/authorize" ip="::ffff:127.0.0.1" userAgent="claude-code/2.1.128 (cli)" scope="openid" clientId="mcp-client" redirectUri="http://localhost:8080/callback" responseType="code" codeChallengeMethod="S256" statePresent="true" resource="https://mcp.example.com/api" status="302"
ts="2026-07-02T14:05:01.000Z" level="info" msg="token proxy request" method="POST" path="/token" ip="::ffff:127.0.0.1" userAgent="Cursor" clientId="mcp-client" grantType="authorization_code" hasAuthHeader="false" resource="https://mcp.example.com/api" status="200"
ts="2026-07-02T14:05:02.000Z" level="info" msg="DCR register request" method="POST" path="/register" ip="::ffff:127.0.0.1" userAgent="claude-code/2.1.128 (cli)" clientName="Claude" softwareId="com.anthropic.claude" scope="openid offline_access" grantTypes="authorization_code,refresh_token" redirectUriCount="1" status="201"

Fields per route:

Route	Fields (beyond common)
All routes	method, path, ip, userAgent, status
/authorize	scope, clientId, redirectUri, responseType, codeChallengeMethod, statePresent, resource
/authorize/callback	code_present, error, iss
/token	clientId, grantType, redirectUri, hasAuthHeader, resource
/register	clientName, softwareId, scope, grantTypes, redirectUriCount
/.well-known/*	(common fields only)

The userAgent field is the primary mechanism for identifying which MCP client is making a request. Known User-Agent values include claude-code/<version> (cli), Cursor, mcp-sdk-ts/<version>, and codex-mcp-client/<version>. The DCR endpoint additionally logs clientName and softwareId from the registration metadata (RFC 7591).

Set MCP_ACCESS_LOG=false to disable access logging entirely (e.g. if you rely on reverse proxy access logs and want to reduce log volume).

Metrics / Observability

The adapter exposes a GET /metrics endpoint in Prometheus text exposition format when MCP_METRICS_ENABLED=true (default). Set MCP_METRICS_ENABLED=false to disable entirely - no endpoint, no middleware, no-op instrumentation stubs, zero overhead.

Compatible with:

• OpenShift built-in monitoring (ServiceMonitor)
• Standalone Prometheus
• OpenTelemetry Collectors via the Prometheus receiver -- no application-side OTLP push needed; the OTel Collector scrapes /metrics and forwards to any backend

Exposed metrics

Metric	Type	Labels	Description
mcp_auth_http_requests_total	counter	method, path, status	Total HTTP requests to functional endpoints
mcp_auth_http_request_duration_seconds	histogram	method, path	Request duration (buckets: 5ms, 10ms, 50ms, 100ms, 500ms, 1s, 5s)
mcp_auth_upstream_refresh_total	counter	result	Upstream well-known refresh attempts (success / error)
mcp_auth_upstream_refresh_duration_seconds	gauge	--	Last upstream refresh duration
mcp_auth_upstream_refresh_last_success_timestamp	gauge	--	Unix timestamp of last successful refresh
mcp_auth_cimd_cache_operations_total	counter	result	CIMD cache lookups (hit / miss); only when CIMD is enabled
mcp_auth_cimd_cache_evictions_total	counter	--	CIMD cache evictions
mcp_auth_cimd_cache_size	gauge	--	Current CIMD cache entry count
mcp_auth_request_rejected_total	counter	route, reason, grant_type (token only), resource (when allowlist configured)	Requests rejected by input validation
mcp_auth_authorize_redirects_total	counter	resource (when allowlist configured)	Successful authorize redirects to upstream
mcp_auth_token_proxy_upstream_duration_seconds	histogram	grant_type, resource (when allowlist configured)	Token proxy upstream request duration; only when token proxy is active
mcp_auth_token_proxy_upstream_status_total	counter	status, grant_type, resource (when allowlist configured)	Token proxy upstream response status codes
process_uptime_seconds	gauge	--	Process uptime
process_resident_memory_bytes	gauge	--	Resident memory size
process_heap_used_bytes	gauge	--	V8 heap used
nodejs_eventloop_lag_seconds	gauge	--	Event loop lag (mean)

Label notes: The resource label uses the matched allowlist pattern (not the raw URI) to ensure bounded cardinality. It is only present when MCP_PROXY_AUTH_ALLOWED_RESOURCES is configured; otherwise it is omitted entirely. The grant_type label only appears for recognized grant types (authorization_code, refresh_token, client_credentials, jwt_bearer); unrecognized values are omitted to prevent cardinality attacks.

Instrumentation scope

Only functional endpoints are instrumented: /.well-known/*, /register, /authorize, /authorize/callback, /token. Health probes (/health/*), the /metrics endpoint itself, and unmatched paths are not tracked. All label values come from a small, fixed set (HTTP methods, known route patterns, status codes) — no unbounded cardinality growth.

Scraping configuration

For Prometheus auto-discovery via pod annotations, set prometheus.io/scrape: "true", prometheus.io/port: "3000", prometheus.io/path: "/metrics".

ServiceMonitor for OpenShift / Prometheus Operator:

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: mcp-auth-adapter
spec:
  selector:
    matchLabels:
      app: mcp-auth-adapter
  endpoints:
    - port: http
      path: /metrics

Upstream Well-Known Handling

The adapter fetches the upstream IdP's discovery document at startup (trying OIDC and RFC 8414 paths) but only exposes a strict whitelist of fields relevant to MCP. See Well-Known Field Filtering for details.

• Discovery fallback chain: The adapter tries /.well-known/openid-configuration first, then /.well-known/oauth-authorization-server (RFC 8414). If both fail, endpoints are derived from MCP_UPSTREAM_SSO_URL using Keycloak URL conventions (e.g. {issuer}/protocol/openid-connect/auth). This last-resort fallback is Keycloak-specific - for other IdPs the derived URLs will be incorrect. Capability fields default to safe minimums (e.g. code_challenge_methods_supported: ["S256"]).
• Flow-level defaults: When the upstream provides authorization_endpoint and token_endpoint but omits flow fields, the adapter injects: response_types_supported: ["code"], grant_types_supported: ["authorization_code", "client_credentials"], code_challenge_methods_supported: ["S256"]. Existing upstream values are never overridden.
• Periodic refresh: Re-fetches at the configured interval (default: 60 min). On success, the new document is used immediately. On failure, the previous document is kept.
• Compatibility validation: At startup and on each periodic refresh, the adapter validates the upstream document and logs Upstream IdP compatibility: warnings for:
  • Missing authorization_endpoint or token_endpoint (MCP authorization flow will not work).
  • Missing code_challenge_methods_supported (the adapter will advertise ["S256"] but if the upstream doesn't actually support PKCE, token exchange will fail).
  • code_challenge_methods_supported present but without S256 (MCP requires PKCE with S256).

Well-Known Field Filtering

The adapter only exposes a strict whitelist of upstream fields. New upstream fields are not automatically included - they must be added to UPSTREAM_WHITELIST_FIELDS in src/routes/well-known.ts.

Included fields

issuer, authorization_endpoint, token_endpoint, jwks_uri, registration_endpoint, scopes_supported, response_types_supported, response_modes_supported, grant_types_supported, token_endpoint_auth_methods_supported, token_endpoint_auth_signing_alg_values_supported, code_challenge_methods_supported, id_token_signing_alg_values_supported, subject_types_supported, claims_supported, introspection_endpoint, userinfo_endpoint, revocation_endpoint, authorization_response_iss_parameter_supported

Adapted fields

Field	Condition	Adaptation
issuer	Always	Replaced with MCP_BASE_URL per RFC 8414 §3.3
registration_endpoint	MCP_PROXY_DCR_CLIENT_ID set	Replaced with {MCP_BASE_URL}/register
authorization_endpoint	Auth proxy enabled	Replaced with {MCP_BASE_URL}/authorize
token_endpoint_auth_methods_supported	DCR or CIMD enabled	"none" injected if not already present
token_endpoint	Auth proxy enabled	Rewritten to {MCP_BASE_URL}/token
authorization_response_iss_parameter_supported	Auth proxy enabled	Set to true
client_id_metadata_document_supported	CIMD enabled	Set to true
scopes_supported	MCP_WELL_KNOWN_SCOPES_SUPPORTED set	Replaced with configured value; omitted if empty
response_types_supported	Upstream omits + auth flow present	Defaults to ["code"]
grant_types_supported	Upstream omits + auth flow present	Defaults to ["authorization_code", "client_credentials"]
code_challenge_methods_supported	Upstream omits + auth flow present	Defaults to ["S256"]

Excluded fields

Everything not in the whitelist above is automatically excluded — this includes OIDC session/logout, CIBA, device flow, PAR, JAR/JARM, mTLS, encryption, server-side auth endpoints, and misc claims fields. To expose an additional upstream field, add it to UPSTREAM_WHITELIST_FIELDS in src/routes/well-known.ts.

Flow Diagrams

Detailed interaction between different components when MCP Authentication happens.

Open DCR with iss interception and scopes filtering

CIMD (EXPERIMENTAL) with iss interception and scopes filtering

Client Credentials passthrough

Development

See CONTRIBUTING.md for development setup, testing, linting, and code style guidelines.

Security

An OWASP Top 10 security review was performed on 2026-05-15. No critical issues were found.

If you discover a security vulnerability, please report it responsibly via GitHub Security Advisories.

Known limitations

• State blob size: The signed state (containing original redirect_uri + state + expiry + HMAC, base64url-encoded) passes as the OAuth state query parameter. Very long client state values or redirect URIs could exceed IdP URL length limits. MCP clients typically use short state values, so this is unlikely to be an issue in practice.
• Secret rotation window: During rotation, if MCP_PROXY_AUTH_STATE_SECRET_PREVIOUS is not set, users mid-authentication receive a 400 and must restart the flow.
• Clock skew: State blob TTL verification uses absolute timestamps. Significant clock skew between pods (beyond normal NTP drift) can cause valid blobs to be rejected as expired.

Contributing

Contributions are welcome! Please see CONTRIBUTING.md for guidelines. All PRs must reference a GitHub issue, and new features should be discussed in an issue before implementation.

License

This project is licensed under the Apache License 2.0.

Disclaimer

This project is an independent, community-driven effort. It is not affiliated with, endorsed by, or connected to Anthropic or the Model Context Protocol project.
"Model Context Protocol" and "MCP" may be trademarks of their respective owners. Use of these names is solely for descriptive purposes to indicate compatibility.
